Denon AVR-S650H 5.2ch AV Receiver Manual

ItsManual — Sat, 25 Mar 2023 11:03:30 +0000

Denon AVR-S650H 5.2ch AV Receiver With Voice Control User Manual

UPGRADE TO IMMERSIVE HOME THEATER

Upgrade your home theater with 5.2 channel Denon AVR-S650H. Features 4K UHD, Dolby True HD, DTS-HD Master Audio, Dolby Vision™, HDR10, HLG, eARC support and HDMI (5 inputs / 1 output) to connect all your devices. Built-in Bluetooth and HEOS wireless multi-room music technology let you stream Spotify®, Pandora®, Tidal and more wirelessly throughout the home. Works with Apple AirPlay 2, Amazon Alexa and Google Assistant for seamless voice control. Get set up in minutes with the award-winning Denon Setup Assistant.

www.denon.com

High-Performance Discrete 5-Channel Amplifier
Featuring discrete high-current power amplifiers on all channels, the AVR-S650H delivers maximum performance and 150W per channel (6 ohms, 1 kHz, THD 10%, 1 ch driven). With low impedance driver capability, it offers operational stability with a wide range of speakers for balanced, quality sound.

Advanced HDMI Video Section with eARC Support
Enjoy your favorite movies, shows and games with the best picture quality available. The AVR-S650H features five HDMI inputs and one output that support full 4K Ultra HD, HDR10 (High Dynamic Range), BT.2020, Wide Color Gamut and 4:4:4 Pure Color sub-sampling. Dolby Vision compatibility and HLG (Hybrid Log-Gamma) provide exceptional brightness, contrast and color, and HDCP 2.3 processing lets you enjoy copy-protected content uninhibited. Enhanced Audio Return Channel (eARC) support enables transmission of Dolby True HD or DTS HD
Master Audio directly from the TV to the AV receiver through the connected HDMI cable.

Built-in Bluetooth and Wi-Fi Connectivity
With built-in Bluetooth and Wi-Fi wireless streaming connectivity, the Denon AVR-S650H is equipped with an advanced dual antenna transceiver system for robust streaming even in congested urban environments. Enjoy listening to your favorite audio content wirelessly from your smart devices.

Audyssey Suite of EQ Calibration Technology
Professional home theater audio tuning at your fingertips. The latest Denon audio/video products use the Audyssey suite of EQ software for simple, accurate set-up and calibration.
With the supplied measuring microphone, Audyssey measures all the speakers in your home theater, and tunes the AV receiver to provide the smoothest, most optimal overall listening experience for your room. Audyssey Dynamic Volume and Audyssey Dynamic EQ smooth out startling jumps in volume (such as TV commercials), letting you listen at lower levels and still enjoy clear dialogue, music, sound effects and precise tonal tailoring.

HEOS Built-in: Wireless Music Streaming
Enjoy your favorite music in any room of your home wirelessly with HEOS Built-in technology. Play the same song in every room or select a different song for each connected room — the choice is yours. HEOS works with Amazon Alexa and Google Assistant, providing effortless voice control. HEOS supports free and premium Spotify, Pandora, Amazon Music, TuneIn, iHeart Radio, Sound Cloud, SiriusXM, Tidal and more.

Works with Amazon Alexa
Control the AV receiver hands-free with Amazon Alexa and your voice. Adjust the volume, skip to the next track, switch inputs for your different media players and more — “Just Ask.” Download the free HEOS Home Entertainment Skill to enable Amazon Alexa voice commands for your AVR-S650H. Requires Alexa app and Amazon Echo, Dot or equivalent.

Easy Setup Experience
The included AVR-S650H Quick Start Guide provides simple, clear instructions for how to get started. Once you connect your TV to the AVR-S650H via HDMI, the exclusive Denon Setup Assistant appears on your TV screen to walk you through setup, step by step. The AVR-S650H automatically renames input source per HDMI info, and quick select offers one-push buttons for all zones. Color-coded speaker connections are laid out horizontally, making organizing and connecting speaker wires simple.

Smart TV Connectivity
Control the Denon AVR-S650H with your Smart TV remote via the HDMI CEC functionality associated with your Smart TV. Simply set “HDMI Control” to ON in your receiver, then set “Smart Menu” to ON and begin controlling the AVR-S650H with your TV remote. The Smart Menu home screen provides you quick access to source and surround mode selections, the AV receiver setup menu and four Smart Selects.

Quick Selects for User-Friendly Audio Tuning
The Denon AVR-S650H front panel features four Quick Select buttons that store your preferred audio settings for each source. Switch between TV audio, Blu-Ray, media players and more, and the AVR-S650H adjusts the EQ settings to your preferences for that media source. Use the buttons on the front panel or opt for the same Quick Selects on the AV receiver remote for faster control. Now allows for one-push all zone stereo mode via Quick Select.

Denon AVR Remote App for Seamless Control
Better control in your back pocket. The free Denon AVR Remote app for iOS and Android makes using the AVR-S650H even easier — adjust volume, turn it on or off, mute the music, select a source or switch to the HEOS app for wireless music streaming. Download the Denon AVR Remote app to your smartphone today. Available for iOS and Android.

Front USB Port for High-Resolution Audio
Discover the incredible fidelity of high-resolution audio tracks with the ability to decode up to 24-bit/192-kHz ALAC, FLAC and WAV lossless files as well as DSD 2.8MHz and 5.6MHz tracks (the audiophile format of SACD) via the front panel USB port and network sources. Or, listen to other popular file types such as MP3 and MPEG-H. Whether you want to listen to your latest download or soak in the fidelity of audiophile-quality FLAC recordings, you have quick access to your favorite songs.

Technical information

Ports

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by D&M Holdings Inc. is under license. Dolby, Dolby Atmos, Dolby Vision, and the double-D symbol are trademarks of Dolby Laboratories.

DTS, the Symbol, DTS in combination with the Symbol, DTS:X, and the DTS:X logo are registered trademarks or trademarks of DTS, Inc. in the United States and/or other countries.
The Spotify software is subject to third party licenses found here: www.spotify.com/connect/third-party-licenses.
Other trademarks and trade names are those of their respective owners. Denon is a trademark or registered trademark of D&M Holdings, Inc.
* All specs can be subject to change

Denon
1 Viper Way
Vista, CA 92081
www.denon.com

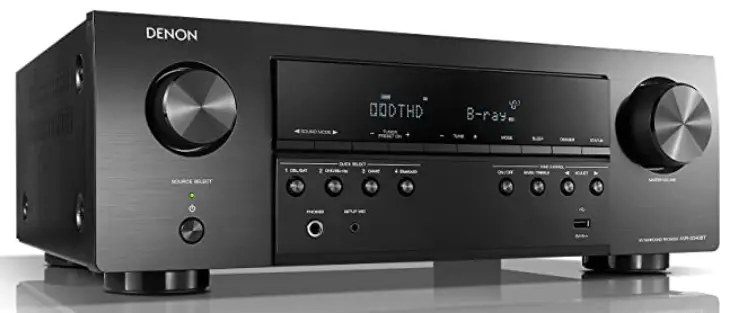

Denon AVR-S540BT Receiver, 5.2 channel Manual

ItsManual — Fri, 31 Mar 2023 18:15:28 +0000

Welcome
Thank you for choosing a Denon AV receiver. This guide provides step-by-step instructions for setting up your AV receiver.

Before You Begin

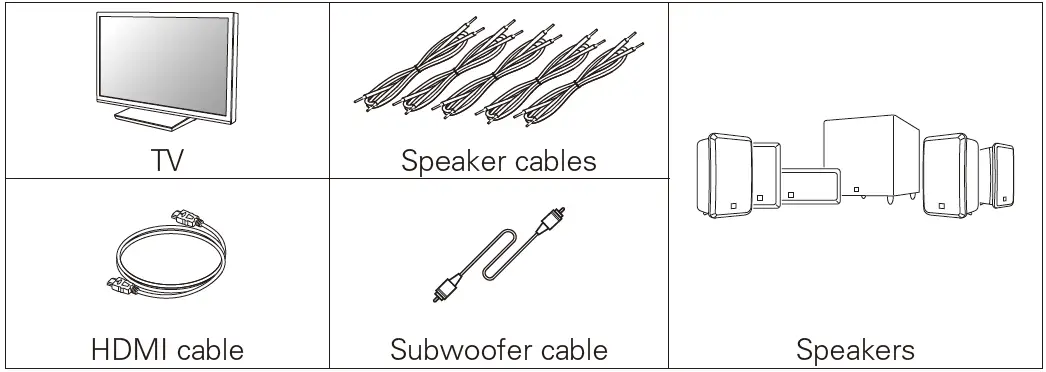

Required for Setup

Note

when connecting this unit to a device that is compatible with the Deep Color, 4K and ARC functions, use a “High-Speed HDMI cable with Ethernet” that displays the HDMI logo.
These drawings are for illustrative purposes only and may not represent the actual product(s).

What’s In the Box

Note

Using your own tripod enables settings to be automatically configured to the optimum listening environment, providing exceptionally high performance.

Setup

There are four steps to the setup process.

Installing batteries in the remote control unit
Connecting the receiver
Following the On-Screen Setup Assistant
Enjoying music using Bluetooth

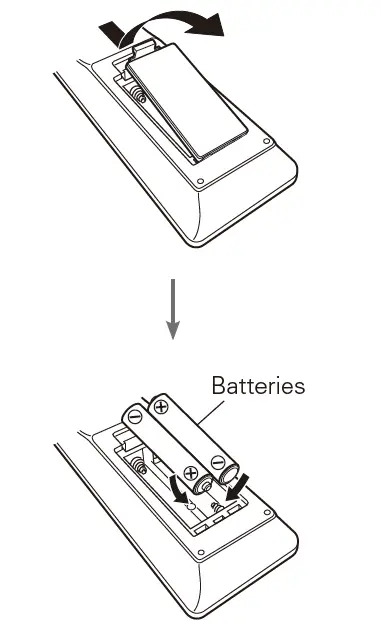

Installing batteries in the remote control unit

Connecting the receiver

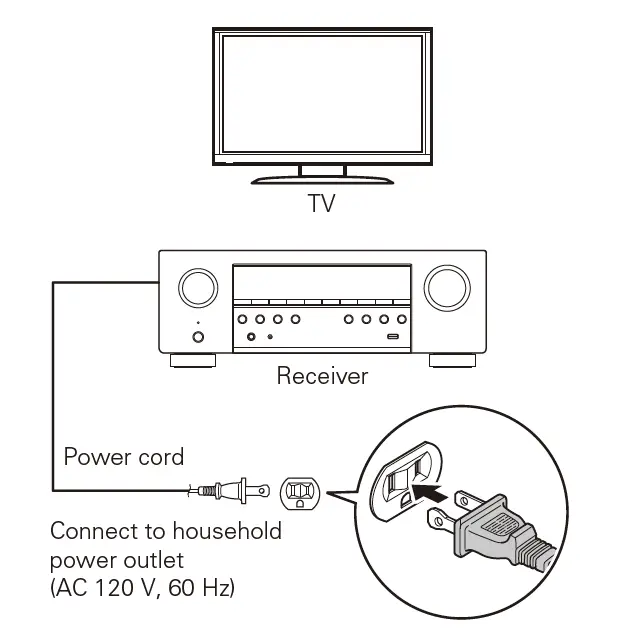

Place the receiver near your TV and connect the power cord

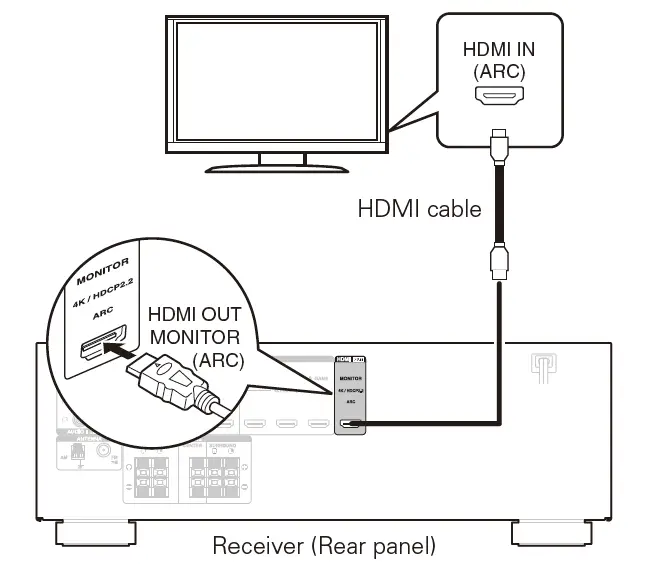

Connect the receiver to your TV with an HDMI cable
ARC (Audio Return Channel):
If your TV supports ARC, your TV can send audio back to the AV receiver when you are using your TV’s built-in video sources (TV tuner, Smart TV streaming services, etc…) ARC requires that you enable HDMI CEC on your TV. Please refer to your TV’s Owner’s Manual for instructions on how to setup HDMI CEC. Note that some TV manufacturers use other names for the HDMI CEC function.

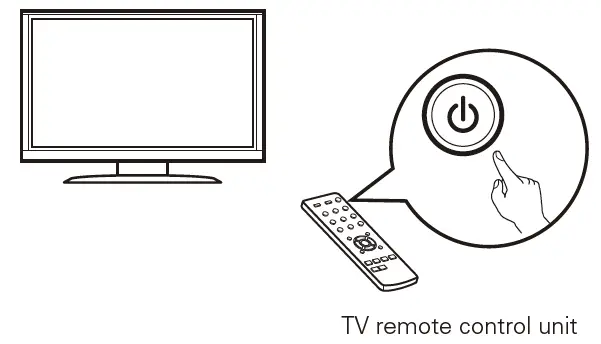

Turn on the TV

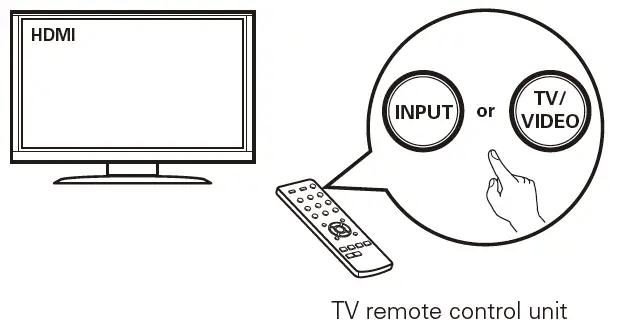

Select the appropriate HDMI input on your TV

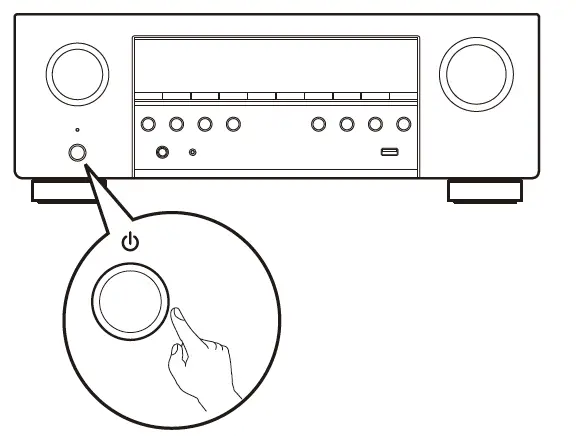

Turn on the receiver
1. Press POWER to turn on the receiver.

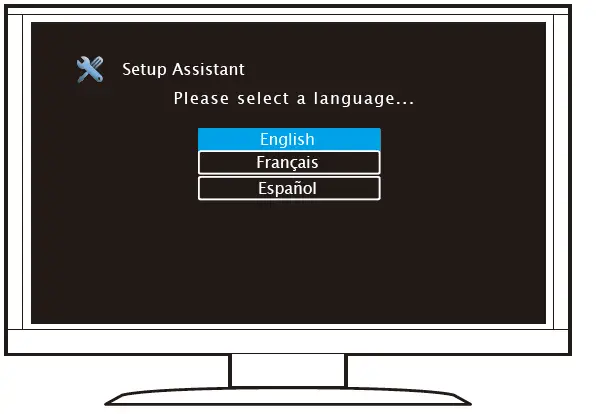

Verify the connection
- Verify that you can see this screen on your TV.

If this screen is not displayed, please go back and retry the steps again in the recommended sequence.

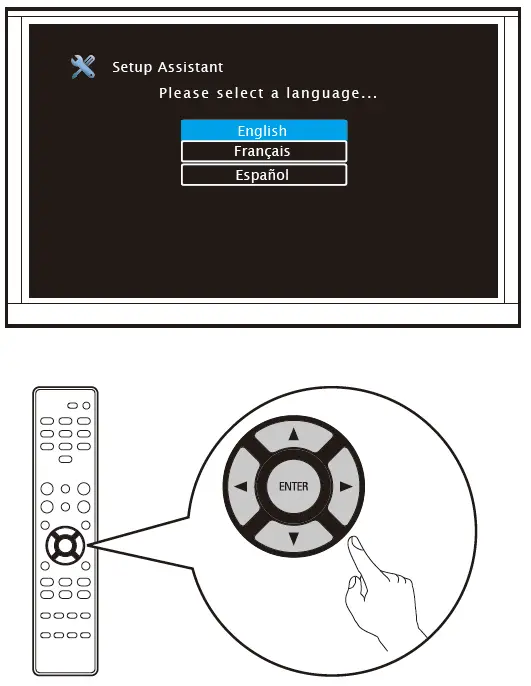

Following the On-Screen Setup Assistant

The Setup Assistant will walk you through connecting and confi guring your speakers and components to your Denon receiver. Please use the remote control and follow the on-screen instructions.

Enjoying music using Bluetooth

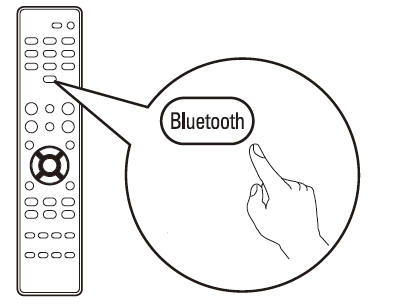

Press and hold the Bluetooth button on the remote control for at least 3 seconds to go into pairing mode.
Activate the Bluetooth settings on your mobile device.
Select “Denon AVR-S540BT” from the Bluetooth device list on your mobile device.
Play music using any App on your device.
BLUETOOTH: To reconnect a previously paired Bluetooth device, Start at step 2.

Owner’s Manual

For more information, visit www.denon.com

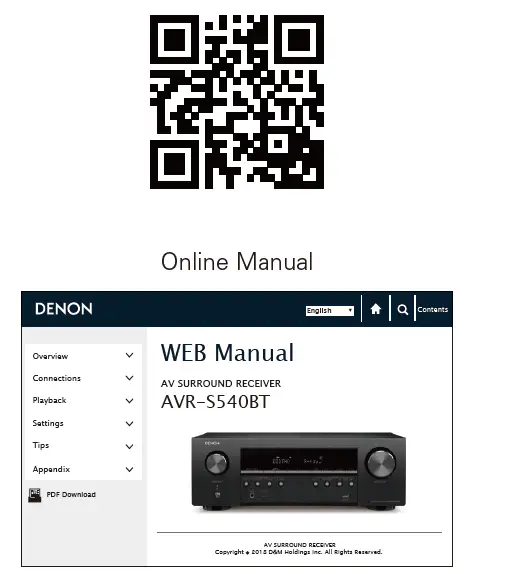

Refer to the Online Manual for other functions information and operation procedure details. manuals.denon.com/AVRS540BT/NA/EN/

Compatible with the “Denon 500 Series Remote” App

The “Denon 500 Series Remote” App allows you to remotely control the AVR-S540BT from your mobile device when connected via Bluetooth. It is available for free in the Apple App Store, Google Play or the Amazon Appstore. Make sure you search for “DENON 500 SERIES”.

Printed in Vietnam 5411 11579 00AD
Copyright © 2018 D&M Holdings Inc. All Rights Reserved.

FREQUENTLY ASKED QUESTION

How many watts per channel for 8ohm speakers if only using front two , center speaker with sub woofer and no surround sound?

It says Experience 5 AMPLIFIERS (140W per channel) driving amazing power, realistic display and immersive sound across any room in the description. Is it 70w or 140w per channel

Are the hook up’s for a subwoofer is that for a powered subwoofer speaker or a passive

Thanks very much for your question. The connections are preamp outputs that are intended for use with a powered sub. A passive sub will not run off this receiver. World Wide Stereo is 38 years old and a proud authorized Denon dealer.

I plug in an antenna that goes to my outside wireless speakers in the headphone jack, on some receivers this turns off my inside connected speakers,?

don’t use the headphone jack for your wireless speakers. Connecting anything to headphones Jack or aux Jack usually will remove sound from going to your hooked-up speakers.

Do you need a tv to set up pandora or a wireless connection?

You need a tv or monitor that is capable of hdmi to use the on screen setup. U can setup music without a tv using the demon AVR app

Does anybody know how to connect bookshelf, center, tweeter, and sub speakers to this receiver. And then all that to a projector?

Denon provides a good tutorial on connecting your surround sound speakers. In order to have video playing from your projector and sound to your surround sound, my guess is you’d need to run an HDMI from the dvd or video player to the projector, then another hdmi from the projector to the receiver. Another option is to run a video cable from the receiver or the dvd/video player to the projector

How do I get a replacement mic for set up?

Write the manufacturer.

Can you add an amplifier to this device?

The Denon is a receiver/amplifier. It has a 5-channel 700 watt amplifier built in. It is not designed to pair with any additional amplifiers.

does this receiver have fiber optic connection and HDMI?

To be specific, it has 2 optical digital inputs on addition to a few HDMI inputs. When Google was still selling Chromecast Audio devices, I bought one and the nice thing is that Chromecast Audio output is actually a combo – both optical and 3.5mm auxiliary into one. Anybody using that device should use the optical output to this receiver. Once you calibrate the receiver and set the equalizer, the sound quality is awesome. I do use Chromecast Video, Roku, etc.. Multiple inputs on this is very helpful.

Es apto para 220v

Is it compatible with nintendo switch for 5.1, taking into account that the switch outputs pcm for surround sound?

Hello and thank you for your question. Yes the AVR-S540BT is compatible with PCM and Digital audio signals. It also has Dolby ProLogic II. This mode can be selected when the Dolby PL 2-Roman Numeral decoder is used to play back 2-channel sources in 5.1-channel surround sound with an enveloping surround sound experience.

Screen turns to pinkish color after 2 hours of casting amazon videos when chromecast connected to 2.media player hdmi in, does anyone face this issue?

Hello,
A pink screen can be caused by a number of things. It could be the AVR’s HDMI board if it’s happening with multiple sources. I would also try replacing the HDMI input cable and see if it continues. If so, I then recommend you contact our Support team by calling 201-762-6665 (M-F, 11 AM to 6 PM EST) so they can further troubleshoot the issue.

Will the usb port play mp4 – mpeg4 movies files from a portable usb hard drive?

YES

does it come with heos link or is it sold separately

Sold separately

Denon AVR-X1600H 7.2CH 4K Ultra HD AV Receiver Manual

ItsManual — Fri, 21 Apr 2023 17:29:13 +0000

PRODUCT INFORMATION

DENON AVR-X1600H

7.2CH 4K ULTRA HD AV RECEIVER WITH 3D AUDIO AND HEOS®BUILT-IN

UPGRADE TO HIGH-POWER HOME THEATER

Denon AVR-X1600H 7.2CH 4K Ultra HD AV receiver with 80W per channel, HDMI (6in / 1out with eARC). Supports 3D audio formats Dolby Atmos®, Dolby Atmos Height Virtualization Technology, DTS:X™ and DTS Virtual:X®.

HIGHLIGHTS

7.2 channel AV receiver with 80W power per channel

Dolby Atmos®, Dolby Atmos Height Virtualization Technology, DTS:X and DTS Virtual: X

6 HDMI inputs with full HDCP 2.3 support, 1 HDMI output

4K/60 Hz, Dolby Vision, HDR10, HLG, 4:4:4 color resolution and BT.2020

Award-winning Denon Setup Assistant and graphical user interface

Amazon Alexa, Google Assistant and Apple Siri voice control

HEOS Built-in wireless multi-room music streaming technology

Smart TV connectivity

Enhanced Audio Return Channel (eARC)

Game Mode

YOUR BENEFITS

Seven powerful amplifiers provide the classic and dynamic Denon sound experienceEnjoy an immersive, three-dimensional audio experience up to 5.2.2Connect up to six media devices and output to one displayProvides the greatest video quality with exceptional brightness, contrast and colorEasy and intuitive out-of-box setup experienceUse your voice to control the AVR-X1600H and wireless music services hands-freeListen from any room of your home for a connected, whole-home audio experienceControl the Denon AVR-X1600H with your TV remote via HDMI CECSupports the latest 3D audio formats such as Dolby Atmos and DTS:X from your TV audio signal via HDMISupports Auto Low Latency Mode (ALLM) for lag-free gaming

DENON 100+ YEAR “LEGACY OF FIRSTS” IN AUDIO TECHNOLOGY

www.denon.com

Powerful 7-Channel Amplifier with the Latest Home Cinema Specs

Featuring discrete amplifiers on all channels, the AVR-X1600H delivers high-power performance at 80W per channel (8 ohms, 20Hz-20kHz, .08%, 2 ch driven). Low impedance drivers provide operational stability for a wide range of speakers for balanced, tonal sound. The AVR-X1600H supports three-dimensional sound formats Dolby Atmos®, Dolby Atmos Height Virtualization Technology, DTS:X and DTS Virtual:X, plus an HDMI section with HDCP 2.3 support and advanced video processing with 4K upscaling for HDMI sources.

Dolby Atmos, Dolby Atmos Height Virtualization Technology, DTS:X and DTS Virtual:X

Immerse yourself in multi-dimensional audio with Dolby Atmos®, Dolby Atmos Height Virtualization Technology, DTS:X and DTS Virtual:X. Set up a 5.2.2 Dolby Atmos surround system using Dolby Atmos elevation speakers, or dedicated overhead speakers, for the ultimate home theater experience. DTS:X gives your movies, games and music a realism unmatched by traditional 5.1 surround sound. Dolby Atmos Height Virtualization Technology and DTS Virtual:X provide immersive audio without height channels, creating virtual height effects in a 7.2, 5.2 or 2.2 speaker arrangement.

Advanced HDMI Video Section with eARC support

Enjoy your favorite movies, shows and games with the best picture quality available. The AVR-X1600H features 6 HDMI inputs and 1 output that support 4K Ultra HD 60Hz video, 4:4:4 Pure Color sub sampling, Dolby Vision, High Dynamic Range (HDR10), Hybrid Log-Gamma (HLG), eARC, 3D and BT.2020 pass-through support for exceptional color, clarity and contrast. HDCP 2.3 processing is available on all HDMI ports, letting you enjoy copy-protected content uninhibited. The eARC — enhanced Audio Return Channel — supports 3D audio transmission directly from the TV to your AV receiver.

All Zone TV Audio

Play the audio from your TV to all zones. Supports both analog and digital audio connections.

Easy Setup Experience

The included AVR-X1600H Quick Start Guide provides simple, clear instructions for how to get started. Once you connect your TV to the AVR-X1600H via HDMI, the exclusive Denon Setup Assistant appears on your TV screen to walk you through setup, step by step. A row of color-coded speaker connections is laid out horizontally, making organizing and connecting speaker wires simple.

Amazon Alexa Voice Control

Control the AVR-X1600H hands-free with Amazon Alexa and your voice. Adjust the volume, skip to the next track, switch inputs for your different media players and more — “Just Ask.” Download the HEOS Home Entertainment Skill to enable Amazon Alexa voice commands for your AVR-X1600H, HEOS devices and other select Denon products.

Google Assistant Voice Control

Start music in the HEOS app, then ask your Google Assistant to control volume, play, pause, skip tracks and more.

Apple AirPlay 2 Built-in

Use AirPlay 2 to stream Apple music wirelessly to the AV receiver, or group with other AirPlay compatible speakers to fill your home with music.

Built-in Bluetooth®, Wi-Fi and AirPlay 2 Capability

The heart of your wireless network. For Bluetooth, Wi-Fi and AirPlay 2 wireless streaming connectivity, the Denon AVR-X1600H is equipped with an advanced dual antenna transceiver system for robust streaming even in congested urban environments. Enjoy listening to your favorite audio content wirelessly from your smart devices.

HEOS Built-in Multi-Room Streaming

Enjoy your favorite music in any room of your home wirelessly with HEOS Built-in technology. Play the same song in every room or select a different song for each connected room — the choice is yours. Also works with Amazon Alexa, Google Assistant and Apple Siri, providing cutting-edge voice control and incredible sound for all of your home entertainment.

Custom Install Ready

The Denon AVR-X1600H features external control and IP control capabilities for easy customization and compatibility with third-party integration solutions. It offers IP control capability for major third-party control devices, as well as Control4 SDPP (Simple Device Detection Protocol) certification for seamless integration with Control4 home automation equipment.

Remote Monitoring Capability

In today’s custom install environment, it’s critical for integrators to provide quick, reliable assistance and service to their clients, even after the install is complete. To support this effort, the Denon IN-Command series AVR-X1600H AV receiver features “ihiji Invision”, “Domotz Pro” and “OvrC” remote monitoring and management interface and service compatibility. These programs allow custom integrators to monitor the status of connected products and troubleshoot remotely from the office or on the go, radically reducing the time it takes to address the issue.

High-Resolution Audio Support

Enjoy superb audio fidelity with your favorite high-resolution audio tracks. The AVR-X1600H with AKM 32-bit D/A converters features high-resolution audio decoding with multiple lossless file types, including ALAC, FLAC and WAV at up to 24-bit/196-kHz. It is also compatible with 2.8/5.6-MHz DSD files (DSD is the audio coding format of SACD). Play them from memory devices, or over network sources. The AVR-X1600H also supports other file types such as MP3 and WMA.

100+ Years of Firsts in Audio Technology

Founded in 1910, Denon has a deep heritage of “firsts” in audio technology — from Japan’s first audio electronics manufacturer, to producing the world’s first commercial CD player and Dolby Atmos-enabled AV receiver. This focused investment in audio R&D ensures you get the latest technology and highest quality with every listening experience.

Technical Information

Number of Power Amps

Power Output

145W per Channel(6 ohms, 1 kHz, THD 1%, 1 ch)

120W per Channel(6 ohms, 1 kHz, 0.7%, 2 ch)

80W per Channel(8 ohms, 20 Hz – 20 kHz, 0.08%, 2 ch)

Speaker Impedance

4 – 16 Ω / ohms

Preamplifier Section

Input Sensitivity/Impedance 200 mV / 47kΩ/kohms

Frequency Response 10 Hz – 100 kHz — +1, –3 dB (Direct Mode)

S/N Ratio 98 dB (IHF–A Weighted, Direct Mode)

FM Section

Tuning Frequency Range 87.5 MHz – 108 MHz

AM Section

Tuning Frequency Range 520 kHz – 1611 kHz

General

Power Supply AC 120 V, 60 Hz

Power Consumption 430W (Standby 0.1W, CEC Standby 0.5W)

Power Consumption No-Sound 29W (ECO Mode On) 39W (ECO Mode Off)

Dimensions (W x H x D) 17.1 x 6 x 13.3 in

Weight 19.0lbs

UPC

AVRX1600HBKE3 883795004848 Black

Ports

HDMI (Front 1) x 6

Composite (Video) x 2

Phono x 1

Analog Audio x 2

Digital Optical x 2

USB (Front) x 1

OUT

HDMI Monitor (eARC) x 1

Component (Video) x 1

Audio Pre-out (SW) 2 ch

Zone 2 (Pre-out and Speaker Assignable) x 1

Phones x 1

OTHER

Ethernet x 1

Microphone Port x 1

FM/AM Tuner Antenna x 1

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by D&M Holdings Inc. is under license. Dolby, Dolby Atmos, and the double-D symbol are trademarks of Dolby Laboratories. • DTS, the Symbol, DTS in combination with the Symbol, DTS:X, and the DTS:X logo are registered trademarks or trademarks of DTS, Inc. in the United States and/or other countries. • The Spotify software is subject to third party licenses found here: www.spotify.com/connect/third-party-licenses • Other trademarks and trade names are those of their respective owners.

Denon is a trademark or registered trademark of D&M Holdings, Inc.

* All specs can be subject to change

Denon

1 Viper Way

Vista, CA 92081

www.denon.com

Denon AVR-X3700H 8K Ultra HD 9.2 Channel (105Watt X 9) AV Receiver manual

ItsManual — Mon, 24 Apr 2023 05:40:45 +0000

Denon AVR-X3700H 8K Ultra HD 9.2 Channel (105Watt X 9) AV Receiver

Specifications

Product Dimensions
17.1 x 14.9 x 6.6 inches
Item Weight
27.6 pounds
Batteries
2 AAA batteries required
Connectivity Technology
HEOS, HDMI
Supported Internet Services
Pandora, TuneIn, Spotify
Output Wattage
105 Watts
Compatible Devices
Speaker, Television
Audio Encoding
Stereo
Control Method
Voice
Brand
Denon

Introduction

With the new Denon AVR-X3700H, you can immerse yourself in high-powered, precision-based home theatre enjoyment. This performance-tuned Denon receiver gives a completely immersive 3D audio experience with eARC supported pass-through, with 105W per channel (8 ohms, 20Hz-20kHz, THD: 0.08 percent, 2 ch. driven). The AVR-X3700H supports Dolby Atmos, Dolby Atmos Height Virtualization Technology, DTS:X, DTS Virtual:X, and IMAX Enhanced, among other 3D audio formats.

Enjoy high-definition 3D audio and video with the assurance that the AVR-X3700H will be ready for 8K when you are. This high-power amplifier with 11.2 channel processing allows you to create any speaker combination you choose to fit your unique entertainment requirements.On all HDMI ports (7 in/3 out), it also supports the newest video technologies, including 8K/60Hz and 4K/120Hz* pass-through, Dolby Vision, HDR10, HDR10+, Dynamic HDR, HLG, as well as 8K upscaling and HDCP 2.3 support. Pass-through from all 4K/120Hz media sources is not supported.

What’s In the Box?

Bluetooth, Wi-Fi, AirPlay 2, and HEOS compatibility are all built-in

Even in congested metropolitan situations, you can experience robust Bluetooth and dual-band Wi-Fi streaming with a dual-antenna transceiver system. Listen to your favorite audio content on compatible smart devices wirelessly. You can play the same music in each connected room or a different song in each connected room using HEOS Built-in technology. Spotify, Pandora, Amazon Music HD, TuneIn, iHeartRadio, SoundCloud, SiriusXM, TIDAL, and other services are supported by HEOS. AirPlay 2 allows you to listen to all of your favorite Apple Music tunes.

Advanced 8K HDMI Video Section

Enjoy your favourite movies, TV, and games in the highest possible picture quality. The AVR-X3700H has an advanced HDMI section (7 in/3 out) with a special 8K input that supports video pass-through and upscaling at 8K/6OHz and 4K/120Hz. For excellent colour, clarity, and contrast, all HDMI inputs enable 4:4:4 Pure Color sub-sampling, HDR10, HDR10+, Dolby Vision, Hybrid Log-Gamma (HLG), Dynamic HDR, 3D, and BT.2020 pass-through. Enjoy 8K upscaling and HDCP 2.3 processing for unrestricted playback of copy-protected content. The AVR-X3700H also supports 3D audio formats directly from your smart TV apps to your AV receiver via eARC (enhanced Audio Return Channel).

Features

For your home theatre system, unrivalled 3D realism is available.
Immersive surround sound with Dolby Atmos Height Virtualization & DTS Virtual:X and sharp, clean picture with superior visual processing, 8K/60Hz, and 4K/120Hz* pass-through will bring your movies and music to live.

Ready-to-Use 8K Amplifier
Enjoy high-definition 3D audio and video with the assurance that the AVR-X3700H will be ready for 8K when you are. This high-power amplifier with 11.2 channel processing allows you to create any speaker combination you choose to fit your unique entertainment requirements.

Next-Generation Gaming
With 4K/120Hz* pass-through, Variable Refresh Rate (VRR), Quick Frame Transport (QFT), and Auto Low Latency Mode, enjoy a smooth, lag-free gaming experience with outstanding picture, decreased lag, and frame tearing (ALLM)

Video Technologies at Their Finest
High Dynamic Range video formats such as HDR10, Dolby Vision, and HLG are supported by this 9.2-channel receiver. For more realistic image, it also supports Dynamic HDR, HDR10+, and provides pictures with exceptional clarity, contrast, and colour.

Connect to any HD/Ultra HD TV, Subwoofer, Blu-ray Player, or Turntable for Amazing Stereo Sound
USB, 10 HDMI ports (7 In/ 3 Out) with HDCP 2.3 processing, Digital In, Phono input, and Network connectivity with a variety of wireless connections

Extend the Listening Audience of Your Music
Without any additional hardware, listen to music in every room of the house over Wi-Fi, Airplay 2, or Bluetooth with HEOS MULTI-ROOM WIRELESS SPEAKERS like the Denon Home line. With Pandora, Spotify, TuneIn, and other services, you can enjoy high-quality audio across your home.

Complete Voice Control Compatibility with Alexa from Amazon
With Amazon Alexa voice control, you can adjust the volume, change music, and switch inputs completely hands-free. Also compatible with Google Assistant, Apple Siri, and home automation systems such as Josh.ai and Control4 SDPP.

Denon’s award-winning on-screen Setup Assistant gives simpl
straightforward directions for connecting your TV, as well as the Audyssey MultEQ XT32 (with two preset choices), which correctly calibrates all speakers in your home setup and adjusts the AVR for an optimal listening experience.

Note about 4K/120Hz pass-through
Not all 4K/120Hz media sources enable pass-through.

Frequently Asked Questions

If i buy this now, will it have the new hdmi chip that supports video from xbox x?
No, I believe that you will still have to request the add on device from Denon.
Can I run 2 center channels (voice of God) with an external amp?
The VOG channel is not really considered as a true “Center” channel, but rather an overhead effects channel. Our X4700H is the first model in the lineup that supports the VOG channel (Top Surround) for Auro 3D. If you just want to run a 2nd Center channel (duplicating the powered Center channel) you can use the AVR’s Center pre-out to an external amp.
Does this have Bluetooth capability?
Yes, the Denon AVRX3700H supports Bluetooth along with Apple AirPlay2.
Does this receiver allow you to increase dialogue volume only? I ask because it seems like every movie I listen to now a days has whisper quiet dialog?
Yes, there are several ways to accomplish increasing the dialogue with the Denon AVRX3700H. If running surround sound. Go to settings>Manual setup>Levels>Test tone and increase the center CH level. You can also adjust the EQ using on screen Menu or the Audyssey app. Night mode is another option.
Can i control the volume of each pair of speakers individually?
Thanks for your question. The settings menu allows volume adjustment of all connected speakers.World Wide Stereo is 42 years old and a proud authorized Denon dealer.
How do you use the Fire Stick 4K with this receiver?
Through eARC with the stick in the TV, or into an HDMI port on the receiver.
Do these still have the hdmi 2.1 bug?
No. They send you a box that solves the issue for some devices like Xbox series x.

DENON Integrated Network Av Receiver Manual

ItsManual — Mon, 08 May 2023 18:17:19 +0000

DENON Integrated Network Av Receiver User Guide

AVR-X2500H

Please do not return this unit to the store. If you need help…

Check our AVR setup tips online
Usa.denon.com/SetupTips
Ca.Denon.com/SetupTips
Call for Assistance
1-855-MY.DENON (USA)
1-855-693-3666 1-800-668-0652 (Canada)
Monday - Friday 10:00AM to 10:00PM E.S.T
Saturday 12:00PM to 8:00PM E.S.T

Welcome
Thank you for choosing a Denon AV receiver. This guide provides step-by-step instructions for setting up your AV receiver.

Before You Begin

Required for Setup

TV	Speaker cables	Speakers
HDMI cable	Subwoofer cable	Speakers

Optional

LAN cable or Wi-Fi router

NOTE:

When connecting this unit to a device that is compatible with the Deep Color, 4K and ARC functions, use a “High Speed HDMI cable with Ethernet” that displays the HDMI logo.
These drawings are for illustrative purposes only and may not represent the actual product(s).

What’s In the Box

Quick Start Guide	FM indoor antenna
Safety Instructions	AM loop antenna
Notes on radio	Sound calibration microphone
Warranty (for North America model only)	Sound calibration microphone stand
Cable	Remote control unit (RC-1228)
Receiver	R03/AAA batteries
Power cord	External antennas for Bluetooth / wireless connectivity

Note:

The included sound calibration microphone stand is convenient for use when performing Speaker Calibration. Using your own tripod or the supplied Sound calibration microphone stand enables settings to be automatically configured to the optimum listening environment, providing exceptionally high performance.

Important: External Antennas

The removable external antennas are required for both Bluetooth and Wireless network connectivity. Please make sure to connect the antennas before attempting to use the Bluetooth or Wi-Fi features of the AVR-X2500H.

Connecting the external antennas for Bluetooth / Wireless connectivity
For each of the two antennas:

Place the antenna evenly over the antenna terminal located at the upper left or right corner of the rear panel.
Turn the antenna clockwise until it is fully connected. Do not over tighten.
Rotate the antenna upwards for the best possible reception.

Setup

There are four steps to the setup process.

1) Place the receiver near your TV and connect the power cord TV

2) Connect the receiver to your home network
Wired LAN
Connect an Ethernet cable (not included) between your receiver and your network router.

Wireless LAN
When connecting to wireless LAN (Wi-Fi), follow the instructions in “Connecting the external antennas for Bluetooth / Wireless connectivity” and connect the antennas.

ARC (Audio Return Channel) :
If your TV supports ARC, your TV can send audio back to the AV receiver when you are using your TV’s built-in video sources (TV tuner, Smart TV streaming services, etc…) ARC requires that you enable HDMI CEC on your TV. Please refer to your TV’s Owner’s Manual for instructions on how to setup HDMI CEC. Note that some TV manufacturers use other names for the HDMI CEC function.

5) Select the appropriate HDMI input on your TV

6) Turn on the receiver

Press to turn on the receiver.

7) Verify the connection

Verify that you can see this screen on your TV.

If this screen is not displayed, please go back and retry the steps again in the recommended sequence.

The Setup Assistant will walk you through connecting and configuring your speakers and components to your Denon receiver. Please use the remote control and follow the on-screen instructions.

Download both the “HEOS” App and the “Denon 2016 AVR Remote” App for the full home entertainment experience.
The HEOS App is required to access online music through your AVR.

HEOS

The HEOS App allows you to explore, browse, and play music from many online streaming services or from your own music library.

HEOS APP FOR ANDROID: HEOS FOR ANDROID
HEOS APP FOR APPLE: HEOS FOR APPLE

Denon 2016 AVR Remote

Control your new AVR with the latest Denon 2016 AVR Remote App. Volume control, sound mode selection and advanced settings are always only a tap away.

Denon App For Android: DENON FOR ANDROID
Denon App For Apple: DENON FOR APPLE

Denon AVR-X1600H 7.2CH 4K Ultra HD AV Receiver Manual

ItsManual — Sun, 09 Jul 2023 08:33:17 +0000

PRODUCT INFORMATION

DENON AVR-X1600H

7.2CH 4K ULTRA HD AV RECEIVER WITH 3D AUDIO AND HEOS®BUILT-IN

UPGRADE TO HIGH-POWER HOME THEATER

HIGHLIGHTS

7.2 channel AV receiver with 80W power per channel

Dolby Atmos®, Dolby Atmos Height Virtualization Technology, DTS:X and DTS Virtual: X

6 HDMI inputs with full HDCP 2.3 support, 1 HDMI output

4K/60 Hz, Dolby Vision, HDR10, HLG, 4:4:4 color resolution and BT.2020

Award-winning Denon Setup Assistant and graphical user interface

Amazon Alexa, Google Assistant and Apple Siri voice control

HEOS Built-in wireless multi-room music streaming technology

Smart TV connectivity

Enhanced Audio Return Channel (eARC)

Game Mode

YOUR BENEFITS

DENON 100+ YEAR “LEGACY OF FIRSTS” IN AUDIO TECHNOLOGY

www.denon.com

Powerful 7-Channel Amplifier with the Latest Home Cinema Specs

Dolby Atmos, Dolby Atmos Height Virtualization Technology, DTS:X and DTS Virtual:X

Advanced HDMI Video Section with eARC support

All Zone TV Audio

Play the audio from your TV to all zones. Supports both analog and digital audio connections.

Easy Setup Experience

Amazon Alexa Voice Control

Google Assistant Voice Control

Start music in the HEOS app, then ask your Google Assistant to control volume, play, pause, skip tracks and more.

Apple AirPlay 2 Built-in

Use AirPlay 2 to stream Apple music wirelessly to the AV receiver, or group with other AirPlay compatible speakers to fill your home with music.

Built-in Bluetooth®, Wi-Fi and AirPlay 2 Capability

HEOS Built-in Multi-Room Streaming

Custom Install Ready

Remote Monitoring Capability

High-Resolution Audio Support

100+ Years of Firsts in Audio Technology

Technical Information

Number of Power Amps

Power Output

145W per Channel(6 ohms, 1 kHz, THD 1%, 1 ch)

120W per Channel(6 ohms, 1 kHz, 0.7%, 2 ch)

80W per Channel(8 ohms, 20 Hz – 20 kHz, 0.08%, 2 ch)

Speaker Impedance

4 – 16 Ω / ohms

Preamplifier Section

Input Sensitivity/Impedance 200 mV / 47kΩ/kohms

Frequency Response 10 Hz – 100 kHz — +1, –3 dB (Direct Mode)

S/N Ratio 98 dB (IHF–A Weighted, Direct Mode)

FM Section

Tuning Frequency Range 87.5 MHz – 108 MHz

AM Section

Tuning Frequency Range 520 kHz – 1611 kHz

General

Power Supply AC 120 V, 60 Hz

Power Consumption 430W (Standby 0.1W, CEC Standby 0.5W)

Power Consumption No-Sound 29W (ECO Mode On) 39W (ECO Mode Off)

Dimensions (W x H x D) 17.1 x 6 x 13.3 in

Weight 19.0lbs

UPC

AVRX1600HBKE3 883795004848 Black

Ports

HDMI (Front 1) x 6

Composite (Video) x 2

Phono x 1

Analog Audio x 2

Digital Optical x 2

USB (Front) x 1

OUT

HDMI Monitor (eARC) x 1

Component (Video) x 1

Audio Pre-out (SW) 2 ch

Zone 2 (Pre-out and Speaker Assignable) x 1

Phones x 1

OTHER

Ethernet x 1

Microphone Port x 1

FM/AM Tuner Antenna x 1

Denon is a trademark or registered trademark of D&M Holdings, Inc.

* All specs can be subject to change

Denon

1 Viper Way

Vista, CA 92081

www.denon.com

DENON Integrated Amplifier PMA-A110 Manual

ItsManual — Wed, 02 Aug 2023 17:46:12 +0000

DENON Integrated Amplifier User Guide

Required for Setup

Optional

Setup

There are six steps to the setup process.

Install batteries in the remote control unit
Connect the speakers to PMA-A110
Connecting The Speaker Cables
Peel off about 3/8 inch (10 mm) of sheathing from the tip of the speaker cable, then either twist the core wire tightly or apply solder to it.
b. Turn the speaker terminal counterclockwise to loosen it.
c. Insert the speaker cable’s core wire to all the way into the speaker terminal.
d. Turn the speaker terminal clockwise to tighten it.
Connect the CD player to PMA-A110
Plug the power cord into a power outlet
Begin CD playback
- Press the power operation button.
  Turn VOLUME on the main unit to adjust the volume to the lowest level before turning on the power.
- Set the input source to “CD”. “CD” is displayed on the display of this unit.
- Play the CD player.
- Adjust the volume.
Listen to computer audio via USB-DAC

Install the Windows driver software

NOTE:
The installation of the driver software is not necessary in the following cases.

When you do not play back the music from a PC using USB-DAC of this unit.
When using a macOS.

The driver software cannot be installed correctly if your PC is connected to the unit by a USB cable. If the unit and your computer are connected by a USB cable and the computer is switched on before installation, disconnect the USB and restart the computer.

Windows OS

System requirements：Windows 8.1 or Windows 10

Download the dedicated driver from the “Download” section of the PMA-A110 page of the Denon website (https://www.denon.com/) onto your PC.
Unzip the downloaded file, and double-click the EXE file.
Install the driver.
- Select the language to use for the installation.
- Click “OK”.
- The wizard menu is displayed. Follow the instructions on the screen.
- When the wizard is completed, click “Yes”.

NOTE:

Please see the FAQ at www.denon.com if you experience any issues getting audio to play from your computer through the PMA-A110. You may also want to check the support pages for audio player application.

Connect to PC or Mac

Listen to audio from PC or Mac

Power on.
Press INPUT SELECT to switch the input source to “USB-DAC”.
Set the audio signal destination to this unit on
Set the audio signal destination to this unit on the computer.

Windows OS

Click the “Start” button and click “Control Panel” on the PC.
- The control panel setting list is displayed.
Click the “Sound” icon.
- The sound menu window is displayed.
Check that there is a checkmark next to “Default Device” under in “PMA-A110” of the “Playback” tab.
- When there is a checkmark for a diff erent device, click “PMA-A110” and “Set Default”.
Select “PMA-A110” and click “Properties”.
- The PMA-A110 Properties window is displayed.
Click the “Advanced” tab.
Select the sampling rate and bit rate to be applied to the D/A converter.
- It is recommended that “2 channel, 32 bit, 192000 Hz (Studio Quality)” is selected.
Click “Apply”.
Click “Test”.
- Check that audio from this unit is output from the PC.

macOS

System requirements: macOS 10.13, 10.14 and 10.15

Move the cursor to “Go” on the computer screen, and then click “Utilities”.
- The utility list is displayed.
Double-click “Audio MIDI Setup”.
- The “Audio Devices” window is displayed.
Check that “Use this device for sound output” is checked in PMA-A110”.
- If a different device is checked, select and “Secondary click” on “PMA-A110”, and then select “Use this device for sound output”.
Select the “PMA-A110” format.
- It is normally recommended to set the format to “384000.0 Hz” and “2ch-32 bit Interger”.
Quit Audio MIDI Setup.

Use your favorite music applications on your PC/Mac to play audio through the PMA-A110.

For high resolution audio playback you will need to obtain an advanced audio player software such as JRiver Media Center or Audirvana.

NOTE:

Additional settings to output audio to the PMA-A110 may have to be selected in your advanced audio player application. Please refer to the user’s manual for your application.

Owner’s Manual

Refer to the Online Manual for other functions information and operation procedure details.
manuals.denon.com/PMAA110/NA/EN/

For more information, visit www.denon.com

DENON DL-A110 Phono Cartridge Manual

ItsManual — Wed, 09 Aug 2023 07:25:39 +0000

DENON DL-A110 Phono Cartridge Owner's Manual

Thank you for purchasing a Denon 110th anniversary DL-A110 cartridge.
This unit reproduces the head shell of the DL-103 head cartridge, with a 56-year history and which can be said to be the Japanese standard MC cartridge, used by Japan’s public broadcaster NHK for broadcasting when first released. It is a replica model of the head shell for the DL-103 attached to that head cartridge.

The DL-103 was jointly developed in 1964 by Denon (Nippon Columbia Co., Ltd. at the time) and NHK Science & Technology Research Laboratories as a device compatible with high sound quality FM stereo broadcasting. Since its adoption by many broadcasters, it has come to be used by many music and audio fans in the consumer market in addition to for business applications.

We invite you to use this Denon 110th anniversary commemorative model, which reproduces the character seen at the birth of the DL-103, as a token of our appreciation for patronizing the DL-103 over the years.

Accessories

Check that the following parts are supplied with the product.

Stylus cover ···········································································1
Stylus cleaning brush·····························································1
Owner’s Manual·····································································1
Data sheet ·············································································1
Safety Instructions ·································································1
Certificate of Authenticity ·······················································1

Use the stylus cover to protect the cartridge stylus tip in situations such as attaching the cartridge to a different head shell.

Attaching this unit to the tone arm

This unit is very delicate. Be especially careful when handling it.
1 Insert this unit into the tip of the tone arm.

Insert this unit with its guide pin facing up and aligned with the hole on the top of the tone arm.

2 Turn the lock nut in the direction of the arrow to secure this unit.

The head shell adapter is attached to this unit beforehand. That gains appropriate overhang when attaching this unit to a standard universal type tone arm. We recommend that you use it SV without removing.

Tracking force adjustment

Tracking force in the range of 25 MN ±3 MN (2.5 g ±0.3 g) should be used.

Output voltage

The output voltage is 0.3 mV. If your amplifier does not support the MC cartridge input, use a step-up transformer or head amplifier designed for MC type cartridges.

Stylus cleaning

Use the included brush to carefully remove any dirt from the tip of the stylus before and after playing records.

Specifications

Principle: Moving coil (MC) type
Output Voltage: 0.3 mV (1 kHz, 50 mm/s horizontal direction)
Channel Balance: 1 dB max. (1 kHz)
Channel Separation: 25 dB min. (1 kHz)
Electrical Impedance: 40Ω /ohms ±20 % (1 kHz)
Load resistance: 100 Ω/ohms or more (40 /ohms when using a transformer)
Compliance: 5 x 10-3 m/N (Using a 100 Hz record)
Stylus: 0.2 mm square solid diamond
Stylus tip radius: 16.5 microns (0.65 mils)
Tracking Force: 25 MN ±3 MN (2.5 g ±0.3 g)
Frequency Response: 20 Hz – 45 kHz
Weight: 18.5 g (Head shell adapter included) SV

Dimensions (Unit : mm)

Overall dimensions

Cartridge dimensions

* For the purpose of improvement, the specifications and design are subject to change without notice.

www.denon.com
