INSTRUCTION MANUAL

GAS COOKTOP
Appliance Class: 3

Empava Item #:

30 ” :EMPV-30GC0A2  EMPV-30GC0A5
36″ : EMPV-36GC202  EMPV-36GC881 EMPV-36GC888 EMPV-36GC901

Distributed by:
Empava Appliances Inc.
15253 Don Julian Rd, City of Industry, CA 91745 USA
www.empava.com

The instructions shall be marked with directions to the installer to leave them with the appliance and to the consumer to retain them for future reference.

WARNING:

This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. If the supply cord is damaged, it must be replaced by the manufacturer. its service agent or similarly qualified persons in order to avoid a hazard.

WARNING:

If the information in these instructions is not followed exactly, a fire or explosion may result causing property damage, personal injury, or death.

— Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.
— WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.

This appliance shall be installed in accordance with the regulations in force and only used in a well-ventilated space.
Read the instructions before installing or using this appliance.

The installation must conform with local codes or, in the absence of local codes, with the National Fuel Gas Code, ANSI Z223.1/NFPA 54 or, in Canada, the Natural Gas and Propane Installation Code, CSA B149.1.

The appliance, when installed, must be electrically grounded in accordance with local codes or, in the absence of local codes, with the National Electrical Code, NFPA 70 or the Canadian Electric Code, CSA C22.1 ‐02.

Cooktop Description

EMPV-30GC0A2

Figure 1

Operating Instructions:
Knob 1 is for burner 10
Knob 2 is for burner 9
Knob 3 is for burner 8
Knob 4 is for burner 7
Knob 5 is for burner 6

1.burner 6—6000Btu/hr in 2.56″
2.burner 7—10200Btu/hr in 3.74″
3.burner 8—13600Btu/hr in 5.20″
4.burner 9—6000Btu/hr in 2.56″
5.Burner 10—3400Btu/hr in 1.77″

EMPV-30GC0A

Figure 2

Operating Instructions:
Knob 1 is for burner 10
Knob 2 is for burner 9
Knob 3 is for burner 8
Knob 4 is for burner 7
Knob 5 is for burner 6

1. burner 6—6000Btu/hr in 2.56″
2. burner 7—10200Btu/hr in 3.74″
3. burner 8—13600Btu/hr in 5.20″
4. burner 9—6000Btu/hr in 2.56″
5. Burner 10—3400Btu/hr in 1.77”

EMPV-36GC22Figure 3

Operating Instructions:
Knob 1 is for burner 10
Knob 2 is for burner 9
Knob 3 is for burner 8
Knob 4 is for burner 7
Knob 5 is for burner 6

1. burner 6—10200Btu/hr in 3.74″
2. burner 7—6000Btu/hr in 2.56″
3. burner 8—13600Btu/hr in 5.20″
4. burner 9—6000Btu/hr in 2.56″
5. burner 10—3400Btu/hr in 1.77”

EMPV-36GC881

Figure 4

Operating Instructions:
Knob 1 is for burner 10
Knob 2 is for burner 9
Knob 3 is for burner 8
Knob 4 is for burner 7
Knob 5 is for burner 6

1. burner 6—10200Btu/hr in 3.74″
2. burner 7—6000Btu/hr in 2.56″
3. burner 8—13600Btu/hr in 5.20″
4. burner 9—6000Btu/hr in 2.56″
5. burner 10—3400Btu/hr in 1.77”

EMPV-36GC888

Operating Instructions:
Knob 1 is for burner 10
Knob 2 is for burner 9
Knob 3 is for burner 8
Knob 4 is for burner 7
Knob 5 is for burner 6

1. burner 6—10200Btu/hr in 3.74″
2. burner 7—6000Btu/hr in 2.56″
3. burner 8—13600Btu/hr in 5.20″
4. burner 9—6000Btu/hr in 2.56″
5. burner 10—3400Btu/hr in 1.77″

EMPV-36GC901

Figure 6

Operating Instructions:
Knob 1 is for burner 10
Knob 2 is for burner 9
Knob 3 is for burner 8
Knob 4 is for burner 7
Knob 5 is for burner 6

1. burner 6—10200Btu/hr in 3.74″
2. burner 7—6000Btu/hr in 2.56″
3. burner 8—6000Btu/hr in 2.56″
4. burner 9—3400Btu/hr in 1.77”
5. Burner 10—13600Btu/hr in 5.20″

Important Information

Read the instructions before installing or using this appliance.
Children should be supervised to ensure that they do not play with the appliance. These instructions are only valid if the country symbol appears on the appliance. If the symbol does not appear on the appliance, it is necessary to refer to the technical instructions which will provide the necessary instructions concerning modification of the appliance to the conditions of use of the country.

Installation

• Prior to installation, ensure that the local distribution conditions (nature of the gas and gas pressure) and the adjustment of the appliance are compatible.
• The adjustment conditions for this appliance are stated on the label (or data plate).
• This appliance is not connected to a combustion products evacuation device. It shall be installed and connected in accordance with current installation regulations. Particular attention shall be given to the relevant requirements regarding ventilation. Read the instructions before installing or using this appliance.
• The appliance and its individual shut-off valve must be disconnected from the gas supply piping system during any pressure testing of that system at test pressures in excess of 1/2 psi (3.5 kPa).
• The appliance must be isolated from the gas supply piping system by closing its individual manual shut-off valve during any pressure testing of the gas supply piping system at test pressures equal to or less than 1/2 psi (3.5 kPa).
• Always check for the validity of the pressure regulator. Technical specification of the pressure regulator:
  i. Refer to TECHNICAL DATA in this manual.
  ii. Max. consumption: 2.5kg/h.
  iii. Should be certified according to ANSI Z21.1 / CSA 1.1 and comply with local code.
• This appliance must be installed and serviced by a competent person
• This appliance shall be installed in accordance with the regulations in force and only used in a well-ventilated space.
• Remove all packaging before using the gas cooktop
• Ensure that the gas and complies with the type stated on the rating label
• Do not attempt to modify the gas cooktop in any way

Caution: This appliance is for cooking purposed only. It must not be used for other purposes, for example room heating.

For your Safety

• This gas cooktop is designed to be operated by adults. Do not allow children to play near or with the gas cooktop.
• The gas cooktop gets hot when it is in use.
• Children should be kept away until it has cooled.
• Children can also injure themselves by pulling pans or pots off the gas cooktop.
• CAUTION: This appliance is for cooking purposes only. It must not be used for other purposes, for example, room heating.

When Use

• This gas cooktop is intended for domestic cooking only. It is not designed for commercial or industrial purposes.
• When in use a gas cooking appliance will produce heat and moisture in the room in which it has been installed. Ensure there is a continuous air supply, keeping air vents in good condition, or installing a cooker hood with a venting hose.
• When using the gas cooktop for a long period of time, the ventilation should be improved, by opening a window or increasing the extractor speed.
• Do not use a gas cooktop if it is in contact with water. Do not operate the gas cooktop with wet hands.
• Ensure the control knobs are in the closed position when not in use.
• In the event of the burner flames being accidentally extinguished, turn off the burner control and do not attempt to re-ignite the burner for at least 1 min.

Service

• The gas cooktop should only be repaired or serviced by an authorized Service person and only genuine approved spare parts should be used.

Environmental Information

• After installation, please dispose of the packaging with due regard to safety and the environment.
• When disposing of an old appliance, make it unusable, by cutting off the cable.
• The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead, it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling this product, please contact your local city office, your household waste disposal service, or the shop where you purchased the product.

Operation

Lighting

• Simply press the knob in, turn anticlockwise to ignition position(star icon) .
• Press the ignition device and hold the knob till the burner is ignited
• Before releasing knob, ensure a flame is established,
• If the burner fails to ignite, put into off position and try again.

If in case of a power failure or failure of the ignition, a match or lighting devise can be used. Care must be taken when using this method.
The device shall not be operated for e burner has not lit, stop operating the

In the event of the burner flames being accidentally extinguished, turn off the burner control and do not attempt to re-ignite the burner for at least 1 min.

CAUTION: Accessible parts may be hot when the grill is in use. Young children should be kept away” As shown in Figure 12, place the burner onto the burner base one by one and stuck, rotate left and right to check if the burners are in place, the burner is placed correctly when it cannot be rotated. Finally center placed the burner cap on the burner.

If you cannot light the flame even after several attempts, check the “cap” and “crown” (see diagram – figure 10) if they are in the correct position. To put the flame out, turn the knob to the symbol “O”

Description:

Figure 10

1. Burner cap
2. Burner crown
3. Burner base
4. Ignition electrode
5. Thermocouple

When switching on the mains, after installation or a power cut, it is quite normal for the spark generator to be activated automatically.
To ensure maximum burner efficiency, you had better use pots and pans with a flat bottom fitting the size of the burner used (see table).
Do not use rim-based or convex-based vessels on the hotplate burners.

WARNING: As soon as a liquid starts boiling, turn down the flame so that it will barely keep the liquid simmering. If the control knobs become difficult to turn, please contact your local service center.
WARNING: Users could not use the cooking vessels on the hotplate that overlap its edges.
WARNING: All burner caps can’t be dislocated installation, otherwise it will lead to flashback on the upper aluminum seats and cause the upper aluminum seats to melt and  deform, see below figures for correctly placing the burner caps

Re-ignition:
If the flame is out for certain reasons, the safety device will cut off the gas power automatically. Turn the switch to the ” largest flame ” position, then ignite again, you should wait for 30 seconds when you do that; Due to the air in the tong, there may be unsmooth ignition, revolve the switch to ” largest flame ” position and ignite again.

Maintenance and Cleaning

Before any maintenance or cleaning can be carried out, you must DISCONNECT the gas cooktop from the electricity supply.
The gas cooktop is best cleaned while it is still warm; as spillage can be removed more easily than if it is left to cool.

Control Panel
Sign ● = gas valve is shut off
Sign =largest flame
Sign =smallest flame
Sign  electric discharge for ignition

The Burners
The burner caps and crowns can be removed for cleaning. Wash the burner caps and crowns using hot soapy water, and remove marks with a mild paste cleaner. A well moistened soap impregnated steel wool pad can be used with caution if the marks are particularly difficult to remove. After cleaning, be sure to wipe dry with a soft cloth.

Ignition electrode

The electric ignition is obtained through a ceramic “electrode” and a metal electrode. Keep these components very clean, to avoid lighting difficulties, and check that the burner  crown holes are not obstructed.

Thermocouple
The thermocouple is very crucial for cutting gas supply in case of flameout during cooking, be sure to keep them in very clean condition.
Maintenance instructions suggesting (We suggest to clean it every six months.):

1. Keeping appliance area clear and free from (8) materials, gasoline, and other flammable vapors and liquids.
2. Not obstructing the flow of combustion and ventilation air.
3. Visually checking pilot(s) and burner flames, with pictorial representation.

A>Remove the utensil supports.
B>Light burners.
C>Turn knobs from MAX to MIN, Check the flame status, the flame in MIN position should be smaller than in MAX position, as the figure is shown below.
D>Always check flame before each use, see TROUBLESHOOTING if any abnormal status found.

Trouble Shooting

Instructions for the Installer

Overall dimensions

Cut out dimensions

Cut out dimensions

Technical Data

Burner configuration

Different models have different total heat input, please refer to page 3,page 4 & page 5.

Gas Type and working pressure:

NG gas pressure at 8.0 in we
LPG gas pressure at 11 in wc.

Important safety requirements

Location
The cooktops may be located in a kitchen, a kitchen/diner, or bed-sitting room, but not in a bathroom, shower room, or garage. Before making the cut out in the worktop ensure that there is a minimum distance of 2.17” between the rear edge of the cooktops and the wall. A minimum distance of 3.94” must be left between the side edges of the cooktops and any adjacent cabinets or walls. The minimum distance combustible material can be fitted above the cooktops in line with the edges of the cooktops is 18”. If it is fitted below 18” space of 1.97” must be allowed from the edges of the cooktops. The minimum distance combustible material can be fitted directly above the cooktops is 30”. The maximum depth for the overhead cabinets is 13”. The distance from the front edge of the cooktop to the front edge of the countertop should be 3.0”.The distance between the closet should be 23.62” (not less than the depth of the cooktop itself) (see Figure 12).
Notice that a horizontal separation below the base of the hotplate is needed. The minimum distance between this separation shall not exceed 5.90”.

WARNING: The use of a gas cooking appliance results in the production of heat and moisture in the room in which it is installed. Ensure that the kitchen is well ventilated especially when the appliance is in use. Keep natural ventilation holes open or install a mechanical ventilation device. Prolonged intensive use of the appliance may call for additional ventilation, for example, the opening of a window, or more effective ventilation, for example increasing the level of mechanical ventilation where present.
WARNING: The base of the appliance should be protected from contact by a horizontal partition or plate.

A manual valve is installed in an accessible location in the gas line external to the appliance for the purpose of turning on or shutting off gas to the appliance.
Warning: Turn the knob counterclockwise to adjust the flame, size, so that the flame does not float out of the container rim. If need to adjust the flame size from big to small
when operating, turn the knob counterclockwise 90 degrees to the position. (See Figure 13)

When you need to change the gas cooktop, you must first close the air supply valve and the cooktop valve, unplug the plug of models with AC power supply, only after that you can remove the connector hose or threaded connector and then move the gas cooktop. Warn of the potential hazards associated with storage cabinet areas above appliances. Misoperation can cause fire.

All cord-connected appliances shall include instructions relative to the location of the wall receptacle and a warning to the user to disconnect the electrical supply before servicing the appliance. The socket needs to be installed below the cooktop surface, and away from the fire source

Gas Conversion Operating Instructions

Figure 14

Figure 15

1. Air supply valve and cooktop valve need to be closed, unplug the power plug for AC model.
2. When the gas pressure regulator is in NG state and need to be converted to LPG state, counterclockwise unscrew the end cap under the gas pressure regulator, and then counterclockwise unscrew the marked NG threaded rod, reverse the threaded rod, turn the LP arrow upwards and tighten it to the screw cap, then install the cap back to the gas pressure regulator. The gas pressure regulator gas conversion needs to be used with the accessory kit (See Burner Configuration for detailed nozzle specifications).
3. Remove the burners, burner caps, and screw out the nozzles from the burner bases. Then install those nozzles in the Conversion Kit bag to each burner base correspondingly. Save the orifices removed from the appliance for future use.
4. Input inlet pressure of 11 in wc ( 2740Pa ), coat the nozzle joints and the gas pressure regulator joints with moderate amounts of soapy water, there shall be no bubbling
5. Place the burner, burner cap, check if the position between the ignition pin and the burner is correct, and then open the valve, AC model plugged in the power plug.
6. Test the outlet pressure, the pressure is required to be 10 ± 1in wc. If it cannot meet the scope of the requirements, need to unscrew the pressure regulator nut as Figure 18, rotate slightly to adjust the white plastic parts inside the pressure regulator.
7. Ignition test requires that the burner can be lit in 5 seconds normally, after 1 minute the flame is stable, there should be no lifted flame and yellow fire. 12

8. Similarly, when use in NG status, turn the marked NG arrow upwards and tighten it to the screw cap (see Figure 18). Repeat the above operation. The outlet pressure requires to be 4 ± 1in wc.
9. After the conversion is completed, the conversion label in the accessory bag needs to be attached next to the original label.


WARNING

This conversion kit shall be installed by a qualified service agency in accordance with the manufacturer’s instructions and all applicable codes and requirements of the authority having jurisdiction. If the information in these instructions is not followed exactly, a fire, explosion, or production of carbon monoxide may result causing property damage, personal injury or loss of life. The qualified service agency is responsible for the proper installation of this kit. The installation is not proper and complete until the operation of the converted appliance is checked as specified in the manufacturer’s instructions supplied with the kit.

Installation

IMPORTANT: The gas cooktop must be installed by a competent person to the relevant Gas Standards.
Please, ensure that, once the gas cooktop is 13 easily, it is easily accessible for the engineer in the event of a breakdown.

WHEN THE GAS COOKTOP IS FIRST INSTALLED
Once the gas cooktop has been installed, it is important to remove any protective materials, which were put on in the factory.
Any gas installation must be carried out by a competent person.

Important:
When installing the gas cooktop above a built-in oven, the oven should be placed on two wooden strips; in the case of a joining cabinet surface, remember to leave a space of at least 1.77” x 22.05” at the back.
When installing on a built-in oven without forced ventilation, ensure that there are air inlets and outlets for ventilating the interior of the cabinet adequately.
Pressure Regulator Installation
A: Cooktop air pipe joint
B: Pressure Regulator
C: Gasfitting

First, make sure that the pressure regulator arrow points toward the cooktop air pipe joint, and then fasten the pressure regulator to the cooktop air pipe.
Then install the gas fitting on the other side of the pressure regulator. (See Figure 16)

Figure 17

Gas Connection and check
D: End of fitting with 1/2 BSP male thread(See Figure 17)

The cooktop valve is in the closed state, open the air supply valve, coated the connector with moderate amounts of soapy water, if there are air bubbles that it means there is leakage, tighten the connector and test again. If repeat 3 to 4 times and there is still air bubbles, notify professionals to deal with it.

Cut Out dimensions

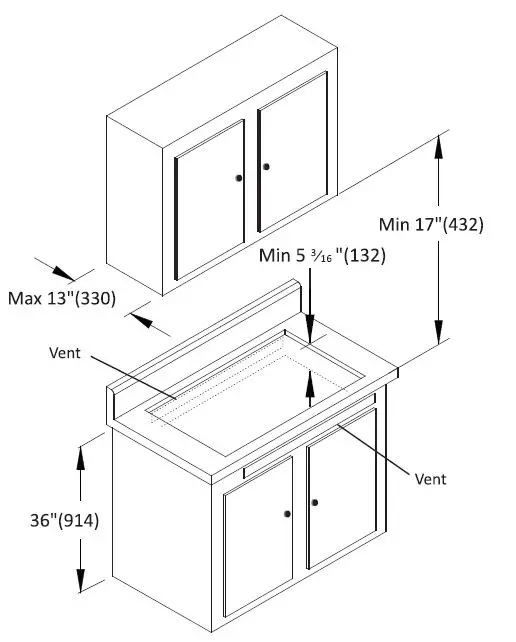

The dimensions of the cut-out are given in the diagram. (Dimensions are given in inch.)

For model:30GC0A2, 30GC0A5                                                             For model: 36GC202 36GC881

Figure 18                                                                                             Figure 19

Electrical connections

Any electrical work required to install this gas cooktop should be carried out by a qualified electrician or competent person.
Check the last letter of your model to know the electrical supply type: A is for AC,D is for DC. See PAGE 1 to check the electrical supply of your model

The GAS COOKTOP MUST BE EARTHED
If the cooktops to be connected to a 120V, 60 Hz AC electrical supply.
Before switching on, make sure the electricity supply voltage is the same as that indicated on the cooktops rating label.
Ensure that the cooktops supply cable does not come into contact with surfaces with temperatures higher than 50 deg. C.

WARNING
Electrical Grounding Instructions
This appliance is equipped with a three-prong grounding plug for your protection against shock hazards and should be plugged directly into a properly grounded receptacle. Do not cut or remove the grounding prong from this plug.

Circuit Diagram

Figure 22(for the appliance with four burners)
Figure 23(for the appliance with three burners)

Figure 24(for the appliance with five burners)

Use with D.C battery

When your cooktop is the one fitted with D.C supply device only, you are suggested to use one 1.5V battery.
Be sure that the battery is well fixed then you can follow the “Lighting” procedure.
Take off the battery if you won’t use the cooktop for a long time. Check the working performance every time before cooking.

Simply fill in the fields below and print form. Send Completed Form to:
Customer Service:(888)-682-8882
Empava Appliances Inc.
Warranty/ Registration Dept.
15253 Don Julian Rd
City of Industry,CA,91745

WARRANTY CARD
PLEASE READ AGREEMENT BEFORE SIGNING Click Here
Keep this copy for yourself.
Product Model Number/ Name: _________________________________________
Date of Purchase: _________ Where Purchased (Store):________________________
Print Name:_________________________________________________________
Address: ___________________________________________________________
City ________________________ ST _____ ZipCode ______________________
E-mail: ____________________________________________________________
Signature:_________________________________________ Date: ____________
My signature above acknowledges that I have read, fully understand, and accept this limitedwarranty agreement. Must return within 14 days of purchase with copy of dated
register receipt.

WARRANTY CARD COPY (For your records)
Empava Appliances Inc.
Warranty/ Registration Dept.
15253 Don Julian Rd
City of Industry,CA,91745

Product Model Number / Name:_________________________________________
Date of Purchase: _________ Where Purchased (Store):________________________
Print Name:_________________________________________________________
Address: ___________________________________________________________
City ________________________ ST _____ ZipCode ______________________
E-mail: ____________________________________________________________
Signature:_________________________________________ Date: ____________
My signature below acknowledges that I have read, fully understand, and accept this limited warranty agreement. Must return within 14 days of purchase with copy of dated
register receipt.

Empave Induction Cooktop

Important Safety Information:

• When using electrical appliance, basic safety precautions should always be followed. For this induction cooktop, even with the built-in safety features, it is essential to heed all precautions.
• Installation of the appliance into a kitchen countertop and its connection to the main power and electrical supply may only be performed by a qualified person.
• While cooking fat or oil on the cooktop may ignite. There is a risk of burning and fire; therefore, never leave the cooktop unattended at anytime.
• When the unit is on, do not touch outside the control panel as the surface may contain residual heat.
• To protect against electric shock, do not immerse cord plugs or cooktop in water (or other liquid substance).
• When using any electric appliance around children, close supervision is required.
• Do not a operate any appliance with a damaged cord or plug, after a malfunction of if it has been damaged in any manner. Read seller’s guidelines for warranty repairs and returns.
• Do not cook on a broken or damaged cooktop as spillovers may penetrate surface and create a risk of electric shock.
• To avoid potential injury, do not use accessory attachments which aren’t recommended by the manufacturer.
• Do not use outdoors, This Induction Cooktop is designed for household use.
• Do not let the cord dangle over the edge of a table or counter. Keep the cord away from hot surface.
• Do not place cooktop on or near: hot gas, electric burner.
• Avoid preparing food in aluminum foil or plastic containers over the hot cooking zones.
• Do not store and temperature-sensitive objects, material, or substances underneath the cooktop, such as: detergents, sprays, etc.
• To prevent accidents and achieve optimal fan ventilation, allow for sufficient space around the cooking area.
• Items with a magnetic field such as: radios, televisions, credit cards, cassette tape etc., can affect the unit.
• The marked electrical rating should be at least as great as the electrical rating on the appliance.
• The cord should be arranged so that it will not drape over the countertop or tabletop where it can be pulled on by children or tripped over.
• Do not use with empty pans/pots.
• Do not use cooktop for another use than directed by the manufacturer.
• Wear proper apparel – loose fitting or hanging garments should never be worn while using the appliance.
• In case of appliance failure. immediately disconnect the appliance from the main power source and contact the manufacturer.
• Do not place metallic objects such as knives, forks, spoons, lids, cans or aluminum foil on the cooktop.
• It is important to be aware that the unit’s surface will remain hot for a period of time after use.
• When possible, unplug the cooktop from the outlet when not in use and before cleaning. Allow to cool before performing any maintenance or repairs.
• Clean cooktop with caution – do not clean while unit is still hot, some cleaners product steam or fumes if applied to a heated surface.
• Do not store items of interest to children in cabinets above the range or on the blackguard of a range – children climbing on the range to reach items should get seriously injured.
• The power cord has been sized accordingly, however, with caution and care, an extension cord may be used.
• Do not repair or replace any part of the appliance unless specifically recommended in the manual. All other services should be referred to a qualified technician.
• Use only dry potholders – Moist or damp potholders on hot surfaces may result in burns from steam. Do not use a towel or other bulking cloth.
• Use proper cookware size – Choose cookware with a flat bottom large enough to cover the unit heating surface. The use of undersized cookware will expose a portion of the heating surface where direct contact may be made and cause serious injury. Compatible cookware is necessary to operate properly.
• Protective liners – Do not use aluminum foil to line cooking zone, drip bowls or oven bottoms; except as suggested in the manual. Improper use of these liners may result in a risk of electric shock or fire.
• To reduce risk of burns, ignition of flammable materials, and spillage due to unintentional contact with cookware, the cookware handles should be turned inward and not extend over adjacent heating surface.
• Do not use steam cleaners or high pressure cleaners to clean the cooktop, as this may result in electric shock.
• Do not touch cooking zones or areas near units – Cooking zones may be hot even though they are dark in color. Areas near cooking zones may become hot enough to cause burns. During and after use, do not touch, or let clothing or other materials contact the flammable contact the cooking zones or areas near the units until they have had sufficient time to cool.

This product should not be thrown away as household waste. Instead it should be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences to the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the store where you purchased the product.

Control Panel Overview:

FOR MODEL EMPV-IDC12B2

1. Left Cooking Zone
2. Right Cooking Zone
3. Ceramic Glass
4. Left touch control panel
5. Right touch control panel
   Diagram may look different from actual product.
6. Child safety lock
7. Timer control key
8. Lower power or temp key
9. Power or temp option display
10. Raise power or temp key
11. Function selection
12. ON/OFF

FOR MODEL EMPV-IDC12

1. Rear Cooking Zone
2. Front Cooking Zone
3. Control panel
4. Ceramic glass
   Diagram may look different from actual product.
5. Child safety lock
6. Timer control key
7. Cooking element symbol light
8. Cooking element symbol and power on/off
9. Lower power or temp key
10. Raise power or temp key
11. Main power on/off

Specifications & How to Use:

Standby Mode

Upon inserting the power plug into an electric socket, induction cooktop will make a “beep”sound once, and all the digital lights on the cooktop will blink once, indicating the unit enters into the Standby Mode.

Controls Lock

• Controls Lock is activated when the cooktop is off: Controls Lock prevents activation of any sensor key, except for the Lock key pad, so you must deactivate the control lock firstly, then touch the main POWER key pad to turn on the cooktop.
• Controls Lock is activated during the cooktop use: Controls Lock prevents activation of any sensor key, except for the ON/OFF, Power and Lock key pad.

To Lock
Touch and Hold Lock key pad for 3 seconds, a “beep” will sound and the indicator light above the Lock key pad will be lit up.

To unlock
Touch and Hold Lock key pad for 3 seconds, a beep will sound, the indicator light will turn OFF.

FOR MODEL EMPV-IDC12B2

Readiness Mode
While in the Standby Mode, press the “ON/OFF” key, it will make a “beep” sound once and “ON/OFF” indicator light will be blinking, indicating that the induction cooktop functions are ready to use. The unit will automatically return to standby mode if Function is not turned on within 60 seconds.

FOR MODEL EMPV-IDC12B2

Readiness Mode
While in the Standby Mode, press the “ON/OFF” key, it will make a “beep” sound once and “ON/OFF” indicator light will be blinking, indicating that the induction cooktop functions are ready to use. The unit will automatically return to standby mode if Function is not turned on within 60 seconds.

Turning Off Unit
When use of the cooktop is complete, press the “ON/OFF” key. “ON/OFF” light will turn off, indicating the unit is now on the standby mode. Please do not pull the power plug until the cooling fan has stopped.

Function

Place cookware on the cooktop. Please select from the Power Setting or Temperature Setting to begin cooking.
Power Setting Mode: This function cooks at power (wattage) settings. When the unit is in the Readiness Mode, or in the Temperature Mode, press the “Function” key to select the “Power” mode. “Power” indicator light is lit up, and the digital display show “900”, indicating that the cooktop has entered power setting mode, if the user wants to adjust the power level, please press the”-” or”+” key. If the user wants to set the timer for the unit to shut off automatically, please refer to the Set Timer Mode. To stop cooking, please press “ON/OFF” key. Heating power level settings:

NOTE: This function is equipped with safeguards against parching. The unit might shut off automatically when this function is used for frying, stir-frying, grilling and other high temperature cooking formats.

Temperature Setting Mode: This function cooks at temperature settings. When the unit is in the Readiness Mode, or in the Power Mode, press the “Function” key to select “Temp” mode. The “Temp” indicator light is lit up and the digital display shows “460F”, indicating that the cooktop has entered the temperature setting mode. If the user wants to adjust the temperature level, please press the”-” or”+”
key to adjust the temperature setting. If the user wants to set the timer for the unit to shut off automatically, please refer to the Set Timer Mode. To stop cooking, please press the “ON/OFF” key. Temperature
levels:120° F, 150° F, 180° F, 210° F, 260° F, 300° F, 360° F, 420° F, 460° F.
NOTE: If one heating zone is turned on at temp. setting, the max power setting in another heating zone is level 5(900W).

FOR MODEL EMPV-IDC12B2

Power Sharing
When both burners are on, one of the two burners would not have a power level higher than 1300W. Both of them together would not be more than Max 1800W. If only one burner is on, the heating zone can maintain its full heat setting, but when operating both burners, their combined total is Max 1800W, meaning that when operating the two burners at the same time, they will self adjust levels accordingly. When you increase the power of one side, the power output of the other side will reduce automatically if their combined total is more than Max 1800W (i.e. one side is at 1100W, the other burner automatically reduces power to level 700W, creating a total max 1800W setting).

Set Timer Mode
Use”+” or”-” key to adjust and set the desired time. A short key press adjusts the time by 1 minute and a long key press by 10 minutes. The automatic timer settings range from 1 minute to 2 hours and 59 minutes. (NOTE: there is no “seconds” display, only hours and minutes).

When the unit is in the Power or Temp. Mode, press the “Timer” key. The “Timer” and “Time” indicator light will be blinking, indicating the cooktop has entered Set Timer Mode; the digital display read “0:00″ and hour number will be blinking; Press”+” or”-” key to set the hour desired number, then press the “Timer” key again, minute number will be blinking, press”+” or”-” key to set the minutes desired number, then press “Timer” key thirdly to complete setting. (Setting is also complete if neither the”+” or “-“key is pressed for 10 seconds.)Once activated, “Timer” or “Time” indicator light will turn long lit, the digital display will alternate between showing the remaining cooking time and power level. When the countdown is complete, the cooktop will sound “beep” and the specific heating element will shut off automatically.

To Cancel Timer: While in Timer Mode, press “Timer” key, the digital display shows countdown time. Then press”+” or”-” key until the digital display reads “0:00” and timer display will blink for 10 seconds and then go off. The timer is no longer active.

Hot Surface Indicator

After using any of the cooking zones, the cooktop will remain hot. Even after turning off the entire unit, the surface of the cooktop will remain hot for some time. The display for the cooking zones will show an “H” to warn the user that the surface is hot to touch after the heating zone switch off. Wait until the “H” is no longer displayed to clean the unit. You may turn the unit back on even if the “H” is displayed.

FOR MODEL EMPV-IDC12

Readiness Mode
While in the Standby Mode, press the “ON/OFF” key, it will make a “beep” sound once and “ON/OFF” indicator light will be blinking, indicating that the induction cooktop functions are ready to use. The unit will automatically return to standby mode if Cooking Element Symbol is not turned on within 60 seconds.

To Turn Off Unit

1. Touch the cooking element symbol you desire to turn off, press”-” key to power level 1, then press”-” again to turn off the desired cooking element.
2. Touch the Main Power on/off to turn off the entire cooktop, a “beep” will sound and all indicator lights will turn off, indicating the cooktop enter into the Standby Mode.

Operating The Cooking Elements
To turn on one or more Cooking Elements, place a compatible pot or pan on the desired cooking element. With the hob being ON as mentioned above, touch the desired cooking symbol element within 30s, Power display will show a”-“, Touch”-” key or”+” key to adjust the desired power level;
NOTE: During cooking, the unit is equipped with safeguards against parching. Heating will appear intermittent phenomenon when cooking element is used for frying, stir-frying, grilling and other high temperature cooking formats.

Power Sharing
When both burners are on, one of the two burners would not have a power level higher than level 7. Both of them together would not be more than Max 10.
If only one burner is on, the heating zone can maintain its full heat setting. But when operating both burners, their combined total is Max 10, meaning that when operating the two burners at the same time, they’ll self adjust levels accordingly. When you increase the power of one side, the power output of the other side will reduce automatically if their combined total is more than Max 10(i.e., one side is at 5, the other burner automatically reduces power to level 5, creating a total max 10 setting).

Set Timer
Use”+” or”-” key to adjust and set the desired time. A short key press adjusts the time by 1 minute and along key press by 10 minutes.
The automatic timer settings range from 1 minute to 99 minutes. (NOTE: There is no “seconds” and “hours” display, only minutes.) The red dot next to the Time symbol indicator will illuminate indicating that the cooking elements is selected.

FOR MODEL EMPV-IDC12

While cooking, touch the Timer key pad until time light of the desired cooking element is ON, Time digital display reads “00” and blinking; Touch”+” or”-” key to set the desired number, Once the Timer is set and no “+” or”-” key are pressed for 5 seconds, the Minute Timer begins the countdown and the timer display will stop blinking and will stay on in the display. Once the Minute Timer reaches “00”, a “beep” will be sound, indicating that the time is up, the Particular Cooking Element will automatically shut off.
If you want to set another burner to switch-off automatically, touch Timer key to until the desired time symbol indicator blinks, repeat the same steps above.

If you want to check the remaining time for another Cooking Element, touch the Timer until the Time symbol indicator for the desired Cooking Element blinks.
If more than one switch-off time is programmed, the shortest time remaining will show in the Time digital display, the indicator for that particular burner will be blinking.
To Cancel Timer
Touch the Timer until the Time symbol indicator for the desired Cooking Element blinks, then touch the”+” or”-” to set the timer to 00 . The Time digital display will blink for 5 seconds and then turn off, indicating that the timer of selected cooking element has been cancelled.

Hot Surface Indicator

After using any of the cooking zones, the cooktop will remain hot. Even after turning off the entire unit, the surface of the cooktop will remain hot for some time. The display for the cooking zones will show an “H” to warn the user that the surface is hot to touch after the heating zone switch off. Wait until the “H” is no longer displayed to clean the unit. You may turn the unit back on even if the “H” is displayed.

Notes on Using your Cooktop:

• This appliance will get hot during use and will remain hot for a time after use.
• Never heat empty cookware. This can damage both the cookware and the appliance.
• Remember to turn off cooktop after use.
• Keep unit away from a gas range or other heat source. If the surrounding temperature is too hot, the cooktop will stop heating.
• Make sure to wipe off water from the bottom of the pot before heating.
• Use caution when boiling water. During the boiling process, hot water may splash out.

Operational Cooktop Noises

Cookware Noise

The induction fields are generated by electronics equipment, which are pretty much silent but they do produce heat at high power level. A soft-sounding cooling fan run when the unit is running multiple cooking elements at high settings at once or when a cooking element is set at very high power settings.
What can sometimes produce sound with induction cooking is not the induction equipment but the cookware itself. Slight sounds may be produced by different types of cookware. Some of the possible causes include:

• Heavier pans such as enameled cast iron produce less noise than a lighter weight multi-ply stainless steel pan; Light weight cookware may also vibrate. Heavy weight quality cookware
  is recommended.
• Cookware with irregular or warped bottoms can vibrate audibly on the ceramic glass surface, though again typically only at high power settings.
• A “Cracking” noise may be heard if the cookware base is made of layer of different material.
• A low “humming” noise occurs when cooking, which is normal particularly at high power settings.
• Whistling can occur if both elements are being used at the same time at the high settings, and the cookware has bases made of layer of different material.
• Loose-fitting handles on cookware, typically when riveted on, can vibrate slightly.
• High quality cookware of solid cast iron including enamelware will lower the noise.

Compatible Cookware:

The quality of your cooking is dependent on the cookware you use.
Because induction cooking requires a magnetic vessel for heating, only certain materials can be used on your cooktop.
Proper Cookware
Flat-bottom pots or pans with diameter from 12 to 26 cm (4. 7 to 10.83 inches) made from the following:

Improper Cookware

Pots or pans with or made of the following CANNOT be used on your cooktop:

• Non-magnetic stainless steel
• Bottom measuring less than 12 cm {4.7 inches)
• Pot with stands
• Heat resistant glass
• Ceramic container
• Copper
• Aluminum

If you are unsure about the usability of your cookware, simply take a magnet (such as one on your refrigerator) and hold it under the bottom of your pot or pan. If the magnet sticks, the cookware CAN be used on the induction cooktop.

Cleaning and Maintenance:

Please follow these directions along with Important Safety steps for cleaning, advised at the beginning of the manual. Use a ceramic glass cleaner on the glass cooktop. To maintain and protect the surface of your glass cooktop, follow these steps:
Before using the cooktop for the first time, clean it to protect the top and makes cleanup easier.

1. Daily use of ceramic glass cleaner when the cooktop is cool will keep the cooktop looking new.
2. Shake the cleaning solution well. Apply a few drops of ceramic glass cleaner directly to the cooktop.
3. Use a paper towel or a soft cleaning pad for ceramic surface to clean the entire cooktop surface.
4. Use a dry cloth or paper towel to remove all cleaning residue. No need to rinse. Never run the cooktop under water.

Cleaning Burned on Residue:

NOTE: It is very important that you DO NOT use the cooktop until it has been thoroughly cleaned.
WARNING: Damage to the glass surface may occur if you use scrub pads or any other type of abrasive cleaning materials.

1. Allow the cooktop to cool.
2. Spread a few drops of the ceramic glass cleaner on the burned residue area.
3. Using the ceramic glass cleaning pad, rub the residue area, applying pressure as needed.
4. If any residue remains, repeat the steps listed above.
5. For additional protection, after all residue has been removed, polish the entire surface with the ceramic glass cleaner and a paper towel.

Cleaning heavy burned – on residue:

1. Allow the cooktop to cool.
2. Used a single-edge razor blade scraper approximately at a 45 degree angle against the glass surface, and scrape off the residue.
3. After scraping off the residue, apply a few drops of the ceramic glass cleaner on the entire burned residue area. Use the cleaning pad to remove any remaining residue.
4. For additional protection, after all residue has been removed, polish the entire surface with the ceramic glass cleaner and a paper towel.

Metal Marks and Scratches:
Be careful not to slide pots or pans across the cooktop surface. It will leave behind metal markings. These marks are removable using the ceramic glass cleaner along with the cleaning pad for induction cooktop.
If pots with a thin overlay of aluminum or copper boil dry, the overlay may leave a black discoloration on the cooktop. This should be removed immediately before using the cooktop again or the discoloration will become permanent.
NOTE: If cracks or indentations in the glass surface occurs, the cooktop glass will have to be replaced. Contact the manufacturer for assistance.

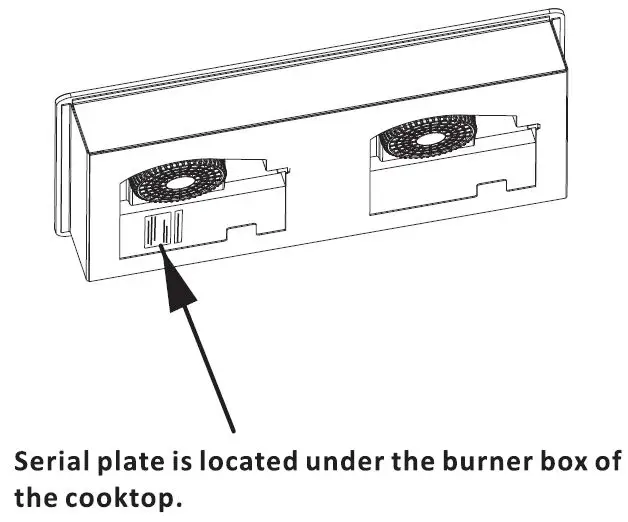

Installation Instructions:

USE—- COUNTERTOP
Please find 4 feet in the packaging, you can screw them into the bottom of the unit, then the unit can be used directly on the countertop.

USE—- DROP-IN
This appliance is not user serviceable. Installation must be completed by a qualified technician.

warning!
For Your Safety: Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance. To eliminate the risk of burns or fire due to overheating, cabinets located above the induction unit should be avoided. If cabinet space is available, the risk can be reduced by installing a range hood that protects horizontally at a minimum of 5 inches below the bottom of the cabinets.
IMPORTANT INSTALLATION INFORMATION
All electric cooktops run off a single phase, three-wire cable, 120V/60Hz AC only electrical supply with ground.
The installation should be made using wires, conduits, and fittings size in accordance with the National Electrical Code, ANSI/NFPA 70.

Cooktop Installation

1. Cut an opening in the counter surface. Refer to the drawings on the following pages for appropriate dimension sizes and follow these instructions:
   • Select heat-resistant table material to avoid damage caused by heat radiation.
   • Ensure that the underside of the induction cooktop is well ventilated and the air inlet is not blocked.
   • The distance between the cooktop and any cupboard above the appliance should be at least 30 inches.
2. After cutting the opening, remove any shavings or other loose material that may interfere with the appliance’s operation.
3. IMPORTANT NOTE: Do not seal the cooktop to the countertop. It must be removed if service is necessary.
4. IMPORTANT NOTE: For unframed installation. adhere foam strip to the outer edge of the glass.

Before installing the cooktop

1. Ensure that cooktop is turned OFF.
2. Visually inspect the cooktop for damage. Also make sure all cooktop screws are on tight.
3. Place the cooktop into the countertop cutout.

Model and Serial Number Location
The serial plate is located under the cooktop. When ordering parts or making inquiries about your cooktop, be sure to include the model and serial numbers.

MODEL EMPV-IDC12B2 120V 60Hz 1800W

Overall Dimensions

MODEL EMPV-IDC12 120V 60Hz 1800W

Overall Dimensions

After Installation

1. Remove all the stickers and items from the top of the cooktop surface.
2. Clean cooktop before use. Dry with a soft cloth. See Cleaning Your Cooktop for reference.
3. Read Using The Cooktop.
4. Turn on the power to the cooktop.
5. Verify all function operation properly.

NOTE: If the cooktop does not work, or you met any problem in your operation, please check that the circuit breaker has not tripped or the house has not blown. For more information, please See Troubleshooting Guide. If you do not solve the problem by yourself, please call us for assistance or service.

Troubleshooting Guide:

If the display shows an error code, please refer to this sheet for a potential solution.
