Rebooting or Resetting Your Robot

For some issues, you may need to reboot or reset your robot or “force close” the iRobot® HOME App. Use the following information to perform these procedures.

Note: A robot reset will reset the clock of a non-connected robot. However, the schedule will remain.

Roomba® will play the following tone upon reset.

Reboot Procedures

Scroll down for Roomba® 700, 800, and 900 series

Roomba® with the CLEAN Button

Roomba® s Series: Press and hold the CLEAN button on your robot for 20 seconds. When the button is released, the light ring around the bin lid will swirl clockwise in white. It may take up to a minute-and-a-half for your robot to turn on. The reboot procedure is complete when the light ring shuts off.

Roomba® s Series.

Roomba® s Series.
Swirl Clockwise in White.

Roomba® i Series and j Series: Press and hold the CLEAN button on your robot for 20 seconds. For j series robots, hold the button for 10 seconds. When the button is released, the light ring will swirl clockwise in white. It may take up to a minute-and-a-half for your robot to turn on.

Roomba® 900 Series.
The reboot procedure is the same for Roomba® 700 and 800 Series.

Roomba with the Dock and Spot Buttons

This procedure applies to the following Roomba series:

  • Roomba e Series
  • Wi-Fi Connected Roomba 800 Series
  • Wi-Fi Connected Roomba 600 Series
  • Roomba 600 Series
  • Roomba 500 Series

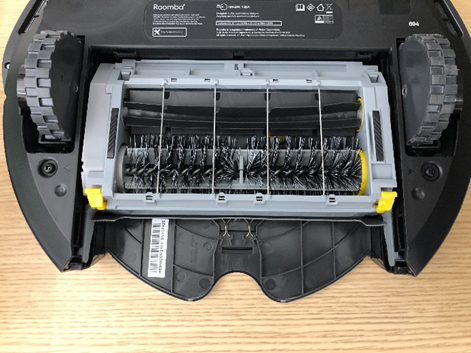

For 600 Series robots only: Remove your robot’s bin and look for a green dot on the underside. If no dot is present, use the steps below to reboot your robot. If the dot is present, use the steps in https://homesupport.irobot.com/s/article/507 to remove the battery, which will reboot your robot.

image.png     image.png
600 series robot with green dot                                        600 series robot without green dot

NOTE: Leave battery out for thirty seconds before reinstalling it to allow for a successful reboot.For all robots with the Dock and Spot buttons and no green dot: Press and hold HOME and SPOT Clean buttons on your robot for 10 seconds. When the button is released, Roomba will play the reboot tone.

Wi-Fi connected Roomba 800 series. The reboot procedure is the same for Roomba 500 & 600 series, and also Wi-Fi connected Roomba 600 & 800 series.

Roomba e series.

Braava jet

For the Braava jet m Series, press and hold the CLEAN button on your robot for 20 seconds. When the button is released, the light ring around the tank lid will swirl clockwise in white. It can take up to a minute and a half for the robot to turn on. The reboot procedure is complete when the light ring shuts off.

Braava jet m Series.

Braava jet m Series.
Swirl Clockwise in White.


iRobot HOME App

Force Closing the iRobot HOME App on iOS

  1. Press the image.pngHome button twice, quickly. You will see small previews of your recently used apps.
  2. Swipe <- left or -> right to find the app that you want to close.
  3. Swipe  up on the app’s preview to close it.

Force Closing the iRobot HOME App on Android

Follow your mobile device manufacturer’s instructions on how to force stop your iRobot HOME App or how to power cycle your mobile device.

Note: Force stopping an app on an Android device is different than closing it.

Re-open the iRobot HOME App

Look for Roomba in the “Detected Robots” list and resume the set-up procedure from there. If Roomba is not in the list, select Setup a new Roomba and try the Wi-Fi Setup process again.

If the problem persists, reboot your router, and try the setup process again. If the problem still persists after the router reboot, please contact iRobot Customer Care.

For expedited service, please have the following ready:

  • Your robot charged and with you
  • Your robot’s serial number
  • For warranty claims: Proof of purchase (receipt or invoice for purchase from an authorized retailer


]]>
iRobot j7+ Roomba Robot Vacuum Cleaner Manual https://itsmanual.com/irobot/j7-roomba-robot-cleaner/ Mon, 27 Mar 2023 10:13:00 +0000 https://itsmanual.com/?p=34463 Read More...

]]>


iRobot j7+ Roomba Robot Vacuum Cleaner

iRobot j7+ Roomba Robot Vacuum Cleaner

Safety information

Important safety instructions
This Owner’s Guide includes information for Regulatory Model(s): ADG-N2

SAVE THESE INSTRUCTIONS

WERNINGWARNING: When using an electrical appliance, basic precautions should always be followed, including the following:
BEFORE USING THIS APPLIANCE, READ ALL APPLICABLE INSTRUCTIONS. FOR HOUSEHOLD USE ONLY.
WERNINGWARNING: To reduce the risk of injury or damage, read and follow the safety precautions when setting up, using, and maintaining your robot.
This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children should not play with the appliance. Cleaning and user maintenance should not be carried out by children without supervision.

WERNING This is the safety alert symbol. It is used to alert you to potential physical injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death.

Electric Warning Icon Risk of electric shock
Risk of fire
WERNING Caution
Double insulation Class II equipment
indoor use only. For indoor use only
Rated power input, a.c.
Rated power output, d.c.
Rated power input, d.c.
manual carefully Read operator’s manual
Keep out of reach of children
testo 805 Infrared Thermometer - symbol The general symbol for recycling
Separate Supply Unit

WARNING: Indicates a hazardous situation that, if not avoided, could result in serious injury or death.
CAUTION: Indicates a hazardous situation that, if not avoided, could result in minor or moderate injury.
NOTICE: Indicates a hazardous situation that, if not avoided, could result in property damage.

WERNINGGENERAL WARNINGElectric Warning Icon

  • Your robot comes with a region-approved power supply cord and is designed to be plugged into a standard household AC power outlet only. Do not use any other power supply cord. For replacement cards, please contact Customer Care to ensure proper selection of country-specific power supply cords.
  • Do not open your robot or dirt disposal other than instructed in the Owner’s Guide. There are no user-serviceable parts inside. Refer servicing to qualified service personnel.
  • Risk of electric shock, use indoors in dry location only.
  • Do not handle your robot or dirt disposal with wet hands.
  • Do not use unauthorized chargers. The use of an unauthorized charger could cause the battery to generate heat, smoke, catch fire or explode.
  • Your robot is not a toy. Small children and pets should be supervised when your robot is operating.
  • Do not sit or stand on your robot or dirt disposal.
  • Store and operate your robot in room-temperature environments only.
  • If the room to be cleaned contains a balcony, a physical barrier should be used to prevent the robot access to the balcony and ensure safe operation.
  • Clean cliff sensors for buildup.
  • If the room to be cleaned contains equipment, such as a stove, fan, portable heater or humidifier, remove the equipment before operation. There is a risk of injury, accident or malfunction if the robot comes in contact with and pushes the equipment.
  • This robot is intended for dry floor use only. Do not use this device to clean up spills. Do not allow your robot or charging station to become wet.

WERNING CAUTION

  • Do not operate the robot in areas with exposed electrical outlets on the floor.
  • Do not use this device to pick up sharp objects, glass, or anything that is burning or smoking.
  • Be aware that the robot moves on its own. Take care when walking in the area that the robot is operating in to avoid stepping on it.
  • If the device passes over a power cord and drags it, there is a chance an object could be pulled off a table or shelf. Before using this device, pick up objects such as clothing, loose papers, pull cords for blinds or curtains, power cords, and any fragile objects. Extinguish candles. Shut off portable heaters.
  • Perform the required maintenance as per the Owner’s Guide to ensure safe operation of the robot and dirt disposal.

NOTICE

  • Do not place anything on top of your robot.
  • Failure to maintain the cleanliness of charger contacts could result in loss of ability for the robot to charge the battery.
  • Before running your robot on carpets or rugs, ensure that the carpets or rugs are compatible with vacuums using bars or brushes. Using your robot on a carpet or rug that is not compatible could result in damage to your carpet or rug. Contact your carpet or rug manufacturer with questions on
    compatibility.

WERNING BATTERY WARNING

  • Do not open, crush, heat above 176°F: 80°C or incinerate Follow the Owner’s Guide instructions for proper use, maintenance, handling, and disposal.
  • Do not short-circuit the battery by allowing metal objects to contact battery terminals or immerse in liquid. Do not subject batteries to mechanical shock.
  • Lithium-ion batteries and products that contain lithium-ion batteries are subject to stringent transportation regulations. If you need to post this product (with the battery included) for service, travel, or any other reason, you MUST refer to the Troubleshooting section of your manual or contact Customer Care for postage instructions.
  • Periodically inspect the battery pack for any sign of damage or leakage. Do not charge damaged or leaking battery packs and do not allow the liquid to come in contact with skin or eyes. If contact has been made, wash the affected area with copious amounts of water and seek medical advice. Place the battery in a sealed plastic bag and recycle or dispose of it safely according to local environmental regulations, or return it to your local authorized iRobot Service Centre for disposal.

WERNING CAUTIONElectric Warning Icon

  • Battery usage by children should be supervised. Seek medical advice immediately if a cell or a battery has been swallowed.

NOTICE

  • The battery pack must be removed from the robot before recycling or disposal.
  • For best results, only use the Lithium-Ion Battery that comes with the robot.
  • Do not use non-rechargeable batteries. Use only the rechargeable battery supplied with the product. For replacement, purchase an identical iRobot battery or contact iRobot Customer Care for alternative battery options.
  • Always charge and remove the battery from your robot and accessories before long-term storage.

DustbinThis symbol on the battery indicates that the battery must not be disposed of with unsorted common municipal waste. As the end-user, it is your responsibility to dispose of the end-of-life battery in your appliance in an environmentally sensitive manner as follows: (1) returning it to the distributor/dealer from whom you purchased the product; or (2) depositing it in a designated collection point. The separate collection and recycling of end- f-life batteries at the time of disposal will help to conserve natural resources and to ensure that it is recycled in a manner that protects human health and the
environment. For more information, please contact your local recycling office or the dealer from whom you originally purchased the product. Failure to properly dispose of end-of-life batteries may result in negative potential effects on the environment and human health due to the substances in the batteries and accumulators.
Information regarding the effects of problematic substances in the battery waste stream may be  found at the following source: http://ec.europa.eu/environment/waste/batteries/

AUTOMATIC DIRT DISPOSAL
WERNINGWARNINGElectric Warning Icon

  • Do not use if the cord or plug is damaged. If the appliance is not working as it should, has been dropped, damaged, left outdoors or dropped into water, return it to a service center.
  • Always disconnect your robot from the dirt disposal before cleaning or maintaining it.
  • Do not use dirt disposal as a step.
  • Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair and anything that may reduce air flow.
  • To properly maintain your dirt disposal, do not place foreign objects inside and ensure that it is clear of debris.
  • In order to avoid a hazard due to inadvertent resetting of the thermal cut-out, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.
  • Do not allow liquids to get on or into your dirt disposal.
  • Do not pour any liquids into the device and do not immerse in water.
  • Do not use outdoors or on wet surfaces.
  • Do not allow to be used as a toy. Close attention is necessary when used by or near children.
  • Use only as described in this manual.
  • To reduce the risk of electric shock, unplug your dirt disposal before cleaning it.
  • Keep the dirt disposal and power cord away from heated surfaces.

NOTICE

  • The product may not be used with any type of power converter. The use of power converters will immediately void the warranty.
  • If you live in an area prone to electrical storms, it is recommended that you use additional surge protection. Your dirt disposal may be protected with a surge protector in the event of severe electrical storms.
  • Do not use without a dust bag and/or filters in place.

About your Roomba® Robot Vacuum

Top view

Bottom view

Using your Roomba® Robot Vacuum
Positioning the Clean Base™ Automatic Dirt Disposal

NOTES Note: Do not place your Clean Base Automatic Dirt Disposal in direct sunlight. Ensure that the area around the dock is free of clutter to improve docking performance.
warning 2 WARNING: To prevent the risk of your robot falling downstairs, ensure that the charging station is placed at least 4 feet (1.2 meters) away from the stairs.

  • Download the iRobot Home App and connect to Wi-Fi®
  • Follow the step-by-step instructions to set up your Roomba.
  • Set up Precision Vision Navigation™ to avoid obstacles in real-time.
  • Set an automatic cleaning schedule and customize cleaning preferences.
  • Create smart maps to tell your robot where and when to clean.

Charging

Place the robot on the charging station to activate the battery.
NOTESNote: Your robot comes with a partial charge, but we recommend that you charge the robot for 3 hours prior to starting the first cleaning job.

When your robot is fully charged, the light ring indicator will intermittingly pulse white at the rear.

  • The robot uses a small amount of power whenever it is on the charging station. You can put the robot in a further-reduced power state when not in use. To put your robot into Reduced Power Standby Mode, remove the dust bin and tap the clean button 5 times. To exit Reduced Power Standby Mode, place your robot on the charging station and tap the clean button. For more details on this Reduced Power Standby Mode, refer to the FAQ page on our website.
  • For long-term storage, turn off the robot by removing it from the charging station and holding down the clean button for 3 seconds with one wheel off the ground. Store the robot in a cool, dry place.

Cleaning

Your robot will automatically explore and clean your home in neat rows, avoiding obstacles using its front-facing camera. It will return to the charging station at the end of a cleaning job and whenever it needs to recharge.

Your robot is able to recognize and avoid objects. However, it is still recommended to remove excess clutter before cleaning.

  • To end a job and send the robot back to its charging station, hold the clean button down for between 2-5 seconds. A blue light ring pattern will indicate that the robot is seeking the charging station.
  • When your robot detects an especially dirty area, it will engage Dirt Detect™ mode, moving in a forwards/backward motion to clean the area more thoroughly. The light ring indicator will flash blue.

When the robot senses its bin needs to be emptied, the light ring indicator will illuminate in a red sweeping motion toward the rear.

Troubleshooting

Your robot will tell you something is wrong by playing an audio alert and turning the light ring indicator red. Press the clean button or tap the bumper for details. Check the iRobot Home App for further support.

After 90 minutes of inactivity off the charging station, the robot will automatically end its cleaning job.
Battery safety & postage
For best results, only use the Lithium-Ion Battery that comes with your robot.
warning 2 WARNING: Lithium-ion batteries and products that contain lithium-ion batteries are subject to stringent transportation regulations. If you need to ship this product for service, travel, or any other reason, you MUST follow the shipping instructions are below.

  • The battery MUST be turned off before postage.
  • Turn off the battery by removing the robot from the charging station and holding down the clean button for 3 seconds with one wheel off the ground. All indicators will turn off.
  • Package the robot securely for postage.
  • If you need further assistance, contact our Customer Care team or visit global.irobot.com.

About your Automatic Dirt Disposal
While cleaning, your robot will automatically return to the dirt disposal to empty its bin and recharge as needed.
The dirt disposal’s LED indicator will turn solid red when a new bag is needed. If a clog is detected, the dirt disposal will trigger additional attempts to automatically clear the clog.
NOTES Note: If you place your robot on the dirt disposal by hand, it will not empty automatically. In this case, use the iRobot Home App or hold the button down for 2-5 seconds.

Care and maintenance

Care and maintenance instructions
To keep your robot running at peak performance, perform the procedures on the following pages.
There are additional instructional videos in the iRobot Home App. If you notice the robot picking up less debris from your floor, empty the bin, clean the filter and clean the brushes.

Part Care frequency Replacement Frequency*
Bin Wash bin as needed
Filter Clean once a week (twice a week if you have a pet). Do not wash. Every 2 months
Full Bin Sensor Clean every 2 weeks
Front Caster Wheel Clean every 2 weeks Every 12 months
Edge-Sweeping Brush and Multi-Surface Brushes Clean once a month (twice a month if you have a pet) Every 12 months
Sensors and Charging Contacts Clean once a month
Camera Window Clean and inspect once a month
Bags Bags should be replaced when prompted by the LED indicator/app.
Dock Charging Contacts and Visual Docking Target Once every month
Blower Cover inside the canister Once every month (remove debris from blower cover)

Note: iRobot manufactures various replacement parts and assemblies. If you think you need a replacement part, please contact iRobot Customer Care for more information. *Replacement frequency may vary. Parts should be replaced if visible wear appears.
Emptying the Bin

Press the bin release button to remove the bin.
Open bin door to empty bin.
Place bin back in the robot.

Cleaning the Filter

Remove the bin. Remove the filter by grasping both ends and pulling it out.
Remove debris by tapping the filter against your rubbish bin.
Reinsert filter with ridged grips facing out. Place bin back in the robot.
Important: The robot will not run if the filter is not installed correctly. Replace the filter every two months.

Cleaning the Full Bin Sensors

Remove and empty the bin.
Wipe the inner sensors with a clean, dry cloth
Wipe the bin door with a clean, dry cloth.
Clear any debris from the vacuum path.

Washing the Bin
Important: Do not wash the filter. Remove the filter before washing the bin.
Release the bin, remove the filter and open the bin door.
Rinse the bin using warm water.

NOTESNote: Bin is not dishwasher safe.
Make sure that the bin is completely dry. Reinsert filter and place bin back in the robot.
Cleaning the Edge-Sweeping Brush
Use a coin or small screwdriver to remove the screw holding the Edge-Sweeping Brush in place.
Pull to remove the Edge-Sweeping Brush. Remove any hair or debris, then reinstall the brush.

Cleaning the Front Caster Wheel

  1. Pull firmly on the front wheel module to remove it from the robot.
  2. Pull firmly on the wheel to remove it from its housing (see illustration below).
  3. Remove any debris from inside the wheel cavity.
  4. Reinstall all parts when finished. Make sure that the wheel clicks back into place.

Important: A front wheel clogged with hair and debris could result in damage to your floor. If the wheel is not spinning freely after you have cleaned it,  please contact Customer Care.
Cleaning the Multi-Surface Brushes

Pinch the brush-frame release tab, lift the tab and remove any obstructions.
Remove the brushes from the robot. Remove the brush caps from the ends of the brushes. Remove any hair or debris that has collected beneath the caps. Reinstall the brush caps.
Remove any hair or debris from the square and hexagonal pegs on the opposite side of the brushes.
Reinstall the brushes in the robot. Match the shape of the brush pegs with the shape of the brush icons in the cleaning head module.

Cleaning the Sensors, Camera Window, and Charging Contacts
Wipe sensors, camera window, and charging contacts with a clean, dry cloth.
NOTES Note: Inspect the camera window. If you notice any cracks, please contact customer care.

Replacing the Bag
Lift up on the canister lid to open.
Pull up on the plastic card to remove the bag from the canister.
NOTES Note: This will seal the bag so dust and debris cannot escape.

Discard the used bag.
Install a new bag, sliding the plastic card into the guide rails.

Press down on the lid making sure that it is completely closed.
NOTES Note: To achieve optimal performance with your robot and automatic dirt disposal, clean and/or replace your robot’s filter as needed.

Cleaning the Visual Docking Target and Charging Contacts
Inspect the visual docking target and charging contacts to make sure that they are clear of debris. Wipe with a clean, dry cloth.

NOTES Note: Do not spray cleaning solution directly onto sensors or into sensor openings.
Removing debris from Blower Cover

Inspect blower cover for any lint or debris build-up, and wipe with a clean dry cloth to remove.

Troubleshooting

Your dirt disposal will tell you if something is wrong via an LED indicator on the front of the canister and through the iRobot Home App.

LED indicator Common error How to fix
Solid red A bag full or missing 1. Replace the bag if it is full or missing.
2. Make sure that the bag is securely inserted.
3. If the problem persists, remove any debris from the port on the bottom of your robot and the dirt disposal.
Blinking red There is a leak or a clog in the dock evacuation path 1. Make sure that the canister lid is pushed down and firmly sealed. Hold the clean button on your robot down for 2 seconds to manually empty the
bin.
2. Remove any debris from the port on the bottom of your robot and dirt disposal.
3. Unplug the dirt disposal from the wall. Place it on its side and inspect the debris evacuation tube for debris. If necessary, remove the tube to clear
any debris.

This product has been equipped with a thermal protector designed to protect against damage due to overheating. If the protector operates, the motor will stop running. If this happens, unplug the unit, allow it to cool for 30 minutes, clear any obstructions from the evacuation port and evacuation tube, then plug the unit back in.

iRobot Customer Care

USA & Canada
If you have questions or comments about your Roomba® robot vacuum, please contact iRobot before contacting a retailer. You can start by visiting global.irobot.com for support tips, frequently asked questions, and information about accessories. This information can also be found in the iRobot Home App. If you need further assistance, call our Customer Care team on (877) 855 8593.
iRobot USA Customer Care Hours

  • Monday to Friday, 9 AM-9 PM Eastern Time
  • Saturday and Sunday 9 AM-6 PM Eastern Time

Outside USA & Canada
Visit global.irobot.com to:

  • Learn more about iRobot in your country
  • Get hints and tips to improve your Roomba® robot vacuum’s performance
  • Get answers to questions
  • Contact your local support center

Regulatory information

CE SYMBOLHereby, iRobot Corporation declares that this robot vacuum cleaner model RVE-Y1 is in compliance with the EU Radio Equipment Directive  2014/53/EU. The full text of the EU Declaration of Conformity is available at the following web address: www.irobot.com/compliance.
Uk CA SymbolHereby, iRobot Corporation declares that this robot vacuum cleaner model RVE-Y1 is in compliance with the Radio Equipment Regulations 2017. The full text of the UKCA Declaration of Conformity is available at the following web address: www.irobot.com/compliance.
Chemical information report listing SVHC (substances of very high concern) per EU Regulation EU 1907/2006 can be found here: www.irobot.com/compliance.
Regulatory Model RVE-Y1 incorporates the Sextant radio module model AXG-Y1. The Sextant radio module is a dual-band radio which operates in the  WLAN 2.4 GHz and WLAN 5GHz bands. The Sextant radio module also incorporates Bluetooth and BLE which operates in the 2400 MHz –2483.5 MHz band.

  • The 2.4 GHz band is limited to operate between 2400 MHz – 2483.5 MHz with a maximum EIRP output power of 17.78 dBm (59.98 mW) at 2442 MHz.
  • The 5 GHz band is limited to operate between 5150 MHz – 5850 MHz with a maximum EIRP output power of 20.81 dBm (120.50 mW) at 5190 MHz.
  • For Israel, the 5 GHz band is limited to operating in the 5150 MHz – 5350 MHz bands.

Dustbin IconThis symbol on the product indicates that the appliance must not be disposed of with unsorted common municipal waste. As the end-user, it is your responsibility to dispose of the end-of-life appliance in an environmentally sensitive manner as follows: (1) returning it to the distributor/dealer from whom you purchased the product; or (2) depositing it in a designated collection point.
Disposing of this product correctly will help save valuable resources and prevent any potential negative effects on human health and the environment,  which could otherwise arise from inappropriate waste handling. Please contact your local authority for further details or your nearest designated collection
point. Penalties may be applicable for incorrect disposal of this waste in accordance with your national legislation. More information may be found at the following source: http://ec.europa.eu/environment/waste/weee/index_en.html
Manufacturer Address: iRobot Corporation, 8 Crosby Drive, Bedford MA 01730, USA
Recycle your end-of-life iRobot product responsibly as per local regulations. The following is a list of the WEEE recycling organizations contracted by iRobot at the time of product sale.

Location Organization URL
Austria UGH http://www.elektro-ade.at/elektrogeraete-sammeln/liste-der-sammelstoesterreich/
Belgium Recupel https://www.recupel.be/en/where-to-go/?search collectionPoints=&categories=1%2C2%2C3%2C4#
Germany Center https://www.ear-system.de/earverzeichnis/sammel-und-ruecknahmestback
Denmark Elretul https://www.dpa-system.dk/DPAApplications/DPADB.aspx?wf=CollectionPointSearch.as
Spain Exotic https://punto-limpio.info/
France Eco-systems https://www.eco-systemes.fr/france
Ireland WEEE Ireland http://www.weeeireland.ie/household-recycling/where-can-i-recycle/
Netherlands Wecycle https://www.watismijnapparaatwaard.nl/
Sweden EI-Kretsen https://www.sopor.nu/sortera-atervinn/
United Kingdom Repic http://www.responsible-recycling.co.uk/contact-us/find-your-local-recy

©2021 iRobot Corporation, 8 Crosby Drive, Bedford, MA 01730 USA. All rights reserved.
iRobot and Roomba are registered trademarks of iRobot Corporation.
CleanBase is a trademark of iRobot Corporation.
Wi-Fi and the Wi-Fi logo are registered trademarks of Wi-Fi Alliance.

FAQ’S

How do I know when to replace my battery?

The battery life indicator will flash red when it’s time to replace your battery. If you continue to use your Roomba with a low or empty battery, you may damage your battery and void its warranty.

How do I know when to replace my HEPA filter?

Your HEPA filter should be replaced every 3 months or sooner if it becomes damaged or clogged. You can check your filter by removing it from your Roomba and shaking it out. If you see visible debris, you should replace the filter.

How do I clean my brushroll?

Your brushroll can be removed by pressing the release button on the back of your Roomba and pulling it off. Use a soft brush to remove dirt from the rollers and then wipe clean with a damp cloth. Allow to dry before replacing brushroll on Roomba.

How do I reset my Roomba?

To reset your Roomba, press and hold the CLEAN button for 5 seconds until you hear two consecutive beeps. Your Roomba will now beep once every 30 seconds while it charges and then will resume normal operation once fully charged. This behavior will continue until you press CLEAN again or power cycle your Roomba (by unplugging it).

Why does my robot vacuum take so long to charge?

It takes longer for your robot vacuum to charge than most other robot vacuums because of its advanced features, such as iAdapt Responsive Cleaning Technology™, which allows it to clean more efficiently by adapting to different floor surfaces, and its AeroForce™ Filters, which capture 99% of dust and allergens in the air as small as 0.3 microns.

What is the difference between Roomba j7 and j7+?

Otherwise, the j7 devices are higher-end Roombas, so they have features like dual multi-surface rubber brushes and Imprint Smart Mapping, which lets you control which rooms the robot cleans. The biggest difference between the j7 and the j7+ is the inclusion of the clean base on the latter.

When did the iRobot j7+ come out?

Launched in September 2021, the iRobot Roomba j7+ is designed to seamlessly blend with its surroundings. This is the first iRobot vacuum cleaner to use PrecisionVision Navigation, a cutting-edge technology that allows it to detect and avoid pet waste, charging cables, and other obstacles around the house.

Does Roomba j7+ bump into things?

Article Details. Roomba® uses light touch bumper technology to identify walls and other obstacles. This technology allows your robot to slow down and gently touch the obstacle with its bumper before changing direction.

Can Roomba avoid water?

It doesn’t avoid liquid messes
If your pet makes a mess whenever he drinks water, pees on the floor or happens to have a bit of a runnier accident, the Roomba j7+ probably won’t avoid that. “One ‘obstacle’ it did not detect was water left on the floor by Moose after he drank from his bowls.

How many square feet can Roomba j7+ clean?

The iRobot Roomba j7+ was tested between the family room, entryway and kitchen with hardwood floors and area rugs. Covering an area of about 500 sq ft., it represented the largest area in the home that could be vacuumed on the same map.

Does Roomba j7+ need WiFi?

You don’t need WiFi to use the Roomba. You only need WiFi if you want to connect it to your phone or another device like Alexa.

How to Empty the Roomba J7 and J7+

Press the release latch to remove the dustbin: The J7+ dustbin is similar to the I-series with the rear latch. Push this lever to unlock to remove the container.
Open the door, then empty: After removing the dustbin, place it over the trash bin to empty.

VIDEO


]]>
iRobot Roomba Manual https://itsmanual.com/irobot/roomba/ Sat, 01 Apr 2023 13:09:43 +0000 https://itsmanual.com/?p=50785 Read More...

]]>


iRobot Roomba

With one click to the online shop

myRobotcenter.eu
myRobotcenter.co.uk

Quick Start

]]>
iRobot i3 / i4 Roomba Robot Vacuum Manual https://itsmanual.com/irobot/i3-roomba-vacuum/ Fri, 28 Apr 2023 04:55:18 +0000 https://itsmanual.com/?p=94569 Read More...

]]>


iRobot i3 / i4 Roomba Robot Vacuum

Safety Information

Important Safety Information

This owner’s guide includes information for Regulatory Model(s): RVD-Y1. SAVE THESE INSTRUCTIONS

WARNING: When using an electrical appliance, basic precautions should always be followed, including the following:

READ ALL INSTRUCTIONS

WARNING: To reduce the risk of injury or damage, read and follow the safety precautions when setting up, using and maintaining your robot. This appliance can be used by children aged from 8 years and above and persons with
reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

This is the safety alert symbol. It is used to alert you to potential physical injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death.

WARNING: Indicates a hazardous situation that, if not avoided, could result in death or serious injury.
CAUTION: Indicates a hazardous situation that, if not avoided, could result in minor or moderate injury.
NOTICE: Indicates a hazardous situation that, if not avoided, could result in property damage.

GENERAL

  • Your robot is not a toy. Small children and pets should be supervised when your robot is operating.
  • Do not sit or stand on your robot or Home Base™.
  • Do not use unauthorized chargers. Use of an unauthorized charger could cause the battery to generate heat, smoke, catch fire, or explode.
  • Your robot comes with a region approved power supply cord and is designed to be plugged into a standard household AC power outlet only. Do not use any other power supply cord. Forreplacement cords, please contact Customer Care to ensure
    proper selection of country specific power supply cord.
  • Do not open your robot or Home Base™. There are no user serviceable parts inside. Refer servicing to qualified service personnel.
  • Risk of electric shock, use indoors in dry location only.
  • Do not handle your robot or Home Base™ with wet hands.
  • Store and operate your robot in room temperature environments only.
  • If the room to be cleaned contains a balcony, a physical barrier should be used to prevent access to the balcony and ensure safe operation.
  • Clean cliff sensors for buildup.

CAUTION

  • Do not operate the robot in areas with exposed electrical outlets in the floor.
  • If the device passes over a power cord and drags it, there is a chance an object could be pulled off a table or shelf. Before using this device, pick up objects like clothing, loose papers, pull cords for blinds or curtains, power cords, and any fragile objects.
  • Be aware that the robot moves on its own. Take care when walking in the area that the robot is operating in to avoid stepping on it.
  • Do not use this device to pick up sharp objects, glass, or anything that is burning or smoking.

NOTICE

  • This robot is intended for dry floor use only. Do not use this device to pick up spills. Do not allow your robot or Home Base™ to become wet.
  • Do not place anything on top of your robot.
  • The failure to maintain cleanliness of charger contacts could result in loss of ability for the robot to charge the battery.

HOME BASE
WARNING

  • Do not use a Home Base™ with a damaged cord or plug if the cord or plug is damaged, it must be replaced.
  • Always disconnect your robot from the Home Base™ before cleaning or maintaining it.
  • Charge your robot only with the power supply provided. The provided power supply delivers safety extra low voltage corresponding to the input marking on the robot which is required to maintain safe operation.
  • To prevent the risk of your robot falling downstairs, ensure that the Home Base™ is placed at least 4 feet (1.2 meters) away from stairs.

NOTICE

  • Product may not be used with any type of power converter. Use of power converters will immediately void the warranty.
  • If you live in an area prone to electrical storms, it is recommended that you use additional surge protection. Your Home Base™ may be protected with a surge protector in the event of severe electrical storms.

BATTERY
WARNING

  • Do not open, crush, heat above 176°F: 80°C, or incinerate. Follow manufacturer’s instructions.
  • Do not short-circuit the battery by allowing metal objects to contact battery terminals or immerse in liquid. Do not subject batteries to mechanical shock.
  • Periodically inspect the battery pack for any sign of damage or leakage. Do not charge damaged or leaking battery packs, do not allow the liquid to come in contact with skin or eyes. If contact has been made, wash the affected area with copious amounts of water and seek medical advice. Place the battery in a sealed plastic bag and recycle or dispose of safely according to local environmental regulations, or return it to your local authorized iRobot Service Center for disposal.
  • Lithium ion batteries and products that contain lithium ion batteries are subject to stringent transportation regulations. If you need to ship this product (with the battery included) for service, travel or any other reason, you MUST see the Troubleshooting section of your manual or contact customer care for shipping instructions.

CAUTION
Battery usage by children should be supervised. Seek medical advice immediately if a cell or a battery has been swallowed

NOTICE

  • The battery pack must be removed from the robot before recycling or disposal.
  • For best results, only use the iRobot Lithium Ion Battery that comes with the robot.
  • Do not use non-rechargeable batteries. Use only the rechargeable battery supplied with the product. For replacement, purchase identical iRobot battery or contact iRobot Customer Care for alternative battery options.
  • Always charge and remove the battery from your robot and accessories before long-term storage.

For battery recycling go to call2recycle.org; or call 1-800-822-8837

About your Roomba® Robot Vacuum

Top View

Buttons & Indicators

Using Your Roomba® Robot Vacuum

Positioning the Home BaseTM Charging Station

WARNING: To prevent the risk of your robot falling downstairs when it is leaving from or returning to the Home Base™, ensure that the Home Base™ is placed at least 4 feet (1.2 meters) away from stairs.
Download the iRobot HOME App and connect to Wi-Fi®

  • Follow step-by-step instructions to set up your Roomba.
  • Set an automatic cleaning schedule and customize cleaning preferences.
  • Access to tips, tricks, and answers to commonly asked questions.

Charging

  • Place the robot on the Home Base™ to activate the battery.
    Note: Your robot comes with a partial charge, but we recommend that you charge the robot for 3 hours prior to starting the first cleaning job.
  • If your robot needs to recharge mid-cleaning, it will return to its Home Base™. Once it is sufficiently charged, it will then resume the cleaning job where it left off.
  • The robot uses a small amount of power whenever it is on the Home Base™. You can put the robot in a further-reduced power state when not in use. For instructions and more details on this Reduced Power Standby Mode, refer to the iRobot HOME App.
  • For long-term storage, turn off the robot by removing it from the Home Base™ and holding down for 10 seconds. Store the robot in a cool, dry place.

Cleaning

Remove excess clutter from floors before cleaning. Use your robot frequently to maintain well-conditioned floors.

  • Your robot will automatically explore and clean your home. It will return to the Home Base™ at the end of a cleaning job and whenever it needs to recharge.
  • To send the robot back to its Home Base™, tap . A blue light ring pattern will indicate that the robot is seeking the Home Base™.
  • When your robot detects an especially dirty area, it will go into Dirt Detect™ mode, moving over the area multiple times until it senses that the area has been sufficiently cleaned. The light ring indicator will flash blue.
  • Tap to spot clean a designated area. The robot will spiral outward about 3 feet (1 meter) and then spiral inward to end where it started. The light ring indicator will show a blue spiral.

Troubleshooting

  • Your robot will tell you something is wrong by playing an audio alert and turning the light ring indicator red. Press CLEAN for details. Further support and instructional videos are available in the iRobot HOME App.
  • If you are unsure if the robot is finished or paused, consult the iRobot HOME App to check on its status.

Battery Safety & Shipping
For best results, only use the iRobot Lithium Ion Battery that comes with your robot.
WARNING: Lithium ion batteries and products that contain lithium ion batteries are subject to stringent transportation regulations. If you need to ship this product for service, travel or any other reason, you MUST follow the below shipping instructions.

  • Battery MUST be turned off before shipping.
  • Turn off the battery by removing the robot from the Home Base™ and holding down for 10 seconds. All indicators will turn off.
  • Package the robot securely for shipping.
  • If you need further assistance, contact our Customer Care team or visit global.irobot.com.

Accessories

Dual Mode Virtual Wall® Barrier*
Note: For best results, place at least 8 feet (2.5 meters) from the Home Base ™.
Use the Dual Mode Virtual Wall® barrier to keep the robot in the places you want cleaned — and out of the ones you don’t. It creates an invisible barrier that only the robot can see. You can leave the device in position between cleanings.

Choose the mode to meet your needs:
Virtual Wall Mode: When the switch is in the Virtual Wall position ( ), the device will create a linear barrier to block openings up to 10 feet (3 meters).

Note: This barrier gets wider as it gets further from the device (refer to illustration).

Halo Mode: Toggle the switch to the Halo position ( ), to create a circular barrier. This will prevent the robot from approaching zones you want to protect such as a pet bowl, vase, or under a desk. The Halo barrier extends approximately 12 inches (30 centimeters) from the center of the device.

Note: The batteries will last about 8-10 months under normal use. If you are not planning to use your Virtual Wall barrier for an extended period of time, be sure to turn the switch to the Off, or middle position.

Care and Maintenance

Care and Maintenance Instructions
To keep your robot running at peak performance, perform the procedures on the following pages. There are additional instructional videos in the iRobot HOME App. If you notice the robot picking up less debris from your floor, empty the bin, clean the brushes, and clean or replace the filter if needed.

Part Care Frequency Replacement Frequency*
Bin Wash bin as needed
Filter Clean once a week (twice a week if you have a pet). Do not wash. Every 2 months
Full Bin Sensor Clean every 2 weeks
Front Caster Wheel Clean every 2 weeks Every 12 months
Edge-Sweeping Brush and

Multi-Surface Brushes

Clean once a month (twice a month if you have a pet) Every 12 months
Sensors and Charging Contacts Clean once a month

Note: iRobot manufactures various replacement parts and assemblies. If you think you need a replacement part, please contact iRobot Customer Care for more information. * Replacement frequency may vary. Parts should be replaced if visible wear appears.

Emptying the Bin

Cleaning the Filter

Cleaning the Full Bin Sensors

Washing the Bin

Important: Do not wash the filter. Remove the filter before washing the bin.

Cleaning the Edge-Sweeping Brush

  1. Use a small screwdriver to loosen the screw holding the Edge-Sweeping Brush in place.
  2. Pull to remove the Edge-Sweeping Brush. Remove any hair or debris, then reinstall the brush.

Cleaning the Front Caster Wheel

  1. Pull firmly on the front wheel module to remove it from the robot.
  2. Pull firmly on the wheel to remove it from its housing (see illustration below).
  3. Remove any debris from inside the wheel cavity.
  4. Reinstall all parts when finished. Make sure the wheel clicks back into place.

Important: A front wheel clogged with hair and debris could result in damage to your floor. If the wheel is not spinning freely after you have cleaned it, please contact Customer Care.

Cleaning the Multi-Surface Brushes

Cleaning the Sensors and Charging Contacts

  1. Wipe, sensors and charging contacts with a clean dry cloth. You can alternatively use a pad of melamine foam to remove built up debris on the robot and Home Base charging contacts.

iRobot Customer Care

USA & Canada
If you have questions or comments about your Roomba® robot vacuum, please contact iRobot before contacting a retailer. You can start by visiting global.irobot.com for support tips, frequently asked questions and information about accessories. This information can also be found in the iRobot HOME App. If you need further assistance, call our Customer Care team at (877) 855-8593.

iRobot USA Customer Care Hours

  • Monday to Friday, 9AM – 9PM Eastern Time
    Saturday and Sunday 9AM – 6PM Eastern Time

Outside USA & Canada
Visit global.irobot.com to:

  • Learn more about iRobot in your country
  • Get hints and tips to improve your Roomba® robot vacuum’s performance
  • Get answers to questions
  • Contact your local support center

Regulatory Information

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

This device contains a licence exempt transmitter/receiver that complies with Innovation, Science and Economic Development (ISED) Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: 1) This device may not cause interference, and 2) this device must accept any interference, including interference that may cause undesired operation of the device.

  • Changes or modifications not expressly approved by iRobot Corporation could void the user’s authority to operate the equipment.
  • This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference to radio communication will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
  • Reorient or relocate the receiving antenna.
  • Increase the separation between the equipment and receiver.
  • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
  • Consult the dealer or an experienced radio/TV technician for help.
  • Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent is tropically radiated power (e.i.r.p.) is not more than the necessary for successful communication.
  • FCC Radiation Exposure Statement: This product complies with FCC §2.1091(b) for mobile device RF exposure limits, set forth for an uncontrolled environment and is safe for the intended operation as described in this manual. Per FCC requirements, maintain a distance of more than 8 inches (20cm) between any person and the host device (Roomba robot).
  • ISED Radiation Exposure Statement: This product complies with the Canadian Standard RSS-102 for portable RF exposure limits, set forth for an uncontrolled environment and is safe for the intended operation as described in this manual. Per ISED requirements, maintain a distance of more than 8 inches (20 cm) between any person and the robot.

For battery recycling go to call2recycle.org; or call 1-800-822-8837

©2020 iRobot Corporation, 8 Crosby Drive, Bedford, MA 01730 USA. All rights reserved iRobot, Roomba, iAdapt and Virtual Wall are registered trademarks of iRobot Corporation. Home Base and Dirt Detect are trademarks of iRobot Corporation. Wi-Fi and the Wi-Fi logo are registered trademarks of Wi-Fi Alliance.

FAQs

How does the cleaning performance of the Roomba® i4 Robot Vacuum compare to other iRobot models?

A. Power-Lifting Suction delivers 10X the air power* for improved pick-up performance. Premium 3-Stage Cleaning System cleans the dirt and pet hair you see and the allergens and dust you don’t.

 How smart is Roomba® i4?

A. Powered by iRobot Genius™, the i4 learns from your cleaning habits to offer up personalized schedules, while Google Assistant and Alexa allow you to start cleaning with just the sound of your voice. The i4 will even suggest an extra clean when your area’s pollen count is high or during pet shedding season.

Product Warranty?

 The warranty is 2 years.

Does the i4 have a self emptying feature?

Not this model

How it works on carpet only home with long hair fallouts? Wife sometimes has hair loss. Does this roomba i3 pick up long hairs efficiently?

I would say this is my biggest complaint with my Roomba. I have long-ish hair that sheds and the vacuum does not really pick it up. Instead of vacuuming up stray hair, the hair gets wrapped around and around the rollers and brushes of the vacuum. Periodically I need to flip the vacuum over and use scissors and tweezers to remove all the hair that’s gotten wound around the different parts of the vacuum. It’s really pretty annoying and gross. This might not be a problem if you have short hair but the roomba really can’t handle my mid-length hair.

does this do house mapping? this has the option to vacuum a single room

It’s very misleading too. It says in product description above that you can, but you cannot. I have the i3 and in the app, it gives you the option to “send it on a mapping run” and implies you can then define rooms. Evidently, the app is not model specific. I sent this thing around my home 3 times and it would fail each time. I finally found out they i3 doesn’t support the room by room mapping. You have to go to a higher model.

Does it get caught in carpets with fringes at the end?

My old roomba models never got caught on fringes. I bought an i3 for my father, and it did get caught.

How do I keep it from going into certain rooms (that don’t have doors)?

I have a few lightweight 2ft boards that I will quickly grab and place in front of anywhere I don’t want the vacuum. This wouldn’t work if you want the vacuum to run on auto pilot but I would never run the vacuum while I wasn’t home. I take about 3 minutes before I vacuum to pull up a few window treatments that that touch the floor. I often will put my dining room chairs upside down on the. table to allow the vacuum to clean under the table. I quickly check that none of my kiddos toys are going to get sucked up and will also put up the dogs water.

Does the roomba i3 work on 220v – outside the US?

This Robot is a US/Canadian model. Robots sold in the US and Canada come with the domestic charger which is rated at 120V and 60 Hz. We also make Robots for the International Market (outside of the US and Canada) that would come with the universal charger is rated at 120-240V and 50-60 Hz. These Robots would not be available for sale in the US

if I have already purchased an iRobot may I order a protection plan?

Your best course of action at this point would be to return your robot, and then place an order for one including your desired warranty.

Will this model self empty in the i3+ base?

the robot I have does not self empty.

Can I room a be sled to vacuum one room and not everywhere?

No because it doesn’t save maps or let you label areas in your house. If I want to do this for example a master bedroom I would carry it to that location and press the clean button and shut the bedroom door. I also have a few light 2 ft boards that I will use to have it clean one room or block it from going under our bed.

What roomba vacuum has a washable filter?

Roomba’s do not use washable filters. The bin on the Roomba i series is washable but the filter is not. Tapping the filter on the side of garbage can or some customers like using small hand vacuums to clean the filter of dust and debris build up. We recommend changing the filter every 2-3 months for best practices.

Why is the Roomba not square to hit all the corners?

The spinning brushes come out far enough to get into the corners. Don’t expect a deep clean from the roomba, it is only for surface dirt, pet hair, etc. Highly recommend

How does it really do with pet hair?

Fantastic!! We have two shiba inus and they she’d like crazy! We run it once a day and it keeps our hard wood floors and carpet free of pet hair. Best investment me made!

Does the Roomba talk to you?

When stuck you get an alert on your mobile and also roomba talks to you with the error message. But you need to press the bumper and click on a button on the roomba so it runs again. There is also voice control option but you need to buy Alexa. I am no sure if with Alexa, you can unlock the roomba when stuck without the manual touch.



]]>
iRobot R694020 Roomba 694 Robot Vacuum Cleaner Manual https://itsmanual.com/irobot/r694020-roomba-cleaner/ Fri, 28 Apr 2023 10:27:17 +0000 https://itsmanual.com/?p=98099 Read More...

]]>


iRobot R694020 Roomba 694 Robot Vacuum Cleaner

iRobot R694020 Roomba 694 Robot Vacuum Cleaner

Important Safety Instructions

This owner’s guide includes information for Roomba vacuum cleaner Model(s): 670-679 and 690-699.

SAVE THESE INSTRUCTIONS

WARNING: When using an electrical appliance, basic precautions should always be followed, including the following:

WARNING: To reduce the risk of injury or damage, read and follow the safety precautions when setting up, using, and maintaining your robot.
This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

This is the safety alert symbol. It is used to alert you to potential physical injury hazards.
Obey all safety messages that follow this symbol to avoid possible injury or death.

WARNING: Indicates a hazardous situation that, if not avoided, could result in death or serious injury.
CAUTION: Indicates a hazardous situation that, if not avoided, could result in minor or moderate injury.
NOTICE: Indicates a hazardous situation that, if not avoided, could result in property damage.
GENERAL

WARNING

  • Your robot is not a toy. Small children and pets should be supervised when your robot is operating.
  • Do not sit or stand on your robot or Home Base.
  • Do not use unauthorized chargers. The use of an unauthorized charger could cause the battery to generate heat, smoke, catch fire, or explode.
  • Your robot comes with a region-approved power supply cord and is designed to be plugged into a standard household AC power outlet only. Do not use any other power supply cord. For replacement cords, please contact Customer Care to ensure a proper selection of country-specific power supply cords.
  • Do not open your robot except as instructed to install or replace the battery or maintain the dust bin and filter(s). Do not open the integrated dock-charger, known as Home Base. There are no user-serviceable parts inside. Refer servicing to qualified service personnel.
  • Risk of electric shock, use indoors in dry location only.
  • Do not handle your robot or Home Base with wet hands.
  • Store and operate this product in room temperature environments only.
  • If the room to be cleaned contains a balcony, a physical barrier should be used to prevent access to the balcony and ensure safe operation.

ROBOT
CAUTION

  • Do not operate the robot in areas with exposed electrical outlets on the floor.
  • If the robot passes over a power cord and drags it, there is a chance an object could be pulled off a table or shelf.
    Before using the robot, pick up objects like clothing, loose papers, pull cords for blinds or curtains, power cords, and any fragile objects.
  • Be aware that the robot moves on its own. Take care when walking in the area that the robot is operating in to avoid stepping on it.
  • Do not use the robot to pick up sharp objects, glass, or anything that is burning or smoking.

CAUTION

  • This robot is intended for dry floor use only. Do not use the robot to pick up spills. Do not allow your robot or dirt disposal to become wet.
  • Do not place anything on top of your robot.
  • The failure to maintain the cleanliness of charger contacts could result in a loss of ability for the robot to charge the battery.
  • Before running your robot on carpets or rugs, ensure that the carpets or rugs are compatible with vacuums using bars or brushes. Using your robot on a carpet or rug that is not compatible could result in damage to your carpet or rug. Contact your carpet or rug manufacturer with questions on compatibility.

HOME BASE
WARNING

  • If the appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, return it to a service center
  • Always disconnect your robot from the Home Base before cleaning or maintaining it. Use only as described in this man­ ual.
  • Only use the battery charger model l 7070 to charge the robot model l B00LI battery, Battery Charger model l 7070: Input AC l 00-240 VDC, 50-60 Hz, Output 20.5 VDC, 1.25A.
  • Only charge one of the following iRobot batteries: maximum 14.4V, max 2000mAh Ni-MH, or maximum 14.4-14.BV, max 3300mAh Li-ion battery. Another type of battery may burst to cause injury. Always contact Customer Care for the correct replacement of your battery.

NOTICE

  • The product may not be used with any type of power converter. The use of power converters will immediately void the warranty.
  • If you live in an area prone to electrical storms, it is recommended that you use additional surge protection. Your robot’s Home Base may be protected with a surge protector in the event of severe electrical storms.

BATTERY
WARNING

  • Do not open, crush, heat above l 76°F: B0°C, or incinerate.
    Follow manufacturer’s instructions.
  • Do not short-circuit the battery by allowing metal objects to contact battery terminals or immerse in liquid. Do not subject batteries to mechanical shock.
  • Periodically inspect the battery pack for any sign of damage or leakage. Immediately stop using the battery if there are noticeable abnormalities, such as smell, heat, discoloration, or deformity.
  • Do not charge damaged or leaking battery packs, and do not allow the liquid to come in contact with skin or eyes. If contact has been made, wash the affected area with copious amounts of water and seek medical advice. Place the battery in a sealed plastic bag and recycle or dispose of safely according to local environmental regulations, or
    return it to your local authorized iRobot Service Center for disposal.

CAUTION

  • Battery usage by children should be supervised. Seek medical advice immediately if a cell or a battery has been swallowed.

NOTICE

  • The battery pack must be removed from the robot before recycling or disposal.
  • For best results, use only the iRobot Lithium Ion Battery that comes with the robot.
  • For replacement, purchase an identical iRobot battery or contact iRobot Customer Care for alternative battery options.
  • Do not use non-rechargeable batteries.
  • Always charge and remove the battery from your robot and accessories before long-term storage.

This symbol on the battery indicates that the battery must not be disposed of with unsorted common municipal waste. As the end-user, it is your responsibility to dispose of the end-of-life battery in your appliance in an environmentally sensitive manner as follows:
(1) returning it to the distributor/dealer from whom you purchased the product; or (2) depositing it at a designated collection point
The separate collection and recycling of end-of-life batteries at the time of disposal will help to conserve natural resources and to ensure that batteries are recycled in a manner that protects human health and the environment. For more information, please contact your local recycling office or the dealer from whom you originally purchased the product. Failure to properly dispose of end-of-life batteries may potentially result in negative effects on the environment and human health due to the substances in the batteries and accumulators.

About your Roomba

Top View

Buttons & Indicators

Home Base

Bottom View

Using your Roomba

Positioning the Home Base
Place the Home Bose in an open, uncluttered area leaving the following distances around the Home Bose:

  • At least 1.5 feet (0.5 meters) on each side of the Home Bose
  • At least 4 feet ( 1 meter) in front of the Home Bose, and at least 4 feet (1 meter) away from stairs
  • At least 8 feet (2.5 meters) from Virtual Woll Barriers Always keep the Home Bose plugged in and make sure it is in an area with consistent Wi-Fi” coverage to allow Roomba to receive information via the iRobot HOME App.

Download the iRobot HOME App and connect to Wi-Fi:

  • Watch an overview video with instructions on how to set up and use your Roomba
  • Set an automatic cleaning schedule (up to 7 times per week)
  • Enable automatic Software updates
  • Access to tips, tricks, and answers to commonly asked questions

Use Instructions

  • Turn your robot over and remove the bin insert and battery pull tabs.
    Then place Roomba on the Home Bose to activate the battery.
  • Roomba has a partial battery charge, so it’s ready to start cleaning. E:)
    Note Roomba ships with a partial battery charge. If you start a cleaning cycle before charging the battery fully, Roomba may return to the Home Bose to recharge sooner than it will during future cleaning cycles. To fully charge the battery before the first cleaning cycle, allow Roomba to charge on the Home Bose for 3 hours.
    Note· Remove excess clutter from floors before cleaning (e.g. clothing, toys, etc.).
    Use Roomba frequently to maintain well-conditioned floors.
  • To begin a cleaning cycle, press CLEAN on the robot or in the iRobot HOME App.
  • Pre-set your robot to automatically vacuum up to seven times per week using the Scheduling feature in the iRobot HOME App.
  • When Roomba returns to the Home Bose after completing a cleaning cycle, it will play a series of tones to indicate successful completion of the cleaning cycle.
  • To pause Roomba during a cleaning cycle, press CLEAN. To resume the cleaning cycle, press CLEAN again.
  • To end the cleaning cycle and put Roomba in standby mode, press and hold CLEAN until Roombo’s indicators turn off.
  • To send Roomba back to its Home Bose during a cleaning cycle, press CLEAN and then (DOCK) on Roomba or press CLEAN on the iRobot HOME App main
    screen. This will end the cleaning cycle.
  • If Roomba encounters an area of high debris concentration, it will move in a spiral motion to clean the area more thoroughly. When Roomba does this, the CLEAN
    the button will blink.
  • To use SPOT Cleaning, place Roomba on top of the localized debris and press (SPOT) on the robot. Roomba will intensely clean the area by spiraling outward about 3 feet (1 meter) in diameter and then spiraling inward to where it started.
    Note. After each use, empty the bin and clean the filter.
  • Always store Roomba on the Home Bose so it’s charged and ready to clean when you need it. If storing off of the Home Bose, remove the battery first and then store
    Roomba and the battery in a cool, dry place.

Battery and Charging
Charge Roomba using the Home Bose. Indicator lights will turn off after 60 seconds to conserve energy while Roomba is charging. Check the status of the battery by pressing the CLEAN button to illuminate the Battery Indicator. The indicator will appear amber while the battery is charging and solid green when fully charged.

Accessories

The Dual Mode Virtual Wall Barrier (optional accessory for all models)
The Dual Mode Virtual Woll barrier keeps Roomba in the places you want to be cleaned – and out of the ones you don’t.
In between cleaning cycles, you can leave the device operating in its position on the floor. You can set your device to one of two modes to fit your home’s cleaning needs:

Note’. Under normal use, batteries will lose 8-10 months. If are not planning on using your Virtual Woll device for an extended period of time and you would like to store it, be sure to switch it to the “Off ” (middle) position.
Virtual Wall Mode: When the switch is in the “up” position ( ), the device functions as a Virtual Woll. This means that you can set it to block openings of up to 10 feet (3 meters). It creates an invisible, cone-shaped barrier that only Roomba can see.
Note: This barrier gets wider as it gets further from the device (refer to illustration).

Halo Mode: When the switch is in the “down” position ( ), the device creates a protective zone that Roomba will not enter. This prevents Roomba from bumping into items you want to protect (e.g. a dog bowl or vase) or crossing into undesired areas (e.g. a corner or under a desk). The Halo is invisible and reaches approximately 1 2 inches (30
centimeters) from the center of the device.

Regular Robot Care

Recommended Robot Care
To keep Roomba running at peak performance, perform the following care procedures. Instructional care videos can also be viewed in the iRobot HOME App. If you notice Roomba picking up less debris from your floor, then empty the bin, clean the filter and clean the extractors.

Robot Part Care Frequency Replacement Frequency
Bin After each use
Filter Once per week (twice per week in homes with pets) Every 2 months
Brushes Once per week (twice per week in homes with
pets)
Every 6- 1 2 months
Front Caster Wheel Once every two weeks Every l 2 months
Side Brush Cliff Sensors Charging Contacts Once per month

Note: iRobot manufactures various replacement parts and assemblies. Purchase replacement parts through the iRobot HOME App or by visiting www.irobot.com/Roomba600. If you think you need a replacement part, please contact iRobot Customer Care for more information.

Emptying the Bin

  1. Press the bin release button and pull to remove the bin.
  2. Open bin door to empty bin.

Cleaning The Filter

Important: Empty the bin before cleaning the filter.
Pull the filter to remove it. Tap the filter against the rubbish container to clear the debris. Reinstall the filter.

Cleaning the Brushes

  1. Open the brush guard by lifting both tabs.
  2. Remove and clean any hair and debris from the Brushes and brush bearings.
  3. Reinstall brush bearings and brushes, and close brush guard.
    Replace the brushes every 6-1 2 months

Cleaning the Front Caster Wheel

  1. Pull firmly on the front wheel to remove it from the front caster assembly.
  2. Remove any debris from inside the wheel cavity.
  3. Spin the wheel by hand. If the rotation is restricted, remove the wheel from its housing and push firmly to remove the axle and clear any debris or hair wrapped around it.
  4. Reinstall all parts when finished. Make sure the wheel clicks back into place.

Important A front wheel clogged with hair and debris could result in floor damage.

Cleaning the Cliff Sensors and Charging Contacts
Wipe all sensors and charging contacts with a clean, dry cloth.

Cleaning the Side Brush
Use a small screwdriver to remove the screw. Pull the side brush to remove it from the robot. Remove any hair and/or debris and reinstall the side brush.

Troubleshooting

Roomba will tell you something is wrong with a two-tone distress sound followed by a spoken message. The troubleshooting indicator () will also blink. More detailed support and videos are available through the iRobot HOME App as well as online. If the problem is not resolved, visit www.irobot.com/Roomba600.

Rebooting Instructions
For some errors, rebooting Roomba may resolve the problem.
» To reboot Roomba, press, and hold (DOCK) and (SPOT) buttons for 10 seconds until all indicators shut off, then release.
» When you release the buttons, you will hear an audible tone signifying a successful reboot.

Note: If you use Roombo’s scheduling feature, open the iRobot HOME App after rebooting to confirm that Roombo’s schedule remains intact.

Reduced Power Standby Mode
Roomba consumes a small amount of power any time it is on the Home Base to ensure that it is ready for its next cleaning job as well as to maintain Wi-Fi connectivity. It is possible to put Roomba in a further-reduced power state when not in use. For instructions and For more details on this Reduced Power Standby Mode, refer to the iRobot HOME App.

Lithium Ion Battery
(available for select models)
Important: Lithium-ion batteries and products that contain lithium-ion batteries are subject to stringent transportation regulations. If you need to ship this product (with the battery included) for service, travel, or any other reason, you MUST comply with the following shipping instructions:
» Remove the lithium-ion battery from the product
» Please visit the iRobot HOME App or view an instructional video on how to remove the battery.
» Place a piece of tape over the battery’s metal charging contacts
» Reinstall the battery (with the tape on it) in the product and secure the battery door
» Package the product in its original packaging or in your own packaging that prevents any movement during transportation
» Ship via ground transportation only (no air shipping)

iRobot Customer Care

USA&Canada
If you have questions or comments about your Roomba, please contact iRobot before contacting a retailer. You can also find additional information such as maintenance tips and information about accessories on the iRobot HOME App or on our website at www.irobot.com/Roomba600.
Should you still need assistance, call our Customer Care team at (877) 855-8593.

iRobot Customer Care Hours:

  • Monday to Friday, 9 AM – 7 PM Eastern Time
  • Saturday, 9 AM – 6 PM Eastern Time

Outside USA & Canada
Visit global.irobot.com to:

  • Learn more about iRobot in your country.
  • Get hints and tips to improve your Roomba’s performance.
  • Get answers to questions.
  • Contact your local support center.

Regulatory Information

This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
This device contains a license-exempt transmitter/receiver that complies with Innovation, Science, and Economic Development (ISED) Canada’s license-exempt RSS(s). Operation is subject to the following two conditions: l) This device may not cause interference, and 2) this device must accept any interference, including interference that may cause undesired operation of the device.

  • Changes or modifications not expressly approved by iRobot Corporation could void the user’s authority to operate the equipment.
  • This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference to radio communication will not occur in a particular installation. If this equipment does cause harmful in­ interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

  • Reorient or relocate the receiving antenna.
  • Increase the separation between the equipment and receiver.
  • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
  • Consult the dealer or an experienced radio/TV technician for help.
  • Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than necessary for successful communication.
  • FCC Radiation Exposure Statement: This product complies with FCC §2.1091 (b) for mobile device RF exposure limits, set forth for an uncontrolled environment, and is safe for the intended operation as described in this manual. Per FCC requirements, maintain a distance of more than 8 inches (20cm) between any person and the host device (Roomba robot).
  • ISED Radiation Exposure Statement: This product complies with the Canadian Standard RSS-102 for portable RF exposure limits, set forth for an uncontrolled environment, and is safe for the intended operation as described in this manual. Per ISED requirements, main­ tain a distance of more than 8 inches (20 cm) between any person and the robot.

For battery, recycling goes to call2recycle.org; or call 1-800-822-8837

iRobot – Limited Warranty

NOTE: This Limited Warranty does not affect your statutory rights under the laws relating to the sale of consumer products.

OVERVIEW

iRobot (‘We’, ‘Our’, ‘Us’) warrants that subject to the exclusions and limitations set out below, this Product (including batteries if applicable) shall be in good working order during the period of one (l) year from the dote of purchase (the ‘Warranty Period’). In the event that the Product fails to meet the warranty standard to our reasonable satisfaction, we will within a commercially reasonable time, free of charge, either repair or replace the Product as described below.
This Limited Warranty is only valid and enforceable in the country where you purchased the Product, provided that the said country is on the list of Specified Countries (http://global.irobot.com/) defined in the consumer terms of the sole which applied when you purchased the Product.

MAKING A CLAIM UNDER THE LIMITED WARRANTY
If you wish to make a warranty claim, please contact your local distributor, whose contact details can be found at http://global.irobot.com/. Upon contacting your distributor, please have the serial number of your Product ready and the original proof of purchase from an authorized reseller, showing the date of purchase and full details of the Product. Our colleagues will advise you of the process involved in making a claim.
Any claim under the Limited Warranty is subject to you notifying us (or our authorized service company/distributor) of the alleged defect within a reasonable time of it coming to your attention and, in any case, by no later than the expiry of the Warranty Period.

REMEDY

If a claim is received within the Warranty Period and the Product is found to have failed under the warranty we shall, at our option:

  • repair the Product,
  • exchange the Product with a product that is new or which has been manufactured from new or serviceable used parts and is at least functionally equivalent to the original product, or
  • exchange the Product with a product that is a new and upgraded model which has at least equivalent or upgraded function to the original product.

As far as applicable laws permit, the Warranty Period will not be extended or renewed or otherwise affected due to subsequent exchange, resale, repair, or replacement of the Product. However, part(s) repaired or replaced during the Warranty Period will be warranted for the remainder of the original Warranty Period or for ninety (90) days from the date of repair or replacement, whichever is longer.
Replacement or repaired products, as applicable, will be returned to you as soon as commercially practicable. All parts of the Product or other equipment that we replace shall become our property. If the Product is found not to be covered by this Limited Warranty, we (and our authorized service companies) reserve the right to charge a handling fee. When repairing or replacing the Product, we may use products or parts that are new, equivalent to new, or reconditioned.

WHAT IS NOT COVERED?
Unless agreed in writing, the Limited Warranty will not apply if the defect(s} relate to (a) normal wear and tear (including, without limitation, wear and tear of batteries if applicable), (b) defects caused by rough or inappropriate handling or use or damage caused by accident, misuse, neglect, fire, water, lightning, or other acts of nature, (c) if the product contains a battery, and the fact that the battery has been short-circuited, if the seals of the battery enclosure or the cells are broken or show evidence of tampering or if the battery has been used in equipment other than those for which it has been specified, (d) non-compliance with the Product instructions, (e) wilful or deliberate damage, neglect or negligence; (f) use of spare ports, an unauthorized cleaning solution .t applicable, or other replacement items (including consumables) which are not provided or recommended by us; (g) any alteration or modification to the Product which has been carried out by you or a third party not authorized by us, (h) any failure to adequately package the Product for transportation, (i) extreme or external causes beyond our reasonable control including, but not limited to, breakdowns, fluctuations, or interruptions in electric power, ISP (internet service provider) service, or wireless networks, U) weak and/or inconsistent wireless signal strength in your home, (k) any Product(s) purchased from unauthorized dealers/resellers.
This Limited Warranty does not apply to accessories and other consumable items, such as filters, brushes, disposable dirt bags, cleaning pads, or cleaning solutions. This Limited Warranty will be invalid if (a) the Product’s serial number has been removed, erased, defaced, altered, or is illegible in any way (as determined in our sole discretion), or (b) you are in breach of the terms of this limited warranty or your contract with us.

LIMITATION OF!ROBOT’S LIABILITY
This Limited Warranty is your sole and exclusive remedy against iRobot and iRobot’s sole and exclusive liability in respect of defects in your Product. This Limited Warranty replaces all other iRobot warranties and liabilities, whether oral, written, (non-mandatory) statutory, contractual, in tort, or otherwise, including, without limitation, and where permitted by applicable law, any implied conditions, warranties, or other terms as to the satisfactory quality or fitness for purpose.
However, this Limited Warranty shall neither exclude nor limit i) any of your legal (statutory) rights under the applicable national laws or ii) any of your rights against the seller of the Product.
To the extent permitted by applicable law(s), iRobot does not assume any liability for loss of or damage to or corruption of data, for any loss of profit, loss of use of Products or functionality, loss of business, loss of contracts, loss of revenues or loss of anticipated savings, increased costs or expenses or for any indirect loss or damage, consequential loss or damage or special loss or damage.
To the extent permitted by applicable law, iRobot’s liability shall be limited to the purchase value of the Product. The above limitations shall not apply in case of gross negligence or intentional misconduct of iRobot or in case of death or personal injury resulting from iRobot’s proven negligence.

©2020 iRobot Corporation, 8 Crosby Drive, Bedford, MA 01730 USA. All rights reserved.
iRobot, Roomba, adopt, Home Base, and Virtual Wall are registered trademarks of iRobot Corporation. AeroVac and Dirt Detect are trademarks of iRobot Corporation.

DOWNLOAD RESOURCES

  • iRobot R694020 Roomba 694 Robot Vacuum Cleaner [pdf] Owner’s Manual R694020, Roomba 694 Robot Vacuum Cleaner, R694020 Roomba 694 Robot Vacuum Cleaner, 694 Robot Vacuum Cleaner, Robot Vacuum Cleaner, Vacuum Cleaner
  • Read more: https://manuals.plus/irobot/r694020-roomba-694-robot-vacuum-cleaner-manual#ixzz7iBkswOIw

FAQ’s

How do I start my robot?

Press CLEAN or DOCK on your remote control. Your robot will begin moving forward slowly while turning in a counter-clockwise direction until it finds an appropriate cleaning path. If there are obstacles in its path that prevent it from moving forward or turning counter-clockwise, it will reverse until there is an appropriate path available for movement forward or turning counter-clockwise. Once movement forward or turning counter-clockwise is possible, it will move forward slowly while turning counter-clockwise until it finds an appropriate cleaning path again. This process continues until all areas have been cleaned once or until you press CLEAN or DOCK again on your remote

How do I charge Roomba?

Plug your charging base into an electrical outlet that is located near your home base. Place your robot onto its charging base. Your robot will begin charging automatically when placed onto its charging base. When fully charged, your robot will move off its charging base and return to its home base to await further instructions. Your robot charges in approximately 4 hours for a full charge; however, this time may vary depending on how much battery power is left in your robot when placed onto its charging base. You can check how much battery power is left in your robot by pressing CLEAN or DOCK on your remote control. The display will show a percentage value from 1% to 100%. When using your remote control, make sure that you are pointing it at your robot and that there are no obstructions between them.

Does iRobot Roomba 694 have smart mapping?

This model lacks the smart mapping feature some Roombas have but still does a decent job at going to most areas for cleaning.

Does Roomba 694 require WIFI?

Hello Pam, you can use the robot without connecting it to the HOME app, by pressing the CLEAN button whenever you want it to run a cleaning mission.

Does Roomba 694 clean carpet?

About this item. 3-STAGE CLEANING POWER – The 3-Stage Cleaning system lifts dirt, dust and debris from carpets and hard floors while an Edge-Sweeping brush takes care of corners and edges.

How many square feet can a Roomba 694 clean?

The 694 has around 90 minutes of battery life on a single charge. That’s less than the Yeedi Vac, but not by much. In practice, you’ll be able to clean around 900 square feet per charge. And just like the Yeedi, the Roomba will return to base when it runs out of juice.

How do I empty my Roomba bin?

Press the bin release. Button open the bin door to empty the bin. Close the door and return the bin to the robot to clean the filter remove. The bin.

Can Roomba charge on carpet?

Place your Roomba and the Home Base on a smooth, hard surface when your Roomba is plugged in. Make sure your Roomba and the Home Base? have plenty of space for ventilation. Do not charge your Roomba on a carpet or rug.

Can you pick up Roomba and put in another room?

You can pick up your Roomba and move it to another room. Make sure to move your Home Base with your Roomba to ensure it works more effectively. You should also wait for your Roomba to finish its cleaning cycle before doing so.

How do I get Roomba to map a new room?

Mapping a new space
To create a map for a new floor plan of your home, all you have to do is place the robot somewhere on that floor and send it on a job to clean everywhere.
You can do this either by pressing the CLEAN button on the robot itself, or by initiating the job from the mobile app.

Where is the iRobot battery?

Remove the bottom cover press the release tab to remove the battery. Place the new battery by aligning the channels of the battery with the channels of the robot.

How do I connect my Roomba to my phone?

Download the iRobot® HOME App onto your mobile device.
This step turns on Roomba’s internal Wi-Fi network so that your device can locate the robot.
Ensure the Robot is powered on and awake.
Activate the Robot:
Confirm step in the App: check the tick box that says, “I pressed the button”, and press continue.

How long do iRobot batteries last?

Usually, the Roomba battery usually needs to be replaced every 1 to 2 years. If you have not, then we strongly suggest you to replace the battery and the cleaning time should improve greatly. I bought Roomba 565 last August and use it at least 1-2 times daily.

How many phones can connect to Roomba?

You are able to have unlimited Android or iOS mobile devices connected to a single Wi-Fi enabled robot. Through your account on the iRobot® HOME app you can have up to 10 robots connected. If trying to connect more than 10 you would need to use another account and mobile device.

VIDEO

iRobot R694020 Roomba 694 Robot Vacuum Cleaner
www://irobot.com/


]]>
iRobot Roomba i7 Smarter Robot Vacuum Manual https://itsmanual.com/irobot/roomba-i7-vacuum/ Mon, 08 May 2023 18:03:27 +0000 https://itsmanual.com/?p=105343 Read More...

]]>


iRobot Roomba i7 Smarter Robot Vacuum Owner’s Manual

iRobot Roomba i7 Smarter Robot Vacuum Owner’s Manual

Safety Information

Important Safety Information

This owner’s guide includes information for Regulatory Model(s): RVB-Y2

SAVE THESE INSTRUCTIONS

WARNING: When using an electrical appliance, basic precautions should always be followed, including the following:

READ ALL INSTRUCTIONS

WARNING: To reduce the risk of injury or damage, read and follow the safety precautions when setting up, using and maintaining your robot.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

  • This is the safety alert symbol. It is used to alert you to potential physical injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death.
  • Risk of electric shock
  • Class II equipment
  • Rated power output, d.c.
  • Read operator’s manual
  • General symbol for recycling
  • Risk of fire
  • For indoor use only
  • Rated power input, d.c.
  • Keep out of reach of children
  • Rated power input, a.c.
  • Separate Supply Unit

WARNING: Indicates a hazardous situation that, if not avoided, could result in death or serious injury.

CAUTION: Indicates a hazardous situation that, if not avoided, could result in minor or moderate injury.

NOTICE: Indicates a hazardous situation that, if not avoided, could result in property damage.

GENERAL

WARNING

  • Your robot is not a toy. Small children and pets should be supervised when your robot is operating.
  • Do not sit or stand on your robot or charging station.
  • Do not use unauthorized chargers. Use of an unauthorized charger could cause the battery to generate heat, smoke, catch fire, or explode.
  • Your robot comes with a region approved power supply cord and is designed to be plugged into a standard household AC power outlet only. Do not use any other power supply cord or power strip. For replacement cords, please contact Customer Care to ensure proper selection of country specific power supply cord.
  • Do not open your robot or charging station other than instructed in the owner’s guide. There are no user serviceable parts inside.
    Refer servicing to qualified service personnel.
  • Risk of electric shock, use indoors in dry location only.
  • Do not handle your robot or charging station with wet hands.
  • Store and operate your robot in room temperature environments only.
  • If the room to be cleaned contains a balcony, a physical barrier should be used to prevent robot access to the balcony and ensure safe operation.

CAUTION

  • Do not operate the robot in areas with exposed electrical outlets in the floor.
  • If the device passes over a power cord and drags it, there is a chance an object could be pulled off a table or shelf.
    Before using this device, pick up objects like clothing, loose papers, pull cords for blinds or curtains, power cords, and any fragile objects. Extinguish candles. Shutoff space heaters.
  • Be aware that the robot moves on its own. Take care when walking in the area that the robot is operating in to avoid stepping on it or tripping over it.
  • Do not use this device to pick up sharp objects, glass, or anything that is burning or smoking.
  • Perform the required maintenance per the Owner’s Guide to ensure safe operation of the robot and charging station.

NOTICE

  • This robot is intended for dry floor use only. Do not use this device to pick up spills. Do not allow your robot or charging station to become wet.
  • Do not place anything on top of your robot or charging station.
  • The failure to maintain cleanliness of charger contacts could result in loss of ability for the robot to charge the battery.
  • Before running your robot on carpets or rugs, ensure that the carpets or rugs are compatible with vacuums using bars or brushes. Using your robot on a carpet or rug that is not compatible could result in damage to your carpet or rug.
    Contact your carpet or rug manufacturer with questions on compatibility
CHARGING STATION

WARNING

  • Do not use a charging station with a damaged cord or plug if the cord or plug is damaged, it must be replaced.
  • Always disconnect your robot from the charging station before cleaning or maintaining it.
  • Do not use the charging station as a step.
  • Charge your robot only with the power supply provided.
    The provided power supply delivers safety extra low voltage corresponding to the input marking on the robot which is required to maintain safe operation.
  • To prevent the risk of your robot falling downstairs, ensure that the charging station is placed at least 4 feet (1.2 meters) away from stairs.
  • Do not allow liquids to get on or into the charging station

NOTICE

  • Product may not be used with any type of power converter.
    Use of power converters will immediately void the warranty.
  • If you live in an area prone to electrical storms, it is recommended that you use additional surge protection. Your charging station may be protected with a surge protector in the event of severe electrical storms.
BATTERY

WARNING

  • Do not open, crush, heat above 176°F: 80°C, or incinerate.
    Follow the Owner’s Guide instructions for proper use, maintenance, handling, and disposal.
  • Do not short-circuit the battery by allowing metal objects to contact battery terminals or immerse in liquid. Do not subject batteries to mechanical shock.
  • Periodically inspect the battery pack for any sign of damage or leakage. Do not charge damaged or leaking battery packs, do not allow the liquid to come in contact with skin or eyes. If contact has been made, wash the affected area with copious amounts of water and seek medical advice. Place the battery in a sealed plastic bag and recycle or dispose of safely according to local environmental regulations, or return it to your local authorized iRobot Service Center for disposal.

CAUTION

  • Battery usage by children should be supervised. Seek medical advice immediately if a cell or a battery has been swallowed.

NOTICE

  • The battery pack must be removed from the robot before recycling or disposal.
  • For best results, only use the iRobot Lithium Ion Battery that comes with the robot.
  • Do not use non-rechargeable batteries. Use only the rechargeable battery supplied with the product. For replacement, purchase identical iRobot battery or contact iRobot Customer Care for alternative battery options.
  • Always charge and remove the battery from your robot and accessories before long-term storage.

Note: For battery recycling go to call2recycle.org; or call 1-800-822-8837

About your Roomba® Robot Vacuum

  • Top View
  • Bottom View
  • Home Base TM Charging Station
  • Buttons & Indicators

Using Your Roomba® Robot Vacuum

Positioning the Home Base TM Charging Station

WARNING: To prevent the risk of your robot falling downstairs, ensure that the charging station is placed at least 4 feet (1.2 meters) away from stairs.

Charging

  • Place the robot on the charging station to activate the battery.
    Note: Your robot comes with a partial charge, but we recommend that you charge the robot for 3 hours prior to starting the first cleaning job.
  • If the “CLEAN” text is pulsing while charging, the robot is in the middle of a cleaning job and will automatically resume where it left off once recharged.
  • The robot uses a small amount of power whenever it is on the charging station. You can put the robot in a further-reduced power state when not in use. For instructions and more details on this Reduced Power Standby Mode, refer to the iRobot Home App.
  • For long-term storage, turn off the robot by removing it from the charging station and holding down for 10 seconds. Store the robot in a cool, dry place.

Cleaning

Remove excess clutter from floors before cleaning. Use your robot frequently to maintain well-conditioned floors.

  • Your robot will automatically explore and clean your home.
    It will return to the charging station at the end of a cleaning job and whenever it needs to recharge.
  • To send the robot back to its charging station, tap . A blue light ring pattern will indicate that the robot is seeking the charging station.
  • When your robot detects an especially dirty area, it will engage Dirt Detect™ mode, moving in a forward/backward motion to clean the area more thoroughly. The light ring indicator will flash blue.
  • Tap to spot clean a designated area. The robot will spiral outward about 3 feet (1 meter) and then spiral inward to end where it started. The light ring indicator will show a blue spiral.

When the robot senses its bin needs to be emptied, the light ring indicator will illuminate in a red sweeping motion toward the rear.

Troubleshooting
  • Your robot will tell you something is wrong by playing an audio alert and turning the light ring indicator red. Press CLEAN or tap the bumper for details. Further support and instructional videos are available in the iRobot Home App.
  • After 90 minutes of inactivity off the charging station, the robot will automatically end its cleaning job.
Battery Safety & Shipping

For best results, only use the iRobot Lithium Ion Battery that comes with your robot.

WARNING: Lithium ion batteries and products that contain lithium ion batteries are subject to stringent transportation regulations. If you need to ship this product for service, travel or any other reason, you MUST follow the below shipping instructions.

  • Battery MUST be turned off before shipping.
  • Turn off the battery by removing the robot from the charging station and holding down for 10 seconds. All indicators will turn off.
  • Package the robot securely for shipping.
  • If you need further assistance, contact our Customer Care team or visit global.irobot.com.

Accessories

Dual Mode Virtual Wall® Barrier

Note: For best results, place at least 8 feet (2.5 meters) from the charging station.

Use the Dual Mode Virtual Wall® barrier to keep the robot in the places you want cleaned — and out of the ones you don’t. It creates an invisible barrier that only the robot can see. You can leave the device in position between cleanings.

Dual Mode Virtual Wall included for select models only

Virtual Wall Mode: When the switch is in the Virtual Wall position (), the device will create a linear barrier to block openings up to 10 feet (3 meters).

Note: This barrier gets wider as it gets further from the device (refer to illustration).

Halo Mode: Toggle the switch to the Halo position (), to create a circular barrier. This will prevent the robot from approaching zones you want to protect such as a pet bowl, vase, or under a desk. The Halo barrier extends approximately 12 inches (30 centimeters) from the center of the device.

Note: The batteries will last about 8-10 months under normal use. If you are not planning to use your Virtual Wall barrier for an extended period of time, be sure to turn the switch to the Off, or middle position.

Care and Maintenance

To keep your robot running at peak performance, perform the procedures on the following pages.

There are additional instructional videos in the iRobot Home App.

If you notice the robot picking up less debris from your floor, empty the bin, clean the filter and clean the brushes.

Part Care Frequency Replacement Frequency*
Bin Wash bin as needed
Filter Clean once a week (twice a week if you have a pet). Do not wash. Every 2 months
Full Bin Sensor Clean every 2 weeks
Front Caster Wheel Clean every 2 weeks Every 12 months
Edge-Sweeping Brush and

Multi-Surface Brushes

Clean once a month (twice a month if you have a pet) Every 12 months
Sensors and Charging Contacts Clean once a month

Note: iRobot manufactures various replacement parts and assemblies. If you think you need a replacement part, please contact iRobot Customer Care for more information.

Replacement frequency may vary. Parts should be replaced if visible wear appears.

Emptying the Bin
  1. Press bin release button to remove bin.
  2. Open bin door to empty bin.
  3. Place bin back in the robot.
Cleaning the Filter
  1. Remove the bin. Remove the filter by grasping both ends and pulling out.
  2. Remove debris by tapping the filter against your trash container.
  3. Reinsert filter with ridged grips facing out. Place bin back in the robot.
    Important: The robot will not run if the filter is not installed correctly.
    Replace the filter every two months.
Cleaning the Full Bin Sensors
  1. Remove and empty the bin.
  2. Wipe the inner sensors with a clean, dry cloth.
  3. Wipe the bin door with a clean, dry cloth.
Washing the Bin

Important: Do not wash the filter. Remove the filter before washing the bin.

  1. Release the bin, remove the filter, and open the bin door.
  2. Rinse the bin using warm water.

    Note: Bin is not dishwasher safe.
  3. Make sure bin is completely dry. Reinsert filter and place bin back in the robot.
Cleaning the Edge-Sweeping Brush
  1. Use a coin or small screwdriver to remove the screw holding the Edge-Sweeping Brush in place.
  2. Pull to remove the Edge-Sweeping Brush. Remove any hair or debris, then reinstall the brush.
Cleaning the Front Caster Wheel
  1. Pull firmly on the front wheel module to remove it from the robot.
  2. Pull firmly on the wheel to remove it from its housing (see illustration below).
  3. Remove any debris from inside the wheel cavity.
  4. Reinstall all parts when finished.
    Make sure the wheel clicks back into place.

    Important: A front wheel clogged with hair and debris could result in damage to your floor. If the wheel is not spinning freely after you have cleaned it, please contact Customer Care.
Cleaning the Multi-Surface Brushes
  1. Pinch the brush frame release tab, lift the tab, and remove any obstructions.
  2. Remove the brushes from the robot. Remove the brush caps from the ends of the brushes.
    Remove any hair or debris that has collected beneath the caps. Reinstall the brush caps.
  3. Remove any hair or debris from the square and hexagonal pegs on the opposite side of the brushes.
  4. Remove the bin from the robot and clear any debris from the vacuum path.
  5. Reinstall the brushes in the robot.
    Match the shape of the brush pegs with the shape of the brush icons in the cleaning head module.
Cleaning the Sensors, Camera Window and Charging Contacts
  1. Wipe sensors, camera window and charging contacts with a clean, dry cloth.

    Important: Do not spray cleaning solution or water onto the sensors or sensor openings.

iRobot Customer Care

USA & Canada

If you have questions or comments about your Roomba® robot vacuum, please contact iRobot before contacting a retailer.

You can start by visiting global.irobot.com for support tips, frequently asked questions and information about accessories. This information can also be found in the iRobot Home App. If you need further assistance, call our Customer Care team at (877) 855-8593.

iRobot USA Customer Care Hours

  • Monday to Friday, 9AM – 9PM Eastern Time
  • Saturday and Sunday 9AM – 6PM Eastern Time
Outside USA & Canada

Visit global.irobot.com to:

  • Learn more about iRobot in your country
  • Get hints and tips to improve your Roomba® robot vacuum’s performance
  • Get answers to questions
  • Contact your local support center

Regulatory Information

FCC Supplier’s Declaration of Conformity

iRobot Corporation Roomba Model: RVB-Y2

Contains FCC ID: UFEAXE-Y1 and contains IC: 6652A-AXEY1

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

This device contains a license-exempt transmitter/receiver that complies with Innovation, Science and Economic Development (ISED) Canada’s license-exempt RSS(s). Operation is subject to the following two conditions: 1) This device may not cause interference, and 2) this device must accept any interference, including interference that may cause undesired operation of the device.

  • Changes or modifications not expressly approved by iRobot
    Corporation could void the user’s authority to operate the equipment.
    • This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
    These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference to radio communication will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

    • Reorient or relocate the receiving antenna.
    • Increase the separation between the equipment and receiver.
    • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
    • Consult the dealer or an experienced radio/TV technician for help.
  • Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotopically radiated power (e.i.r.p.) is not more than the necessary for successful communication.
  • FCC Radiation Exposure Statement: This product complies with FCC §2.1091(b) for mobile device RF exposure limits, set forth for an uncontrolled environment and is safe for the intended operation as described in this manual. Per FCC requirements, maintain a distance of more than 8 inches (20cm) between any person and the host device (Roomba robot).
  • ISED Radiation Exposure Statement: This product complies with the Canadian Standard RSS-102 for portable RF exposure limits, set forth for an uncontrolled environment and is safe for the intended operation as described in this manual. Per ISED requirements, maintain a distance of more than 8 inches (20 cm) between any person and the robot. http://global.irobot.com

For battery recycling go to call2recycle.org; or call 1-800-822-8837

©2021 iRobot Corporation, 8 Crosby Drive, Bedford, MA 01730 USA. All rights reserved. iRobot, Roomba, iAdapt and Virtual Wall are registered trademarks of iRobot Corporation. Home Base and Dirt Detect are trademarks of iRobot Corporation. Wi-Fi and the Wi-Fi logo are registered trademarks of Wi-Fi Alliance.

FAQS

will it work in Europe, under 220V current (after applying a mechanical plug adapter)?

J7 without “+”(self cleaning station) will work at 220V.

How does it handle rugs with fringe?

If the fringe is long, it will get tangled up in it. If short, it does great!

Does the earlier style Virtual wall work with the I7?

The Roomba i7 is compatible with the Dual Mode Virtual Wall Barrier. That virtual wall is compatible with Roomba s, i, e, 900, 800, 700, 600 and 500 Series models.

Does it get stuck on thick rugs?

As long as the rugs do not have shag length nap or doesn’t have tassels it’ll work fine.

Is this this thing mapping your house and uploading it to a google server?

The Imprint Smart Map feature would create a map of your home. This information would be stored in the iRobot Cloud and not on a server like a Google Server.

Is the charger used voltage of this product 100-240 V?

This Robot is a US/Canadian model. Robots sold in the US and Canada come with the domestic charger which is rated at 120V and 60 Hz. We also make Robots for the International Market (outside of the US and Canada) that would come with the universal charger is rated at 120-240V and 50-60 Hz. These Robots would not be available for sale in the US.

Is the battery installed in the vacuum? Or do I have to install it myself?

The battery will be installed in the Robot already when it arrives. Simply unpack and set up the Robot on the Home Base and it will come out of shipping mode.

is this i7 the best room ba for 3 cats 1 dog 2 birds with carpets hardfloors and granite floor?

All of our Roomba vacuums work well on hard flooring and homes with pets. The i7 is one of the best that we offer. Please reach out to us at 1-800-727-9077, and we’ll find the best Roomba for your home.

does the iRobot Roombia have a light built in?

The only lights on the Robot would be the indicator lights on the Robot.

why does my i7+ only run for 19 mins and returns to base, i want it to clean longer?

Runtime cannot be set when using the Roomba i7+. Roomba will clean an entire level and return to the Clean Base once it has determined the area to be clean. If Roomba isn’t covering the entire floor plan, please contact support at 1-877-855-8593.

Does it have a charging station?

Yes, the Roomba i7 will come with a home base that charges the robot.

recently bought a I7 ( 07/2020) did not come with virtual box, is this normal now ?

It has to have a docking station which is connected to wifi.

The information says it connects with clean base, but there is no place to empty into the base unit?

The iRobot Roomba i7 does not come with the Automatic Dirt Disposal Clean Base. It comes with the standard Charging Dock. If you purchase the iRobot Roomba i7+ it will come with the Automatic Dirt Disposal Clean Base. If you purchase the iRobot Roomba i7, and then later on purchase the Automatic Dirt Disposal Clean Base separately, then the iRobot Roomba i7 will be able to connect to and work with the Automatic Dirt Disposal Clean Base.

Does the i7 have liquid sensors so it does not clean over pet vomit or spilled liquids?

No, the Roomba does not have liquid detecting sensors.

What is the difference between the i7 and Costco’s i8+?

The i8+ has a stronger battery and will have a slightly longer run time.

Does this shutdown in the dark?

The Roomba i7 is equipped with Dual Beam cliff sensors. These are an upgrade from the older model Roomba’s and are intended to help with darker surfaces or dimly lit areas.

Does this model have auto dirt disposal?

The i7 does not have Automatic Dirt Disposal, but is compatible with the Clean Base which can be purchased separately. It would be more cost effective to purchase the Roomba i7+ which will include the Robot and the Clean base in one package.

What is the height of the product?

Roomba’s are between 3.5 and 3.8 inches tall depending on the model, the Roomba i7 is 3.63 inches tall.

How does this work on thick shag rugs?

A Roomba vacuum works well on hard flooring and rugs. Please check the rug’s care tag or reach out to the manufacturer of the rug for recommended cleaning methods.

VIDEO

www.irobot.com


]]>
iRobot E515020 Roomba E5 Robot Vacuum Cleaner Manual https://itsmanual.com/irobot/e515020-roomba-e5/ Tue, 27 Jun 2023 08:32:07 +0000 https://itsmanual.com/?p=126552 Read More...

]]>

iRobot E515020 Roomba E5 Robot Vacuum Cleaner User Guide

Care and Maintenance

Care and Maintenance Instructions To keep your Roomba® robot vacuum running at peak performance, perform the procedures on the following pages.
There are additional instructional videos in the iRobot HOME App. If you notice the robot picking up less debris from your floor, empty the bin, clean the filter, and clean the brushes.

Care and Maintenance Overview

Part Care Replace* Details
Bin Empty after each use Page 3
Filter Clean every week (twice a week if you have a pet) Every 2 months Page 3
Front Castor Wheel Clean every 2 weeks Every 12 months Page 4
Edge- Sweeping Brush and Multi-Surface Brushes Clean every month (twice a month if you have a pet) Every 12 months Page 4-5
Sensors and Charging Contacts Clean once a month Page 5

Note: iRobot manufactures various replacement parts and assemblies. If you think you need a replacement part, please contact iRobot Customer Care for more information. Ask Customer Care or visit an authorised iRobot® dealer.
* Replacement frequency may vary. Parts should be replaced if visible wear appears.

Emptying the Bin

  1. Press the bin release button to remove the bin.
  2. Open the bin door to empty the bin.
  3. Place the bin back into the robot

Cleaning the Filter

  1. Release the bin. Remove the filter by grasping both ends and pulling out.
  2. Shake off debris by tapping the filter against your household rubbish bin.
  3. Reinsert the filter with the ridged grips facing out. Place the bin back into the robot.

Important: The robot will not run if the filter is not installed correctly. Replace the filter every two months.

Washing the Bin

Important: Do not wash the filter. Remove the filter before washing the bin.

  1. Release the bin, remove the filter, and open the bin door.
  2. Rinse the bin using warm water.
  3. Make sure that the bin is completely dry. Reinsert the filter and place the bin back into the robot.

Note: The bin is not dishwasher safe

Cleaning the Front Castor Wheel

  1. Pull firmly on the front wheel to remove it.
  2. Remove any debris from inside the wheel cavity.
  3. Reinstall all parts when finished. Make sure the wheel clicks back into place.

Important: A front wheel clogged with hair and debris could result in damage to your floor. If the wheel is not spinning freely after you have cleaned it, please contact Customer Care.

Cleaning the Edge-Sweeping Brush

  1. Use a coin or small screwdriver to remove the screw holding the Edge-Sweeping Brush in place.
  2. Remove the Edge-Sweeping Brush, clean the brush and the brush post, and then reinstall the brush.

Cleaning the Multi-Surface Brushes

  1. Pinch the brush frame release tab, lift the tab, and remove any obstructions.
  2. Remove the brushes from the robot. Remove the brush caps from the ends of the brushes. Remove any hair or debris that has collected beneath the caps. Reinstall the brush caps.
  3. Remove any hair or debris from the square and hexagonal pegs on the opposite side of the brushes.
  4. Remove the bin from the robot and clear any debris from the vacuum path.
  5. Reinstall the brushes in the robot. Match the shape of the brush pegs with the shape of the brush icons in the cleaning head module.

Cleaning the Sensors and Charging Contacts

  1. Wipe sensors and charging contacts with a clean, dry cloth.

Important: Do not spray cleaning solution or water onto the sensors or sensor openings.

]]>
iRobot Roomba Clean Base Automatic Dirt Disposal Manual https://itsmanual.com/irobot/roomba-clean-disposal/ Wed, 05 Jul 2023 16:30:59 +0000 https://itsmanual.com/?p=143954 Read More...

]]>


Roomba
Clean Base Automatic Dirt Disposal
Owner’s Guide

For Roomba® j7 Robot Vacuums

Safety information

Important safety instructions
This Owner’s Guide includes information for Regulatory Model(s): ADG-N2

SAVE THESE INSTRUCTIONS

WERNING WARNING: When using an electrical appliance, basic precautions should always be followed, including the following:
BEFORE USING THIS APPLIANCE, READ ALL APPLICABLE INSTRUCTIONS. FOR HOUSEHOLD USE ONLY.
WERNING WARNING: To reduce the risk of injury or damage, read and follow the safety precautions when setting up, using, and maintaining your robot.
This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children should not play with the appliance. Cleaning and user maintenance should not be carried out by children without supervision.

WERNING This is the safety alert symbol. It is used to alert you to potential physical injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death.

Electric Warning Icon Risk of electric shock
iRobot Roomba Clean Base Automatic Dirt Disposal - icon 5 Risk of fire
WERNING Caution
Double insulation Class II equipment
indoor use only. For indoor use only
Rated power input, a.c.
Rated power output, d.c.
Rated power input, d.c.
manual carefully Read operator’s manual
Keep out of reach of children
testo 805 Infrared Thermometer - symbol The general symbol for recycling
Separate Supply Unit

WARNING: Indicates a hazardous situation that, if not avoided, could result in serious injury or death.
CAUTION: Indicates a hazardous situation that, if not avoided, could result in minor or moderate injury.
NOTICE: Indicates a hazardous situation that, if not avoided, could result in property damage.

WERNINGGENERAL WARNINGElectric Warning Icon

  • This product comes with a region-approved power supply cord and is designed to be plugged into a standard household AC power outlet only. Do not use any other power supply cord. For replacement cards, please contact Customer Care to ensure the proper selection of country-specific power supply cords.
  • Do not disassemble or open the dirt disposal unless instructed to do so. There are no user-serviceable parts inside. Refer servicing to qualified service personnel.
  • Risk of electric shock, use indoors in dry location only.
  • Do not handle this product with wet hands.
  • This product is not a toy. Small children and pets should be supervised when the product is operating.
  • Do not sit or stand on this product.
  • Store and operate this product in room-temperature environments only.

AUTOMATIC DIRT DISPOSAL
WERNINGWARNINGElectric Warning Icon

  • Do not use if the cord or plug is damaged. If the appliance is not working as it should, has been dropped, damaged, left outdoors or dropped into water, return it to a service center.
    Always disconnect your robot from the dirt disposal before cleaning or maintaining it.
  • Do not use dirt disposal as a step.
  • Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair, and anything that may reduce airflow.
  • To properly maintain your dirt disposal, do not place foreign objects inside and ensure that it is clear of debris.
  • In order to avoid a hazard due to inadvertent resetting of the thermal cut-out, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.
  • Do not allow liquids to get on or into the dirt disposal.
  • Do not pour any liquids into the device and do not immerse in water.
  • Do not use outdoors or on wet surfaces.
  • Do not allow it to be used as a toy. Close attention is necessary when used by or near children.
  • Use only as described in this manual.
  • To reduce the risk of electric shock, unplug your dirt disposal before cleaning it.
  • Keep the dirt disposal and power cord away from heated surfaces.
    NOTICE
  • The product may not be used with any type of power converter. The use of power converters will immediately void the warranty.
  • If you live in an area prone to electrical storms, it is recommended that you use additional surge protection. Your dirt disposal may be protected with a surge protector in the event of severe electrical storms.
  • Do not use without a dust bag and/or filters in place.

About your Clean Base™ Automatic Dirt Disposal

Using your Automatic Dirt Disposal
Positioning the Clean Base™ Automatic Dirt Disposal

NOTESNote: Do not place your Clean Base Automatic Dirt Disposal in direct sunlight. Ensure that the area around the dock is free of clutter to improve docking performance.
WERNING WARNING: To prevent the risk of your robot falling downstairs, ensure that the charging station is placed at least 4 feet (1.2 meters) away from the stairs.
About your Automatic Dirt Disposal
While cleaning, your robot will automatically return to the dirt disposal to empty its bin and recharge as needed.
The dirt disposal’s LED indicator will turn solid red when a new bag is needed.
If a clog is detected, the dirt disposal will trigger additional attempts to automatically clear the clog.
NOTESNote: If you place your robot on the dirt disposal by hand, it will not empty automatically. In this case, use the iRobot HOME App or hold the button down for 2-5 seconds.

Care and maintenance

Care and maintenance instructions
To keep your dirt disposal running at peak performance, follow these care procedures:

Dock part Care frequency Replacement frequency
Bags _ Bags should be replaced when prompted by the LED indicator/app.
Charging Contacts Visual Docking
Target
Once every month
Blower Cover inside the canister Once every month (remove debris from blower cover)

NOTES Note: iRobot manufactures various replacement parts and assemblies. If you think you need a replacement part, please contact iRobot Customer Care for more information.

Replacing the Bag
Lift up on the canister lid to open.

Pull up on the plastic card to remove the bag from the canister.
NOTES Note: This will seal the bag so dust and debris cannot escape.

Discard the used bag.
Install a new bag, sliding the plastic card into the guide rails.

Press down on the lid making sure that it is completely closed.
NOTES Note: To achieve optimal performance with your robot and automatic dirt disposal, clean and/or replace your robot’s filter as needed.
Cleaning the Visual Docking Target and Charging Contacts
Inspect the visual docking target and charging contacts to make sure that they are clear of debris. Wipe with a clean, dry cloth.
iRobot Roomba Clean Base Automatic Dirt Disposal - Replacing the Bag 4NOTES Note: Do not spray cleaning solution directly onto sensors or into sensor openings.
Removing Debris from Blower CoveriRobot Roomba Clean Base Automatic Dirt Disposal - Replacing the Bag 3 Inspect blower cover for any lint or debris build-up,  and wipe with a clean dry cloth to remove.

Troubleshooting

Your dirt disposal will tell you if something is wrong via an LED indicator on the front of the canister and through the iRobot HOME App.

LED indicator Common error How to fix
Solid red A bag full of missing 1. Replace the bag if it is full or missing.
2. Make sure that the bag is securely inserted.
3. If the problem persists, remove any debris from the port on the bottom of your robot and the dirt disposal.
Blinking red There is a leak or a clog in the dock evacuation path 1. Make sure that the canister lid is pushed down and firmly sealed. Hold the clean button on your robot down for 2-5 seconds to manually empty the bin.
2. Remove any debris from the port on the bottom of your robot and dirt disposal.
3. Unplug the dirt disposal from the wall. Place it on its side and inspect the debris evacuation tube for debris. If necessary, remove the tube to clear any debris.

This product has been equipped with a thermal protector designed to protect against damage due to overheating. If the protector operates, the motor will stop running. If this happens, unplug the unit, allow it to cool for 30 minutes, clear any obstructions from the evacuation port and evacuation tube, then plug the unit back in.

iRobot Customer Care

USA & Canada
If you have questions or comments about your dirt disposal, please contact iRobot before contacting a retailer.
You can start by visiting global.irobot.com for support tips, frequently asked questions, and information about accessories. This information can also be found in the iRobot HOME App. If you need further assistance, call the US Customer Care team at (877) 855-8593.
iRobot USA Customer Care Hours

  • Monday to Friday, 9 AM-9 PM Eastern Time
  • Saturday and Sunday 9 AM-6 PM Eastern Time

Outside USA & Canada

Visit global.irobot.com to:

  • Learn more about iRobot in your country
  • Get hints and tips to improve your product performance
  • Get answers to questions
  • Contact your local support center

Regulatory information

Tenda E12 AC1200 Wireless PCI Express Adapter - CE For EU Declaration of Conformity information, visit www.irobot.com/compliance
SYMBOL For UKCA Declaration of Conformity information, visit www.irobot.com/compliance
Chemical information report listing SVHC (substances of very high concern) per EU Regulation EU 1907/2006 can be found here: www.irobot.com/compliance.
DangerThis symbol on the product indicates that the appliance must not be disposed of with unsorted common municipal waste. As the end-user, it is your responsibility to dispose of the end-of-life appliance in an environmentally sensitive manner as follows:
(1) returning it to the distributor/dealer from whom you purchased the product; or
(2) depositing it in a designated collection point.
Disposing of this product correctly will help save valuable resources and prevent any potential negative effects on human health and the environment, which could otherwise arise from inappropriate waste handling. Please contact your local authority for further details or your nearest designated collection point. Penalties may be applicable for
incorrect disposal of this waste in accordance with your national legislation. More information may be found at the following source: http://ec.europa.eu/environment/waste/weee/index_en.html
Recycle your end-of-life iRobot product responsibly as per local regulations. The following is a list of the WEEE recycling organizations contracted by iRobot at the time of product sale.

Location Organization URL
Austria UGH http://www.elektro-ade.at/elektrogeraete-sammeln/liste-der-sammelstoesterreich/
Belgium Recupel https://www.recupel.be/en/where-to-go/?search collectionPoints=&categories=1%2C2%2C3%2C4#
Germany Center https://www.ear-system.de/earverzeichnis/sammel-und-ruecknahmestback
Denmark Elretul https://www.dpa-system.dk/DPAApplications/DPADB.aspx?wf=CollectionPointSearch.as
Spain Exotic https://punto-limpio.info/
France Eco-systems https://www.eco-systemes.fr/france
Ireland WEEE Ireland http://www.weeeireland.ie/household-recycling/where-can-i-recycle/
Netherlands Wecycle https://www.watismijnapparaatwaard.nl/
Sweden EI-Kretsen https://www.sopor.nu/sortera-atervinn/
United Kingdom Repic http://www.responsible-recycling.co.uk/contact-us/find-your-local-recy

Manufacturer Address: iRobot Corporation, 8 Crosby Drive, Bedford MA 01730, USA

iRobot - logo©2021 iRobot Corporation, 8 Crosby Drive, Bedford, MA 01730 USA. All rights reserved.
iRobot and Roomba are registered trademarks of iRobot Corporation.
CleanBase is a trademark of iRobot Corporation. Wi-Fi and the Wi-Fi logo are registered trademarks of Wi-Fi Alliance.

]]>
iRobot H1 Handheld Vacuum Cleaner Manual https://itsmanual.com/irobot/h1-cleaner/ Sat, 15 Jul 2023 12:09:46 +0000 https://itsmanual.com/?p=161784 Read More...

]]>
iRobot H1 Handheld Vacuum Cleaner Owner’s Manual

Safety Information

Important Safety Instructions

This owner’s guide includes information for Regulatory Model(s): HVA-N1.

SAVE THESE INSTRUCTIONS

WARNING: When using an electrical appliance, basic precautions should always be followed. Failure to follow the warnings and instructions may results in electric shock, fire and/or serious injury; including the following:

READ ALL INSTRUCTIONS BEFORE USE

WARNING: To reduce the risk of fire, electric shock, or injury, read and follow the safety precautions.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Battery recycling.

WARNING: Indicates a hazardous situation that, if not avoided, could result in death or serious injury.

CAUTION: Indicates a hazardous situation that, if not avoided, could result in minor or moderate injury.

NOTICE: Indicates a hazardous situation that, if not avoided, could result in property damage.

GENERAL

WARNING

  • Do not use outdoors or on wet surfaces.
  • Do not allow to be used as a toy. Close attention is necessary when used by or near children, pets or plants.
  • Use only as described in this manual. Use only manufacturer’s recommended attachments.
  • Do not use with damaged charger. If appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, return it to a service center.
  • Do not unplug by pulling on cord. To unplug, grasp the charger, not the cord.
  • Do not handle charger, including charger plug, and charger terminals with wet hands.
  • Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair, and anything that may reduce air flow.
  • Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.
  • Use extra care when cleaning on stairs.
  • Do not use to pick up flammable or combustible liquids, such as gasoline, or use in areas where they may be present.
  • Do not use without filter.
  • Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
  • Prevent unintentional starting. Ensure switch is in the off position before connecting to battery pack, picking up or carrying the appliance. Carrying the appliance with your finger on the switch or energizing appliance that have the switch on invites accidents.
  • Always switch off the appliance before cleaning, when not in use or attempting any maintenance task. The charger must only be connected to an AC power supply at the voltage shown on the rating label. This cleaner should only be used for its intended purpose as described in this instruction manual. Never operate the vacuum cleaner without filters.
  • Brush may start unexpectedly, switch off the unit and remove the battery pack before cleaning or servicing.
  • Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or corners. Do not run appliance over cord. Keep cord away from heated surfaces.
  • Always turn off this appliance before connecting or disconnecting motorized nozzle.
  • Do not charge the unit outdoors.
  • Do not incinerate the appliance even if it is severely damaged. The batteries can explode in a fire.
  • Have servicing performed by a qualified repair person using only identical replacement parts. This will ensure that the safety of the product is maintained.
  • Do not modify or attempt to repair the appliance or the battery pack except as indicated in the instructions for use and care.

BATTERY

WARNING

  • Recharge only with the charger specified by the manufacturer (charger model YLS0241A-T260060). A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
  • Use appliances only with battery pack Regulatory Model Number ABL-E1. Use of any other battery pack may create a risk of injury or fire.
  • When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
  • Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.
  • Do not use a battery pack or appliance that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behavior resulting in fire, explosion or risk of injury.
  • Do not expose a battery pack or appliance to fire or excessive temperature. Exposure to fire or temperature above 130°C may cause explosion.
  • Follow all charging instructions and do not charge the battery pack or appliance outside of the temperature ranges specified below. Do not use or store the system outside the temperature ranges specified below.
    • Recommended ambient temperature range for charging the system: 0°C to 40°C, 32°F to 104°F
    • Recommended ambient temperature range for operating the system: 0°C to 40°C, 32°F to 104°F.
    • Recommended ambient temperature range for storing the system: -20°C to 40°C, -4°F to 104°F.
  • Disconnect the battery pack from the appliance before making any adjustments, changing accessories, or storing appliance. Such preventative safety measures reduce the risk of starting the appliance accidentally.

About Your Handheld Vacuum

Side View

Bottom View

Using Your Handheld Vacuum

Note: For household indoor use only.

Charging

  • Insert the charger into the charging port of your handheld vacuum. The LED light will flash blue when charging. Once fully charged, the LED light will turn off.

    Note: The vacuum requires up to 4 hours to be fully charged.
  • The LED light will flash red when your handheld vacuum is low on battery.
  • It is recommended to charge your vacuum after each use to maintain maximum performance.

Note: As a safety precaution, the vacuum cannot be switched on while charging.

Storage

Your handheld vacuum can be wall-mounted using the wall mount bracket, drywall anchors, and screws provided.

When selecting a location, ensure there are no utility/service lines (electrical wiring, water supply, gas supply, air, etc.) located directly behind the mounting location. Mount the bracket in accordance with all applicable codes and requirements. The use of personal protective equipment, such as safety glasses and gloves, is recommended.

  1. Using the wall mount bracket as a template, mark the location of the screw holes.
    Caution: Do not mount the bracket at a height greater than 3 feet (1 meter) from the floor.
  2. Using a 5/16 inch (8mm) drill bit, drill two pilot holes and insert the drywall anchors into the pilot holes.
    Note: If mounting directly onto a wall stud, it is not necessary to install the drywall anchors. Use the screws to secure the bracket onto the wall stud.
  3. Install the screws and bracket until the wall mount is held firmly in place. Do not over tighten.

Cleaning

To start cleaning, hold down on the trigger to start the vacuum.

Continuous Cleaning

  • Your vacuum can be operated without the need to continuously hold down the trigger. To enable continuous cleaning, press the continuous cleaning switch until it clicks into place.
  • To disable continuous cleaning, push the switch in the opposite direction until it clicks into place.

Note: After each use, please ensure that the continuous cleaning switch is disabled. Failure to do so may cause battery failure.

Power Selector

Your vacuum has two power modes – High Power & Low Power. The vacuum will begin in High Power. To select Low Power press the power selector. Pressing the power selector a second time will return the vacuum to High Power.

Attachments

Caution: To reduce the risk of personal injury, always switch off the vacuum before changing accessories.

Upholstery Tool

Ideal for picking up pet hair from furniture & upholstery.

Note: As a safety feature, the upholstery tool will not switch on when it is inserted into the vacuum during operation.

Safety Precautions

  1. Keep hair, hands and feet away from the rotating brush while the motorized brush is running.
  2. Do not run the motorized brush over electric cables and string.
  3. Do not use the motorized brush on pets.
  4. If children are present, make sure to turn the vacuum off when  leaving the motorized brush unit unattended.
  5. Do not attempt to service or unclog the motorized brush while the vacuum is running.

Crevice Tool

Ideal for cleaning in between hard to reach places.

Combination Tool

2 tools in 1 for cleaning multiple surfaces without changing attachments.

Troubleshooting

Fault Problem Solution
Reduced suction
  • The dust bin is full
  • The dust bin filter is blocked
  • The air way is blocked
  • Empty the dust bin
  • Clean or replace the dust bin filter
  • Check and clear the air way for any blockages
The LED light flashes red and blue during charging The battery is not placed in the vacuum while charging Insert battery into vacuum and charge. If issue persists, please contact Customer Care
Insufficient run time after charging
  • Insufficient charging time
  • Normal discharge reduction in battery
  • Fully charge the battery according to the instruction described in the owner’s guide
  • Purchase new battery
The LED light does not turn on while charging The vacuum is connected to a wrong charger Only use the charger originally provided with your handheld vacuum (charger model YLS0241A-T260060)
The LED light flashes red during operation
  • Suction air way is blocked
  • Battery power is low
  • Check and clear all debris in the suction air way of the vacuum. If the upholstery tool is attached, check and clear the roller. If issue persists, please contact Customer Care.
  • Fully charge the battery before operation

If you need further support, please contact our Customer Care Team.

Care and Maintenance

Care and Maintenance Instructions

To keep your vacuum running at peak performance, perform the procedures on the following pages.

Important: Always remove the battery from the vacuum before performing any maintenance.

Part Care Frequency Replacement Frequency*
Bin Empty bin after each use or when dust reaches “MAX” fill line
Dust Bin Filter Clean after heavy use Every 3 months
Exhaust Filter Clean after heavy use Every 6 months

*Replacement frequency may vary. Parts should be replaced if visible wear appears.

Note: If you think you need a replacement part, please visit global.irobot.com. If you need additional assistance, please contact iRobot Customer Care.

Emptying the Bin

  1. Press the bin empty button to open and empty the dust bin.
  2. Close the dust bin lid after emptying.

Cleaning the Bin

  1. Wipe the dust bin with a clean, damp cloth. Do not use the vacuum until after it is completely dry.

Cleaning the Dust Bin Filter

  1. Gently pull the filter to remove it from the vacuum.
  2. Use cold water when cleaning the filter. Insert the filter back into the vacuum after it is completely dry.

Cleaning the Cyclone Separator

  1. Press the bin empty button to access the cyclone separator.
  2. Turn the cyclone separator to unlock and remove it from the dust bin.
  3. Use cold water when cleaning the cyclone separator. Insert the cyclone separator back into the vacuum after it is completely dry.

Cleaning the Exhaust Filter

  1. Remove the exhaust filter by pressing down on the buttons on both ends and pulling out.
  2. Wash the filter under cold water.
  3. Reinsert the filter back into the vacuum once it is completely dry.

iRobot Customer Care

USA & Canada

If you have questions or comments about your handheld vacuum, please contact iRobot.

You can start by visiting global.irobot.com for support tips, frequently asked questions and information about accessories. If you need further assistance, call our Customer Care team at (877) 855-8593.

iRobot USA Customer Care Hours

  • Monday to Friday, 9AM – 9PM Eastern Time
  • Saturday and Sunday 9AM – 6PM Eastern Time.

Outside USA & Canada

Visit global.irobot.com to:

  • Learn more about iRobot in your country.
  • Get hints and tips to improve your handheld vacuum’s performance.
  • Get answers to questions.
  • Contact your local support center.

Regulatory Information

FCC Supplier’s Declaration of Conformity
iRobot Corporation
Handheld Vacuum Model: HVA-N1

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

  1. This device may not cause harmful interference, and
  2. this device must accept any interference received, including interference that may cause undesired operation.

iRobot Corporation, 8 Crosby Drive, Bedford, MA 01730.
http://global.irobot.com

For battery recycling go to call2recycle.org;
or call 1-800-822-8837

©2020 iRobot Corporation, 8 Crosby Drive, Bedford, MA 01730 USA. All rights reserved. iRobot is a registered trademark of iRobot Corporation.



]]>
