Important Safeguards

When using electrical appliances, basic safety precautions should always be followed, including the following:

1. Read all instructions before using.
2. Do not touch hot surfaces. Use pot holders when removing cover or handling hot containers. Use handles or knobs.
3. To protect against electrical shock, do not immerse cord, plug or heating unit in water or other liquid.
4. Close supervision is necessary when any appliance is used by or near children.
5. Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts, and before cleaning.
6. Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or has been damaged in any manner. Return appliance to Jarden Customer Service (see warranty) for examination, repair or adjustment.
7. The use of accessory attachments is not recommended and may cause injuries.
8. Do not use outdoors.
9. Do not let cord hang over the edge of the table or counter, or touch heated surfaces.
10. Do not place on or near a hot gas or electric burner, or in a heated oven.
11. Extreme caution must be used when moving any appliance containing hot liquids.
12. To disconnect, remove plug from wall outlet.
13. Do not use this appliance for anything other than intended use.
14. To reduce the risk of electrical shock, cook only in removable pot.
15. Do not pour liquid into Heating Body.

This unit is intended for

This appliance is for HOUSEHOLD USE ONLY. No user-serviceable parts inside. Power Unit never needs lubrication. Do not attempt to service this product. A short power supply cord is provided to reduce the risk resulting from becoming entangled in or tripping over a longer cord.

DO NOT ATTEMPT TO DEFEAT THIS SAFETY FEATURE.

Extension Cord Use

A short power supply cord is provided to reduce the risk resulting from becoming entangled in or tripping over a longer cord. An extension cord may be used if care is exercised in its use. If an extension cord is used the marked electrical rating of the extension cord should be at least as great as the electrical rating of the Rice Cooker. The cord should be arranged so that it will not drape over the counter top or table top where it can be pulled on by children or tripped over unintentionally. Do not immerse base in water or other liquids.

Polarized Plug

This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit into a polarized outlet only one way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to modify the plug in any way. If the plug fits loosely into the AC outlet or if the AC outlet feels warm do not use that outlet.

Save these instructions

NO LIABILITY CAN BE ACCEPTED FOR ANY DAMAGE CAUSED BY NON-COMPLIANCE WITH THESE INSTRUCTIONS OR ANY OTHER IMPROPER USE OR MISHANDLING.

Additional Important Safeguards

• CAUTION: This appliance generates heat and escaping steam during use. Proper precautions must be taken to prevent risk of burns, fires or other damage to persons or property.
• All users of this appliance must read and understand this owner’s manual before operating or cleaning this appliance.
• The cord of this appliance should be plugged into a 120 Volt AC electrical outlet only.
• When using this appliance, provide adequate air space above and on all sides for air circulation. Do not allow this appliance to touch curtains, wall coverings, clothing, dishtowels or other flammable materials during use.
• Do not leave appliance unattended during use.
• This appliance generates steam. Do not operate uncovered.
• If this appliance begins to malfunction during use, immediately unplug the cord. Do not use or attempt to repair the malfunctioning appliance. Do not use the inner pot or lid if cracked or chipped.
• This appliance is for household use only.
• Unplug the rice cooker when not in use.
• Use the rice cooker on a hard, flat surface. Do not place near heat, an open flame or on a soft surface (such as carpeting). Avoid placing it where it may tip over during use. Dropping the rice cooker may cause it to malfunction.
• Avoid electrical shock by unplugging appliance before washing or adding water.
• To avoid burns, stay clear of the steam vent during cooking. Also, allow the rice cooker to cool completely before touching or cleaning the lid, inner pot or heating plate.
• Never use the inner pot on a gas or electric cooktop or an open flame.
• Do not leave the rice ladle or measuring cup in the inner pot while unit is on and in use.
• Please use measuring cup that was provided in the rice cooker. A standard measuring cup should not be used.

1. Glass Lid
2. Inner Pot
3. Heating Body
4.  Keep Warm Light
5. Cook Light
6. Cook Switch
7. teaming Tray (Select Models only)
8. Handles
9. Oster™ Measuring Cup (5.33 oz.)
10. Rice Ladle

1. Remove all packaging materials before using.
2. Wash lid, inner pot, rice ladle and measuring cup in warm, soapy water. Rinse and dry thoroughly. See Care and Cleaning.

DO NOT IMMERSE THE HEATING UNIT OF YOUR RICE COOKER IN WATER OR OTHER LIQUID

Using Your rice cooker

Note : Measuring your rice is of extreme importance. Please do not discard the Oster™ measuring cup included with this unit. This is a “rice cooker” measuring cup, not a standard U.S. measuring cup. One rice cup of the Oster™ measuring cup included with this unit is equal to 5.33 ounces of uncooked rice. The rice cooker is capable of cooking up to 5 full “rice cooker” Oster™ measuring cups of uncooked rice, or 10 (5.33oz) Oster™ cups of cooked rice. Do not use instant rice with this unit.

1. Measure the amount of rice you would like to cook.
2. Wash the measured rice in a separate bowl until water is clear.
3. Place rice in the INNER POT and add the corresponding amount of water. For example, if you are making 5 Oster™ cups of uncooked rice, add water after adding rice to the “5” mark on the inner bowl.
   NOTE: Brown rice will take longer to cook than white rice.
4. Set the INNER POT into the rice cooker. Make sure that the INNER POT is in direct contact with the heating BASE by turning it slightly from left to right until it properly fits onto the heating BASE.
   NOTE: Make sure the outside of the inner pot is completely dry before placing it onto the heating plate.
5. Cover with the LID.
   WARNING: Do not operate this appliance uncovered—steam is generated during use that could cause burns or another serious injury.
6. Plug the cord into a 120 Volt AC electrical outlet. Switch the rice cooker ON by pushing the button down. Make sure the COOK indicator light is illuminated. Steaming will begin shortly.
7. The switch will pop up and the KEEP WARM indicator light will come on when all the water in the RICE COOKER has evaporated. NOTE: You may need to add more water and set the rice cooker to COOK more than once depending on your own personal tastes.
8. After cooking, the KEEP WARM indicator light will illuminate. For best results, let the rice stand for 10-15 minutes of steaming without removing the LID. Carefully open the LID, taking care to avoid escaping steam. Use the RICE LADLE, or another long-handled utensil, to mix the rice well to allow steam to escape.
   Do Not Use Metal Utensils.
   CAUTION: Steam will escape. Do not touch the INNER POT or heating unit until they have cooled.
9. Allow the appliance to cool completely and unplug before cleaning.
10. Disconnect the plug from the wall outlet when not in use.

Cooking Hints

• Rinse rice – Bran gives an unpleasant smell to cooked rice. Be sure to rinse rice thoroughly. Rinsing with water effectively removes bran quickly and thoroughly.

NOTE: Some rice suppliers suggest not rinsing rice because vitamins may be lost.

• After use, wash the INNER POT and LID in warm, soapy water.
• Rinse thoroughly and dry.
• Do not keep the rice cooker in operation:
  • When there is only a small amount of rice left in the POT.
  • When rice ladle is inside the rice cooker.
  • To warm up cold rice.
    DO NOT let water in the INNER POT boil dry.

How To Use Your Steaming Basket

1. Clean and prepare your food or vegetables.
2. Place the INNER POT in the BASE. The length of steaming time is subject to your own personal tastes: depending if you prefer al denté (crunchy) or more well done steamed vegetables.
3. Measure appropriate amount of water and add to INNER POT. NOTE: You are able to steam rice and vegetables/food at the same time with the STEAMING BASKET resting on the INNER POT.
4. Place the STEAMING BASKET on the rim of the INNER POT.
5. Add vegetables or food and put the LID onto the appliance. Switch to COOK position for the appropriate time as shown in the chart on page 8.
6. Disconnect the plug from the wall outlet.


   VEGETABLE	COOKING TIME
   ASPARAGUS	8 – 10 MIN
   BEAN SPROUTS	3 – 4 MIN
   BEANS: GREEN, WAX, FRENCH CUT	8 – 10 MIN
   BROCCOLI	11 -13 MIN
   BRUSSELS SPROUTS	11 -13 MIN
   CABBAGE, SHREDDED	6 – 8 MIN
   CABBAGE, WEDGES	14 – 16 MIN
   CARROTS	8 – 10 MIN
   CAULIFLOWER	11 -13 MIN
   CELERY	8 – 12 MIN
   COLLARD GREENS, SPINACH	6 – 11 MIN
   MUSHROOMS (FRESH, SLICED)	3 – 4 MIN
   PEA PODS	4 – 6 MIN
   SQUASH (ACORN, BUTTERNUT)	13 – 16 MIN
   ZUCCHINI	10 – 12 MIN

• Altitude affects the temperature at which water boils and thus the cooking time. It’s especially true at high altitudes where longer cooking times are necessary. We have outlined a general guide to follow. Test for desired consistency when cooking times indicated have been reached. As you cook with this appliance, adapt times and measurements to your own personal tastes.

How To Use Your Steaming Basket While Cooking Rice

1. Follow steps 1-4 under the HOW TO USE YOUR RICE COOKER.
2. Place the STEAMING BASKET on the rim of the INNER POT.
3. Add food to the STEAMING BASKET and put the LID on the appliance. Switch to COOK position for the appropriate time as shown in the chart.
   NOTE: Use the STEAMING TIME Guide to
   determine when to add food to the STEAMING BASKET. Cooking 10 Oster® measuring cups of finished rice takes approximately 35 minutes. Most vegetables can be added about 10 minutes before rice has finished cooking. Rice cooking times can vary depending on the type of rice being cooked and preferred rice texture. Adjust steaming time as desired. Disconnect the plug from the wall outlet

This appliance should be cleaned after every use.

1. Unplug the rice cooker when not in use and before cleaning. Never immerse HEATING UNIT, cord or plug in water or any other liquids. Allow the RICE COOKER to cool completely
   before cleaning.
   NOTE: Use the RICE LADLE or wooden utensil to stir and remove food from the INNER POT. DO NOT use metal utensils.
2. To clean the HEATING UNIT, lightly wipe the exterior with a damp cloth or sponge. Dry thoroughly with a soft cloth.
3. The INNER POT is coated with a non-stick coating to make clean up easier. To clean, remove the INNER POT from the rice cooker and fill with hot water from the tap. Let it sit for a while and then wash with hot soapy water. Rinse thoroughly and dry.
4. The inner pot , lid , rice ladle and measuring cup are
   dishwasher safe.
5. Make sure that the grains of rice do not stick to the heating plate in the bottom of the heating base. If this occurs, remove immediately. If grains of rice are stuck onto the heating plate, a non-abrasive pad can be used to remove it. Polish the area for good contact between the heating plate , and the bottom of the INNER POT.
   NOTE: Do not use abrasive cleaners, scouring pads or steel
   wool to clean the RICE COOKER
6. Do not use bleach, vinegar or other harsh chemicals to clean
   the RICE COOKER.

Questions or comments? Please visit us at www.oster.com  or call 800-334-0759.

Sunbeam Products, Inc. doing business as Jarden Consumer Solutions or if in Canada, Sunbeam Corporation (Canada) Limited doing business as Jarden Consumer Solutions (collectively “JCS”) warrants that for a period of one year from the date of purchase, this product will be free from defects in material and workmanship. JCS, at its option, will repair or replace this product or any component of the product found to be defective during the warranty period. Replacement will be made with a new or re-manufactured product or component. If the product is no longer available, replacement may be made with a similar product of equal or greater value. This is your exclusive warranty.  Do NOT attempt to repair or adjust any electrical or mechanical functions on this product. Doing so will void this warranty. This warranty is valid for the original retail purchaser from the date of initial retail purchase and is not transferable. Keep the original sales receipt. Proof of purchase is required to obtain warranty performance. JCS dealers, service centers, or retail stores selling JCS products do not have the right to alter, modify or any way change the terms and conditions of this warranty. This warranty does not cover normal wear of parts or damage resulting from any of the following: negligent use or misuse of the product, use on improper voltage or current, use contrary to the operating instructions, disassembly, repair or alteration by anyone other than JCS or an authorized JCS service center. Further, the warranty does not cover: Acts of God, such as fire, flood, hurricanes and tornadoes.

What are the limits on JCS Liability?

JCS shall not be liable for any incidental or consequential damages caused by the breach of any express, implied or statutory warranty or condition. Except to the extent prohibited by applicable law, any implied warranty or condition of merchant ability or fitness for a particular purpose is limited in duration to the duration of the above warranty. JCS disclaims all other warranties, conditions or representations, express, implied, statutory or otherwise. JCS shall not be liable for any damages of any kind resulting from the purchase, use or misuse of, or inability to use the product including incidental, special, consequential or similar damages or loss of profits, or for any breach of contract, fundamental or otherwise, or for any claim brought against purchaser by any other party. Some provinces, states or jurisdictions do not allow the exclusion or limitation of incidental or consequential damages or limitations on how long an implied warranty lasts, so the above limitations or exclusion may not apply to you. This warranty gives you specific legal rights, and you may also have other rights that vary from province to province, state to state or jurisdiction to jurisdiction.

How to Obtain Warranty Service

In the U.S.A. If you have any question regarding this warranty or would like to obtain warranty service, please call 1-800-334-0759 and a convenient service center address will be provided to you. In Canada If you have any question regarding this warranty or would like to obtain warranty service, please call 1-800-667-8623 and a convenient service center address will be provided to you. In the U.S.A., this warranty is offered by Sunbeam Products, Inc. doing business as Jarden Consumer Solutions located in Boca Raton, Florida 33431. In Canada, this warranty is offered by Sunbeam Corporation (Canada) Limited doing business as Jarden Consumer Solutions, located at 20 B Hereford Street, Brampton, Ontario L6Y 0M1. If you have any other problem or claim in connection with this product, please write our Customer Service Department.

PLEASE DO NOT RETURN THIS PRODUCT TO ANY OF THESE ADDRESSES OR TO THE PLACE OF PURCHASE.

User Manual Food Steamer
Manual de Instrucciones Vaporera de Alimentos

MODELS/MODELOS 5709, 5711, 5713

Visit us at www.oster.com

P.N. 111858 (Rev.A)

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed, including the following:

• READ ALL INSTRUCTIONS.
• Do not touch hot surfaces. Use potholders when removing the cover or handling hot containers to avoid steam burns.
• To protect against electrical shock, do not immerse the cord, plug, or base unit in water or other liquids.
• Close supervision is necessary when any appliance is used by or near children.
• Unplug from outlet when not in use. Unplug before putting on or taking off parts, and allow to cool before cleaning.
• Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner. Return appliance to an authorized Oster® Service Center for examination, repair or adjustment.
• Do not use the outdoors.
• Do not let the cord hang over edge of table or counter, or touch hot surfaces.
• Do not operate appliance while empty or without water in the reservoir.
• Do not place on or near a hot gas or electric burner, or in a heated oven.
• Extreme caution must be used when moving an appliance containing hot food or water or other hot liquids.
• Do not use the appliance for other than intended use.
• Lift and open cover carefully to avoid scalding and allow water to drip into steamer.
• The use of accessory attachments not recommended by this appliance manufacturer may cause hazards.

SPECIAL INSTRUCTIONS

• This appliance is intended for household use only.
• Make sure the voltage in your outlet is the same as the voltage indicated on the appliance’s rating label.
• The length of the cord used on this appliance was selected to reduce the hazards of becoming tangled in, or tripping over a long cord.
• For safety, it is not recommended to use an electrical extension cord with this appliance.
• Do not immerse the base unit in water or other liquids.
• Use with wall receptacle only.

FOR 120-V AND 127-V MARKETS ONLY

To reduce the risk of electrical shock, this appliance has a polarized plug (one blade is wider than the other). This plug fits a polarized outlet only one way. This is a safety feature intended to help reduce the risk of electrical shock. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to defeat this safety feature.

THIS UNIT IS FOR HOUSEHOLD USE ONLY SAVE THESE INSTRUCTIONS

WELCOME
Congratulations on your purchase of an OSTER® Food Steamer!
To learn more about OSTER® products, please visit us at www.oster.com.

FOOD STEAMER FEATURES

BEFORE THE FIRST USE

• Remove any labels or stickers from the appliance.
• Thoroughly wash lid, rice bowl, upper steaming bowl, lower steaming bowl, drip tray and heating element sleeve in warm, soapy water before first use, then rinse and dry carefully. The heating element sleeve must be installed around the heating element for proper operation.
• Wipe the inside of the water reservoir with a damp cloth.

INSTANT STEAM FUNCTION

Included is a removable heating element sleeve. Before cooking, when this sleeve is placed around the heating element, the steam function will automatically produce steam in 35 seconds. Do not operate the steamer without the heating element sleeve.

REMOVABLE HEATING ELEMENT SLEEVE

PLEASE NOTE: The heating element sleeve may be removed to allow cleaning of the heating element. On the heating element sleeve, there is a small indentation (cut) which should face downward when replaced on the heating element.

FILLING WATER RESERVOIR

USING YOUR STEAMER

Place the unit on a flat, sturdy surface with adequate clearance (i.e., do not place under wall cabinets). The steamer unit and components are not for use in ovens (microwave, convection, or conventional) or on the stovetop.

(Step 1A) Fill the water reservoir with clean water only. Do not put any other liquids or add any salt, pepper, etc., in the water reservoir. Make sure the water does not exceed the HI fill level or go lower than the LO fill level as indicated inside the water reservoir. Then place the drip tray on the base. (Step 1B)

DRIP TRAY

Or you can fill the water reservoir from the water inlet. There are MAX and MIN lines on the water box to indicate the water level. Even while food is still cooking, if the water box shows that the water level is low, you can add water accordingly to the water inlet without moving any of the steaming bowls. (Step 2)
NOTE: WATER SHOULD NEVER GO LOWER THAN LO (MIN) LINE.

WATER INLET

TO USE UPPER OR LOWER STEAMING BOWL

(Step 3) Place vegetable, seafood, or other foods without sauce or liquid into the steaming bowl. Arrange food in the center of the bowl. Try not to block steam vents. You can use the lower steaming bowl as an egg tray by directly placing a total of 8 eggs on it. (Egg holding steaming tray not available on Model 5709).

UPPER OR LOWER STEAMING BOWLS

FOR DOUBLE TIER OR THREE TIER STEAMER

Place the largest piece of food with the longest cooking time in the lower steaming bowl. Place the lower bowl on top of drip tray and base. Place the upper steaming bowl on top of the base unit, or you can place the upper steaming bowl directly on top of the lower steaming bowl. (Upper steaming tray not available on Model 5709).

Cooking times are estimates and depend on the quantity, size, required degree of cooking, and temperature of food. Consider all the cooking time given in the following guide as suggested times for double-tier steamer.

When handling and removing hot components, use POTHOLDERS to avoid burns from hot steam.

MULTI-TIERED STEAMING

USING THE RICE BOWL

Place rice or other foods with sauce or liquid in a rice bowl. Place rice bowl in the lower steaming bowl and cover with the lid. Plug into wall outlet and set timer. When food is well cooked, unplug the unit.

RICE BOWL

TIMER SETTING (Maximum 75 Minutes)
Set the timer to the recommended cooking time (steaming times can be adjusted as per your experiment). The light turns on and steam comes in 35 seconds. The light will turn off when cooking is completed and the timer will give a signal bell.

CARE AND CLEANING

• Unplug the cord from the outlet. Before cleaning, allow the Steamer to cool.
• Never immerse the Base, Cord, or Plug-in water.
• Empty the drip tray and the water reservoir. If there is a small amount of water remaining inside the water box, you can just turn the unit upside down and water will come out from the water inlet.
• Wash lid, steaming bowl, rice bowl, and drip tray in hot, soapy water. Rinse and dry all parts, or wash on the top rack of the dishwasher.
• Clean reservoir with soapy water then wipes with a damp cloth.
• Do not use abrasive cleaners
• The lower steaming bowl and the rice bowl can be stored inside the upper steaming bowl with the lid on top.
• In hard water areas, the scale may build up on the heating element. If the scale is allowed to accumulate, the steam could turn off before the food is cooked. So, after 7-10 uses, pour 3 cups clear vinegar into the water reservoir then fill with water up to the HI level. Do not place lid, steaming bowl, rice bowl, and drip tray in this procedure.
• Plugin and set the timer to 20 minutes. When the timer rings, unplug the cord from the outlet. Allow the unit to cool completely before emptying the water reservoir. Use cold water to rinse the water reservoir several times.

REHEATING: BREADS AND LEFTOVERS

1. Do not wrap or cover when reheating bread.
2. For leftovers, reheating times are based on foods at refrigerator temperatures.
3. When reheating leftovers in the rice bowl, always spread leftovers evenly in RICE BOWL and use aluminum foil to cover.
4. Experiment with your own leftovers.

Grains

any types of rice. Follow specific directions for variety used.

ensure rice and water then combine in a rice bowl. Pour specified water into the water reservoir. Cover and steam.

e, increase by 1 – 2 tablespoons the water mixed with rice by the unit of water on the chart. For firmer rice decrease water mixed the same amount.

ess and consistency of rice at the minimum time specified for each rice at the same time.
ng/stirring rice, be careful not to drip the condensate into the rice would reduce the quality and flavor of the steamed rice.
n water in the water reservoir.
seasoned with salt, pepper, or butter after steaming.

Vegetables

1. Clean the vegetables thoroughly. Cut off stems; trim, peel or chop if necessary. Smaller pieces steam faster than larger ones.
2. Quantity, quality, freshness, size/uniformity, and temperature of frozen food may affect steam timing. Adjust water amounts and cooking time as desired.
3. Frozen vegetables should not be thawed before steaming.
4. Some frozen vegetables should be placed in the rice bowl and covered with a piece of aluminum foil during steaming. The frozen foods should be separated or stirred after 10-12 minutes. Use a long-handled fork or spoon to separate or stir foods.

Fish and Seafood

1. The steaming times listed in the chart are for fresh, frozen, or fully thawed seafood and fish. Before steaming, clean and prepare fresh seafood and fish.
2. Most fish and seafood cook very quickly. Steam in small portions or in amounts as specified.
3. Clams, oysters, and mussels may open at different times. Check the shells to avoid overcooking.
4. You may steam fish fillets in the RICE BOWL. Serve steamed seafood and fish plain or use seasoned butter or margarine, lemon or favorite sauces.
5. Adjust steaming times accordingly.

One-Year Limited Warranty

Sunbeam Products Inc., d/b/a Jarden Consumer Solutions, or if in Canada, Sunbeam Corporation (Canada) Limited d/b/a Jarden Consumer Solutions, (collectively “Sunbeam”) warrants that for a period of one year from the date of purchase, this product will be free from defects in material and workmanship. Sunbeam, at its option, will repair or replace this product or any component of the product found to be defective during the warranty period. Replacement will be made with a new or remanufactured product or component. If the product is no longer available, replacement may be made with a similar product of equal or greater value. This is your exclusive warranty.

This warranty is valid for the original retail purchaser from the date of initial retail purchase and is not transferable. Keep the original sales receipt. Proof of purchase is required to obtain warranty performance. Sunbeam dealers, service centers, or retail stores selling Sunbeam products do not have the right to alter, modify or any way change the terms and conditions of this warranty.

This warranty does not cover normal wear of parts or damage resulting from any of the following: negligent use or misuse of the product, use on improper voltage or current, use contrary to the operating instructions, disassembly, repair, or alteration by anyone other than Sunbeam or an authorized Sunbeam service center. Further, the warranty does not cover Acts of God, such as fire, flood, hurricanes and tornadoes.

What Are the Limits on Sunbeam’s Liability?
Sunbeam shall not be liable for any incidental or consequential damages caused by the breach of any express, implied or statutory warranty or condition.

Except to the extent prohibited by applicable law, any implied warranty or condition of merchantability or fitness for a particular purpose is limited in duration to the duration of the above warranty.

Sunbeam disclaims all other warranties, conditions, or representations, express, implied, statutory or otherwise.

Sunbeam shall not be liable for any damages of any kind resulting from the purchase, use or misuse of, or inability to use the product including incidental, special, consequential, or similar damages or loss of profits, or for any breach of contract, fundamental or otherwise, or for any claim brought against the purchaser by any other party.
Some provinces, states, or jurisdictions do not allow the exclusion or limitation of incidental or consequential damages or limitations on how long an implied warranty lasts, so the above limitations or exclusion may not apply to you.

This warranty gives you specific legal rights, and you may also have other rights that vary from province to province, state to state or jurisdiction to jurisdiction.

How to Obtain Warranty Service
In the U.S.A. –
If you have any questions regarding this warranty or would like to obtain warranty service, please call 1.800.334.0759 and a convenient service center address will be provided to you. In Canada –

If you have any questions regarding this warranty or would like to obtain warranty service, please call 1.800.667.8623 and a convenient service center address will be provided to you.

In the U.S.A., this warranty is offered by Sunbeam Products, Inc., located in Boca Raton, Florida 33431. In Canada, this warranty is offered by Sunbeam Corporation (Canada) Limited, located at 5975 Falbourne Street, Mississauga, Ontario L5R 3V8.

PLEASE DO NOT RETURN THIS PRODUCT TO ANY OF THESE ADDRESSES OR TO THE PLACE OF PURCHASE.

User Manual Convection Countertop Oven

MODEL/MODELO TSSTTVDFL2

Visit us at www.oster.com

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to persons including the following:

1. Read all instructions before using this product.
2. This appliance generates heat during use. Do not touch hot surfaces. Use handles or knobs. Always protect your hands with non-slip oven mitts or similar.
3. To protect against electric shock, do not place or immerse cord, plugs, or appliance in water or other liquid.
4. This appliance is not to be used by children or by persons with reduced physical, sensory or mental capabilities.
5. Close supervision is necessary when any appliance is used near children. Children should not play with the appliance.
6. Unplug from outlet when not in use, before putting on or taking off parts, and before cleaning. Allow cooling before putting on or taking off parts, and before cleaning. To disconnect, turn any control to OFF, then unplug the power cord from the outlet. Do not disconnect by pulling on the cord. Always grasp the plug and pull to disconnect.
7. Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or has been damaged in any manner. Do not attempt to replace or splice a damaged cord. Return appliance to the manufacturer (see warranty) for examination, repair, or adjustment.
8. The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
9. Do not use outdoors or for commercial purposes.
10. Do not let cord hang over edge of table or counter, or touch hot surfaces.
11. Do not place on or near wet surfaces, or heat sources such as a hot gas or electric burner, or in a heated oven.
12. Extreme caution must be used when moving an appliance or removing a pan, containing hot oil or other hot liquids. Always protect your hands with non-slip oven mitts or similar.
13. Do not use the appliance other than intended use. Misuse can cause injuries. Intended for household countertop use only. Keep 6 inches (152 mm) clear from the wall and on all sides. Always use the appliance on a dry, stable, level surface.
14. Oversize foods or metal utensils must not be inserted in a countertop oven as they may create a fire or risk of electric shock.
15. A fire may occur if the countertop oven is covered, touching, or near flammable materials, including curtains, draperies, towels, walls, and the like, when in operation. Do not store any item on top of the appliance when in operation.
16. Do not clean with metal scouring pads. Pieces can break off the pad and touch electrical parts, creating a risk of electric shock.
17. Extreme caution should be exercised when using containers constructed of materials other than metal or glass.
18. Do not store any materials, other than the manufacturer’s recommended accessories, in this oven when not in use.
19. Do not place any of the following materials in the oven: paper, cardboard, plastic, or any materials that may catch fire or melt.
20. Do not cover the crumb tray or any part of the oven with metal foil. This will cause overheating of the oven.
21. Empty the crumb tray after each use.
22. The glass door is made of tempered glass. Always inspect the glass door for chips, cracks, or any other damage. Do not use the countertop oven if the glass door is damaged, as the glass may shatter during use.
23. Do not use with a programmer, timer, wireless plug adapter, or outlet that allows control remotely, or connect to a circuit that is regularly switched on and off by the utility.

SAVE THESE INSTRUCTIONS

HOUSEHOLD USE ONLY

North American models with polarized plugs:

POLARIZED PLUG
This appliance has a polarized plug, (one blade is wider than the other). As a safety feature to reduce the risk of electrical shock, this plug is intended to fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to defeat this safety feature or modify the plugin anyway. If the plug fits loosely into the AC outlet or if the AC outlet feels warm do not use that outlet.

POWER CORD INSTRUCTIONS:

A short power-supply cord or detachable power-supply cord is provided to reduce risks resulting from becoming entangled in or tripping over a longer cord. Longer detachable power-supply cords or extension cords are available and may be used if care is exercised in their use. If a long detachable power-supply cord or extension cord is used:
a. The marked electrical rating of the cord set or extension cord should be at least as great as the electrical rating of the appliance;
b. The cord should be arranged so that it will not drape over the countertop or tabletop where it can be pulled on by children or tripped over unintentionally; and
c. If the appliance is of the grounded type, the cord set or extension cord should be a grounding-type 3-wire cord.
Do not pull, twist, or otherwise abuse the power cord.

NOTICES

1. Some countertop and table surfaces are not designed to withstand the prolonged heat generated by certain appliances. Do not set the heated unit on a finished wood table. We recommend placing a hot pad or trivet under your countertop oven to prevent possible damage to the surface.
2. During initial use of this appliance, some slight smoke and/or odor may be detected. This is normal with many heating appliances and will not recur after a few uses.

Welcome
Congratulations on your purchase of an OSTER® Countertop Oven! If you require service on your OSTER® Countertop Oven, do not return to a place of purchase. Please contact us at www.oster.com or 1.800.334.0759.

Learning about Your Countertop oven

1. Temperature Control Knob – Adjust the dial thermostat to the desired temperature. (See Figure 1)
2. Function Selector Knob – Select a cooking function by turning the knob to the desired setting. (See Figure 2)

3. Timer Control Knob with Bell Signal – Set cooking time up to 60 minutes. Will automatically turn the oven OFF at the end of the cooking time. (See Figure 3)

4. Removable Crumb Tray – For crumb or fallen food particles collection. Pulls out for easy cleaning.
5. Removable Wire/Broil Rack – Use for all your broiling and grilling needs. See “Positioning Rack” and “Positioning Pan” sections.
6. Tempered Glass Door – For front viewing of food.
7. Baking Pan & Cookie sheet in one – Use for all your baking needs. See the “Positioning Pan” section.
8. Easy Clean Interior Walls – Allows fast clean up.

Preparing to use your Countertop oven for the first time

NOTE: During initial start-up, you may detect a slight smell and/or smoke. Turn the temperature to the max and let run for approximately 5 minutes. If you are using your Countertop Oven for the first time, please be sure to:

• Remove any stickers from the surface of the oven.
• Open the oven door and remove all printed documents and paper from inside the Countertop Oven.
• Clean the rack and pan with hot water, a small amount of dishwashing liquid, and a non-abrasive cleaning pad.

CAUTION: DO NOT IMMERSE THE BODY OF THE UNIT IN WATER.

• Dry the unit thoroughly before using.
• Select a location for the Countertop Oven. The location should be in an open area on a flat counter where the plug will reach an outlet.
• Plug the Countertop Oven into a 120 Volt AC electrical outlet.

CAUTION: When Countertop Oven is in use or cooling down, please be sure there is a 6-inch clearance between the Countertop Oven and any other surface including cords. Be sure the cord is not resting against the back of the Countertop Oven.

To open the Oven Door:

Step 1: Grab the center of the handle underhanded with fingertips (See Figure 4).

Step 2: Pull down the oven door carefully (See Figure 5).

CAUTION: This appliance generates heat during use. Do not touch hot surfaces. Always use handles or knobs per the above instructions.

To use the toast function (see fig. 6)

Select desired rack position. (See “Positioning Rack” Section)
NOTE: Different types of bread require different settings. Lighter breads and waffles require lighter setting. Darker breads, muffins, and English muffins require a darker setting.

Step 1. Place food on Wire Racks.
Step 2. Close the glass door completely.
Step 3. Turn the Function dial to Toast. Both the top and bottom heater elements will operate.
Step 4. Turn the temperature control knob to the 450º/TOAST setting.
Step 5. To set the timer, turn the timer past the 20-minute mark to engage the timer switch and set it back to desired toast time.
Step 6. When toasting is complete, a bell will sound. Open the door completely and remove food. For best toasting results, position the rack in the middle position.

WARNING: Cooked food, metal rack, and the door can be very hot, handle with care. Do not leave Countertop Oven unattended.

To use the turbo ConveCtion heat function (see fig. 7)

The Turbo Convection Heat Function turns on a built-in fan that circulates hot air in the oven chamber cooking your food faster and more evenly. Preheat oven 5-7 minutes at the desired temperature with oven rack in place.

Step 1. Place baking pan with food inside on wire rack.
Step 2. Close the glass door completely.
Step 3. Turn the Function dial to Turbo.
Step 4. Turn the temperature dial to the desired setting.
Step 5. Turn the Timer to the desired cook time.

NOTE: If cook time is less than 20 minutes, you must turn Timer past the 20-minute mark to engage the timer then back to the desired time.

Step 6. When baking is complete, open the door completely and remove food.

WARNING: Cooked food, metal rack, and the door can be very hot, handle with care. Do not leave Countertop Oven unattended.

Faqs about turbo Convection heat

What is Turbo Convection Heat?
Answer: In your Countertop Oven there is a built-in fan that circulates the hot air in the oven chamber cooking your food faster and more evenly.
How do I adjust the time for Turbo Convection?
Answer: On average, the Turbo function will shorten the cooking time, but it varies by food. It is suggested to go with a shorter cooking time to start with and then add time if it is needed.
What are the best foods to use with Turbo?
Answer: While a shorter cook time is often desirable, baked goods in particular benefit from Turbo cooking as the circulating air keeps oven temperature consistent throughout.

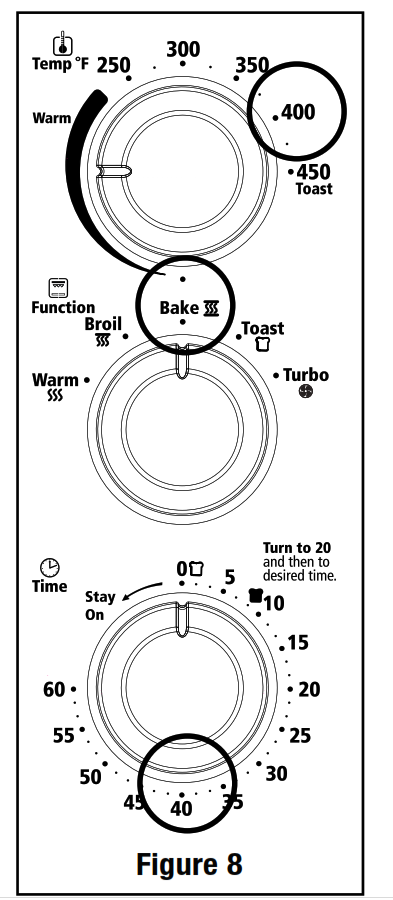

To use the bake function (see fig. 8)

Step 1. Place baking pan with food inside on wire rack.
Step 2. Close the glass door completely.
Step 3. Turn the Function dial to Bake.
Step 4. Turn the temperature dial to the desired setting.
Step 5. Turn the Timer to the desired cook time.

NOTE: If cook time is less than 20 minutes, you must turn Timer past the 20-minute mark to engage the timer then back to desired time.
Step 6. When baking is complete, open the door completely and remove food.

WARNING: Cooked food and metal rack, and the door can be very hot, handle with care. Do not leave Countertop Oven unattended.

To use the Warm function (see fig. 9)

Step 1. Place baking pan with food inside on wire rack.
Step 2. Close the glass door completely.
Step 3. Turn the Function dial to Warm.
Step 4. Turn the Temperature dial past “Warm”.
Step 5. Turn the Timer to desired warming time.

NOTE: If cook time is less than 20 minutes, you must turn Timer past the 20-minute mark to engage the timer then back to the desired time.

Step 6. When Warming is complete, open the door completely and remove food.

WARNING: Cooked food and metal rack, and the door can be very hot, handle with care. Do not leave Countertop Oven unattended.

To use the broiL function (see fig. 10)

Adjustable Broil allows the oven to broil at any temperature. Great for melting cheese at 150º For cooking fish at 400º F. Adjust as needed.

Step 1. Place food on broil rack or on baking pan if needed. See “Positioning Rack” and “Positioning Pan” sections.
Step 2. Close glass door leaving approximately a 3-inch opening at the top of the Countertop Oven.
Step 3. Turn the Function dial to Broil.
Step 4. Turn the temperature dial to the desired temperature.
Step 5. Turn the Timer to the desired cook time.

NOTE: If cook time is less than 20 minutes, you must turn Timer past the 20-minute mark to engage the timer then back to the desired time.

Step 6. When Broiling is complete, open the door completely and remove food.

WARNING: Cooked food and metal rack, and the door can be very hot, handle with care. Do not leave CountertopOven unattended.

To Use The Timer And sTAy on FeATUre (see Fig. 11)

After rotating the Temperature Dial to your desired temperature, then you must select from the following options on the Timer Dial.

• For items requiring shorter cooking times, rotate the Timer Dial clockwise to the desired time. At the sound of the bell, the oven will automatically turn “Off.”
• For longer cooking times, rotate the Timer Dial counterclockwise to the “Stay On” setting. Cooking will continue until the Timer Dial is manually turned to the “Off” position and the bell will sound.

Positioning Rack

• To accommodate a wide variety of foods the oven has 3 rack positions. The rack can be inserted in the oven in the upper, middle, or lower rack guides.
  The rack will fit into either of the rack guides inside of the Countertop Oven. (See Figure Below)
• Before removing the rack allow the unit to cool.
• To remove the rack, open the oven door and pull the rack towards the front of the oven. The rack will slide on the rack guides on the inside of the oven.
  PLEASE NOTE: the oven rack may tilt downward causing food to shift when the rack is pulled out, proceed with caution.
• The positioning of the oven rack will depend on the size of the food and desired to brown. Move the rack to the lower rack position to prevent top browning and move the rack to the upper rack position to prevent bottom burning.
• For best toasting and pizza results, position the rack in the middle rack guide.

Positioning Pan

• To accommodate a wide variety of foods the oven has two pan positions. The pan can be placed on top of the rack or inserted into the guide rails below the rack. (See Figure Below)
• Before removing the pan allow the unit to cool.
• The positioning of the oven pan will depend on the desired cooking method. For baking, place the pan on top of the rack. For grilling or broiling, insert the pan into the guide rails below the rack and place the food on top of the rack.

Cleaning Your Countertop oven

WARNING: To protect against electrical shock, do not immerse the appliance in water or any other liquid.
Step 1. Turn all knobs to the “OFF” position and remove the plug from the electrical outlet. Allow cooling.
Step 2. Wipe the unit down with a damp cloth. Make sure to only use mild, soapy water. Abrasive cleaners, scrubbing brushes and chemical cleaners will damage the coating on this unit. WARNING: Do not clean with metal scouring pads. Pieces can break off the pad and touch electrical parts involving a risk of electrical shock.
Step 3. Remove crumb tray by pulling out of Countertop Oven.
Step 4. Shake off crumbs from the crumb tray. Cleaning the crumb tray often will avoid any accumulations.
Step 5. Remove wire rack and clean with damp cloth or place in the top rack of the dishwasher.

This appliance has no user-serviceable parts. Any servicing beyond that described in the Cleaning Section should be performed by an Authorized Service Representative only. See Warranty Section.

Storing Your Countertop oven

Allow the appliance to cool completely before storing. If storing the Countertop Oven for long periods of time make certain that the Countertop The oven is clean and free of food particles. Store the Countertop Oven in a dry location such as on a table or countertop or cupboard shelf. Other than the recommended cleaning, no further user maintenance should be necessary.

DESIGNED FOR LIFE®

PROFESSIONALLY DESIGNED ✦ LEGENDARY PERFORMANCE

GO ONLINE! WWW.OSTER.COM/REGISTER
Register Your Oster® Designed For Life® Brand Product Today!

5 Year Satisfaction Guarantee
Sunbeam Products, Inc., or if in Canada, Sunbeam Corporation (Canada) Limited, (collectively “Sunbeam”) warrants that for a period of five years from the date of purchase, this product will be free from defects in material and workmanship. Sunbeam, at its option, will repair or replace this product or any component of the product found to be defective during the guarantee period. Replacement will be made with a new or remanufactured product or component. If the product is no longer available, replacement may be made with a similar product of equal or greater value. This is your exclusive guarantee. Do NOT attempt to repair or adjust any electrical or mechanical functions on this product. Doing so will void this guarantee. This guarantee is valid for the original retail purchaser from the date of initial retail purchase and is not transferable. Keep the original sales receipt. Proof of purchase is required to obtain satisfaction guarantee performance. Sunbeam dealers, service centers, or retail stores selling Sunbeam products do not have the right to alter, modify or in any way change the terms and conditions of this guarantee.

This guarantee does not cover damage resulting from any of the following: negligent use or misuse of the product, use on improper voltage or current, use contrary to the operating instructions, disassembly, repair, or alteration by anyone other than Sunbeam or an authorized Sunbeam service center. Further, the guarantee does not cover Acts of God, such as fire, flood, hurricanes, and tornadoes.

What are the Limits on Sunbeam’s Liability?

Sunbeam shall not be liable for any incidental or consequential damages caused by the breach of any express, implied, or statutory guarantee or condition. Except to the extent prohibited by applicable law, any implied guarantee or condition of merchantability or fitness for a particular purpose is limited in duration to the duration of the above guarantee. Sunbeam disclaims all other guarantees, conditions, or representations, express, implied, statutory, or otherwise. Sunbeam shall not be liable for any damages of any kind resulting from the purchase, use or misuse of, or inability to use the product including incidental, special, consequential, or similar damages or loss of profits, or for any breach of contract, fundamental or otherwise, or for any claim brought against the purchaser by any other party.

Some provinces, states, or jurisdictions do not allow the exclusion or limitation of incidental or consequential damages or limitations on how long an implied guarantee lasts, so the above limitations or exclusion may not apply to you. This guarantee gives you specific legal rights, and you may also have other rights that vary from province to province, state to state, or jurisdiction to jurisdiction.

How to Obtain Satisfaction Guarantee Service In the U.S.A.
If you have any questions regarding this guarantee or would like to obtain a guaranteed service, please call 1-800-334-0759 and a convenient service center address will be provided to you.

In Canada
If you have any questions regarding this guarantee or would like to obtain a guaranteed service, please call 1-800-667-8623 and a convenient service center address will be provided to you.

In the U.S.A., this guarantee is offered by Sunbeam Products, Inc., located in Boca Raton, Florida 33431. In Canada, this guarantee is offered by Sunbeam Corporation (Canada) Limited, located at 20 B Hereford Street, Brampton, Ontario L6Y 0M1. If you have any other problem or claim in connection with this product, please write to the Consumer Service Department.

PLEASE DO NOT RETURN THIS PRODUCT TO ANY OF THESE
ADDRESSES OR TO THE PLACE OF PURCHASE.

Push Button Blenders

For product questions contact:
Sunbeam Consumer Service
USA : 1.800.334.0759
Canada : 1.800.667.8623
Mexico : 1.800.506.1700
www.oster.com
© 2016 Sunbeam Products, Inc. doing business as Jarden Consumer Solutions.
All rights reserved. Distributed by Sunbeam Products, Inc. doing business as
Jarden Consumer Solutions, Boca Raton, Florida 33431.

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should be followed, including the following:
Read all instructions before use

• To protect against risk of electrical shock, do not immerse the cord, plug or motor base in
  water or any other liquids.
• Do not let cord hang over edge of table or counter or touch hot surfaces, including the stove.
• Never leave appliance unattended when in use.
• Close supervision is necessary when used by or near children.
• Avoid contact with moving parts. Keep hands and utensils out of jar while blending to prevent personal injury or damage to the blender. A rubber spatula may be used only when the blender is not running.
• The blade is sharp. Handle with care.
• To reduce the risk of injury, never place cutter-assembly blades on base without jar properly
  attached.
• Always put the lid on the jar before operating the blender.
• Do not blend boiling liquids in the blender.
• When blending hot liquids beware of steam. Remove the filler cap from the lid to allow steam to escape.
• Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions or is dropped or damaged in any manner. Return the appliance to the nearest Authorized Sunbeam Appliance Service Center for examination, repair or electrical mechanical adjustment.
• Do not use outdoors or for commercial purposes; this appliance is for household use only.
• Always operate on a flat surface.
• Unplug the blender when not in use, before taking off or putting on parts and before cleaning.
• Use this appliance for its intended use as described in this manual. The use of attachments not made by the manufacturer, including canning or ordinary jar and processing assembly parts, is not recommended by Sunbeam Products, Inc. and may cause injury.

SAVE THESE INSTRUCTIONS
This Product Is for Household Use Only

The maximum rating marked on the product is based on the attachment that draws the greatest load. Other attachments may draw less power.

Power Cord Instructions

Please follow the instructions below to ensure the safe use of the power cord.

• This appliance is equipped with a polarized plug. This type of plug has one blade that is wider than the other. This plug will fit in a polarized outlet only one way. This is a safety feature intended to help reduce the risk of electrical shock. If you are unable to insert the plug into the outlet, contact a qualified electrician to replace the obsolete outlet. Do not attempt to defeat the safety purpose of the polarized plug by modifying the plug in any way.
• You may use an extension cord, if necessary, but be certain to follow these guidelines:
  – The marked electrical rating of the extension cord must be at least as great as the appliance itself. The electrical ratings are marked directly on the appliance.
  – The extension must be arranged so that it will not drape over the countertop or tabletop, will not be within the reach of children, and will not be tripped over.
  – Do not pull, twist or otherwise abuse the power cord.

Welcome

Congratulations on your purchase of an Oster® Classic Series Blender!
To learn more about OSTER® products, please visit us at www.oster.com.

Features of Your Blender

• A. Feeder cap for adding ingredients while blending
• B. Spill-proof lid
• C. Your Oster® Blender may include one of the following:
  6-cup (1.4 L) Dishwasher-Safe Glass Jar
  6-cup (1.4 L) Break-Resistant Plastic Jar
  5-cup (1.1 L) Dishwasher -Safe Glass Jar
  BPA Free Smoothie Cup
• D. Sealing ring for tight seal
• E. Ice Crusher Blade pulverizes ice for smooth frozen drinks
• F. Threaded Jar Nut (Select Models Feature a Threaded Jar Skirt)
• G. Powerful motor with DuralastTM ALL-METAL-DRIVE for lasting durability
• H. Control panel
• I. Pulse for precise blending control (Location varies per model)

Using Your Blender

• Clean blender according to the instructions in the “Cleaning and Storing Your Blender” section.
• Turn jar upside down so the small opening is at the top. (Figure 1)
• Place sealing ring over jar opening. (Figure 2)
• Place blade into jar. (Figure 3)

• Place threaded jar nut or threaded jar skirt over blade and jar (Note: If there are slots on top of collar, line them up with notches on jar.) Place the threaded jar nut or threaded jar skirt on jar and turn it clockwise to tighten. (Figure 4)

• Place jar assembly onto base. (Figure 5)

• Line up tabs of jar with tabs on blender base. Make sure the tab of the jar on the left side is in the back of the tab of the blender base and the tab of the jar on the right side is in front of the tab of the blender base. Make sure jar is seated into position. (Figure 6)
• Place ingredients into jar.
• Place lid with feeder cap on jar.
• Plug the power cord into a 120 Volt AC electrical outlet.
• Push desired speed and blend ingredients to desired consistency. Slide switch to HIGH or LOW. (If your model does not have a slide switch, push HIGH or LOW button on select models).
• Press OFF to stop the blender. (Figure 5a)
• To use PULSE, select HIGH or LOW (on select models). Push PULSE and hold down for desired length of time. Release PULSE and allow blade to stop. Repeat cycle as desired.(Figure 5a)

*Above images do not reflect the entire Oster® blending assortment. For more information go to www.oster.com

Blending Tips

• Put liquids in the jar first, unless a recipe says otherwise.
• Crushing ice: Crush 6 ice cubes or approximately 2 cups of ice at a time.
• Do not remove the lid while in use. Remove filler cap to add smaller ingredients. (Figure 7)
• Cut all firm fruits and vegetables, cooked meats, fish and seafood into pieces no larger than ¾ inch (1.8 cm) to 1 inch (2.5 cm). Cut all kinds of cheeses into pieces no larger than 3/4 inch (1.8 cm).
• This blender will not mash potatoes, whip egg whites or substitute dairy toppings, mix stiff dough or grind raw meat.

ALWAYS PLACE HAND ON CONTAINER COVER WHILE OPERATING BLENDER.

Hot Foods

• Open the Filler Cap to vent steam. Tilt Filler Cap away from you. Keep hands away from the cover opening to prevent possible burns.
• When working with hot liquids, remove Filler Cap and start blending at a low speed. Then move to a faster speed. DO NOT add liquid over the 4 cup (1 liter) level.

Processing Foods in Blender*

*Suggested processing and blending guidelines.

Cleaning and Storing Your Blender

CAUTION: UNPLUG BEFORE CLEANING. DO NOT IMMERSE THE BLENDER BASE IN WATER OR ANY OTHER LIQUID. Use a damp, soft sponge with mild detergent to clean the outside of the blender base. All parts except for the blender base are dishwasher-safe. Place sealing ring in bottom basket of dishwasher. You can also wash the parts in warm, soapy water. Rinse well and dry.

Easy Clean

Note: Easy Clean is not a substitute for regular cleaning described above. It is especially important to disassemble and thoroughly clean your blender when processing milk, dairy products, meats, seafood and eggs.

Pour 3 cups of warm water in the blender jar. Add 1 – 2 drops of liquid dishwashing detergent. Select Easy Clean or blend on lowest speed. Blend detergent for 10 – 15 seconds. Empty jar of soapy water into sink. Rinse jar thoroughly with clean water.

Storing Your Blender

After cleaning, reassemble blade to jar with sealing ring and jar bottom. Store blender with cover ajar to prevent container odor.

Recipes

For fun and creative recipes for your new Oster® blender please visit www.oster.com. Here you will find everything from the perfect Breakfast Smoothie to creamy Soups, Sauces and a host of Oster signature Frozen Drinks. For the perfect recipe for any occasion—turn on your creativity with Oster® Blenders!

3 Year Satisfaction Guarantee

Sunbeam Products, Inc. doing business as Jarden Consumer Solutions or if in Canada, Sunbeam Corporation (Canada) Limited doing business as Jarden Consumer Solutions (collectively “JCS”) warrants that for a period of three (3) years from the date of purchase, this product will be free from defects in material and workmanship. JCS, at the Consumer’s sole option, will repair, or replace this product or any component of the product found to be defective during the guarantee period. This guarantee is valid for the original retail purchaser from the date of initial retail purchase and is not transferable. Keep the original sales receipt. Proof of purchase is required to obtain satisfaction guarantee performance. JCS dealers, service centers, or retail stores selling JCS products do not have the right to alter, modify or any way change the terms and conditions of this guarantee.

All Metal Drive Ten (10) Year Limited Warranty

JCS also warrants that for a period of ten (10) years from the date of purchase, the All Metal Drive base unit metal coupling will be free from defects in material and workmanship. JCS, at its option, will repair or replace the metal drive stud component of the All Metal Drive coupling if found to be defective during the warranty period. Replacement will be made with a new or remanufactured product or component. If the product is no longer available, replacement may be made with a similar product of equal or greater value. This is your exclusive warranty. Do NOT attempt to repair or adjust any electrical or mechanical functions on this product. Doing so will void this warranty.

This warranty does not cover damage resulting from any of the following: negligent use or misuse of the product, use on improper voltage or current, use contrary to the operating instructions, disassembly, repair or alteration by anyone other than JCS or an authorized JCS service center. Further, the warranty does not cover: Acts of God, such as fire, flood, hurricanes and tornadoes.

This warranty is valid for the original retail purchaser from the date of initial retail purchase and is not transferable. Keep the original sales receipt. Proof of purchase is required to obtain warranty performance. JCS dealers, service centers, or retail stores selling JCS products do not have the right to alter, modify or any way change the terms and conditions of this limited warranty.

What are the limits on JCS’ Liability?

JCS shall not be liable for any incidental or consequential damages caused by the breach of any express, implied or statutory warranty or condition. Except to the extent prohibited by applicable law, any implied warranty or condition of merchantability or fitness for a particular purpose is limited in duration to the duration of the above limited warranty. JCS disclaims all other warranties, conditions or representations, express, implied, statutory or otherwise. JCS shall not be liable for any damages of any kind resulting from the purchase, use or misuse of, or inability to use the product including incidental, special, consequential or similar damages or loss of profits, or for any breach of contract, fundamental or otherwise, or for any claim brought against purchaser by any other party. Some provinces, states or jurisdictions do not allow the exclusion or limitation of incidental or consequential damages or limitations on how long an implied warranty lasts, so the above limitations or exclusion may not apply to you. This limited warranty gives you specific legal rights, and you may also have other rights that vary from province to province, state to state or jurisdiction to jurisdiction.

How to Obtain Satisfaction Guarantee and/or Limited Warranty Service

In the U.S.A.                                                                                                                                If you have any question regarding this guarantee or limited warranty or would like to obtain guarantee or limited warranty service, please call 1-800-334-0759 and a convenient service center address will be provided to you.

In Canada
If you have any question regarding this guarantee or limited warranty or would like to obtain guarantee or limited warranty service, please call 1-800-667-8623 and a convenient service center address will be provided to you.

In the U.S.A., this guarantee and limited warranty is offered by Sunbeam Products, Inc. doing business as Jarden Consumer Solutions located in Boca Raton, Florida 33431. In Canada, this guarantee and limited warranty is offered by Sunbeam Corporation (Canada) Limited, located at 20 B Hereford Street, Brampton, Ontario L6Y 0M1. If you have any other problem or claim in connection with this product, please write to the Consumer Service Department.

PLEASE DO NOT RETURN THIS PRODUCT TO ANY OF THESE ADDRESSES OR TO THE PLACE OF PURCHASE.

For inquiries regarding recycling and proper disposal of this product, please contact your local waste management facility.

User Manual

Oster 3.7L Immersion Deep Fryer

For product questions:
Sunbeam Consumer Service
USA : 1.800.334.0759
Canada : 1.800.667.8623
www.oster.com

© 2016 Sunbeam Products, Inc. doing business as Jarden Consumer Solutions. All rights reserved. Distributed by Sunbeam Products, Inc. doing business as Jarden Consumer Solutions, Boca Raton, Florida 33431.

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed, including the following:

READ AND SAVE THESE INSTRUCTIONS

1. Read all instructions before using.
2. Do not touch hot surfaces. Use handles or knobs.
3. To protect against risk of fire, electric shock, and personal injury do not immerse control panel assembly, cord or plugs in water or other liquids.
4. Close supervision is necessary when Deep Fryer is used near children. Children should not use this appliance.
5. Unplug from outlet when not in use, before putting on or taking off parts and before cleaning. Allow to cool before putting on or taking off parts, and before cleaning appliance.
6. Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been dropped or damaged in any manner. Contact Customer Service (see warranty) to return for examination, repair, or electrical or mechanical adjustment.
7. The use of accessory attachments not recommended by the manufacturer may result in injury.
8. Do not use outdoors.
9. Do not let cord hang over edge of table or countertop, or touch hot
   surfaces including the stove.
10. Do not place on or near a hot gas or electric burner, or in a heated oven.
11. Extreme caution must be used when moving fryer containing hot oil. Always use oven mitts or hot pads.
12. Always attach plug to appliance first, then plug AC cord into the wall outlet. To disconnect, turn control to OFF, then remove AC cord from wall outlet.
13. Do not use appliance for other than intended use.
14. Periodically check the handle for looseness. If loose, retighten the screws using a Phillips screwdriver. CAUTION: Over tightening can result in stripping of screws or cracking of handle.
15. Use only Model #MI-10/15 magnetic cord set with this product. The use of any other magnetic cord set may cause fire, electric shock, or injury.
16. Be sure handles are properly assembled to basket and locked in place before use. See detailed assembly instructions on page 5.
17. Do not use without oil.
18. Do not use an extension cord.

SAVE THESE INSTRUCTIONS

This appliance is for HOUSEHOLD USE ONLY.
This Deep Fryer is equipped with a unique Power Cord System, which includes a detachable magnetic cord designed to separate from the unit when certain amounts of force are applied.

A short power supply cord is provided to reduce the risk resulting from becoming entangled in or tripping over a longer cord.

No user-serviceable parts inside. Do not attempt to service this product.

POLARIZED PLUG
This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit into a polarized outlet only one way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to modify the plug in any way. If the plug fits loosely into the AC outlet or if the AC outlet feels warm do not use that outlet.

Welcome
Congratulations on your purchase of a Oster® Deep Fryer!

Before using your Oster® Deep Fryer for the first time, remove all packaging materials from the exterior and interior of the fryer. Make sure the fryer is unplugged. Clean the frying basket, lid and oil reservoir. Dry all parts thoroughly. See the Care and Cleaning section for details.

CAUTION: DO NOT IMMERSE THE CORD OR FRYER UNIT IN WATER OR ANY OTHER LIQUID!

KNOW YOUR DEEP FRYER

PREPARING YOUR FRYER FOR USE

Prior to first use, remove all packaging materials from the exterior and interior of the fryer. Make sure the fryer is unplugged. Wash the Frying Basket and removable Oil Reservoir in hot soapy water. Gently wipe the Heating Element with a damp cloth. Dry all parts thoroughly. See the Care and Cleaning section for details.

CAUTION: Do not immerse cord, plugs or control panel assembly in water.

BASKET HANDLE ASSEMBLY INSTRUCTIONS

1. Remove Handle and Frying Basket from inside the deep fryer.
2. Notice the eyelets on the interior side of the basket.
3. Squeeze the handle prongs in the middle.
4. Release the prongs into the eyelets on the interior side of the basket.
5. Press firmly down on the handle to lock in place.

TIPS FOR DEEP FRYING

• Fill the unit with oil between the maximum and minimum capacity lines only.
• Do not over fill the basket. To achieve quality results deep frying food needs to be surrounded by oil. Too much food causes the oil temperature to drop, resulting in “soggy” food. Food should be no higher than the top of the basket.
• Be sure that all ice crystals are removed from the food and food is completely dry. Excessive water and ice can cause the oil to splatter and/ or overflow.
• Coated foods (bread crumbs, batters, etc.) are best for deep frying. The coating acts as a protective layer keeping food moist on the inside and crisp on the outside.
• For best results, defrost frozen foods for 20 minutes prior to frying.
• Fry foods at the correct temperature for best results. This will prevent burning and give you even colored, crispy food.
• Prepackaged frozen, cooked chicken, may cook faster than uncooked food.
• For even cooking, shake basket half way through cooking time.

HOW TO USE YOUR DEEP FRYER

CAUTION: Never turn on the fryer with an empty Oil Reservoir. Always use your fryer on a flat, heat resistant surface.

• Attach magnetic end of cord assembly directly to the fryer (See Figure 1). This should be done prior to plugging the cord into the wall outlet.

• The magnetic end of the cord is designed to only go on one way. Be sure the side stating “THIS SIDE UP” is facing up.
• Remove Frying Basket by pulling the Basket Handle up.
• Make sure the Oil Reservoir is seated in place. Pour cooking oil into Oil Reservoir until it reaches between “MIN” and “MAX” marks inside reservoir.
  DO NOT OVER OR UNDER FILL.
• Make sure that fryer is OFF and insert plug into 120 volt AC outlet.
• Turn fryer to desired temperature position.
• Turn Timer knob to “ON” position. Power Light will turn on.
• Ready light will turn on when oil is pre-heated. Remove the lid and place Frying Basket onto basket hook inside Oil Reservoir.
• Place food inside Frying Basket (Do not over stack food). Lower Frying Basket into Oil Reservoir. CAUTION: Always replace Lid after immersing food in oil.
• Turn timer knob to desired time.
• After time is up a bell with sound and the power and power light will turn off. Remove the lid and lift Frying Basket and hang basket onto basket hook in Oil Reservoir. To remove excess grease and retain crispness, let food drain in Frying Basket at least 10–20 seconds. Then lift Frying Basket by handle and pour contents onto plate covered with paper towels before serving.
• When finished cooking, make sure fryer is in OFF position.

WARNING: DO NOT USE THE DETACHABLE MAGNETIC CORD SYSTEM TO
DISCONNECT THE FRYER. ALWAYS DISCONNECT PLUG FROM WALL OUTLET
FIRST TO DISCONNECT FRYER.

Use only Model #MI-10/15 magnetic cord set with this product. The use of any other magnetic cord set may cause fire, electric shock, or injury.

CAUTION: The detachable magnetic cord is only for accidental disconnection and not to be removed during normal operation. If the cord becomes disconnected, the user should immediately unplug the cord set from the wall outlet, then reconnect the magnetic cord to the deep fryer and then to the wall outlet.

TO REMOVE AND REPLACE LID

• Remove Lid by pulling firmly upwards. Reverse the sequence to secure Lid from the vertical position to secure back in place.

NOTE: Always remove Lid before emptying the Oil Reservoir or cleaning.

CAUTION: Ensure that Lid is in place prior to operation of unit.

FRYING TIME AND TEMPERATURE

The frying times in this chart are a guide and should be adjusted to suit the different quantities or thickness of food and to suit your own taste. Preheat time is 7–10 minutes for fryer to reach desired temperature. (Ready light will cycle On/Off during frying as temperature fluctuates due to food load.)

NOTE: Prepackaged frozen cooked chicken may cook faster than above time.

TIPS FOR OIL USE AND STORAGE

• Do not use seasoned or flavored oil such as walnut, olive oil, lard or drippings because they have a low smoke point. Use blended vegetable oil, pure corn oil, sunflower oil, soybean oil or grape seed oil (canola oil) because these oils have a high smoke point. Peanut oil is not recommended because it impacts the flavor greatly.
• Oils should never be mixed when deep frying.
• High heat, water and burnt food particles break down the oil’s smoke point.
• Replace oil if you notice:
• Excessive smoking at normal temperatures
  – Strong oil discoloration
  – A rancid smell
  – Excessive foaming around the frying food
• Oil darkens with use because the oil and food molecules burn when subjected to high/prolonged heat. The more you use an oil, the more slowly it will pour. Its viscosity changes because of changes to the oil’s molecular structure. When smoke appears on the oils’ surface before the temperature reaches 375°F/190°C, your oil will no longer deep-fry effectively.
• When frying foods with strong flavor and/or aroma like fish or chicken, use the oil only once.
• Filtering the oil with a cooking oil filter or fine-mesh strainer can keep it fresher. Although storing oil in a refrigerator may extend the life of the oil, this should never be done. This process of chilling oil then bringing the oil to room temperature causes excessive splattering during the heat up process.
• Store the covered oil in a cool dark place, for up to three months. Check the oil before using for color, smell, or excessive foaming. Discard the oil if it shows any of these qualities.

RESETTING THE OVERHEAT PROTECTION BUTTON

Resetting the Overheat Protection Reset Button may be necessary if unit will not turn on at start up (power indicator light illuminated and temperature dial set to selected temperature) or if unit appears to have stopped working during use.

1. Unplug the unit from the wall electrical outlet.
2. Allow the unit to cool down.
3. Check the oil level in your unit. If it is below the minimum level, oil should be added before resetting the unit and resuming cooking cycle.
4. Remove the control box with heater.
5. Using a narrow slotted screwdriver or pen, gently press the recessed reset button on the back of the control box, located on the lower right hand side as indicated by the arrow. (see Figure 2)

TROUBLE SHOOTING

CARE AND CLEANING

WARNING: Always turn control to OFF then disconnect plug from wall outlet. Remove cord from appliance.

CAUTION:

• Do not immerse cord sets in water or any liquids
• Do not attempt to defeat the detachable magnetic Cord system by trying to permanently attach cord set to product.
• Do not stick pins or other sharp objects in holes on magnetic cord set.
• Do not use any type of steel wool to clean magnetic contacts.
• Turn unit OFF.
• Unplug from outlet and allow unit to cool completely.
• Remove magnetic cord from the fryer socket.
• Remove the Lid.
• Open the Filter Cover and remove the Filters.
• Remove Frying Basket. Wash the Frying Basket with hot soapy water. Rinse and towel dry carefully.
• Carefully lift Oil Reservoir straight up out of the exterior housing by holding the rim of the bowl. Empty cooking oil and store in an air tight container. See TIPS FOR OIL USE AND STORAGE. Oil Reservoir is dishwasher safe.
  WARNING: Do not remove Oil Reservoir until the unit has cooled and is unplugged.
• The Basket, Lid, Oil Reservoir and Housing are dishwasher safe. Dry all parts thoroughly after cleaning.
• The Control Panel should never be immersed in water or other liquids. Gently clean the outer surface of the Control Panel with a damp cloth containing mild soap solution or plain water.
• Ensure that both the Lid and Oil Reservoir are completely dry after washing and before use.
• Insert Oil Reservoir back into housing.
• Place Basket into Oil Reservoir.
• Put Filters back into Lid and put Cover on.
•  Place lid on top.

REPLACING AND CLEANING FILTERS

• Open the Filter Cover, and remove filters.
• Grease Filters may be washed in hot soapy water. Rinse thoroughly and allow to air dry.
• Clean the inside of the cover with a damp soapy sponge. Rinse and dry thoroughly.
• Place clean White Grease Filter on Lid, followed by Black Charcoal Odor Filter, then replace Filter Cover.

APPLE FRITTERS

• 3 cups all-purpose flour
• 2 tsp. baking powder
• ½ tsp. salt
• 1 cup sugar
• 1 large egg, lightly beaten
• 4 tbsp. cooking oil
• 1 tsp. pure vanilla extract
• Juice of 1 orange (¹⁄³ cup)
• 1 cup chopped apple

Preheat oil to 375°F/190°C. Combine flour, baking powder, salt and sugar; set aside. Combine egg, cooking oil and vanilla. Combine dry and liquid ingredients and stir to blend thoroughly. Add orange juice and apple and mix well. Add teaspoon of combined mixture to raised frying basket. Close Lid and lower basket into oil. Fry for about 2 minutes until crisp and brown. Remove basket from oil and drain. Open Lid and place on a plate covered with paper towel to absorb the excess oil. Dust with powdered sugar or a mixture of granulated sugar and cinnamon; serve at once.

BEER BATTER FOR FISH OR CHICKEN

• 2 large eggs, separated
• 1 tbsp. oil or butter
• 1 tsp. salt
• ¼ tsp. ground black pepper
• 1¹⁄³ cups all-purpose flour
• ¾ cup flat beer

Preheat oil to 375°F/190°C. Beat egg yolks with oil/butter, salt and pepper. Alternately add the beer and flour to mixture. Beat ingredients well and refrigerate for 3–12 hours. When you are ready to use mixture, carefully fold in 2 stiffly beaten egg whites. Pat fish or boneless chicken breasts. Coat lightly with flour then dip into beer batter. Place fish or chicken in raised fryer basket. Close Lid and lower basket into oil. Fry fish for 3 minutes or until golden brown. Fry fish chicken 5–8 minutes until brown and fully cooked. Remove basket from oil and drain. Open Lid and place on a plate covered with paper towels to absorb excess oil.

DEEP FRIED CHICKEN

• 1 fryer chicken (2½ lbs.), cut up
• 1½ cups all-purpose flour
• 1 tsp. seasoned salt
• ¼ tsp. salt
• 1¼ cups milk

Preheat oil to 375°F/190°C. Combine flour and seasonings. Dip chicken pieces in flour, then milk, then flour again. Place chicken in raised fryer basket. Close Lid and lower basket into oil. Fry for 20 minutes or until golden brown and done. Remove basket from oil and drain. Open lid and place on a plate covered with paper towels to absorb excess oil. Serve warm.

CHICKEN KIEV

• 4 whole boneless, skinless chicken breasts
• 1 tbsp. chopped onion
• 1 tbsp. chopped parsley
• 1¹⁄³ tsp. salt
• 1 stick of butter or margarine
• ½ cup all-purpose flour
• 1 large egg, beaten
• 1 cup fine, dry bread crumbs

Preheat oil to 375°F/190°C. Place chicken breasts between two pieces of plastic wrap. Pound with wooden mallet to flatten to ¼-inch thick. Remove plastic. Combine onion, parsley and salt and sprinkle on chicken. Cut butter into 8 pieces. Place a piece of butter on seasoned chicken toward one end. Roll as jelly roll, starting at end with butter, tucking in sides of meat. Press to seal well. Secure with toothpicks. Dust with flour, dip in beaten egg, then roll in bread crumbs. Chill rolls of chicken thoroughly (at least one hour). Place rolled chicken in a single layer in raised fry basket. Close Lid and lower basket into oil. Cook 5 minutes or until brown. To test for doneness, remove a piece of chicken from the oil. When fork can be inserted with ease, chicken is done. Remove basket from oil and drain. Open lid and place on a plate covered with paper towels to absorb excess oil. Serve warm.

QUICK DOUGHNUTS

• Refrigerated can of biscuits
• 2 tbsp. ground cinnamon
• ½ cup sugar

Preheat oil to 375°F/190°C. Take each biscuit and flatten slightly with palm of hand. With finger, punch holes in center of each biscuit to shape into doughnuts. Place into raised frying basket. Close Lid and lower basket into oil. Fry for 2 minutes turning once. Remove basket from oil and drain. Open Lid and place on a plate covered with paper towels to absorb excess oil. Dip doughnut in mixture of cinnamon and sugar. Serve warm.

Sunbeam Products, Inc. doing business as Jarden Consumer Solutions or if in Canada, Sunbeam Corporation (Canada) Limited doing business as Jarden Consumer Solutions (collectively “JCS”) warrants that for a period of one year from the date of purchase, this product will be free from defects in material and workmanship. JCS, at its option, will repair or replace this product or any component of the product found to be defective during the warranty period. Replacement will be made with a new or remanufactured product or component. If the product is no longer available, replacement may be made with a similar product of equal or greater value. This is your exclusive warranty. Do NOT attempt to repair or adjust any electrical or mechanical functions on this product. Doing so will void this warranty.

This warranty is valid for the original retail purchaser from the date of initial retail purchase and is not transferable. Keep the original sales receipt. Proof of purchase is required to obtain warranty performance. JCS dealers, service centers, or retail stores selling JCS products do not have the right to alter, modify or any way change the terms and conditions of this warranty.

This warranty does not cover normal wear of parts or damage resulting from any of the following: negligent use or misuse of the product, use on improper voltage or current, use contrary to the operating instructions, disassembly, repair or alteration by anyone other than JCS or an authorized JCS service center. Further, the warranty does not cover: Acts of God, such as fire, flood, hurricanes and tornadoes.

What are the limits on JCS’s Liability?
JCS shall not be liable for any incidental or consequential damages caused by the breach of any express, implied or statutory warranty or condition.
Except to the extent prohibited by applicable law, any implied warranty or condition of merchantability or fitness for a particular purpose is limited in duration to the duration of the above warranty.
JCS disclaims all other warranties, conditions or representations, express, implied, statutory or otherwise. JCS shall not be liable for any damages of any kind resulting from the purchase, use or misuse of, or inability to use the product including incidental, special, consequential or similar damages or loss of profits, or for any breach of contract, fundamental or otherwise, or for any claim brought against purchaser by any other party.

Some provinces, states or jurisdictions do not allow the exclusion or limitation of incidental or
consequential damages or limitations on how long an implied warranty lasts, so the above limitations or exclusion may not apply to you.

This warranty gives you specific legal rights, and you may also have other rights that vary from province to province, state to state or jurisdiction to jurisdiction.

How to Obtain Warranty Service
In the U.S.A.
If you have any question regarding this warranty or would like to obtain warranty service, please call 1-800-334-0759 and a convenient service center address will be provided to you.

In Canada
If you have any question regarding this warranty or would like to obtain warranty service, please call 1-800-667-8623 and a convenient service center address will be provided to you. In the U.S.A., this warranty is offered by Sunbeam Products, Inc doing business as Jarden Consumer Solutions located in Boca Raton, Florida 33431. In Canada, this warranty is offered by Sunbeam Corporation (Canada) Limited doing business as Jarden Consumer Solutions, located at 20B Hereford Street, Brampton, Ontario L6Y 0M1. If you have any other problem or claim in
connection with this product, please write our Consumer Service Department.

PLEASE DO NOT RETURN THIS PRODUCT TO ANY OF THESE ADDRESSES OR TO THE PLACE OF PURCHASE.

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed, including the following: READ ALL INSTRUCTIONS BEFORE USE

• Do not touch hot surfaces, use the handles.
• To protect against electric shock, do not place cord, plug or appliance in water or any other liquid.
• Close supervision is always necessary when this or any appliance is used by or near children.
• To disconnect, remove plug form electrical outlet.
• Unplug from outlet when not in use and before cleaning. Allow to cool before cleaning the appliance.
• Do not operate this or any appliance with a damaged cord or plug or after the appliance malfunctions or has been damaged in any manner. Return appliance to an Authorized Service Center for examination, repair or adjustment.
• The use of accessory attachments not recommended by the appliance manufacturer may cause fire, electrical shock or injury.
• Do not use outdoors.
• Do not let cord hang over edge of table or counter, or touch hot surfaces.
• Do not place on or near a hot gas or electric burner, in a heated oven or in a microwave oven.
• Do not use the appliance for other than intended use.
• When using this appliance, provide adequate air space above and on all sides for air circulation. On surfaces where heat may cause a problem, an  insulated hot pad is recommended.
• Do not leave unit unattended during use.

THIS UNIT IS FOR HOUSEHOLD USE ONLY EXTENSION CORD USE A short power-supply cord is provided to reduce the risk resulting from becoming entangled in or tripping over a longer cord. An extension cord may be used if care is exercised in its use. If an extension cord is used, the electrical rating of the cord must be at least as great as the electrical rating of the appliance. The extension cord should be arranged so that it will not drape over the countertop or tabletop where it can be pulled on by children or tripped over unintentionally. SPECIAL INSTRUCTIONS This appliance has a grounded 3-prong electrical plug. It must be plugged only into a properly grounded 3-prong outlet. Do not modify the plug in any way. SAVE THESE INSTRUCTIONS Congratulations! You are now the owner of an OSTER® Waffle Maker. Your new appliance will surely make crispy, hot, golden waffles in just minutes for a quick meal any time of the day. Prepare waffles for breakfast or brunch and pile them high with fresh fruits, whipped cream, or just plain butter and warmed syrup. Even desserts are more exciting with piping hot Brownie Waffles topped with ice cream, sauce toppings, chopped nuts, and whipped cream. Your OSTER® Waffle Maker is thermostatically controlled to help you prepare waffles to perfection. Your unit is portable so you can make waffles in your kitchen or right at the table. The non-stick grids make clean-up easy. We know that you will love your new OSTER® Waffle Maker. It’s a great addition to any kitchen.

HOW TO USE YOUR OSTER® WAFFLE MAKER

PREPARING YOUR WAFFLE MAKER FOR USE

1. Open unit by lifting the upper handle.
2. Before using for the first time, clean cooking plates with a cloth or sponge dampened with hot, soapy water. DO NOT IMMERSE UNIT IN WATER. Rinse with dampened cloth or sponge and wipe dry.
3. When using for the first time, “season” the grids by rubbing lightly with cooking oil. Should sticking occur in later usage, re-season your unit.

Preparing waffles

1. Close unit and plug into outlet. Use only voltage specified on the bottom of unit. The On light (Red) () will come on. The Ready to Cook light (Green) () will come on immediately when in the OFF () position. Caution: Touch unit only by handles during use or directly after use.
2. Temperature Control Dial settings range from min for light waffles to the max for dark waffles. The Ready to Cook light (Green) () will turn off while heating up.
3. The unit is ready for use when the Ready to Cook light () comes on.
4. Open unit and pour approximately ¾ cup of waffle batter onto grids. For best results, pour batter in a circle around outer edge of waffle maker. (See Illustration) Close cover. It is very typical to have a small amount of batter run over grid and down unit. However, if an excessive amount of batter runs over, use less batter.
5. The cover will rise slightly as waffles begin to bake. Do not open cover while steam is escaping. Most waffle recipes bake in approximately 5 minutes on the low setting, 4-½ minutes on the medium setting and 4 minutes on the high setting. Waffles are generally done when steam no longer escapes from sides and front of unit.
6. When waffles are done, remove with a plastic fork or wooden tongs. note: The Ready to Cook light () may cycle on and off during cooking. This indicates that the thermostat is maintaining the unit at the proper cooking temperature.
7. Close cover and wait for Ready to Cook light to come on before preparing another batch of waffles.

Care anD CleaninG

1. Unplug and allow unit to cool before cleaning.
2. Clean waffle grids with cloth or sponge dampened with hot, soapy water. DO NOT IMMERSE UNIT IN WATER. Rinse with dampened cloth or sponge and wipe dry.
3. To remove cooked-on foods, use a nylon scrub pad or a non-abrasive cleanser. A steel wool pad or abrasive cleaners will damage the non-stick surface.
4. Store in the closed position.
5. Any servicing required should be performed only by an authorized service facility.
6. This appliance is for household use only.

hints for tasty waffles

1. Do not over-mix waffle batter. Beating egg whites separately and folding them gently into the batter surely will create a lighter, crispier waffle.
2. Completely bake waffles before removing from the unit.
3. Don’t open the Waffle Maker while steam is escaping from the sides and front of the unit.
4. Why not freeze-prepared waffles for those busy days ahead? Just bake the waffles as directed. Cool on a wire rack and wrap in moisture-proof paper or plastic. Quickly reheat in your toaster oven, broiler or microwave oven.

waffle makinG

Prepare your own waffles from scratch with any of the OSTER® Waffle Maker recipes listed on the following pages, or use any of your own family favorites. For those busy days, why not have a prepared mix handy for a meal in a matter of minutes? Creative waffles Let your imagination be your guide to many exciting and tasty meals with your OSTER® Waffle Maker. Here are just a few suggestions: Breakfast anD BrunCh Top crispy waffles with:

• Butter, Syrup, Honey, Molasses, Apple Butter, Pie Filling, Whipped Cream, Yogurt, Fruit Preserves, Fresh Fruit

Dessert Serve dessert waffles hot or cold. Prepare a richer batter such as Belgian-Style Waffles or Chocolate Brownie Waffles. Top with your favorite sweet and tasty ingredients which might include:

• Sweetened Fresh Berries, Ice Cream, Powdered Sugar, Chopped Nuts, Sundae Sauces, Fruit Yogurt

Recipes quiCk waffles

• 3 eggs
• 2 cups flour
• 1 cup milk
• ½ tsp. salt
• ½ cup melted butter or margarine
• 1 Tbsp. baking powder
• 1 Tbsp. vanilla (optional)
• 2 tsp. sugar

Beat whole eggs in a bowl until thick. Beat milk melted butter and vanilla into eggs. In a separate bowl, combine the remaining ingredients. Sift into egg mixture, and mix well. Bake as directed. Yield: 6–8 Waffles Variation: Cinnamon – Apple. Add 1 apple peeled and shredded, 1 tsp. vanilla and ½ tsp. cinnamon to the batter.

Blender Cornmeal waffles

Enjoy a crisp waffle that’s prepared in seconds

• 1 egg (or equivalent)
• 2 Tbsp. (30 ml) cornmeal
• ¾ cup (200 ml) milk*
• 2 tsp. (10 ml) baking powder
• ¼ cup (50 ml) vegetable oil
• 2 tsp. (10 ml) sugar
• 1 cup (250 ml) all-purpose flour
• ¼ tsp. (1 ml) salt *low-fat or skim milk may be used

Preheat Waffle Maker. Put all ingredients into a blender container. Cover and process at a medium-high speed until dry ingredients are moistened. Do not over-blend. Pour ¾ cup (200 ml) batter over grids. Close Waffle Maker. Bake until steam no longer escapes about 3–5 minutes. Repeat. Serve while hot with warmed syrup. Yield: 3 Waffles

extra-sPeCial whole wheat waffles

Feed the gang with these at Sunday Brunch

• 1 cup (250 ml) milk*
• 3 eggs (or equivalent)
• 1 cup (250 ml) water 1 package (1/4 ounce or 7 g)
• ¼ cup (50 ml) butter or margarine active dry yeast
• ¼ cup (50 ml) honey
• ½ tsp. (2 ml) salt22/3 cups (650 ml) whole wheat flour *low-fat or skim milk may be used

to heat milk, water, butter, and honey at 120°F (48°C). In a large mixing bowl, combine flour, eggs, yeast, salt and warmed milk mixture. Mix at low to moisten, then medium-high for 1 minute. Cover and refrigerate for several hours or overnight, stirring occasionally. Preheat Waffle Maker. Pour ¾ cup (200 ml) over grids. Close waffle maker, bake until steam no longer escapes, about 3–5 minutes. Repeat. Serve while hot with your favorite topping. Yield: 7 Waffles liGht ’n CrisP waffles

• 2 egg yolks
• ½ tsp. (2 ml) salt
• 2 cups (500 ml) milk
• 1/3 cup (75 ml) oil
• 2 cups (500 ml) all-purpose flour
• 2 egg whites, stiffly beaten
• 1 Tbsp. (15 ml) baking powder

Preheat Waffle Maker. Put all ingredients, except egg whites, in a large mixing bowl. Beat on low until moistened. Increase to medium, and mix until smooth. By hand, gently fold in beaten egg whites. Pour ¾ cup (200 ml) batter over grids. Close Waffle Maker, bake until steam no longer escapes, about 3–5 minutes. Repeat. Serve while hot with your favorite topping. Yield: 5 WaffleS

VARIATIONS

Pecan or Macadamia Nut Waffles: Sprinkle 1 Tbsp. (15 ml) finely chopped pecans or macadamia nuts over preheated waffle grids. Pour ¾ cup (200 ml) batter over nuts and close Waffle Maker. Bake as directed. Bacon Waffles: Cook bacon strips. Pour ¾ cup (200 ml) batter over waffle grids. Cut 1 strip bacon in half, layover batter, and close Waffle Maker. Bake as directed. Cheese Waffles: Fold 1½ cups (375 ml) of shredded cheddar cheese into the batter. Bake as directed. Serve with syrup or your favorite creamed entrée. Blueberry Waffles: Fold 2 cups (500 ml) of fresh blueberries into the batter. Pour ¾ cup (200 ml) batter over grids. Bake until golden. Chocolate Chip Waffles: Fold 1 cup (250 ml) chocolate chips into batter. Bake as directed.

LEMON SWEET WAFFLES

• 1 cup butter or margarine (softened)
• 1½ cups sugar
• 2 eggs
• 1/8 tsp. baking powder
• 3¼ cups flour
• 1 packet of vanilla sugar
• 1¾ cups water
• grated rind of 1 lemon

In a large bowl, beat butter, sugars and eggs together. Add all dry ingredients along with water and lemon rind, and blend until smooth. Pour approximately ¾ cup batter into waffle iron. Bake as directed. Yield: 8–10 Waffles ALOHA DESSERT WAFFLES A pretty dessert that is guaranteed to please your guests

• 8 prepared Macadamia Nut Waffles
• 1 cup (250 ml) sugar
• 3 Tbsp. (45 ml) cornstarch
• 1 can (8 oz. or 277 g) crushed
• pineapple, drained reserving juice Cold water
• 1 can (6 oz. or 170 g) frozen
• orange juice concentrate, thawed
• ½ cup (125 ml) flaked coconut
• 1/3 cup (75 ml) Maraschino cherries, chopped
• ¼ cup (50 ml) 150 Proof rum
• Vanilla ice cream

In a large sauté pan, combine sugar and cornstarch. Measure pineapple juice and enough cold water to equal 1¼ cups (300 ml). Combine water mixture, orange juice and sugar mixture. Cook over medium heat until thickened, stirring constantly. Add coconut, cherries and pineapple. Heat through. Keep warm on low heat. Slowly pour rum over top of mixture. Carefully ignite. Place a scoop of vanilla ice cream over each waffle. When flame dies, spoon sauce over ice cream. Serve immediately. Yield: 5 Waffles

CHOCOLATE BROWNIE WAFFLES

Here’s a no-fuss dessert idea!

• ¼ cup (50 ml) shortening or oil
• 2/3 cup (150 ml) sugar
• 2 squares (1 ounce or 28 g each)
• baking chocolate, melted
• 3 egg yo lks
• 1½ cups (375 ml) all-purpose flour
• 1 Tbsp. (15 ml) baking powder ¼ tsp. (1 ml) salt
• 1¼ cups (300 ml) milk
• ½ tsp. (2 ml) vanilla
• ½ cup (125 ml) chopped nuts 3 egg whites, stiffly beaten

Preheat Waffle Maker. In a large mixing bowl, cream shortening and sugar at medium-low until fluffy. Add chocolate and egg yolks. Beat well. Add milk alternately with combined dry ingredients. Mix well. Add vanilla and nuts. By hand, gently fold in beaten egg white. Pour ¾ cup (200 ml) batter over grids. Close Waffle Maker and bake until steam no longer escapes, about 3-5 minutes. Waffle will crisp as it cools. Repeat. Serve hot or cold with vanilla ice cream, chocolate syrup and chopped walnuts or pecans. Yield: 6 Waffles

One-Year Limited Warranty

Sunbeam Products, Inc., or if in Canada, Sunbeam Corporation (Canada) Limited (collectively “Sunbeam”) warrants that for a period of one year from the date of purchase, this product will be free from defects in material and workmanship. Sunbeam, at its option, will repair or replace this product or any component of the product found to be defective during the warranty period. Replacement will be made with a new or remanufactured product or component. If the product is no longer available, replacement may be made with a similar product of equal or greater value. This is your exclusive warranty. This warranty is valid for the original retail purchaser from the date of initial retail purchase and is not transferable. Keep the original sales receipt. Proof of purchase is required to obtain warranty performance. Sunbeam dealers, service centers, or retail stores selling Sunbeam products do not have the right to alter, modify or any way change the terms and conditions of this warranty. This warranty does not cover normal wear of parts or damage resulting from any of the following: negligent use or misuse of the product, use on improper voltage or current, use contrary to the operating instructions, disassembly, repair or alteration by anyone other than Sunbeam or an authorized Sunbeam service center. Further, the warranty does not cover: Acts of God, such as fire, flood, hurricanes and tornadoes.

What Are the Limits on Sunbeam’s Liability?

Sunbeam shall not be liable for any incidental or consequential damages caused by the breach of any express, implied or statutory warranty or condition. Except to the extent prohibited by applicable law, any implied warranty or condition of merchantability or fitness for a particular purpose is limited in duration to the duration of the above warranty. Sunbeam disclaims all other warranties, conditions or representations, express, implied, statutory or otherwise. Sunbeam shall not be liable for any damages of any kind resulting from the purchase, use or misuse of, or inability to use the product including incidental, special, consequential or similar damages or loss of profits, or for any breach of contract, fundamental or otherwise, or for any claim brought against purchaser by any other party. Some provinces, states or jurisdictions do not allow the exclusion or limitation of incidental or consequential damages or limitations on how long an implied warranty lasts, so the above limitations or exclusion may not apply to you. This warranty gives you specific legal rights, and you may also have other rights that vary from province to province, state to state or jurisdiction to jurisdiction.

How to Obtain Warranty Service
In the U.S.A. If you have any question regarding this warranty or would like to obtain warranty service, please call 1.800.334.0759 and a convenient service center address will be provided to you.

In Canada
If you have any questions regarding this warranty or would like to obtain warranty service, please call 1.800.667.8623 and a convenient service center address will be provided to you. In the U.S.A., this warranty is offered by Sunbeam Products, Inc., located in Boca Raton, Florida 33431. In Canada, this warranty is offered by Sunbeam Corporation (Canada) Limited, located at 20 B Hereford Street, Brampton (Ontario) L6Y 0M1. PLEASE DO NOT RETURN THIS PRODUCT TO ANY OF THESE ADDRESSES OR TO THE PLACE OF PURCHASE. For product questions contact: Sunbeam Consumer Service USA: 1.800.334.0759 Canada: 1.800.667.8623 www.oster.ca © 2013 Sunbeam Products, Inc. doing business as Jarden Consumer Solutions. All rights reserved. In Canada, imported and distributed by Sunbeam Corporation (Canada) Limited doing business as Jarden Consumer Solutions, 20 B Hereford Street, Brampton, Ontario L6Y 0M1. Pour les questions de produit: Sunbeam Consumer Service États-Unis : 1.800.334.0759 Canada : 1.800.667.8623 www.oster.ca © 2013 Sunbeam Products, Inc. faisant affaires sous le nom de Jarden Consumer Solutions. Au Canada, importée et distribuée par Sunbeam Corporation (Canada) Limited faisant affaire sous le nom de Jarden Consumer Solutions, 20 B Hereford Street, Brampton (Ontario) L6Y 0M1. GCDS-OST28894-JC

FAQS

I’ve only used this waffle iron twice. Both times the temperature dial gets so hot I can barely touch it to adjust the shade. Is this normal?

This waffle maker is not designed to overheat at all. Call us at (800) 334-0759, and we will help get to the bottom of this for you.

Can it be stored vertically?

Yes, you will be fine vertically storing your waffle maker away.

So i am going to bake kodiak cakes and i wanted to know how much batter i should poor to fill out all edges?

Do not buy it. I poured like enough to make a fully rounded waffle and the waffle maker just burnt out and stopped working. And another thing, I got it fixed and I tired again…the bottom of the waffle was black and the top was soft. Right now I want my money back.

How many years does this waffle maker last?

Well my daughter took it out of the box and made one waffle! Tried to make another minutes later and it was dead. Total piece of junk. Don’t buy

what is diameter of waffle?

Once cooked, the waffles are about 7 inches in diameter.

What kind of non stick surface is the interior? What kind of chemicals? Are they potentially carcinogenic?

It’s PTFE AKA Teflon. It was likely made with PFOA or a similar but less-tested pollutant (GenX). The main danger is that it will produce toxic gases if heated empty, like all Teflon cookware. The appliance itself will probably not be carcinogenic in practice but the creation of it probably was.

will it work for 220 volt wiring?

This appliance, in the same model, is offered in Latinoamerica too. So it should work at 220 V too

Does it brown the waffles evenly?

No. Center was cooked but the outer edges were cooked only about half as much. The bottom cooked much faster than the top. I had tri-colored waffles; batter color, golden brown, dark crispy brown. Definitely covers all aspects of done.

Is the power suitable for 220 v?

Designed for 120V. I would say no.

What is the wattage?

This model is 1,080 watts. Enjoy fresh, homemade Belgian waffles anytime with this easy to use waffle maker!

how thick are the waffles?

This waffle makes waffles that are approximately 1″ thick. Top them with fruit or syrup for a delicious meal any time of the day!

I used the 3/4 cup amount of batter as per instructions and much of it squeezed out the side onto my counter. How much batter should I use?

Oh no! For best results, we recommend you pour the batter in a circle around the outer edge of waffle maker. For additional guidance, feel free to give us a call at (800) 334-0579. You can reach us between the hours of 9AM-6PM EST Monday-Friday.

Does this work and cook waffles evenly?

Thanks for contacting Oster®. Yes, it does cook waffles evenly as the Oster Belgian Waffle Maker is designed to create and enjoy great-tasting waffles. We hope this helps. Should you have any other questions or concerns, please contact us directly so we can further assist you. Have a great day!

Can you flip it upside down?

Although the CKSTWF2000 Belgian waffle maker doesn’t flip, it makes deep pocket waffles on either side.

how do i turn completely off so the red light goes off.?

The red light comes on when it is turn on ,go off as it heats up when it is ready for the batter the green light comes on.
Please note, the green light go out when the waffle is done baking.

Why are only half my waffles cooking?

It may be the amount of mix that is put in. I notice that happens to me if I put less than what is needed.

VIDEO

View Fullscreen

Oster Convection Oven with Pizza Drawer TSSTTVPZDA User Manual

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to persons including the following:

1. Read all instructions before using this product.
2.  This appliance generates heat during use. Do not touch hot surfaces. Use handles or knobs. Always protect your hands with non-slip oven mitts or similar.
3. To protect against electric shock, do not place or immerse cord, plugs, or appliance in water or other liquid.
4. This appliance is not to be used by children or by persons with reduced physical, sensory or mental capabilities.
5. Close supervision is necessary when any appliance is used near children. Children should not play with the appliance.
6. Unplug from outlet when not in use, before putting on or taking off parts and before cleaning. Allow to cool before putting on or taking off parts, and before cleaning. To disconnect, turn any control to OFF, then unplug power cord from outlet. Do not disconnect by pulling on cord. Always grasp the plug and pull to disconnect.
7. Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or has been damaged in any manner. Do not attempt to replace or splice a damaged cord. Return appliance to the manufacturer (see warranty) for examination, repair or adjustment.
8. The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
9. Do not use outdoors or for commercial purposes.
10. Do not let cord hang over edge of table or counter, or touch hot surfaces.
11. Do not place on or near wet surfaces, or heat sources such as a hot gas or electric burner, or in a heated oven.
12. Extreme caution must be used when moving an appliance or removing a pan, containing hot oil or other hot liquids. Always protect your hands with non-slip oven mitts or similar.
13. Do not use appliance for other than intended use. Misuse can cause injuries. Intended for household countertop use only.
    Keep 6 inches (152 mm) clear from the wall and on all sides. Always use appliance on a dry, stable, level surface.
14. Oversize foods or metal utensils must not be inserted in a countertop oven as they may create a fire or risk of electric shock.
15. A fire may occur if the countertop oven is covered, touching or near flammable materials, including curtains, draperies, towels, walls, and the like, when in operation. Do not store any item on top of the appliance when in operation.
16. Do not clean with metal scouring pads. Pieces can break off the pad and touch electrical parts, creating a risk of electric shock.
17. Extreme caution should be exercised when using containers constructed of materials other than metal or glass.
18. Do not store any materials, other than manufacturers recommended accessories, in this oven when not in use.
19. Do not place any of the following materials in the oven: paper, cardboard, plastic, or any materials that may catch fire or melt.
20. Do not cover crumb tray or any part of the oven with metal foil. This will cause overheating of the oven.
21. Empty the crumb tray after each use.
22. The glass door is made of tempered glass. Always inspect the glass door for chips, cracks or any other damage. Do not use the countertop oven if the glass door is damaged, as the glass may shatter during use.
23. Do not use with a programmer, timer, wireless plug adapter or outlet that allows control remotely, or connect to a circuit that is regularly switched on and off by the utility.

SAVE THESE INSTRUCTIONS

HOUSEHOLD USE ONLY
North American models with polarized plugs:

POLARIZED PLUG:

This appliance has a polarized plug, (one blade is wider than the other). As a safety feature to reduce the risk of electrical shock, this plug is intended to fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician.
Do not attempt to defeat this safety feature or modify the plug in any way. If the plug fits loosely into the AC outlet or if the AC outlet feels warm do not use that outlet.

POWER CORD INSTRUCTIONS:

A short power-supply cord or detachable power-supply cord is provided to reduce risks resulting from becoming entangled in or tripping over a longer cord. Longer detachable power-supply cords or extension cords are available and may be used if care is exercised in their use. If a long detachable power-supply cord or extension cord is used:
a. The marked electrical rating of the cord set or extension cord should be at least as great as the electrical rating of the appliance;
b. The cord should be arranged so that it will not drape over the countertop or tabletop where it can be pulled on by children or tripped over unintentionally; and
c. If the appliance is of the grounded type, the cord set or extension cord should be a grounding-type 3-wire cord.
Do not pull, twist or otherwise abuse the power cord.

NOTICES

1. Some countertop and table surfaces are not designed to withstand the prolonged heat generated by certain appliances.
   Do not set the heated unit on a finished wood table. We recommend placing a hot pad or trivet under your countertop oven to prevent possible damage to the surface.
2. During initial use of this appliance, some slight smoke and/ or odor may be detected. This is normal with many heating appliances and will not recur after a few uses.

Welcome
Congratulations on your purchase of an OSTER® Countertop Oven! If you require service on your OSTER® Countertop Oven, do not return to place of purchase. Please contact us at www.oster.com or 1.800.334.0759.

Learning About Your Convection Oven WITH PIZZA DRAWER

1. Temperature Control Knob – Adjust the dial thermostat to the desired temperature. (See Figure 2)
2. Function Selector Knob – Select cooking function by turning knob to desired setting. (See Figure 1)
3. Timer Control Knob with Bell Signal – Set cooking time up to 60 minutes.Will automatically turn the oven OFF at the end of the cooking time. (See Figure 3)
4. Upper Removable Crumb Tray – For crumb or fallen food particles collection. Pulls out for easy cleaning.
5. Removable Wire/Broil Rack – Use for all your broiling and grilling needs. See “Positioning Rack” and “Positioning Pan” sections.
6. Tempered Glass Door – For front viewing of food.
7. Baking Pan & Cookie sheet in one – Use for all your baking needs. See “Positioning Pan” section.

8. Easy Clean Interior Walls – Allows fast clean up.
9. Pizza Tray – Removable, easy to clean.
10. Pizza Tray Handles – Foldable for easy storage.
11. Pizza Drawer – Fits up to a 12-inch pizza.
12.  Lower Removable Crumb Tray – For crumb or fallen food particles collection. Pulls out for easy cleaning.

Preparing To Use Your Convection Oven with Pizza Drawer for the First Time

NOTE: During initial start up you may detect a slight smell and/or smoke. Turn the temperature to max and let run for approximately 5 minutes.
If you are using your Convection Oven with Pizza Drawer for the first time, please be sure to:

• Remove any stickers from the surface of the oven.
• Open oven door and remove all printed documents and paper from inside the Convection Oven with Pizza Drawer.
• Clean the racks and pan with hot water, a small amount of dishwashing liquid and a non-abrasive cleaning pad.

CAUTION: DO NOT IMMERSE THE BODY OF THE UNIT IN WATER.

• Dry the unit thoroughly before using.
• Select a location for the Convection Oven with Pizza Drawer. The location should be in an open area on a flat counter where the plug will reach  an outlet.
• Plug the Convection Oven with Pizza Drawer into a 120 Volt AC electrical outlet.

CAUTION: When Convection Oven with Pizza Drawer is in use or cooling down, please be sure there is a 6-inch clearance between the Convection Oven with Pizza Drawer and any walls, objects or cords. Be sure the cord is not resting against the back of the Convection Oven with Pizza Drawer.

To Open the Oven Door:

Step 1: Grab the center of the handle underhanded with fingertips (See Figure 4).

Step 2: Pull down the oven door carefully (See Figure 5).

CAUTION: This appliance generates heat during use. Do not touch hot surfaces. Always use handles or knobs per above instructions.

To Use the Broil Function (See Fig. 6)

Adjustable Broil allows the oven to broil at any temperature. Great for melting cheese at 150º F or cooking fish at 400º F. Adjust as needed.
Step 1. Place food on broil rack or on baking pan if needed. See “Positioning Rack” and “Positioning Pan” sections. When broiling, the rack cannot be placed in the lowest position.
Step 2. Close glass door leaving approximately a 3-inch opening at the top of the Convection Oven with Pizza Drawer.
Step 3. Turn the Function dial to Broil.
Step 4. Turn the Temperature dial to desired temperature.
Step 5. Turn the Timer to desired cook time.
NOTE: If cook time is less than 20 minutes, you must turn Timer past the 20 minute mark to engage the timer then back to desired time.
Step 6. When Broiling is complete, open door completely and remove food.
CAUTION: Cooked food and metal rack can be very hot, handle with care. Do not leave Convection Oven with Pizza Drawer unattended.

To Use the Warm Function (See Fig. 7)

Step 1. Place baking pan with food inside on wire rack.
Step 2. Close glass door completely.
Step 3. Turn the Function dial to Warm.
Step 4. Turn the Temperature dial past “Warm”.
Step 5. Turn the Timer to desired warming time.
NOTE: If cook time is less than 20 minutes, you must turn Timer past the 20 minute mark to engage the timer then back to desired time.
Step 6. When Warming is complete, open door completely and remove food.
CAUTION: Cooked food and metal rack can be very hot, handle with care. Do not leave unit unattended.

To Use the Toast Function (See Fig. 8)

Select desired rack position. (See “Positioning Rack” Section)
NOTE: Different types of bread require different settings. Lighter breads and waffles require lighter setting. Darker breads, muffins and English muffins require a darker setting.
Step 1. Place food on Wire Racks. For best toasting results, position the rack in the middle rack guide.
Step 2. Close glass door completely.
Step 3. Turn the Function dial to Toast/Bake. Both the top and bottom heater elements will operate.
Step 4. Turn the temperature control knob to the 450º/ TOAST setting.
Step 5. To set the timer, turn the timer past the 20 minute mark to engage timer switch and set back to desired toast time (shade) between 0 and 10 minutes.
Step 6. When toasting is complete, a bell will sound. Open door completely and remove food.
CAUTION: Cooked food and metal rack can be very hot, handle with care. Do not leave unit unattended.

To Use the Bake Function (See Fig. 9)

Step 1. Place baking pan with food inside on wire rack.
Step 2. Close glass door completely.
Step 3. Turn the Function dial to Toast/Bake.
Step 4. Turn the Temperature dial to desired setting.
Step 5. Turn the Timer to desired cook time.
NOTE: If cook time is less than 20 minutes, you must turn Timer past the 20 minute mark to engage the timer then back to desired time.
Step 6. When baking is complete, open door completely and remove food.
CAUTION: Cooked food and metal rack can be
very hot, handle with care. Do not leave unit unattended.

FAQs About Turbo Convection Heat

What is Turbo Convection Heat?
Answer: In your Convection Oven with Pizza Drawer there is a built in fan that circulates the hot air in the oven chamber cooking your food faster and more evenly.
How do I adjust the time for Turbo Convection?
Answer: On average, the Turbo function will shorten the cooking time, but it varies by food. It is suggested to go with a shorter cooking time to start with and then add time if it is needed.
What are the best foods to use with Turbo?
Answer: While a shorter cook time is often desirable, baked goods in particular benefit from Turbo cooking as the circulating air keeps oven temperature consistent throughout.

To Use the Turbo Convection Heat Function (See Fig. 10)

The Turbo Convection Heat Function turns on a built in fan that circulates hot air in the oven chamber cooking your food faster and more evenly. Preheat oven 5-7 minutes at desired temperature with oven rack in place.
Step 1. Place baking pan with food inside on wire rack.
Step 2. Close glass door completely.
Step 3. Turn the Function dial to Turbo.
Step 4. Turn the Temperature dial to desired setting.
Step 5. Turn the Timer to desired cook time.
NOTE: If cook time is less than 20 minutes, you must turn Timer past the 20 minute mark to engage the timer then back to desired time.
Step 6. When baking is complete, open door completely and remove food.
CAUTION: Cooked food and metal rack can be very hot, handle with care. Do not leave unit unattended.

To Use the Pizza Drawer Function (See Fig. 11)

The dedicated Pizza Drawer is ideal for 12-inch pizzas, bruschetta, appetizers, quesadillas and more.
When using the Pizza Function, you will be using the dedicated Pizza Drawer located in the lower part of the Convection Oven. Preheat according to pizza box instructions.
While the Pizza Drawer is in use, the upper oven will not turn on due to wattage constraints; however the residual heat can conveniently serve as a plate or food warmer.
Step 1. Fold out both pizza tray handles.
Step 2. Pull the pizza tray out of the unit.
Step 3. Place pizza tray on a clean flat surface and place the pizza on it. Make sure pizza is centered and not past any edges of the pizza tray.
Step 4. While holding the handles together, insert the pizza tray back into the pizza drawer.
Step 5. Turn the Function dial to Pizza. The oven will automaticlly be preset at the default temperature for optimal cooking performance.
Step 6. Turn the Timer to desired cook time.
NOTE: If cook time is less than 20 minutes, you must turn Timer past the 20 minute mark to engage the timer then back to desired time.
NOTE: Cooking times for the pizza may vary and it might vary from box instrutions. Cooking times might be less than that in the pizza box instructions. Monitor closely first time you use it to adjust time accordingly.
Step 7. Leave handles in the folded out position. Only the pizza tray handles are cool to the touch.
Step 8. When completed, use handles to pull the pizza tray out of the pizza drawer.
CAUTION: Cooked food and metal rack can be very hot, handle with care. Do not leave unit unattended.
Step 9. Place pizza tray on top of a heat resistant surface and carefully remove pizza.

To Use The Timer And Stay On Feature (See Fig. 12)

After rotating the Temperature Dial to your desired temperature, then you must select from the following options on the Timer Dial. Pizza drawer does not require the temperature to be set, but will function with “stay on”.

• For items requiring shorter cooking times, rotate the Timer Dial clockwise to the desired time. At the sound of the bell, the oven will automatically turn “Off.”
• For longer cooking times, rotate the Timer Dial counterclockwise to the “Stay On” setting. Cooking will continue until the Timer Dial is manually turned to the “Off” position and the bell will sound.

Positioning Rack

• To accommodate a wide variety of foods the oven has 2 rack positions. The rack can be inserted in the oven in the upper or lower rack guides. The rack will fit into either of the rack guides inside of the Convection Oven. (See Figure Below)
• Before removing the rack allow the unit to cool.
• To remove the rack, open the oven door and pull the rack towards the front of the oven. The rack will slide on the rack guides on the inside of the oven.
  NOTE: the oven rack may tilt downward causing food to shift when the rack is pulled out, proceed with caution.
• Positioning of the oven rack will depend on the size of the food and desired browning. Move the rack to the lower rack position to prevent top browning and move the rack to the upper rack position to prevent bottom burning.


Positioning Pan

• To accommodate a wide variety of foods the oven has two pan positions.
  The pan can be placed on top of the rack or inserted into the guide rails below the rack. (See Figure Below)
• Before removing the pan allow the unit to cool.
• Positioning of the oven pan will depend on the desired cooking method. For baking, place the pan on top of the rack. For grilling or broiling, insert the pan into the guide rails below the rack and place the food on top of the rack.

  WARNING: The baking pan cannot be inserted into the guide rails below the rack in the lowest position.

Cleaning Your Convection Oven with Pizza Drawer

CAUTION: to protect against electrical shock, do not immerse the appliance in water or any other liquids.
Step 1. Turn all knobs to “OFF” position and remove plug from electrical outlet. Allow to cool.
Step 2. Wipe unit down with damp cloth. Make sure to only use mild, soapy water.
Abrasive cleaners, scrubbing brushes and chemical cleaners will damage the coating on this unit.
CAUTION: Do not clean with metal scouring pads. Pieces can break off the pad and touch electrical parts involving a risk of electrical shock.
Step 3. Remove upper crumb tray by pulling out of Convection Oven or lower crumb tray of Pizza Drawer.
Step 4. Shake off crumbs from crumb tray. Cleaning the crumb tray often will avoid any accumulations.
Step 5. Remove wire rack and clean with damp cloth or place in top rack of dishwasher.
This appliance has no user serviceable parts. Any servicing beyond that described in the Cleaning Section should be performed by an Authorized Service Representative only. See Warranty Section.

Storing Your Convection Oven with Pizza Drawer

Allow the appliance to cool completely before storing. If storing the Convection Oven with Pizza Drawer for long periods of time make certain that the Convection Oven with Pizza Drawer is clean and free of food particles. Store the Convection Oven with Pizza Drawer in a dry location such as on a table or counter top or cupboard shelf. Other than the recommended cleaning, no further user maintenance should be necessary.

Helpful Tips / Troubleshooting

PROBLEM:
POTENTIAL CAUSE:
SOLUTION

Overcooked / Undercooked Foods.:

• Incorrect temperature or time setting.
• Rack placement.:
• You may have to adjust the time and temperature to desired taste.
• Because your Convection Oven with Pizza Drawer is smaller than your regular oven, it will heat up faster and generally cook in shorter periods of time.
• Refer to “Positioning Rack” Section. Rack may need to be adjusted to accommodate food.

Burnt Smell.:

• Food build-up inside oven, on heating elements or in crumb tray.:
• Refer to “Cleaning Your Convection Oven with Pizza Drawer” Section.

Only one heating element is heating up.:

• Function setting selection determines which heating element will operate.:
• Check to see if the Broil or Warm setting is selected.

Heating elements do not stay ON.:

• Heating elements will cycle ON and OFF to maintain proper heat.:
• Confirm function setting is the correct one of choice.

1 Year Limited Warranty

Sunbeam Products, Inc., or if in Canada, Sunbeam Corporation (Canada) Limited, (collectively “Sunbeam”) warrants that for a period of one year from the date of purchase, this product will be free from defects in material and workmanship. Sunbeam, at its option, will repair or replace this product or any component of the product found to be defective during the warranty period.
Replacement will be made with a new or remanufactured product or component. If the product is no longer available, replacement may be made with a similar product of equal or greater value. This is your exclusive warranty. Do NOT attempt to repair or adjust any electrical or mechanical functions on this product. Doing so will void this warranty.
This warranty is valid for the original retail purchaser from the date of initial retail purchase and is not transferable. Keep the original sales receipt. Proof of purchase is required to obtain warranty performance. Sunbeam dealers, service centers, or retail stores selling Sunbeam products do not have the right to alter, modify or any way change the terms and conditions of this warranty.
This warranty does not cover normal wear of parts or damage resulting from any of the following: negligent use or misuse of the product, use on improper voltage or current, use contrary to the operating instructions, disassembly, repair or alteration by anyone other than Sunbeam or an authorized Sunbeam service center. Further, the warranty does not cover: Acts of God, such as fire, flood, hurricanes and tornadoes.
What are the limits on Sunbeam’s Liability?
Sunbeam shall not be liable for any incidental or consequential damages caused by the breach of any express, implied or statutory warranty or condition.
Except to the extent prohibited by applicable law, any implied warranty or condition of merchantability or fitness for a particular purpose is limited in duration to the duration of the above warranty.
Sunbeam disclaims all other warranties, conditions or representations, express, implied, statutory or otherwise.
Sunbeam shall not be liable for any damages of any kind resulting from the purchase, use or misuse of, or inability to use the product including incidental, special, consequential or similar damages or loss of profits, or for any breach of contract, fundamental or otherwise, or for any claim brought against purchaser by any other party.
Some provinces, states or jurisdictions do not allow the exclusion or limitation of incidental or consequential damages or limitations on how long an implied warranty lasts, so the above limitations or exclusion may not apply to you.
This warranty gives you specific legal rights, and you may also have other rights that vary from province to province, state to state or jurisdiction to jurisdiction.
How To Obtain Warranty Service
In the U.S.A.
If you have any question regarding this warranty or would like to obtain warranty service, please call 1-800-334-0759 and a convenient service center address will be provided to you.
In Canada
If you have any question regarding this warranty or would like to obtain warranty service, please call 1-800-667-8623 and a convenient service center address will be provided to you.
In the U.S.A., this warranty is offered by Sunbeam Products, Inc., located in Boca Raton, Florida 33431. In Canada, this warranty is offered by Sunbeam Corporation (Canada) Limited, located at 20 B Hereford Street, Brampton, Ontario L6Y 0M1.
If you have any other problem or claim in connection with this product, please write our Consumer Service Department.

PLEASE DO NOT RETURN THIS PRODUCT TO ANY OF THESE ADDRESSES OR TO THE PLACE OF PURCHASE.

For product questions contact: Sunbeam Consumer Service
USA : 1.800.334.0759
Canada : 1.800.667.8623
www.oster.com

User Manual

Oster 6-Slice Toaster Oven [Model: 6058]

Visit us at www.oster.com

IMPORTANT SAFEGUARDS

SAVE AND READ THESE INSTRUCTIONS
When using electrical appliances, basic safety precautions should always be followed including the following:

• READ ALL INSTRUCTIONS, PRODUCT LABELS AND WARNINGS BEFORE USING THE TOASTER OVEN.
• Do not touch hot surfaces. Always use oven mitts when handling hot materials and allow metal parts to cool before cleaning. Allow the unit to cool thoroughly before putting in or taking off parts. Always use the oven handles when moving the unit.
• When the unit is not in use and before cleaning, unplug the toaster oven from the wall outlet. Note: Make sure the oven is turned off before unplugging.
• To protect against risk of electrical shock, do not immerse the appliance in water or any other liquids.
• Close supervision is always necessary when this or any appliance is used near children. This appliance is not for use by children.
• Do not operate this or any appliance with a frayed or damaged cord or plug or after the
  appliance malfunctions or is dropped or has been damaged in any manner. Return appliance to the nearest authorized service facility for examination, repair or adjustment.
• Do not use attachments not recommended by the manufacturer; they may cause fire, electric shock or personal injury.
• Do not use outdoors or for commercial purposes.
• Do not use this appliance for other than its intended use.
• Do not let the cord dangle over the edge of a tabletop or countertop or touch hot surfaces.
• Do not place the appliance near a hot gas or electric burner or in a heated oven.
• Extreme caution should be used when using containers constructed of material other than
  metal or glass.
• A fire may occur if the toaster oven is covered or touching flammable materials, including
  curtains, draperies, walls, etc., when in operation. Do not store any items on top of the appliance when in operation.
• When using toaster oven, pull the unit out a minimum of 6 inches away from walls on all sides. Remove cords from other products from behind toaster oven.
• Do not store any materials, other than manufacturer’s recommended accessories, in this unit when not in use.
• Do not place any flammable materials in oven, such as paper, cardboard, plastic or any materials that may catch fire or melt.
• Do not cover the oven with metal foil. This will cause overheating of the appliance.
• Oversized foods or metal utensils must not be inserted in the appliance as they may create a fire or risk of electrical shock.
• Do not clean with metal scouring pads. Pieces can break off the pad and touch electrical
  parts involving a risk of electrical shock.
• When broiling, use extreme caution when removing tray or disposing of hot grease.
• To turn this appliance off, press Stop/Cancel button twice.
• To disconnect, press Stop/Cancel button twice to turn unit off, then remove plug from
  wall outlet

THIS UNIT IS FOR HOUSEHOLD USE ONLY
SHORT POWER SUPPLY CORD INSTRUCTIONS

A short power-supply cord is provided to reduce the risk resulting from becoming entangled
in or tripping over a longer cord. An extension cord may be used if care is exercised in its use.
If an extension cord is used, the electrical rating of the cord must be at least as great as the electrical rating of the appliance. The extension cord should be arranged so that it will not drape over the countertop or tabletop where it can be pulled on by children or tripped over unintentionally.

For Products Purchased in the United States and Canada Only
To reduce the risk of electrical shock, this appliance has a polarized plug (one blade is wider than the other). This plug fits a polarized outlet only one way; if the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to modify the plug in any way.

SAVE THESE INSTRUCTIONS

Welcome
Congratulations on your purchase of an OSTER® Toaster Oven!

Features of Your Toaster Oven

1. Removable Wire Rack
2. Time Display
3. Control Buttons
4. External Removable Crumb Tray
5. Glass Door
6. Easy Clean Interior Walls
7. Baking Pan and Broiling Rack
8. Three Rack Positions

Control Buttons

1.Function Buttons –

• Oven – Select to Bake,
• Convection (Fan Bake), Broil.
• Toast – Select to toast bread, bagels, etc.
• Pizza – Select to bake 9-12” pizza.
• Dehydrate – Select to dehydrate foods.
• Defrost – Select to defrost foods.
• AV– Adjusts time, temperature or toast shade.
• Timer/Temp – Use this button to change between time and temperature when Bake, Convection
• Bake or Broil have been selected.
• Clock – Sets the Oven Clock.
• Lamp – Turns on Interior Lamp.
• Stop/Cancel – Stops heating or cancels function.
• Start – Starts baking/cooking process.

Preparing To Use Your Toaster Oven for the First Time

If you are using your toaster oven for the first time, please be sure to:
Remove any stickers from the surface of the oven.
Open oven door and remove all printed documents and paper from inside the toaster oven.
Clean the rack, tray, and pan with hot water, a small amount of dishwashing liquid and a non-abrasive sponge or cleaning pad.

DO NOT IMMERSE THE BODY OF THE UNIT IN WATER.
Dry the unit thoroughly before using.
Select a location for the toaster oven. The location should be in an open area on a flat counter where the plug will reach an outlet.
Plug the toaster oven into a 120 Volt AC electrical outlet.

Using Your Toaster Oven

Setting the Clock

• Push the Clock button and hold for three seconds. The clock will flash.
• Use the arrow keys to set the hour. Push the Clock button again.
• Use the arrow keys to set the minutes.
• Push the Clock button once more and the time will be set.

Preheating the Oven

• Place oven rack into the desired position before heating the oven. (See “Positioning Rack” Section)
• Push oven button once.
• Use arrows to set desired temperature.
• Push Timer/Temp button, then the down arrow until seven minutes is displayed.
• Push the Start button.

To Use the Bake Function

• Place oven rack into the desired position before heating the oven. (See “Positioning Rack” Section)
• Arrange food on the wire rack or in the baking pan.
• Push the Oven button once. Use the arrow keys to select desired temperature.
• Push Timer/Temp button. Use the arrow keys to select desired time.
• Push the Start button.
  NOTE – Both heating elements will cycle ON and OFF to maintain the desired temperature.
• When baking is completed, open door fully and remove food carefully.

To Use the Convection Fan Bake Function

• When you select the Fan Bake the convection fan will turn on and circulate air allowing the food to cook evenly and faster.
• Place oven rack into the desired position before heating the oven. (See “Positioning Rack” Section)
• Arrange food on the wire rack or in the baking pan.
• Push the Oven button two times until “Fan Bake” lights up on display. Use the arrow keys to select desired temperature.
• Push Timer/Temp button. Use the arrow keys to select desired time.
• Push the Start button.
  NOTE – Both heating elements will cycle ON and OFF to maintain the desired temperature.
• When baking is completed, open door fully and remove food carefully.

To Use the Broil Function

• Place oven rack into the desired position before heating the oven. (See “Positioning Rack” Section)
• Place broil rack in oven pan to make broiler pan.
• Arrange food on broiler pan.
• Place broiler pan on oven rack.
• Push Oven button three times until the word “Broil” lights up on display.
• Push Timer/Temp button. Use arrows to select the desired time.
• Push the Start button.
  NOTE – The top heating element will cycle ON and OFF to maintain desired temperature.
• When broiling is completed, open door fully and remove food carefully.
• WARNING: DO NOT LEAVE TOASTER OVEN UNATTENDED.

To Use the Toast Function

• Place oven rack into the desired position before heating the oven. (See “Positioning Rack” Section)
  NOTE – Different types of bread require different settings. Lighter breads and waffles
  require a lighter setting. Darker breads, muffins, and English muffins require a darker setting.
• Arrange food on the wire rack.
• Push the Toast button. Use arrows to select Toast Shade.
• Press the Start button.
• When toasting is completed, open door fully and remove food carefully.

To Use the Pizza Function

• Place oven rack into the desired position before heating the oven. (See “Positioning Rack” Section)
• Arrange pizza on the wire rack.
• Push the Pizza button and 20:00 default time will appear. Use arrow keys to adjust the time as desired. Push the Start button.
  NOTE – The Pizza function temperature is set at 400°F and cannot be adjusted.
• If different temperature is desired, cancel Pizza function and use Bake function.

Dehydrating Function

• Push Dehydrate button. Temperature Control is already set to 185°F.
• Use arrow keys to set desired time.
• Push the Start button.

Defrosting Function

• When defrosting do not preheat oven. Temperature Control is already set to 150°F.
• Push the defrost button. Use arrow keys to adjust time. Allow 15 to 20 minutes per side for meats or fish to defrost. Always cook food promptly after thawing.
• Push the Start button.

Positioning Rack

• To accommodate a wide variety of foods the oven has three rack positions. (See Figure 3)
• Positioning of the rack will depend on the size of the food and desired browning.
• Before removing the rack allow the unit to cool.
  PLEASE NOTE – For best toast and pizza results, position the rack in the up position on
  the middle rack guide.

Cleaning Your Toaster Oven

Before cleaning your OSTER® Toaster Oven, unplug it and allow it to cool. To clean, wipe with damp cloth. DO NOT IMMERSE IN WATER! Make sure to use only mild, soapy water. Abrasive cleaners, scrubbing brushes and chemical cleaners will damage the coating on this unit. Empty crumb tray frequently to avoid accumulation of crumbs. Toaster oven racks are dishwasher safe (top of dishwasher only).

Storing Your Toaster Oven

Allow the appliance to cool completely before storing. If storing the toaster oven for long periods of time make certain that the toaster oven is clean and free of food particles. Store the toaster oven in a dry location such as on a table or countertop or cupboard shelf. Other than the recommended cleaning, no further user maintenance should be necessary.

One-Year Limited Warranty

Sunbeam Products, Inc., d/b/a Jarden Consumer Solutions, or if in Canada, Sunbeam Corporation (Canada) Limited, d/b/a Jarden Consumer Solutions (collectively “Sunbeam”) warrants that for a period of one year from the date of purchase, this product will be free from defects in material and workmanship. Sunbeam, at its option, will repair or replace this product or any component of the product found to be defective during the warranty period. Replacement will be made with a new or remanufactured product or component. If the product is no longer available, replacement may be made with a similar product of equal or greater value. This is your exclusive warranty.

This warranty is valid for the original retail purchaser from the date of initial retail purchase and is not transferable. Keep the original sales receipt. Proof of purchase is required to obtain warranty performance. Sunbeam dealers, service centers, or retail stores selling Sunbeam products do not have the right to alter, modify or any way change the terms and conditions of this warranty.

This warranty does not cover normal wear of parts or damage resulting from any of the following: negligent use or misuse of the product, use on improper voltage or current, use contrary to the operating instructions, disassembly, repair or alteration by anyone other than Sunbeam or an authorized Sunbeam service center. Further, the warranty does not cover: Acts of God, such as fire, flood, hurricanes and tornadoes.

What Are the Limits on Sunbeam’s Liability?

Sunbeam shall not be liable for any incidental or consequential damages caused by the breach
of any express, implied or statutory warranty or condition.

Except to the extent prohibited by applicable law, any implied warranty or condition of merchantability or fitness for a particular purpose is limited in duration to the duration of the
above warranty.

Sunbeam disclaims all other warranties, conditions or representations, express, implied, statutory or otherwise.

Sunbeam shall not be liable for any damages of any kind resulting from the purchase, use or misuse of, or inability to use the product including incidental, special, consequential or similar damages or loss of profits, or for any breach of contract, fundamental or otherwise, or for any claim brought against purchaser by any other party.

Some provinces, states or jurisdictions do not allow the exclusion or limitation of incidental
or consequential damages or limitations on how long an implied warranty lasts, so the above
limitations or exclusion may not apply to you.

This warranty gives you specific legal rights, and you may also have other rights that vary from
province to province, state to state or jurisdiction to jurisdiction.

How To Obtain Warranty Service

In the U.S.A. –
If you have any question regarding this warranty or would like to obtain warranty service,
please call 1.800.334.0759 and a convenient service center address will be provided to you.

In Canada –
If you have any question regarding this warranty or would like to obtain warranty service, please call 1.800.667.8623 and a convenient service center address will be provided to you.

In the U.S.A., this warranty is offered by Sunbeam Products, Inc., located in Boca Raton,
Florida 33431. In Canada, this warranty is offered by Sunbeam Corporation (Canada) Limited,
located at 5975 Falbourne Street, Mississauga, Ontario L5R 3V8.

PLEASE DO NOT RETURN THIS PRODUCT TO ANY OF THESE ADDRESSES OR TO THE PLACE OF PURCHASE.

For product questions contact:
Sunbeam Consumer Service
USA : 1.800.334.0759
Canada : 1.800.667.8623
www.oster.com

©2006 Sunbeam Products, Inc., d/b/a Jarden Consumer Solutions. All rights reserved.
In the U.S., distributed by Sunbeam Products, Inc.,
d/b/a Jarden Consumer Solutions, Boca Raton, FL 33431.
In Canada, imported and distributed by Sunbeam Corporation, Limited,
d/b/a Jarden Consumer Solutions.
SPR-030706

Oster Pro™ 1200 User Manual

IMPORTANT SAFEGUARDS

When using your blender, you should always follow basic safety precautions, including the following:

• Read all instructions before use.
• To protect against electrical hazards, do not immerse the cord, plug or motor base in water or other liquids.
• Always use the product on a clean, flat, hard, dry surface. There should be no material such as a tablecloth or plastic between the unit and surface.
• Flashing light indicates blender is ready to operate. Avoid ANY contact with the blades or moving parts.
• Keep hands and utensils out of jar while blending to reduce the risk of injury or damage to the blender. A scraper may be used but must be used only when the blender is not running.
• Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or is dropped or damaged in any manner. Return appliance to the nearest authorized service facility for examination, repair or electrical or mechanical adjustment.
• The blender blades are sharp. Handle carefully.
• To reduce the risk of injury, never place cutter-assembly blades on base without jar properly attached.
• Always put the lid on the jar before operating the blender.
• When blending hot liquids beware of steam. Remove the filler cap from the lid to allow steam to escape.
• Do not use outdoors.
• Do not allow the cord to touch hot surfaces, including the stove, or hang over the edge of a table or counter.
• Unplug the blender when it is not in use, before taking off or putting on parts, and before cleaning. To disconnect, turn appliance off by pressing ON/Off button and remove plug from outlet.
• Never leave the appliance unattended while it is running.
• Close supervision is necessary when any appliance is used by or near children.
• Do not blend boiling liquids in the blender.
• The use of attachments, including canning jars, not recommended by the manufacturer may cause a risk of injury to persons.

Food Processor Accessory Additional Precautions

• Be certain cover is securely locked in place before operating the appliance.
• Do not attempt to defeat the cover interlock mechanism.
• Never insert food by hand. Always use food pusher.

SAVE THESE INSTRUCTIONS

This product is for household use only.

• The maximum rating marked on the product is based on the attachment that draws the greatest load. Other attachments may draw less power.

Power Cord Instructions:

Please follow the instructions below to ensure the safe use of the power cord.

• This appliance is equipped with a polarized plug for 120V and 127V units only. This type of plug has one blade that is wider than the other. This plug will fit in a polarized outlet only one way. This is a safety feature intended to help reduce the risk of electrical shock. If you are unable to insert the plug into the outlet, contact a qualified electrician to replace the obsolete outlet. Do not attempt to defeat the safety purpose of the polarized plug by modifying the plug in any way.
• Try to position the blender near the power source to reduce the hazards associated with power cords (such as becoming entangled or tripping over a long power cord).
• Do not pull, twist or otherwise abuse the power cord.
• Do not wrap the power cord around the main body of the blender during or after use.
• Do not use an extension cord with this product.

This symbol has been placed in specific areas of the User Guide portion of this book. Its purpose is to help you easily identify instructions that require your special attention.

Welcome

Congratulations on your new OSTER Pro™ 1200 Blender. Your Oster Pro™ blender will allow you to create delicious smoothies, milkshakes, salsas and much more at the touch of a button! If you have any comments, questions or inquiries about this product, please call 1-800-334-0759. Your product includes the following features and benefits:

• User-friendly control panel which gives you the option of Programmed Settings or Manual Control.
• Advanced 6-Point Blade System which provides a wide range of food processing & blending options.
• Powerful Dual Direction Motor which cyles through forward & backward at varying speeds to deliver optimal results for your most popular food creations!
• Manual Controls give you the flexibility to operate the blender for various needs.
• Extra Wide Base design allows food to fall easily to the bottom of the jar, for more efficient Blending!

Time to Make it Fresh!

Learning About The Oster ProTM 1200

1. Filler Cap / 2 Ounce Measuring Cup: – Allows you to add ingredients during use. Also allows you to open to allow steam to escape when blending hot foods.
2. Jar lid – Seals the blender jar.
3. Jar – 6-cup Dishwasher Safe Boroclass glass jar withstands Thermal shock OR 8-Cup Break Resistant BPA-Free Tritan™ Plastic.
   Blade Assembly – With locking feature to secure blade assembly to threaded jar bottom. Seals the jar to the blade for leak-proof operation.
4. Sealing Ring :
5. Blade – Creates a forward and reverse action when the Programmed Settings are in use.
6. Threaded Jar Bottom With Locking Lever – Advanced design for simple assembly to jar.
7. Motor Base – Holds the jar securely. Contains a powerful, reversible, variable speed motor.
8. Control Panel
   a. Power Button (On/Off button) – Turns the product On and Off.
   b. Pre-Programmed Settings: Use for flawless results at the touch of a button. Select the desired setting and watch the Oster Pro™ 1200 cycle through the program, spinning the blade forward and backwards for expert results at the touch of a button. Unit will shut after running through the cycle. Select From:
   Green/ Frozen Smoothies
   Food Chop / Salsa
   Milkshakes
   c. Manual Controls: Select from Tow-MedHigh
   d. Pulse button – Press to pulse and release to stop.
   e. Stop Button: Press to stop any cycle or manual control setting.

Using The Oster ProTM 1200 Blender

Before you use the product for the first time, separate the lid, filler cap and blade from the jar. Wash in warm, soapy water, or top rack in the dishwasher. Rinse and dry well.

WARNING: Blade is sharp. Handle with care.

Blade Assembly

1. Place Blade into Threaded Jar Bottom (Fig.1).
2. Place sealing ring over blade assembly. Carefully press and tuck sealing ring into locking groove (Fig2).
3. Ensure the locking sealing ring is fully and evenly tucked in place and holding the blade assembly to the threaded jar bottom. For correct assembly see (Fig3).

4. Install the Integrated Blade Assembly onto the Jar. Turn clockwise to tighten. Be sure the Integrated Blade Assembly is tightened to the jar before using.
   NOTE: For proper installation onto Blender Motor base, make sure locking lever rotates past the anti-rotation tabs on the Blender jar or smoothie cup. See (Fig4). NOTE: If Locking Lever is damaged or missing, do not operate blender, and contact Customer Service for a replacement.

5. Put the ingredients into the jar.
6. Secure the lid and filler cap.
7. Place the jar onto the base.
8. Plug the power cord into a standard household 120/127-volt, 60 hz. AC outlet. You are now ready to start.

ALWAYS PEACE HAND ON CONTAINER COVER WHILE OPERATING BLENDER.

Using the Pre-Programmed Settings

1. Press the ON/OFF power button to turn the product on. The power light will blink, indicating the product is active and ready to use. The light will stay on when the motor is running.
2. Select and Press the desired Pre-Programmed Setting Button: – “Green/Frozen Smoothie” – “Food Chop/Salsa” – “Milkshakes”
3. To change your selection, press Stop followed by another Pre-Programmed Setting button (“Frozen Drinks & Shakes” or “Food Chop”)
4. Once the program is finished the product automatically stops. Please note: You may press the “Stop” button to cancel the program at any time. The blinking bule light indicates that the blender is ready.
5. Press the ON/OFF power button to turn the product off. This product is pre-programmed to turn off automatically if not used for a period of several minutes. All lights will turn off when the unit automatically powers down.

Using the Manual Controls

The Manual Controls include:

Low
Med
High
Pulse
Stop

Use these controls for personal recipes or to continue blending after a Programmed Setting is finished.

1. Press the ON/OFF power button to turn the product on. The power light will blink, meaning the product is active and ready to use. The light will stay on when the motor is running.
2. Put the ingredients into the jar.
3. Secure the lid and the filler cap.

Using High

1. Press the “High” button to run the product at a high speed.
2. Press the “Stop” button to cancel the operation at any time.
3. Press the ON/OFF power button to turn the product off.

Using the Medium

1. Press the “Medium” button to run the product at a medium speed.
2. Press the “Stop” button to cancel the program at any time.
3. Press the ON/OFF power button to turn the product off.

Using the Low

1. Press the “Low” button to run the product at a low speed.
2. Press the “Stop” button to cancel the program at any time.
3. Press the ON/OFF power button to turn the product off.

Using the Pulse

1. Verify that the blue light is blinking. This indicates that the blender is turned on.
2. Press and release the “Pulse” button.
3. Release the pulse button to stop.
4. Press the ON/OFF power button to turn the product off.

Use pulse button to crush ice or chop food.

Caring for Your Product

After Use

1. Press the OFF button and unplug blender. Lift the jar straight up from the base, remove the lid and empty the jar.
2. If necessary, use a rubber spatula to scrape foods away from the sides of the jar.

Cleaning

WARNING: Blades are sharp. Handle carefully.

CAREFULLY release the blade from the bottom of the jar by turning the threaded jar bottom counterclockwise. The jar lid, filler cap and blade are dishwasher safe. Use the top rack of the dishwasher for the jar lid, filler cap, and blade. Place sealing ring into bottom basket of dishwasher.

You can also wash the parts in warm, soapy water. Rinse well and dry. Wipe the base with a soft, damp cloth to clean. Never submerge the blender base in a liquid.

Check the parts as you put them back together.

TIP: Run blender with soapy water for 20-30 seconds at Low or Medium Speed for cleaning without disassembly. Follow with clean water rinse.

Storing

Reassemble the blender for storage. Leave the lid open a gap so no odors are retained.

NOTICE: Never put the jar, or any other parts, in a microwave oven. Never store foods or drinks in the jar.

Servicing

This appliance has no user serviceable parts. Any servicing beyond the cleaning described in the Cleaning section should be performed by an authorized service representative only.

If repairs are needed, send your appliance only to an authorized OSTER® Appliance Service Center. Replacement parts are available on www.oster.com or call 1-800-334-0759.

Blending Tips

Liquids
Put liquids into the jar first, unless the recipe says otherwise. Add more liquid if ingredients are not blending properly.

Using the Filler Cap
Do not remove the lid while in use. Instead, open the filler cap to add smaller ingredients.

Ice Crushing
Without Liquid: use pulse button until you achieve desired results.
With Liquid: Add desired amount of ice cubes and water until ice floats. Blend on High until you achieve desired results then strain off water.

Working with Hot Foods or Liquids

WARNING: When you work with HOT FOODS, remove the filler cap to vent steam. Tilt the lid away from you partially covering the opening. Keep hands and other exposed skin away from the lid opening to prevent possible burns.

WARNING :When you work with HOT LIQUIDS, remove the filler cap and start at a low speed, and then gradually increase to a faster speed. Do not add liquid over the 4 cup (1L) level. Always keep hands away from steam.

Ingredient Quantities
Use only the amount of food suggested in the recipes. If you want greater amounts, prepare in batches. Using larger amounts may overload and strain the motor. You might also get different results from those described.

Frequently Asked Questions

Why doesn’t the blender turn on?

• Make sure the base is plugged in an active power receptacle.
• Verify blinking blue light is active after pushing on/off button.

How can I prevent liquids from leaking out?
Check to see that the sealing ring is correctly assembled in between the blade and the jar.

Food Processor Accessory (Select Models Only)

Food Pusher – Use to safely push ingredients into Slicing/Shredding Disk.

Cover – The feed tube allows the addition of ingredients while processing.

Slicing/Shredding Disk – Specially designed for slicing and shredding.

WARNING: The blade is very sharp, handle carefully.

Blade Shaft – For use with Slicing/ Shredding Disk.

S Blade – Specially designed for chopping and mincing. Grasp the plastic Center Hub when handling the Blade. CAUTION: The blade is very sharp. Handle carefully.

Bowl – 5-cup capacity allows for fast processing of hard-to-chop foods.

Adaptor – Transfers the power of your Motor Base to the Food Processor Accessory.

Before Using for the First Time – After unpacking, disassemble unit before using for the first time.

Wash all parts (except Adaptor) in warm, soapy water.

Rinse and dry immediately. DO NOT IMMERSE ADAPTOR IN ANY LIQUID. ALL PARTS EXCEPT ADAPTOR ARE TOP RACK DISHWASHER-SAFE.

Assembling and Using Your Food Processor

1. Before assembly, make sure Adaptor is operating correctly. Unplug Motor Base during assembly.
2. Place Adaptor in bowl and turn counterclockwise to lock.
3. Place Bowl with Adaptor on Motor Base.
   To Chop or Mince
4. Hold S Blade by the plastic Center Hub and place over post of Bowl. Caution: Blade is very sharp, handle carefully. Rotate the S Blade to make certain it is seated on the post as far as it will go. Always place S blade in Food Processor before adding ingredients.
5. Place food in Processing Bowl. Food to be processed should always be cut into 1-inch (2.5 cm) pieces.
6. Using alignment marks on the lid, place cover on bowl and press down firmly while turning counterclockwise to lock.
   DO NOT OPERATE UNIT UNLESS COMPLETELY ASSEMBLED

7. Turn unit “ON.” (Select Pulse, Low, or Med setting on the Motor Base.)
   ALWAYS HOLD FOOD PROCESSOR FIRMLY WITH ONE HAND WHEN STARTING UNIT AND WHEN PROCESSING. Process until desired results are achieved by running the unit continuously or Fast Pulsing. Fast Pulsing is the technique used to control the size of the food being processed with the Food Processor Accessory. Press and release the Pulse button very quickly. Refer to Processing Chart for proper techniques, quantities and end results.
   NOTE: Only the “Food Chop/Salsa” Pre-Programmed setting is functional when Food Processor is attached.
   To Slice or Shred
8. Place Blade Shaft over post. Place Slicing/Shredding Disk over Blade Shaft with the blade of your choice facing up. Caution: Blade is very sharp, handle carefully.
9. Using alignment marks on the lid, place cover on bowl and press down firmly while turning counterclockwise to lock.
10. Load the feed tube with ingredients before turning the food processor “ON”.
11. Rest the Food Pusher in the feed tube. Turn unit “ON”. (Select medium speed setting.) While holding the Food Pusher with one hand and the feed tube in the other, push gently down on the Food Pusher. Always use the Food Pusher to yield more evenly sliced or shredded foods. – NEVER USE YOUR FINGERS. When finished, turn the unit “OFF”.
    NOTE: Med – High Manual settings are recommended for slicing and shredding.

How To Disassemble

1. Turn unit “OFF” and unplug Motor Base.
2. Always wait for the S Blade or Slicing/Shredding Disk to stop spinning.
3. Remove Food Processor Accessory from Motor Base.
4. Turn Cover clockwise to remove from Bowl.
5. Remove S Blade or Disk carefully. Be careful not to let Blade or Disk fall out of the container. The cutting edges are very sharp. Scrape any remaining food from the Blade and Processing Bowl.
6. Unlock Bowl from Adaptor by turning Bowl clockwise.

Cleaning

Unplug Motor Base Before Cleaning.

WARNING: Do Not Immerse Adaptor in Water. Always Remove Adaptor from processor Bowl Before cleaning.

Keep S Blade and Disk out of the reach of children. Store the S Blade and Disk in the Bowl or in a convenient, safe location when not in use. This Blade and Disk should be treated with the same caution as a sharp knife.

Remove stains caused by processing large amounts of carrots or similar vegetables with baking soda. Rinse stained parts in water and sprinkle with baking soda. Rub with a soft, damp cloth. Rinse and dry. Do not use abrasive cleaners on any parts.

Maintenance

This unit is designed with a safety interlock. The interlock requires that the Cover be in place before the blade will rotate. (The interlock does not control operation of the Motor.) To ensure that the interlock is operating correctly, hold the Adaptor and rotate the Drive Shaft several turns. The metal Star Drive on the bottom of the Adaptor should NOT turn. If it does turn, DO NOT USE. Return the unit to an authorized service facility for repair. DO NOT USE THE INTERLOCK FEATURE AS A SUBSTITUTE for turning the power unit “OFF” and unplugging the power unit before disassembling and cleaning. Never put S Blade on Adaptor without Processor Bowl. Do not operate if the flexible seal is damaged or missing. The safety interlock could become jammed.

Processing Tips

1. Cut all fruits and vegetables, cooked meats, fish, seafoods and cheeses into pieces 1 inch or smaller.
2. Do not exceed the quantities indicated in the Food Processing Charts.
3. Always hold hand firmly on the Cover when starting and running Motor.
4. Do not process hot liquids or frozen foods.
5. Do not process whole spices (except peppercorns) such as nutmeg or cinnamon. They may cause damage to the surface of the Processor Bowl.
6. Process the hardest foods first, using only a few Fast Pulses to begin chopping. Add more delicate foods and continue to process using the Fast Pulse technique. The harder foods will continue to be chopped along with the softer foods.
7. Processing of Parmesan cheese, dried dates or other extremely hard foods is not recommended. If a knife cannot easily pierce the food, it should NOT be processed in the Food Processor Accessory.
8. The Food Processor Accessory is not designed to whip cream, whip egg whites or process dough. Use a standard mixer for those tasks.
9. If liquid leaks from Cover, there is too much liquid in the recipe. Adjust the liquid level to prevent leakage.
10. The temperature of cheese will affect how it processes. Cheese for spreads should be at room temperature for a smooth, creamy texture. “Grated” cheese should be refrigerator cold.
11. Large, harder pieces of food can be processed with several Fast Pulses to coarsely chop. Then process continuously for a fine texture.

Only the “Food Chop/Salsa” Pre-Programmed setting is functional when Food processor is attached.

To Convert a Recipe

1. Total the amount of dry and liquid ingredients. If the total exceeds 5 cups, decide if the recipe can be made easily in batches. Do not attempt to process large recipes.
2. If total is under 1 cup (250 ml), process dry ingredients or the most finely chopped foods first.
3. Then add remaining ingredients and combine with several Fast Pulses to mix together.

Food Processing Chart

Blend-N-Go® Smoothie Cup Accessory (Select Models Only)

NOTE: For proper installation onto Blender Motor base, make sure locking lever rotates past the anti-rotation tabs on the smoothie cup. See (Fig4).

Cup A

A. Spill proof lid
B. 20-oz. dishwasher-safe, BPA-free Tritan™ Cup design varies based on model
C. Blade Assembly: Sealing Ring, Blade, Threaded Cap
D. Blender base

Cup B

Using Your Blend-N-Go® Cup With Your Oster ProTM 1200 Blender

Before washing ensure the blender is off and unplugged. Wash all components except blender base with soapy water with a soft sponge and a bottle brush. Do not use abrasive cleansers or sponges for cleaning. Rinse well and dry. Parts are also dishwasher safe. Do not blend hot liquids.

Place desired ingredients into smoothie cup according to the following order: Liquids, fresh ingredients, frozen fruit, ice, yogurt and ice cream. (Cut all firm fruits, vegetables and other foods into pieces no larger than 1/2-inch (1.25 cm) by 2 inches (5.0 cm).

• Place Blade into Threaded Jar Bottom or adapter.
• Place sealing ring over blade assembly. Carefully press and tuck sealing ring into locking groove. (See page 7 for more detailed instructions for blade assembly)
• Place blade assembly into cup. (See Figure 1)
• Be sure the Integrated Blade Assembly is tightened to the jar before using.
• Place cup assembly onto Blender base. (See Figure 2)
• Hold cup in position. Operate Blender according to the instructions in your Blender User Manual. Blend until desired consistency.
• Place lid on cup and turn clockwise to tighten.

Enjoy your blended drink!

Recipes

Honey-Vanilla Blast

Makes 1 serving
1 cup fat free milk
1 cup (8 oz.) fat free vanilla yogurt
1/4 cup protein powder
3 chunks frozen banana, about 1 medium
2 Tbsp, honey

1. In jar, place ingredients in order given above.
2. Cover jar with lid. Press “On / Off” button, then press “Frozen Smoothies” button.
3. Pour into tall glass to serve.

Very Berry Smoothie

Makes 1 serving
1 cup orange juice
1/2 cup vanilla low fat yogurt
1 cup frozen mixed berries
2 frozen banana chunks, about 1 small
2Tbsp. Agave

1. In jar, place ingredients in order given above.
2. Cover jar with lid. Press “On / Off” button, then press “Green/Frozen Smoothies” button.
3. Pour into tall glass to serve.

Fiery Red Salsa Recipe

Makes 3 cups
2 large garlic cloves
1 can (15 oz.) whole tomatoes, drained
1 medium onion, cut into 1/4 (4 pieces)
1/2 cup cilantro leaves
1-4 jalapeno peppers, quartered
1/2-1 tsp. sugar
Salt to taste
1 Tbsp, lime juice
1 can (15 oz each) whole tomatoes, drained
Tortilla chips for serving

1. In jar, place ingredients, except tortilla chips, in order given above. (Note: Place one can of tomatoes in after garlic cloves and second can after rest of ingredients are added. Also, place onion in middle of jar to avoid blockage.)
2. Cover jar with lid. Press “On / Off” button, then press “Food Chop/Salsa” button.
3. Pour into bowl; serve with tortilla chips.

Peachy Applesauce

Makes 1 1/4 cups
1 large apple, pared, cored and quartered
1 large peach, pitted, peeled and quartered (If out of season, use 2 canned peach halves.)
2 Tbsp, water

1. In small saucepan, cook fruits in water 5-8 minutes or until very tender.
2. In jar, place fruits and liquid.
3. Cover jar with lid. Press “On/Off” button, then press “Pulse” button 3or4 times until smooth.
4. Remove from jar; place in covered containers.
5. Chill or freeze at once.

Peachy Green Smoothie

Makes: 2 servings
1 banana
1 peach, stone removed
1/2 avocado
1 cup Greek yogurt
1 cup ice
1 cup baby spinach
1/2 cup coconut water
1 tablespoon honey or agave
1/2 teaspoon vanilla extract

1. Place all ingredients into the tall blender jug. Secure the lid.
2. Blend on HIGH speed until all of the ingredients are blended, or use the Frozen Smoothies button function.
3. Pour into a ta11l glass. Serve.

Banana Chai Thick Shake

Makes: 3 servings
4 frozen bananas
3 cups skim milk or coconut water
1 cup ice
1/2 teaspoon ground cinnamon
1/2 teaspoon ground turmeric
1/4 teaspoon ground cardamom
1/4 teaspoon ground ginger
1/2 teaspoon ground star anise
Pinch sea salt

1. Place all ingredients into the tall blender jug. Secure the lid.
2. Blend on HIGH speed until all of the ingredients are blended, or use the Frozen Smoothies button function.
3. Pour into a tall glass. Serve.

User’s Manual
0.7cu. ft. Countertop Microwave
Model: OGCMV207S2-07
JCS120311

IMPORTANT SAFETY INSTRUCTIONS

READ ALL SAFETY INSTRUCTIONS BEFORE USING THIS MICROWAVE
WARNING – To reduce the risk of burns, electric shock, fire, injury to persons, or exposure to excessive microwave energy, basic safety precautions should be followed, including the following:

1.  Read all instructions before using the microwave.
2. Read and follow the specific “PRECAUTIONS TO AVOID POSSIBLE EXPOSURE OR EXCESSIVE MICROWAVE ENERGY” on page 3.
3. This microwave must be grounded. Connect only to properly grounded outlets. See page 4 for grounding instructions.
4.  Install or place this microwave only in accordance with installation instructions.
5. Some products such as whole eggs and sealed containers – for example, closed glass jars – are able to explode and should not be heated in this oven.
6. This microwave is intended for use only as described in this manual. Do not use corrosive chemicals or vapors in this microwave. This type of microwave is specifically designed to heat, cook, or dry foods. It is not designed for laboratory use.
7. As with any appliance, close supervision is necessary when used by children.
8.  To reduce the risk of fire in the oven cavity:
   •Do not overcook food. Carefully attend to the microwave when paper, plastic, or other combustible materials are placed inside the microwave to facilitate cooking.
   •Remove wire twist-ties from paper or plastic bags before placing them in the microwave.
   •If materials inside the microwave should ignite, keep the microwave door closed, turn it off, and disconnect the power cord or turn off the power fuse at the circuit breaker panel.
   •Do not use the microwave cavity for storage purposes. Do not leave paper products, cooking utensils, or food in the cavity when not in use.
9. Liquids, such as water, coffee, or tea, may overheat beyond the boiling point without appearing to be boiling due to the surface tension of the liquid. Visible bubbling or boiling when the container is removed from the microwave is not always present. THIS COULD RESULT IN VERY HOT LIQUIDS SUDDENLY BOILING OVER WHEN A SPOON OR ANOTHER UTENSIL IS INSERTED INTO THE LIQUID. To reduce the risk of injury:
   •Do not overheat the liquid;
   •Stir the liquid both before and halfway through heating;
   •Do not use straight-sided containers with narrow necks;
   •After heating, allow the container to stand in the microwave a short time before removing;
   •Use extreme care when inserting a spoon or other utensil into the container.
10. Do not heat oil or fat for deep frying in this microwave. It is difficult to control the temperature of oil in the microwave.
11.  Pierce foods with heavy skins, such as potatoes, before cooking.
12. The contents of feeding bottles and baby jars should be stirred or shaken and the temperature should be checked before serving to avoid burns.
13.  Cooking utensils may become hot from heat transferred from the heated food. Potholders may be needed to handle these utensils.
14.  Do not cover or block any openings on the microwave.
15.  Do not store or use this microwave outdoors. Do not use this microwave near water, for example, near a kitchen sink, in a wet basement, near a swimming pool, or a similar location.
16.  Do not operate this microwave if it has a damaged cord or plug, if it is not working properly, or if it has been damaged or dropped.
17. Do not immerse the cord or plug in water. Keep cord away from heated surfaces. Do not let the cord hang over the edge of the table or counter.
18. Use only thermometers specifically designed for microwaves.
19. Do not operate any heating or cooking under this microwave.
20. Be certain the glass tray and roller rings are in place when using the microwave.
21. When cleaning the microwave surface and door, use only mild, nonabrasive soaps or detergents applied with a sponge or soft cloth.
22.  This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
    •Reorient or relocate the receiving antenna.
    •Increase the separation between the equipment and receiver.
    •Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
    •Consult the dealer or an experienced radio/TV technician for help.
23. This microwave should be serviced only by qualified service personnel. For service and repair, please contact our Customer Support Center at 1-800-324-0340.

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY

1. Do not attempt to operate this microwave with the door open. Door open operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the door interlocks.
2.  Do not place any objects between the microwave front face and the door, or allow soil or cleaner residue to accumulate on sealing surfaces.
3.  Do not operate the microwave if damaged. It is particularly important that the microwave door be properly closed and there is no damage to the door (bent), hinges and latches (broken or loosened), or door seals and sealing surfaces.
4. The microwave should not be adjusted or repaired by anyone except properly qualified service personnel.

SAVE THESE INSTRUCTIONS

INSTALLATION GUIDE

1.  Make sure all packing materials are removed from inside the microwave door.
2. Check the microwave for damage, such as misaligned or bent door, damaged door seals and sealing surface, broken or lose door hinges and latches, and dents inside the cavity or on the door. If there are any damages, do not operate the microwave and contact Customer Service at 1-800-324-0340.
3.  This microwave must be placed on a flat, stable surface to hold its weight and the heaviest food likely to be cooked inside.
4. Do not place the oven where heat, moisture, or high humidity is generated. Do not place microwaves near combustible materials.
5.  For correct operation, the oven must have sufficient airflow. Allow 8” of space above the microwave, 4” at the back, and 2” on each side of the unit.
6. Do not cover or block any openings on the microwave. Do not remove microwave feet. Do not operate the oven without the glass tray, roller support, and shaft in their proper positions. Make sure the power supply cord is undamaged and does not run under the microwave or over any hot or sharp surface.
7.  The socket must be readily accessible so the microwave can be easily unplugged in an emergency.

GROUNDING INSTRUCTIONS

This microwave must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. Consult a qualified electrician or serviceman if the grounding instructions are not completely understood, or if doubt exists as to whether the appliance is properly grounded, and either: 1) If it is necessary to use an extension cord, use only a 3-wire extension cord that has a 3-blade grounded plug, and 3-slot receptacle that will accept the plug on the appliance. The marked rating of the extension cord shall be equal to or greater than the electrical rating of the appliance, or 2) Do not use an extension cord. If the power supply cord is too short, have a qualified electrician or serviceman install an outlet near the appliance. For questions regarding the grounding instructions, please contact our Customer Support Center at 1-800-324-0340.
WARNING: Improper use of the grounding plug can result in a risk of electric shock.
ELECTRICAL REQUIREMENTS
The electrical requirements for this microwave are 120V, 60Hz, AC only, 15 amp.
It is recommended that a separate circuit serving only the microwave be provided.
The microwave is equipped with a 3-prong grounding plug. It must be plugged into a wall outlet properly installed and grounded.
POWER CORD

• A short power-supply cord is provided to reduce the risks resulting from becoming entangled in or tripping over a long
• Longer cord sets or extension cords are available and may be used if care is taken in using them.
• If using a longer cord, the marked electrical rating of the cord set or extension cord should be at least as great as the electrical marking of the microwave itself and the extension cord must be a grounded-type 3-wire cord. The longer cord should be arranged so it will not drape over the counter or tabletop.

RADIO OR TV INTERFERENCE

• Should there be any interference caused by the microwave oven to your radio or TV, check that the microwave oven is on a different circuit, relocate the radio or TV as far away from the oven as feasible, and check the position and signal of receiving antenna.

INSTALLING THE TURNTABLE

• Never place the glass tray upside down.
• The glass tray should never be restricted.
• Both the glass tray and turntable ring assembly must always be used during cooking.
• All food and containers of food should always be placed on the glass tray for cooking.
• If the glass tray or turntable ring assembly cracks or breaks, contact 1-800-324-0340.

PRODUCT DIAGRAM

SPECIFICATION

CONTROL PANEL

• MENU ACTION SCREEN
  Cooking time, power, indicators, and present time are displayed.
• AUTO COOK MENUS
  Instant settings to cook popular foods
• NUMBER PADS (0-9)
  Press to set time or amount of food. But use the number pads from 1 to 6 to set an express cooking program.
• CLOCK
  Press to set the clock time.
• TIME COOK
  Press to set microwave cooking program or set multistage cooking program.
• TIMER
  Press to set timer function.
• TIME DEFROST
  Press to set defrost program based on time.
• WEIGHT DEFROST
  Press to set defrost program based on weight.
• POWER
  Press to set microwave cooking power level.
• STOP/CANCEL
  Press to reset the oven before setting a cooking program.
  Press once to temporarily stop cooking, or twice to cancel cooking altogether.
  It is also used for setting the child lock function.
• START/+30 SEC.
  Use to start cooking program. Simply press it a number of times to set cooking time and cook immediately at full power level.

OPERATION INSTRUCTIONS

• When the oven is first plugged in, a beep will sound and the display will show “1:01”.
• In the process of the cooking set, broke about 25 seconds the oven will return to standby mode.
• During cooking, if press STOP/CANCEL pad once, the program will be paused, then press START/+30 SEC. pad to resume, but if press STOP/CANCEL pad twice, the program will be canceled.
• After ending cooking, the screen will display End with sound every two minutes until the user press STOP/CANCEL pad or open the door.
• In the process of operation, press a valid pad, the buzzer rings once, but if press an invalid pad, the buzzer rings twice.

SETTING CLOCK TIME
This is a 12 or 24-hour clock, you can choose to set the clock time in 12 or 24-hour cycle by pressing the CLOCK pad in standby mode.

1. In standby mode, press the CLOCK pad once or twice to select a 12 or 24-hour clock.
2. Use the number pads to set the correct time.
3.  Press the CLOCK pad to confirm.

NOTE: During cooking, you can check the current time of the clock by pressing the CLOCK pad.
EXPRESS COOKING
Directly in standby mode, when you press a number pad (1, 2, 3, 4, 5, or 6) once, the corresponding system direct start cooking time starts respectively 1 minute, 2 minutes, 3 minutes, 4 minutes, 5 minutes, and 6 minutes. The microwave oven will start to cook at full power level.
+30 SEC. FUNCTION
In standby mode, press START/+30 SEC. pad repeatedly to set the cooking time (each press to increase 30 seconds, and up to 99 minutes and 99 seconds). The oven will start working automatically.
NOTE: During microwave cooking or express cooking program, you can add the cooking time by pressing START/+30 SEC. pad.
SETTING THE TIMER

1. In standby mode or during cooking, press the TIMER pad once.
2.  Use the number pads to set the desired time. The longest time is 99 minutes and 99 seconds.

Press START/+30 SEC. pad to confirm.
NOTE: When the countdown ends, the buzzer will beep to remind you. You can check the countdown time by pressing TIMER pad, but if STOP/CANCEL pad is pressed when the display shows the time, the function can be canceled.
MICROWAVE COOKING

1.  In standby mode, press the TIME COOK pad once.
2.  Use the number pads to set the cooking time. The longest time is 99 minutes and 99 seconds.
3.  Press POWER pad once (default 100% power level), and then use the number pads to set another power level.
4. Press START/+30 SEC. pad to start.

Use the number pads to set a cooking power level:

NOTE: During cooking, you can press the POWER pad to check the cooking power.

TIME DEFROST
The defrosting power is adjusted automatically once the cooking time is programmed.

1.  In standby mode, press the TIME DEFROST pad once.
2.  Use the number pads to set defrosting time. The longest time is 99 minutes and 99 seconds.
3.  Press START/+30 SEC. pad to confirm.

NOTE: During defrosting program, the system will pause and sound beeps to remind user to turn food over, and then press START/+30 SEC. pad to resume.
WEIGHT DEFROST
The defrosting time and power level are automatically set once the food weight is programmed. The maximum
frozen food weight is 5 LB.16 oz.

1. Press the WEIGHT DEFROST pad once.
2. Use the number pads to set the food weight.
3. Press START/+30 SEC. pad to confirm.

NOTE:

• During defrosting program, the system will pause and sound beeps to remind the user to turn food over, and then press START/+30 SEC. pad to resume.
• Weight must be in pounds and ounces. If the label gives weight in pounds only, change the fraction of a pound to ounces using the following chart.

Converting Fractions of a Pound to Ounces

MULTISTAGE COOKING
Your oven can be programmed with up to 3 automatic cooking sequences. It can be composed of time defrost with one or two microwave cooking programs or composed of two microwave cooking programs.
A. Time defrost with one or two-stage microwave cooking

1.  Open the door and place the food into the oven, close it.
2.  Press TIME DEFROST pad once.
3. Set desired to defrost time by pressing the correct number pads.
4.  Press TIME COOK pad once.
5. Input the first microwave cooking program. Do not press START/+30 SEC. pad.
6.  Input the second microwave cooking program.
7.  Press START/+30 SEC. pad to confirm.

NOTE: Step 6 is not necessary if you have one microwave cooking program. Time defrost can only be set in the first stage.
B. Two-stage microwave cooking
Some recipes require different stages of cooking at different temperatures.

1.  Input the first microwave cooking program.
2. Input the second microwave cooking program.
3.  Press START/+30 SEC. pad to confirm.

CHILD LOCK
The safety lock prevents unsupervised operation by children.
To set: In standby mode, press and hold STOP/CANCEL pad for 3 seconds, then a beep will sound, lock indication appears on the display for 3 seconds, the oven will auto-enter child lock mode. In the lock state, all pads are disabled. To cancel: In child lock mode, press and hold the STOP/CANCEL pad for 3 seconds, then a beep will sound and the oven can be operated.

AUTO COOK SETTINGS

The quick cook settings allow you to cook or reheat food automatically without entering the power level or time. For smaller portions, simply press the applicable pad and start. For larger portions, push the pad twice. FROZEN DINNER, POTATO and BEVERAGE allow you to cook multiple amounts of the same food.

POPCORN

1. Press POPCORN once.
   Popcorn automatically sets the cooking time for a 3.5 oz bag of microwave popcorn.
2. Press START/+30 SEC. pad to confirm.

NOTE: To change the preset POPCORN time: Press POPCORN twice. Press number pads to set minutes and seconds. Press START/+30 SEC. pad. The longest cooking time is 99 minutes and 99 seconds. This new cooking time will be set as the default one until the next power on.
For a better cooling effect, when you cook a large bag of microwave popcorn, you need to fold the four corners of the package.

POTATO
For potatoes (4 to 6 oz/serving):

1. Press POTATO once.
2. Set the number of potatoes by pressing number pads from 1 to 4.
3. Press START/+30 SEC. pad to confirm.

For larger potatoes (8 to 10 oz/serving):

1. Press POTATO twice.
2.  Set the number of potatoes by pressing number pads from 1 to 4.
3. Press START/+30 SEC. pad to confirm.

PIZZA
Reheating a slice of pizza (about 5 oz):

1. Press PIZZA once.
2. Press START/+30 SEC. pad to confirm.

Heating a whole frozen pizza (about 16 oz):

1.  Press PIZZA twice.
2. Press START/+30 SEC. pad to confirm.

FROZEN DINNER
For one or two small (7~9 oz/serving) frozen dinners:

1. Press FROZEN DINNER once.
2. For 1 entree, press the number pad “1”. For 2 entrees, press the number pad “2”.
3. Press START/+30 SEC. pad.

Microwaving one or two larger (10~12 oz/serving) frozen dinners:

1. Press FROZEN DINNER twice.
2. For 1 entree, press the number pad “1”. For 2 entrees, press the number pad “2”.
3. Press START/+30 SEC. pad to confirm.

BEVERAGE
For cups (5 to 7 oz/serving):

1. Press BEVERAGE once.
2. Set the number of cups by pressing number pads from 1 to 4.
3. Press START/+30 SEC. pad to confirm.

For larger mugs (9 to 11 oz/serving):

1. Press BEVERAGE twice.
2. Set the number of mugs by pressing number pads from 1 to 4.
3.  Press START/+30 SEC. pad to confirm.

REHEAT
To reheat a plate of leftover (12~18 oz):

1. Press the REHEAT pad once.
2.  Press START/+30 SEC. pad to confirm

COOKING UTENSILS GUIDE

This section lists which utensils can be used in the microwave, which ones have limited use for short periods, and which ones should not be used in the microwave.

RECOMMENDED
Microwave browning dish — Use to brown the exterior of small items such as steaks, chops, or pancakes. Follow the directions provided with your browning dish.
Microwaveable plastic wrap — Use to retain steam. Leave a small opening for some steam to escape and avoid placing it directly on the food.
Paper towels and napkins — Use for short-term heating and covering; these absorb excess moisture and prevent spattering. Do not use recycled paper towels, which may contain metal and could ignite.
Glass and glass-ceramic bowls and dishes — Use for heating or cooking.
Paper plates and cups — Use for short-term heating at low temperatures. Do not use recycled paper, which may contain metal and could ignite.
Wax paper — Use as a cover to prevent spattering.
Thermometers — Use only those labeled “Microwave Safe” and follow all directions. Check the food in several places.
Conventional thermometers may be used on microwave food once the food has been removed from the oven.

LIMITED USE
Aluminum foil — Use narrow strips of foil to prevent overcooking of exposed areas. Using too much foil can damage your oven, so be careful. You should keep distance of 1 inch (2.54cm) between aluminum foil and cavity.
Ceramic, porcelain, and stoneware — Use these if they are labeled “Microwave Safe”. If they are not labeled, test them to make sure they can be used safely.
Plastic — Use only if labeled “Microwave Safe”. Other plastics can melt.

NOT RECOMMENDED
Glass jars and bottles — Regular glass is too thin to be used in a microwave. It can shatter and cause damage and injury.
Paper bags — These are a fire hazard, except for popcorn bags that are designed for microwave use.
Styrofoam plates and cups — These can melt and leave an unhealthy residue on food.
Plastic storage and food containers — Containers such as margarine tubs can melt in the microwave.
Metal utensils — These can damage your oven. Remove all metal before cooking.
NOTE: Should you wish to check if a dish is safe for microwaving, place the empty dish in the oven and microwave on HIGH for 30 seconds. A dish which becomes very hot should not be used.

CLEANING AND CARE

1. Turn off the microwave and unplug the power cord from the wall when cleaning.
2. Keep the inside of the microwave clean. When food splatters or spilled liquids adhere to microwave walls, wipe with a damp cloth. Mild detergents may be used if the microwave gets very dirty. Avoid using spray or other harsh cleaners.
   They may stain, streak, or dull the door surface.
3. The outside of the microwave should be cleaned with a damp cloth. To prevent damage to the operating parts inside the microwave, water should not be allowed to seep into the ventilation openings.
4. Wipe the window on both sides with a damp cloth to remove any spills or splatters.
5. Do not allow the control panel to become wet. Clean with a soft, damp cloth. When cleaning the panel, leave the microwave door open to prevent it from accidentally turning on.
6. If steam accumulates inside or around the outside of the door, wipe with a soft cloth. This may occur when the microwave is operated under high humidity. This is normal.
7. It may be necessary to remove the glass tray for cleaning. Wash the tray in warm, soapy water or in a dishwasher. The roller ring and microwave floor should be cleaned regularly to avoid excessive noise. Wipe the bottom surface of the microwave with a mild detergent.
8. The roller ring may be washed in mild, soapy water or in a dishwasher. When removing the roller ring, be sure to replace it in the proper position.
9. Remove odors from your microwave by combining a cup of water with the juice and skin of one lemon in a microwaveable bowl. Microwave for 5 minutes. Wipe thoroughly and dry with a soft cloth.
10. If the light bulb burns out, please contact customer service to have it replaced.
11. The microwave should be cleaned regularly and any food deposits should be removed. Failure to maintain the microwave in a clean condition could lead to deterioration of surfaces that could adversely affect the life of the unit and could possibly result in a hazardous situation.
12. Please do not dispose of this appliance into a regular garbage receptacle. Please check to see where you can dispose of such appliances.

WARRANTY FOR OSTER® COUNTERTOP MICROWAVE
OGCMV207S2-07

ONE-YEAR LIMITED WARRANTY

For one year from the date of purchase, when this appliance is operated and maintained according to instructions attached to or furnished with the product, Guangdong Galanz Microwave Electrical Appliances Manufacturing Co., Ltd., (“GALANZ”) will pay for replacement parts and repair labor costs to correct defects in materials or workmanship, replace the appliance with an equivalent unit or a new unit, or refund the purchase price, solely at our option. Service must be provided by a GALANZ designated service company.

To Obtain Warranty Service and Troubleshooting Information:
If you need service, first see the Before Calling for Service section of your User Manual.
To obtain service, call our Consumer Care Center at 1-800-324-0340 in the U.S.

GALANZ will not pay for:

1. Service calls to correct the installation of your appliance, to instruct you how to use your appliance, to replace house fuses or correct house wiring, or to replace light bulbs.
2. Repairs when your appliance is used in other than normal, single-family household use.
3. Pickup and delivery.
4. Damage resulting from accident, alteration, misuse, abuse, fire, flood, improper installation, acts of God, or use of products not approved by GALANZ.
5. Repairs to parts or systems resulting from unauthorized modifications made to the appliance.
6. Service or warranty support for units located and/or operated outside the United States.

NO WARRANTIES, WHETHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, OTHER THAN THOSE EXPRESSLY DESCRIBED ABOVE SHALL APPLY. THE MANUFACTURER FURTHER DISCLAIMS ALL WARRANTIES AFTER THE EXPRESS WARRANTY PERIOD STATED ABOVE. NO OTHER EXPRESS WARRANTY OR GUARANTY GIVEN BY ANY PERSON, FIRM, OR ENTITY WITH RESPECT TO THE PRODUCT SHALL BE BINDING ON GALANZ. REPAIR OR REPLACEMENT IS THE EXCLUSIVE REMEDY OF THE CONSUMER. GALANZ AND SUNBEAM PRODUCTS, INC. SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES CAUSED BY THE USE, MISUSE, OR INABILITY TO USE
THE PRODUCT. NOTWITHSTANDING THE FOREGOING, THE CONSUMER’S RECOVERY AGAINST GALANZ SHALL NOT EXCEED THE PURCHASE PRICE OF THE PRODUCT SOLD BY GALANZ. THIS WARRANTY SHALL NOT EXTEND TO ANYONE OTHER THAN THE ORIGINAL CONSUMER WHO PURCHASED THE PRODUCT AND IS NOT TRANSFERABLE.
Some states or provinces do not allow the exclusion or limitation of incidental or consequential damages or allow limitations on warranties, so limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you may have other rights that vary from state to state or province to province. Outside the 50 United States, this warranty does not apply. Contact your authorized GALANZ dealer to determine if another warranty applies.
Keep this Warranty and your sales slip together for future reference. You must provide proof of purchase for in-warranty service.
Write down the following information about your appliance to better help you obtain assistance or service if you ever need it.
You will need to know your complete model number and serial number. You can find this information on the model and number label/plate.

CUSTOMER’S RECORD
Date of Purchase.
Store / Dealer:.
Model No.:
Serial No.:

© 2020 Sunbeam Products, Inc. doing business as Jarden Consumer Solutions. All rights reserved.
Oster® logo is a registered trademark of Sunbeam Products, Inc. used under license.
Distributed by Guangdong Galanz Microwave Electrical Appliances Manufacturing Co., Ltd.,
Huangpu, Zhongshan, Guangdong, 528429, China.
For service, support, and warranty information, call 1-800-324-0340.
