TECHNIKA TGO910TBK Multifunction 90cm Oven Sensor Touch Controls

FOR YOUR SAFETY

This Owner’s Manual contains important information on safety and instructions intended to assist you in the operation and maintenance of your appliance. Please take the time to read this Owner’s Manual before using your oven and keep this book for future reference.

Safety Instructions

Installation of this oven must be performed only by a licensed electrician. The installer is responsible for connecting the appliance to the mains power supply in observance of the relevant safety recommendations and local Australian codes.

Electrical safety

If the oven has been damaged in transport, DO NOT connect it.

• This appliance must be connected to the mains power supply only by an approved licensed electrician.
• In the event of a fault or damage to the appliance, do not attempt to operate it.
• Repairs should be performed by a licensed technician only. Improper repair may result in considerable danger to you and others. If your oven needs repair, contact a Service Centre or your dealer.
• If the supply cord is damaged, it must be replaced by the manufacturer or an authorised service agent or similarly qualifies person in order to avoid a hazard.
• Electrical leads and cables should not be allowed to touch the oven.
• The oven should be connected to the mains power supply by means of an approved circuit breaker or fuse.
• Never use multiple plug adapters or extension leads.
• The rating label is located either on the right side of the door or affixed to the bottom of side of the cavity front frame.
• The power supply of the appliance should be turned off when it is being repaired or cleaned.
• Take care when connecting electrical appliances to sockets near the oven.

WARNINGS

• The appliance should be turned off at the circuit breaker or board before replacing lamps to avoid the possibility of electric shock.
• During oven operation, the interior surfaces become very hot.

Safety during operation

• This oven has been designed only for non-commercial household use. It must not be altered in any way.
• During use, the oven interior surfaces become hot enough to cause burns. Do not touch heating elements or interior surfaces of the oven until they have had time to cool.
• Never store flammable materials in or near the oven.
• The oven surfaces become hot when the appliance is operated at a high temperature for an extended period of time.
• When cooking, take care when opening the oven door as hot air and steam can escape rapidly.
• When cooking dishes that contain alcohol, the alcohol may evaporate due to the high temperatures and the vapour can catch fire if it comes into contact with a hot part of the oven.
• Use of high-pressure water cleaners or steam jet cleaners is not permitted for cleaning.
• Frozen foods such as pizzas should be cooked on the wire grill. If the baking tray is used, it may become deformed due to the great variation in temperatures.
• DO NOT pour water into the oven bottom when it is hot. This could cause damage to the enamel surface.
• The oven door must be closed during cooking.
• DO NOT line the oven bottom with aluminium foil and do not place any baking trays or tins on it. The aluminium foil blocks the heat, which may result in damage to the enamel surfaces and cause poor cooking results.
• Fruit juices will leave stains, which can become indelible on the enamel surfaces of the oven. When cooking very moist cakes, use the deep pan.
• Does not rest bake ware on the open oven door.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.
• Only use the temperature probe recommended for this oven.
• If a cooking time is not entered, the oven will shut itself off after the lengths of time indicated below.
• Always place oven racks in desired location while oven is cool. If a rack must be moved while oven is hot, do not let potholder contact the heating elements. Always use dry potholders. Moist or damp potholders on hot surfaces may result in burns from steam. Do not let potholder touch hot heating elements. Do not use a towel or other bulky cloth.

Child safety

• WARNING: Accessible parts may become hot during use. Children should be kept away. Children and pets should not be left alone or unattended in the area where the appliance is in use. They should never be allowed to play in its vicinity, whether or not the appliance is in use.
• Secure all loose garments, etc. before beginning. Tie long hair so that it does not hang loose, and do not wear loose fitting clothing or hanging garments, such as ties, scarves, jewelry, or dangling sleeves.
• When children become old enough to use the appliance, it is the legal responsibility of the parents or legal guardians to ensure that they are instructed in safe operation of the appliance by qualified persons.
• Do not allow anyone to climb, stand, lean, sit, or hang on any part of an appliance, especially on the door, warming drawer or storage drawer. This can damage the appliance, and the unit may tip over, potentially causing severe injury.

CAUTION: Items of interest to children should not be stored in an appliance, in cabinets above an appliance or on the backsplash. Children climbing on an appliance to reach items could be seriously injured.

Cleaning safety

• Make sure the oven is cool before cleaning. We recommend turning the oven off prior to cleaning
• Clean and user maintenance shall not be made by children without supervision Do not clean the appliance while it is still hot. Some cleaners produce noxious fumes when applied to a hot surface. Wet cloths or sponges can cause burns from steam.
• DO NOT use a steam cleaner to clean the oven.

Oven exterior

• For cleaning both the interior and exterior of the oven, use a cloth and a mild cleaning agent or warm soapy water.
• Dry with kitchen paper or a dry towel.
• Do not use scourers, caustic cleaners or abrasive products.

Stainless steel oven fronts

• Do not use steel wool, scouring pads or abrasives. They may damage the finish.
• For tough stains we recommend using Steel Power cream cleanser, apply cleanser, leave on for a period of time even overnight and polish off
• To remove fingerprints and water stain we recommend using Steel Kleen.

Aluminium oven fronts

• Wipe the plate gently with a soft cloth or microfiber cloth and a mild window cleaning detegent. Oven interior
• Do not use coarse scouring pads or cleaning sponges.
• To avoid damaging the enameled oven surfaces, use commercially available oven cleaners.
• To remove stubborn soil, use a special oven cleaner.
• Only use Non-Caustic oven cleaners

Oven door glass

• The oven door is equipped with three sheets of glass placed against each other. The inner & middle sheets can be removed for cleaning. If removed they need to be placed back in the correct order as they use a reflective coating has to face inward towards the oven cavity.
• Whenever the door is separated from the oven, the clips should be flipped open.
• Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may resulting in shattering of the glass.
• When the door is mounted, removing some of the parts (the door glass or some other part) from the door may result in injury.

Attention

• The glass may break if you use excessive force especially at the edges of the front sheet. Accessories
• Wash all bakeware and accessories after each use and dry with a kitchen towel. To clean easily, soak in warm soapy water for about 30 minutes.

Disposal

Disposal Instructions
Disposing of the packaging material

• The material used to package this appliance is recyclable.
• Dispose of the packaging materials in the appropriate container at your local waste disposal facility

Disposing of old appliances
WARNING: Before disposing of old appliances, make them inoperable so that they cannot be a source of danger. Removal of doors is also advised.
To do this, disconnect the appliance from the mains supply and remove the mains lead.
To protect the environment, it is important that old appliances are disposed of in the correct manner.

• The appliance must not be disposed of with household rubbish.
• You can obtain information about collection dates and public refuse disposal sites from your local refuse department or council.

USE AND CARE

Oven and accessories

• A. Control Panel
• G. Oven Rack
• H. Guides for sliding the racks or baking pan in and out
• F. Baking Pan / Drip Tray

How to use your oven

This multi-function oven combines the advantages of traditional conventional ovens with those of the more modern fan assisted models in a single appliance. It is an extremely versatile appliance that allows you to choose easily and safely between different cooking modes.
Notice: The first time you use your appliance, we recommend that set the thermostat to the highest setting and leave the oven on for about half an hour with nothing in it, with the oven door shut. Then open the oven door and let the room air in. The odor that is often detected during this initial use is due to the evaporation of substances used to protect the oven during storage and until it is installed.
Notice: DO NOT place the drip tray provided on the bottom part of the oven cavity for catching grease or spills whilst using the oven. Bottom rack position should be utilized for this when grilling food or when using the rotisserie (only available on certain models). Also do not place aluminium foil to catch any spills either. If either are placed on the enamel base of the oven, damage can occur due to the intense heat created from the bottom heating element. Always place your cookware (dishes, aluminum foil, etc.) on the grid provided with the appliance inserted especially along the oven guides.

Positioning the oven trays & shelves

The Baking Pan or Oven Shelf can be located in any of the four height positions in the oven.
Refer to the ‘Cooking Guide Table’ for the recommended shelf position. When fitting the trays or shelves, ensure they are fitted between the two wires that are closest together as shown below. Oven Shelves have a stop so that they are not fully withdrawn by accident. To fully remove the Oven Shelves, lift the front of the shelf slightly and withdraw fully from the oven. Note that the Drip Tray / Baking pan does not have a stop position and can be fully withdrawn without interruption, so be careful not to accidentally fully withdraw the tray.

Controls

Before using for the first time
Setting and changing the current time
The oven only operates when the time has been set.
When the appliance is connected to the electrical supply or when there has been a power cut, the symbol for Time flashes automatically.

1. Use the or buttons, set the current time.
   After about 5 seconds, the flashing stops and the clock displays the time of day set. The appliance is now ready for use.
2. To change a time that has already been set, press the Clock functions button repeatedly until the symbol for Time flashes. Use the buttons, set the current time.

Operating the Oven
The Electronic Oven Control

General Instructions

• When the selected function is lit, the oven begins to heat up or the time set begins to count down.
• The oven light is switched on as long as an oven function has started.
• The oven light goes off automatically when the oven is switched off.
• The oven light is switched on or off by pressing the light button.
• Press the Pause / Off button once and the oven will pause cooking.
• Switch appliance off by pressing the Pause / Off button a second time.

Selecting the oven function

1. Switch on the oven with the Menu button.
2. Press the buttons to select the desired oven function which will appear in the display.
   • A suggested temperature appears on the temperature display.
   • Press the start button, the oven begins to heat up.

Changing the oven temperature

1. Press the button first.
2. Press the buttons to raise or lower the temperature.
   The setting changes in steps of 5 °C.

Switching off the oven
Switch the appliance off by pressing the Pause / Off button twice.

Speed cook
After an oven function is selected, with the use of the additional function Speed cook , the empty oven can be pre-heated in a relatively short time. Important: Do not put the food to be cooked into the oven, until Speed cook is completed and the oven is operating using the desired function.
1. Set the desired function. If necessary, change the suggested temperature. The thermometer SYMBOL LIGHTS UP:

The bars flashing one after another show that Speed cook is operating. When the set temperature is reached, the bars of the symbol all light up. An audible signal sounds.The oven now continues heating according to the pre-set oven function and temperature. You can now place the food in the oven.

Clock functions

• Countdown
  To set a countdown. A signal sounds after the time has elapsed. This function does not affect the operation of the oven.
• Cook time
  To set how long the oven is to be in use.
• End time
  To set when the oven is to switch off.
• Timer
  To set, change or check the time (See also section “Before Using for the First Time”)

General instructions

• After a clock function has been selected, the corresponding symbol flashes for approx. 5 seconds. During this time, the desired times can be set or modified using the or buttons.
• When the desired time has been set, the symbol continues to flash for approx. 5 seconds. After this the symbol lights up. The set Countdown begins to count down.
• The time set for Cook time and End time begins to count down after the selected function starts.

Countdown

1. The countdown timer is only available with the oven in standby mode. Press the clock. Functions button . The bell symbol flashes.
2. Set the desired Countdown time using the or buttons (max. 59 minutes).
   After approx. 5 seconds the display shows the time remaining.
   The symbol for Countdown lights up.
   When the set time has elapsed, the alarm will sound 30 times. Press any button to stop the alarm.

Oven functions

Conventional mode
The top and bottom heating elements come on. This is the classic ,traditional type of oven which has been perfected, with exceptional heat distribution and reduced energy consumption. The conventional oven is still unequalled when it comes to cooking dishes made up of several ingredients, e. g. cabbage with ribs, Ancona style stockfish, tender veal strips with rice etc. Excellent results are achieved when preparing veal or beef-based dishes as well (braised meats, stew, goulash, wild game, etc.) which need to cook slowly and require basting or the addition of liquid. It nonetheless remains the best system for baking cakes as well as fruit and cooking using covered casserole dishes for oven baking. When cooking in convection mode, only use one dripping pan or cooking rack at a time, otherwise the heat distribution will be uneven. Using the different rack heights available, you can balance the amount of heat between the top and the bottom of the oven. Select from among the various rack heights based on whether the dish needs more or less heat from the top.

Fan Assist Mode
The top and bottom heating elements, as well as the fan, will come on ,guaranteeing constant heat distributed uniformly throughout the oven. This mode is especially recommended for cooking prepacked food quickly (as pre-heating is not necessary), such as for example: frozen or pre-cooked food) as well as for a few “home-made” dishes.
The best results when cooking using the “Fan Assist” mode are obtained if you use one cooking only (the second from the bottom), please see the table entitled “Practical Cooking Advice”.

Multi-Cooking Mode
The top circle and bottom heating elements, as well as the fan, will come on alternately. Since the heat remains constant and uniform throughout the oven, the air cooks and browns food uniformly over its entire surface. With this mode, you can also cook various dishes at the same time, as long as their respective cooking temperatures are the same. A maximum of 2 racks can be used at the same time ,following the instructions in the section entitled: “Cooking On More Than One Rack”.
This cooking mode is particularly recommended for dishes requiring a gratin finish or for those requiring considerably prolonged cooking times, such as for example: lasagne, pasta backs, roast chicken and potatoes, etc.. Moreover the excellent heat distribution makes it possible to use lower temperatures when cooking roasts. This results in less loss of juices, meat which is more tender and a decrease in the loss of weight for the roast. The Multi-cooking mode is especially suited for cooking fish, which can be prepared with the addition of a limited amount of condiments, thus maintaining their flavor and appearance. Excellent results can be attained when cooking vegetable-based side dishes. Desserts: this mode is also perfect for baking leavened cakes. Moreover, this mode can also be used to thaw quickly white or red meat and bread by setting the temperature to 80°C. To thaw more delicate foods ,set the thermostat to 60°C or use only the cold air circulation feature by setting the thermostat to 0°C.

Pizza Mode
The bottom and circle heating elements, as well as the fan ,will come on. This combination rapidly heats the oven due to the large amounts of power used by the appliance, which results in the production of considerable heat coming prevalently from the bottom. The pizza mode is ideal for foods requiring high temperaturesto cook, like pizzas and large roasts. Only use one oven tray or rack at a time. However, if more than one is used, these must be switched halfway through the cooking process.

Delicate cooking
The bottom heating element and the fan come on. Suitable for pastries, cakes and non-dry sweets in baking tins or moulds. Excellent results are also obtained in cooking requiring above all heat from the bottom. You are advised to put the pan on a low level.

Grill
The top central heating elements comes on. The extremely high and direct temperature of the grill makes it possible to brown the surface of meats and roasts while locking the juices in to keep them tender. The grill is also highly recommended for dishes that require a high temperature on the surface: beef steaks, veal, rib steak, filets, hamburgers etc.. Some grilling examples are included in the “Practical Cooking Advice” paragraph.

Fan Assisted Grill
The top central heating elements and the fan come on. This combination of features increases the effectiveness of the unidirectional thermal radiation of the heating elements through forced circulation of the air throughout the oven. This helps prevent food from burning on the surface, allowing the heat to penetrate right into the food. Excellent results are achieved with kebabs made with meats and vegetables, sausages, ribs lamb chops, chicken in a spicy sause, quail, pork chops, etc. This mode is also ideal for cooking fish steaks, like swordfish, stuffed cuttlefish etc.

Fan Forced
The rear heating element and the fan come on, guaranteeing delicate heat distributed uniformly throughout the oven. This mode is ideal for baking and cooking delicate foods-especially cakes that need to rise-and for the preparation of certain tartlets on 3 shelves at the same time. Here are a few examples: cream puffs, sweet and savory biscuits, savory puffs, Swiss rolls and small portions of vegetables au gratin, etc..

“Defrosting” Mode
The fan located on the bottom of the oven makes the air circulate at room temperature around the food. This is recommended for the defrosting of all types of food, but in particular for delicate types of food which do not require heat, such as for example: ice cream cakes, cream or custard desserts, fruit cakes. By using the fan, the defrosting time is approximately halved .In the case of meat, fish and bread, it is possible to accelerate the process using the “Fan Forced” mode and setting the temperature to 80°C-100°C.

The rotisserie (selected modes only)

The rotisserie (only available on certain models) To start the turnspit, proceed as follows:

• Insert the rotisserie rod “A” into the drive unit and groove “B” into bend “C”;
• Turn the plastiv handle “D” anti clockwise and slide the rack into the oven runners ensuring that the rod “E” slots into the hole “F”;
• The rotisserie rack must always be fitted in the middle of the oven (second position from bottom);
• Press the Oven function selection to select setting

Cooling ventilation
In order to cool down the exterior of the appliance, this model is equipped with a cooling fan, which comes on automatically when the oven is hot.
When the fan is on, a normal flow of air can be heard exiting between the oven door and the control panel.
Note: When cooking is done, the fan stays on until the oven cools down sufficiently.

Automatic cutoff
As a safety precaution, the oven will automatically shut down the elements after prolonged use. This feature provides protection for cases where the oven has been left running and forgotten about. The oven light and display will stay on but the oven will stop heating.

Set Temperature: 1-105degrees
Set Temperature: 105-200degrees
Set Temperature: 200-250degrees
Run time: 16hours
Run time: 8hours
Run time: 4hours

Practical Cooking Advice

Practical Cooking Advice
The oven offers a wide range of alternatives which allow you to cook any type of food in the best possible way. With time you will learn to make the best use of this versatile cooking appliance and the following directions are only a guideline which may be varied according to your own personal experience.

Preheating
If the oven must be preheated (this is generally the case when cooking leavened foods), the
“Multi-Cooking” mode and the “Fast Forced” mode can be used to reach the desired temperature as quickly as possible in order to save on energy. Once the food has been placed in the oven, the most appropriate cooking mode can then be selected.

Cooking on More Than One Rack
If you have to cook food using several racks, use either the “Fan forced” mode or the “Multi-Cooking” mode, as these are the only modes that allow you to do so. When cooking delicate food on more than one rack, use the “Fan forced” mode, which allows you to cook on 3 racks at the same time (the 1st 3rd and 5th from the bottom).Some examples are included in the “Practical Cooking Advice” table. When cooking other food on several racks, use the “Multi-Cooking” mode keeping the following suggestions in mind:

• The oven is fitted with 5 racks .During fan assisted cooking, use two of the three central racks; the lowest and highest racks receive the hot air directly and therefore delicate foodstuffs could be burnt on these racks.
• As a general rule, use the 2nd and 4th rack from the bottom ,placing the foodstuffs that require greater heat on the 2nd rack from the bottom. For example, when cooking meat roasts together with other food, place the roast on the 2nd rack from the bottom and the more delicate food on the 4th rack from the bottom.
• When cooking foodstuffs that require differing times and temperatures, set a temperature that is somewhere between the two temperatures required, place the more delicate food on the 4th rack from the bottom and take the food requiring less time out of the oven first .
• Use the dripping pan on the lower rack and the grid on the upper;

Using the “Fan Assist” Mode
Functional, fast and practical for those of you who use pre-packed products (such as for example: frozen or pre-cooked food) along with other food items. You will find useful suggestions in the “Practical Cooking Advice” table.

Using the Grill
This multi-function oven offers you 2 different grilling modes. Use the “grill”mode , placing the food under the center of the grill (situated on the 3rd or 4th rack form the bottom) because only the central part of the top heating element is turned on. Use the bottom rack (1st from the bottom), placing the dripping pan provided to collect any sauce and /or grease and prevent the same from dripping onto the oven bottom. When using this mode, we recommend you set the thermostat to the highest setting. However, this does not mean you cannot use lower temperatures, simply by adjusting the thermostat knob to the desired temperature.

Setting “fan assisted grill”, is extremely useful for grilling foods rapidly ,as the distribution of heat makes it possible not only to brown the surface ,but also to cook the bottom part. Moreover, it can also be used for browning foods at the end of the cooking process, such as adding that gratin finish to pasta bakes, for example. When using this mode, place the grid on the 2nd or 3rd oven rack from the bottom (see cooking table) then, to prevent fat and grease from dripping onto the bottom of the oven and thus smoke from forming ,place a dripping-pan on the 1st rack from the bottom. When using this mode ,we advise you to set the thermostat to 200 °C, as it is the most efficient way to use the grill, which is based on the use of infrared rays. However, this does not mean you cannot use lower temperatures, simply by adjusting the thermostat knob to the desired temperature.

Therefore the best results when using the grill modes are obtained by placing the grid on the lower racks (see cooking table) then, to prevent fat and grease from dripping onto the bottom of the oven and smoke from forming, place a dripping-pan on the 1st oven rack from the bottom.

Baking Cakes
When baking cakes ,always place them in a preheated oven .Make sure you wait until the oven has been preheated thoroughly .Do not open the oven door during baking to prevent the cake from dropping. In general:

• Pastry is too dry: Increase the temperature by 10°C and reduce the cooking time .
• Pastry dropped: Use less liquid or lower the temperature by 10°C.
• Pastry is too dark on top: Place it on a lower rack, lower the temperature, and increase the cooking time.
• Cooked well on the inside but sticky on the outside: Use less liquid, lower the temperature, and increase the cooking time.
• The Pastry sticks to the pan: Grease the pan well and sprinkle it with a dusting of flour or use greaseproof paper.
• I used more than one level (in the function “ventilated oven”) and they are not all at the same cooking point
  Use a lower temperature setting. It is not necessary to remove the food from all the racks at the same time.

Cooking Pizza
For best results when cooking pizza ,use the “Pizza Mode” :

• Preheat the oven for at least 10 minutes;
• Use a light aluminum pizza pan, placing it on the grid supplied with the oven .If the dripping pan is used,
• this will extend the cooking time, making it difficult to get a crispy crust;
• Do not open the oven door frequently while the pizza is cooking ;
• If the pizza has a lot of toppings (three of four), we recommend you add the mozzarella cheese on top halfway through the cooking process.
• When cooking pizza on two racks, use the 2nd and 4th with a temperature of 220°C and place the pizzas in the oven after having preheated it for at least 10 minutes .

Cooking Fish and Meat
When cooking white meat ,fowl and fish ,use temperature setting from 180°C to 200°C.
For red meat that should be well done on the outside while tender and juicy in the inside ,it is a good idea to start with a high temperature setting (200°C-220°C)for a short time, then turn the oven down afterwards.
In general, the larger the roast, the lower the temperature setting. Place the meat on the center of the grid and place the dripping pan beneath it to catch the fat.
Make sure that the grid is inserted so that it is in the center of the oven. If you would like to increase the amount of heat from below, use the low rack heights .For savory roasts (especially duck and wild game), dress the meat with lard or bacon on the top.

Cooking Guide

NB: cooking times are approximate and may vary according to personal taste. When cooking using the grill or fan assisted grill, the drip tray must always be placed on the 1st oven rack from the bottom.

Cleaning and maintenance

Before cleaning your oven, or performing maintenance, disconnect it from the power supply. To extend the life of your oven, it must be cleaned frequently, keeping in mind that:

• The enameled or stainless steel parts should be washed with luke warm water without using any abrasive powders or corrosive substances which could ruin them; Stainless steel could get stained. If these stains are difficult to remove, use special products available on the market. After cleaning, it is advisable to rinse thoroughly and dry.
• The inside of the oven should preferably be cleaned immediately after use ,when it is still warm, with hotwater and soap; The soap should be rinsed away and the interior dried thoroughly. Avoid using abrasive detergents (for example cleaning powders, etc) and abrasive sponges for dishes or acids (such as limescale remover, etc…) as these could damage the enamel. If the grease spots and dirt are particularly tough to remove, use a special product for oven cleaning, following the instructions provided on the packet. Never use a steam cleaner for cleaning inside of oven.
• If you use your oven for an extended period of time ,condensation may form. Dry it using a soft cloth.
• There is a rubber seal surrounding the oven opening which guarantees its perfect functioning. Check the condition of this seal on a regular basis .If necessary, clean it and avoid using abrasive products or objects to do so. Should it become damaged, please contact you’re nearest After-sales Service Center. We recommend you avoid using the oven until it has been repaired.
• Never line the oven bottom with aluminum foil ,as the consequent accumulation of heat could compromise the cooking and even damage the enamel.
• clean the glass door using non-abrasive products or sponges and dry it with a soft cloth. Use only non caustic oven cleaners purchased from hardware stores or supermarkets.

How to Remove The Oven door
For a more thorough clean, you can remove the oven door. Proceed as follows:

• Open the door fully; Lift up and turn the small levers situated on the two hinges;
• Grip the door on the two external sides, shut it slowly but not completely;
• Pull the door towards you, pulling it out of its seat; Reassemble the door by following the above procedures backwards.

Replacing the Oven Lamp
WARNING: Ensure that the appliance is switched off before replacing the lamp to avoid the possibility of electric shock

• Disconnect the oven from the power supply by means of the omnipolar switch used to connect the appliance to the electrical mains ;or unplug the appliance if the plug is accessible;
• Remove the glass cover of the lamp – holder;
• Remove the lamp and replace with a lamp resistant to high temperatures (300°C) with the following characteristics:

Voltage: 220-240V
Wattage: 2X25W
Type: E 14

Installation

Only a qualified persons in compliance with the instructions provided must install the appliance.
Appliances are fully assembled as in normal operation without any parts removed. The manufacturer declines all responsibility for improper installation, which may harm persons and animals and damage property.
Important: – The power supply to the appliance must be switched off before any adjustments or maintenance work is done on it;

Installation of Built-in Ovens
In order to ensure that the built-in appliance functions properly, the cabinet containing it must be appropriate. The figure below gives the dimensions of the cut-out for installation under the counter. In order to ensure adequate ventilation ,the back panel of the cabinet unit must be removed. The oven must have a 20mm clearance between the oven and the rear timber panel. The oven requires a 50mm clearance from the bench top or cook top.
The oven must be completely sealed from adjacent cabinets to prevent condensation. The panels of the adjacent cabinets must be made of heat-resistant material. In particular, cabinets with a veneer exterior must be assembled with glues which can withstand temperatures of up to 100°C. In compliance with current safety standards, contact with the electrical parts of the oven must not be possible once it has been installed. The oven must be secured by 4 screws to the cabinet.

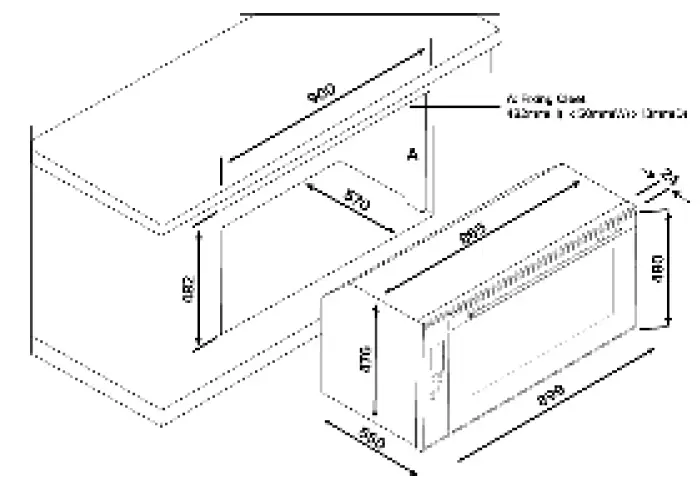

Oven and Cabinet Dimensions

Electrical Connection
Those ovens equipped with a three-pole power supply cable are designed to operate with an alternating current. The wire for earthling the appliance is yellow-green in color. The oven must must connected on it’s own dedicated circuit.
Fitting on a Power Supply Cable

Opening the terminal board:

• Using a screwdriver, prize the bolt on the side tabs of the terminal board cover;
• Unscrew the bolt, pull open the cover of the terminal board.
• To install the cable, proceed as follows:
• Remove the wire clamp screw and the three contact screws L-N –
• Fasten the wires beneath the screw heads using the following color scheme: Blue (N) Brown (L) Yellow-Green
• Fasten the supply cable in place with the clamp and close the cover of the terminal board.

Connecting the supply cable to the mains
The appliance is usually supplied fitted with a power cord and 3 pinplug.Install the cooker so that the plug is easily accessible.Plugthe 3-pin plug into a properly earthed, 15A general purpose power outlet on a separate dedicated circuit. The supply cable should be positioned so that it does not reach a temperature of more than 75°C along its entire length.
If the appliance is not supplied with a plug or if connecting the cable directly to the mains, connection to the electricity supply must be made by an authorised person in accordance with the Wiring Rules AS/NZS3000. The installation must include a suitable isolating switch with a minimum contact opening of 3mm between the appliance and the mains. The isolating switch should be sized according to the load on the data label and should comply with current regulations (the earth wire should not be interrupted by the circuit breaker).
Before making the connection check that:

• The switch, wiring and electrical system can support the appliance load (see data plate);
• The power supply system has an efficient earthing connection which complies with the provisions of current regulations.
• The power outlet or omnipoar circuit-breaker must be easily accessible once the cooker has been installed.

Replacing the power supply lead
If the supply cord or plug is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid hazard.

Technical Data

Meaning of crossed –out wheeled dustbin:
Do not dispose of electrical appliances as unsorted municipal waste, use separate collection facilities. Contact your local government for information regarding the collection systems available. If electrical appliances are disposed of in landfills or dumbs, hazardous substances can leak into the groundwater and get into the food chain, damaging your health and well-being. When replacing old appliances with new ones, the retailer is legally obliged to take back your old appliance for disposals at least free of charge.

MANUFACTURER GUARANTEE

This warranty is provided in Australia by Glen Dimplex Australia Pty Limited ABN 69 118 275 460 (Phone number 1300 556 816) and in New Zealand by Glen Dimplex New Zealand Limited NZBN 9429000069823 (Phone number 09 274 8265) in respect of the Technika Professional product.

Technika Professional Express Warranty
Subject to the exclusions below, we warrant that the product will not have any electrical or mechanical breakdowns within:

• a) In the case of Technika Professional products used for personal, domestic or household purposes, a period of 2 years from the date the product is purchased as a brand-new product from a retailer located in Australia / New Zealand.
• b) In the case of Technika Professional products used for purposes other than personal, domestic or household purposes (including business or commercial use), a period of 90 days from the date the product is purchased as a brand-new product from a retailer located in Australia / New Zealand. Technika Professional products are designed and intended for domestic use only; and
• c) All warranty repairs must be carried out by Glen Dimplex or their nominated service agent

Note: warranty periods detailed above may vary in line with agreements with select retail and builder partners and may differ between Australia and New Zealand.
The benefits conferred by this express warranty are in addition to the Consumer Guarantees referred to in section 3 and any other statutory rights you may have under the Australian / New Zealand Consumer Law and/or other applicable laws.

Warranty exclusions
This express warranty does not apply where:

• a) The product has been installed, used or operated otherwise than in accordance with the product manual or other similar documentation provided to you with the product;
• b) The product requires repairs due to damage resulting from accident, misuse, incorrect installation, insect or vermin infestation, improper liquid spillage, cleaning or maintenance, unauthorised modification, use on an incorrect voltage, power surges and dips, voltage supply problems, tampering or unauthorised repairs by any persons, use of defective or incompatible accessories or exposure to abnormally corrosive conditions, events independent of human control which occurred after the goods left the control of Glen Dimplex;
• c) The repair relates to the replacement of consumable parts such as fuses and bulbs or any other parts of the product which require routine replacement;
• d) You are unable to provide us with reasonable proof of purchase for the product;
• e) the breakdown occurs after the expiry of the express warranty period set out in section 1 or
• f) the product was not purchased in Australia / New Zealand as a brand-new product.

Consumer guarantees
Our goods come with guarantees that cannot be excluded under the Australian / New Zealand Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.

How to make a claim
You may make a claim under this warranty through our website, contacting our customer care line or via email. Contact details for Glen Dimplex Australia and New Zealand can be found at the end of this document

To make a valid claim under this warranty, you must:

• a) Lodge the claim with us as soon as possible and no later than 14 days after you first become aware of the breakdown;
• b) Provide us with the product serial number;
• c) Provide us with reasonable proof of purchase for the product. This can take the form of a store receipt, new home handover form or other payment receipt documentation; and
• d) If required by us, provide us (or any person nominated by us) with access to the premises at which the product is located at times nominated by us (so that we can inspect the product).

Warranty claims
If you make a valid claim under this warranty and none of the exclusions set out in section 2 apply, we will, at our election, either repair the product or replace the product with a product of identical specification (or where the product is superseded or no longer in stock, with a product of as close a specification as possible).
Goods presented for repair may be replaced by refurbished goods of the same type rather than being repaired. Refurbished parts may be used to repair the goods.
Products are designed and supplied for normal domestic use. We will not be liable to you under this warranty for business loss or damage of any kind whatsoever.

Glen Dimplex Australia Pty Ltd
www.glendimplex.com.au
Australia
Ph: 1300 556 816
[email protected]

Glen Dimplex New Zealand Ltd
www.glendimplex.co.nz
New Zealand
Ph: 09 274 8265
[email protected]

TECHNIKA TGO65X Multifunction 60cm Oven

FOR YOUR SAFETY

We recommend that you read the instructions in this owner’s manual carefully before use for the best performance and to extend the life of your appliance. It will provide you with all the information you need to ensure its safe installation, use and maintenance. Retain this owner’s manual for future reference.

When handling the appliance, we recommend you always use the handles recessed into the sides of the oven to prevent personal injury or damage to the appliance.

To maintain the efficiency and safety of this appliance, we recommend that you do the following:

• Always call the Glen Dimplex service department if there are any faults with your appliance.
• Always use original spare parts available from Glen Dimplex.
• This appliance is designed for non-commercial, household use and it must not be altered in any way.
• WARNING: This appliance is a domestic kitchen appliance suitable for indoor installation. It is not suitable for outdoor installations such as alfresco kitchens or garages unless a qualified, competent installer has deemed the location and installation to be suitable & compliant.
• This appliance can only be used safely when it is correctly connected to an efficient earthing system in compliance with current electrical safety standards.
• If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.
• During use, the appliance becomes hot. Care should be taken to avoid touching heating elements inside the oven.
• WARNING: Accessible parts will become hot when in use.
• To avoid burns and scalds, children should be kept away.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Young children should be supervised to ensure that they do not play with the appliance.
• DO NOT use a steam cleaner to clean the appliance.

Packaging items such as plastic bags, polystyrene, nails, etc. are potentially dangerous, and therefore appropriate measures must be taken to prevent children and the disabled from coming into contact with them.

Avoid the following:

• Touching the appliance with wet parts of the body.
• Using the appliance while barefoot.
• Improper or dangerous operation.
• Obstructing the ventilation or heat dissipation slots.
• Allowing power supply cables of other appliances to come into contact with hot parts of the oven.
• Exposing the appliance to atmospheric agents such as rain, or direct sunlight.
• Using the oven for storage purposes.
• Using flammable liquids near the appliance.

Authorised personnel must be contracted to…

• Install the appliance according to these installation instructions and any local requirements.
• Replace the temperature probe if it is damaged. The probe is part of thermostat. Only use the temperature sensing probe recommended for this oven.

Glen Dimplex Service Department must be contacted…

• If in doubt about the operation of the appliance.
• If in doubt about the soundness of the appliance after removing it from its packaging.
• If the power supply cable has been damaged or needs to be replaced.
• If the appliance requires a service.
• If you need spare parts.

WARNINGS:

• DO NOT steam clean the oven.
• DO NOT use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.
• DO NOT install the appliance behind a decorative door in order to avoid overheating.
• Only use the appliance to cook food and nothing else.
• Check that the appliance has not been damaged immediately after it has been unpacked.
• Disconnect the appliance from the electrical mains if it is not functioning properly and before cleaning or performing maintenance.
• When left unused for a long period, unplug the appliance from the electricity mains.
• Use oven gloves to place cookware in the oven or when removing it.
• Always grip the oven door handle in the centre.
• Make sure the knobs are in the ‘OFF’ position when the appliance is not in use.
• Glen Dimplex will not accept any liability as a result of any damage due to incorrect installation or improper use.

Controls
5 function model

Oven & Accessories

The oven is supplied with chrome wire shelf supports, a baking / grill tray and a removable grill insert. There are five shelf positions in the oven.

Attention: The oven comes with a soft close door feature which will only operate correctly when sufficient initial force is applied when closing. Should insufficient force be applied, the door may need to be closed manually.

How to use your oven

This fan forced oven is an extremely versatile appliance that allows you to choose easily and safely between different cooking modes. The various cooking modes are selected by means of a cooking mode selection knob, located on the control panel.

To operate the oven:

• Ensure that manual mode or timer is selected.
• Turn the cooking mode selection knob to the desired cooking mode (explanation of cooking modes).
• Turn the cooking temperature selection knob to the desired temperature (cooking guide is on page 16) or to ‘MAX’ if Grilling.
• The first time you use your appliance, we recommend that you set the thermostat to the highest setting, set the cooking mode selection knob to a cooking mode and leave the oven on for about half an hour with nothing in it and the oven door closed. Then, open the oven door and allow the oven to cool. Any odour that may be detected during this initial use is due to the evaporation of substances used to protect the oven during storage.

Note: Place tray on the bottom shelf position of the oven to prevent any spillages from dripping onto the bottom of the oven. Never place anything (including foil and oven trays) on the bottom of the oven when it is in operation because this could damage the enamel. Only place your cookware (dishes, trays, aluminum foil, etc.) on the oven shelves provided with the appliance.

If supplied, use the chrome wire handle shown left when removing the trays from the oven.

Positioning the oven trays & shelves

The Grill Tray or Oven Shelf can be located in any of the five height positions in the oven. Refer to the ‘Cooking Guide Table’ for the recommended shelf position. When fitting the trays or shelves, ensure they are fitted between the two wires that are closest together as shown below.

Oven Shelves have a stop so that they are not fully withdrawn by accident. To fully remove the Oven Shelves, lift the front of the shelf slightly and withdraw fully from the oven. Note that the Grill Tray does not have a stop position and can be fully withdrawn without interruption, so be careful not to accidentally fully withdraw the tray.

Fit Trays and Shelves between bars as shown right.

To remove the Oven Shelf Support, push down on the wire below the top locking pin, pull away from the oven wall until you can release the top of the support from the holes in the oven wall. Replace in reverse procedure.

Chrome Wire Shelf Support

Grill mode
Select ‘Grill’ mode with cooking mode selection knob and turn cooking temperature selection knob to ‘Max’. When set to Grill mode, the top inner element operates. The extremely high and direct temperature of the grill makes it possible to brown the surface of meats and roasts while locking the juices in to keep them tender. Grill mode can also be used for dishes that require a high temperature on the surface such as beef steaks, veal, rib steak, filets, hamburgers, etc.
Grill food with the oven door closed.

Fan assisted grill mode
Select ‘Fan Assisted Grill’ mode with cooking mode selection knob and turn cooking temperature selection knob to the desired temperature setting. When set to Fan Assisted Grill mode, the top inner element and the fan operate. This mode increases the circulation of air throughout the oven, which helps prevent food from burning on the surface, allowing the heat to penetrate right into the food. Particularly suitable for kebabs made with meats and vegetables, sausages, ribs, lamb chops, chicken, quail, pork chops, fish steaks, stuffed cuttlefish etc.
In Fan Assisted Grill mode, grill with the oven door closed.

Fan forced mode
When set to ‘Fan Forced’ mode, the fan element and the fan operate providing a delicate heat distributed uniformly throughout the oven.
This mode is ideal for baking and cooking delicate foods on multiple shelves, especially cakes that need to rise such as cream puffs and for certain tartlets, sweet or savoury biscuits, savoury puffs, swiss rolls and small portions of vegetables, etc.

Defrost mode
When set to ‘Defrost’ mode, the fan located at the back of the oven circulates room temperature air around the food. This is recommended for the defrosting of all types of food, but in particular for delicate types of food which do not require heat, for example: ice cream cakes, cream or custard desserts, fruit cakes, etc. By using
‘Defrost’ mode, the defrosting time is approximately halved.

Mechanical timer
The Mechanical Timer automatically controls when the oven turns off. It cannot automatically switch the oven on, only off. To insure tension is kept on the spring, turn the timer knob to 120min setting and then back to the required cooking time.
The timer can be set between 10mins and 120mins.
At the end of the selected time period, the timer will sound and automatically turn off the oven.

To operate the oven manually, set the timer to by turning anti-clockwise from the off (0) position.

NOTE: When the timer is in the 12 o’clock (off) position, the oven will not operate.

The oven light
Set the cooking mode selection knob to the symbol to switch on the oven light. The oven light remains on when the oven is operating.

Cooling ventilation
In order to cool down the exterior of the appliance, this model is equipped with a cooling fan, which switches on automatically.
When the cooling fan is on, you will notice a flow of air exiting between the oven door and the control panel.
Note: When cooking is finished, the cooling fan continues to operate until the oven cools down and then switches off automatically.

PRACTICAL COOKING ADVICE
The oven offers a range of settings which allow you to cook any type of food in the best possible way. With time you will learn to make the best use of this versatile cooking appliance and the following directions are only a guideline which may be varied according to your own personal experience.

Preheating
If the oven needs to be preheated, the ‘Fan Forced’ mode should be selected. This is the most efficient mode, which will reach the desired temperature as quickly as possible using the least amount of energy.
Once the food has been placed in the oven, the desired cooking mode can then be selected.

Multi shelf cooking
If you want to cook food on several shelves, select the ‘Fan Forced’ mode as this is the only cooking mode that allows you to do so.
When cooking delicate foods on more than one shelf, use the ‘Fan Forced’ mode. This mode allows you to cook on 3 shelves at the same time. Refer to the ‘Cooking Guide’ table.

Using the grill
This multi-function oven has 2 different grilling modes.

Use the ‘Grill’ mode with the oven door closed, place the food on the centre of the grill pan, insert and fit the grill pan on either the 3rd or 4th shelf from the bottom.
Note: only the central part of the top heating element operates for grilling.

When using ‘Grill’ mode, we recommend you set the thermostat to the highest setting. However, this does not mean you cannot use lower temperatures, simply adjust the thermostat knob to the desired temperature.

Use ‘Fan assisted grill’ mode with the oven door closed. This mode is very useful for grilling foods rapidly, as the distribution of heat by the fan makes it possible not only to brown the surface, but also to cook the bottom of the food. It can also be used for browning foods at the end of the cooking process, such as adding that gratin finish to pasta bakes for example. When using ‘Fan assisted grill’ mode, place the food on the 2nd or 3rd oven shelf from the bottom, then place a dripping-pan on the 1st rack from the bottom to prevent fat and grease from dripping onto the oven floor. We recommend you set the thermostat to 200°C, as it is the most efficient temperature for ‘Fan assisted grill’ mode. However, this does not mean you cannot use lower temperatures, simply adjust the thermostat knob to the desired temperature.

Important: for best results and to save energy, always use the ‘Fan assisted grill’ with the oven door closed.

Baking cakes
When baking cakes ,always place them in a preheated oven. Make sure you wait until the oven has been preheated thoroughly (the indicator light will turn off). To prevent heat loss and the cake from dropping, do not open the oven door during baking.

In general…

if pastry is too dry
Increase the temperature by 10°C and reduce the cooking time.
if pastry has dropped
Use less liquid or lower the temperature by 10°C.
if pastry is too dark on top
Place it on a lower shelf, lower the temperature, and increase the cooking time.
if cooked well on the inside but sticky on the outside
Use less liquid, lower the temperature, and increase the cooking time.
if the pastry sticks to the pan
Grease the pan well and sprinkle it with a dusting of flour or use greaseproof paper.
if I used multi shelf cooking and one shelf is more cooked
Use a lower temperature setting next time. It is not necessary to remove the food from all the racks at the same time.

Cooking pizza

• For best results when cooking pizza, use the ‘Fan Forced’ mode
• Preheat the oven for at least 10 minutes.
• Use a light aluminum pizza pan, placing it on the shelf supplied with the oven. Don’t use the dripping pan since this will extend the cooking time, making it difficult to get a crispy crust.
• Do not open the oven door frequently while the pizza is cooking;
• If the pizza has a lot of toppings (three or four), we recommend you add the mozzarella cheese on top halfway through the cooking process.
• For best results, only use one shelf at a time, but it you want to cook on two shelves, use the 2nd and 4th racks from the bottom with a temperature of 220°C and swap them halfway through cooking.

Cooking fish and meat

When cooking white meat, fowl and fish, use a temperature setting from 180°C to 200°C.

For red meat that you want well done on the outside while tender and juicy in the inside, it is best to start with a high temperature setting (200°C-220°C) for a short time, then turn the oven down afterwards.
In general, the larger the roast, the lower the temperature setting.

Place the meat on the centre of the shelf and place the dripping pan beneath it to catch the fat. Make sure that the shelf is inserted so that it is in the centre of the oven. If you would like to increase the amount of heat from below, use a lower shelf height. For savoury roasts (especially duck and wild game), dress the meat with lard or bacon on the top.

Cooking guide

Note: Cooking times are approximate and may vary according to personal taste. When cooking using the grill or fan assisted grill, the dripping pan must always be placed on the 1st oven shelf from the bottom.

Cleaning and maintenance

Before cleaning your oven or performing maintenance, make sure that the cooking mode selection knob is set to ‘OFF’ and the cooking temperature selection knob is set to ‘OFF’. To extend the life of your oven, it must be cleaned frequently.
The enamelled or stainless steel parts should be washed with lukewarm water without using any abrasive powders or corrosive substances. If any stainless steel has difficult to remove stains, use cleaners specifically recommended to clean stainless steel. After cleaning any surface, it is advisable to rinse thoroughly and dry.

The inside of the oven should preferably be cleaned immediately after use, when it is still warm (but not hot), with warm water and soap. The soap should be rinsed away and the interior dried thoroughly. Avoid using abrasive detergents, scourers acidic cleaners such as lime scale remover, etc. as these could damage the enamel. If stains are particularly tough to remove, use cleaners specifically recommended to clean ovens and follow the instructions provided with the cleaner. Never use a steam cleaner or caustic oven cleaners for cleaning inside the oven.

If you operate your oven for an extended period of time, or if you are cooking dishes that contain a lot of water, condensation may form on the oven door. Dry it using a soft cloth and try reducing the cooking temperature.

There is a seal surrounding the oven opening which is necessary to ensure the correct operation of the oven. Check the condition of this seal on a regular basis. If necessary, clean it but avoid using abrasive products or objects to do so. Should it become damaged, please contact Glen Dimplex Service Department. We recommend you avoid using the oven until it has been repaired.

Never place anything (including foil and oven trays) on the bottom of the oven when it is in operation because this could damage the enamel.

Clean the glass door using non-abrasive products or sponges and dry it with a soft cloth.

Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass. Use only non caustic oven cleaners purchased from hardware stores or supermarkets.

How to remove the oven door

You can remove the oven door for better access to the oven when cleaning. Proceed as follows to remove the door:

• Open the door fully (1).
• Lift up and turn the latch situated on each of the two hinges (2).
• Grip the door on the two external sides and close it approximately 3/4 way (3).
• Pull the door up towards you, lifting it out of the oven frame (4).
• To replace the door, use the reverse procedure.

How to dismantle the oven door for cleaning

You can remove the inner door glass for better cleaning. Proceed as follows to remove the inner door glass:

• Remove the trim ‘G’ by unscrewing the 2 screws (fig.1)
• Gently slide out the inner pane of glass (fig.2)
• Clean the glass with an appropriate cleaner. Dry thoroughly and place on a soft surface.
• Now you can also clean the inside of the outer glass.
• Use the reverse procedure to re-assemble the door glass.

Replacing the oven lamp

WARNING: Ensure that the appliance is switched off before replacing the lamp to avoid the possibility of electric shock. Remove the glass cover of the lamp-holder as shown below. Remove the lamp and replace with a lamp resistant to high temperatures (300°C) with the following characteristics:

• Voltage: 220-240V
• Wattage: 25W
• Type: E 14

Replacement lamps are available from Glen Dimplex. Replace the glass cover and reconnect the oven to the mains power supply.

Disposal

By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

The symbol on the product indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. Disposal must be carried out in accordance with local environmental regulations for waste disposal.

For more detailed information about treatment, recovery and recycling of this product, please contact your local city council office.

IMPORTANT: Installation, assembly and electrical connections must be carried out by authorised personnel.

Cabinet details
In order to ensure that the built-in appliance functions properly, the cabinet containing it must be appropriate. The figure below gives the dimensions of the cut-out for installation under the counter or in a wall cabinet unit.

The panels of the adjacent cabinets must be made of heat resistant material. In particular, cabinets with a veneer exterior must be assembled with glues which can withstand temperatures of up to 75°C.
In compliance with current safety standards, contact with the electrical parts of the oven must not be possible once it has been installed.
All parts, which ensure the safe operation of the appliance, must be removable only with the aid of a tool.
To fasten the oven to the cabinet, open the door of the oven and attach it by inserting the 4 wood screws into the 4 holes located on the perimeter of the frame.

Electrical connection
The appliance is usually supplied fitted with a power cord and 3 pin plug. Install the cooker so that the plug is easily accessible. Plug the 3-pin plug into a properly earthed, 10A general purpose power outlet preferably on a separate dedicated circuit. The supply cable should be positioned so that it does not reach a temperature of more than75°C along its entire length.

If the appliance is not supplied with a plug or if connecting the cable directly to the mains, connection to the electricity supply must be made by an authorised person in accordance with the Wiring Rules AS/NZS3000. The installation must include a suitable isolating switch with a minimum contact opening of 3mm between the appliance and the mains. The isolating switch should be sized according to the load on the data label and should comply with current regulations (the earth wire should not be interrupted by the circuit breaker).

Before making the connection check that:

• the switch, wiring and electrical system can support the appliance load (see data plate);
• the power supply system has an efficient earthing connection which complies with the provisions of current regulations;
• the power outlet or omnipoar circuit-breaker is easily accessible once the cooker has been installed.

Replacing the power supply lead
If the supply cord or plug is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid hazard.

Warning:
All electrical connections must be made by a suitably qualified and licenced person in accordance with local regulations.
Glen Dimplex will not be held responsible for damages caused to cabinetry due to incorrect installation.

Technical data

Inner dimensions of the oven:

Width:               42.3cm

Depth:             40.7cm

Height:            39.2cm

Gross Oven Volume: 85. litres
Voltage and Frequency of Power Supply: 220-240V, 50-60Hz

MANUFACTURER GUARANTEE

This warranty is provided in Australia by Glen Dimplex Australia Pty Limited ABN 69 118 275 460 (Phone number 1300 556 816) and in New Zealand by Glen Dimplex New Zealand Limited NZBN 9429000069823 (Phone number 09 274 8265) in respect of the Technika Professional product.

Technika Professional Express Warranty
Subject to the exclusions below, we warrant that the product will not have any electrical or mechanical breakdowns within:

• In the case of Technika Professional products used for personal, domestic or household purposes, a period of 2 years from the date the product is purchased as a brand-new product from a retailer located in Australia / New Zealand.
• In the case of Technika Professional products used for purposes other than personal, domestic or household purposes (including business or commercial use), a period of 90 days from the date the product is purchased as a brand-new product from a retailer located in Australia / New Zealand. Technika Professional products are designed and intended for domestic use only; and
• All warranty repairs must be carried out by Glen Dimplex or their nominated service agent.

Note: warranty periods detailed above may vary in line with agreements with select retail and builder partners and may differ between Australia and New Zealand.

The benefits conferred by this express warranty are in addition to the Consumer Guarantees referred to in section 3 and any other statutory rights you may have under the Australian / New Zealand Consumer Law and/or other applicable laws.

Warranty exclusions

This express warranty does not apply where:

• The product has been installed, used or operated otherwise than in accordance with the product manual or other similar documentation provided to you with the product;
• The product requires repairs due to damage resulting from accident, misuse, incorrect installation, insect or vermin infestation, improper liquid spillage, cleaning or maintenance, unauthorised modification, use on an incorrect voltage, power surges and dips, voltage supply problems, tampering or unauthorised repairs by any persons, use of defective or incompatible accessories or exposure to abnormally corrosive conditions, events independent of human control which occurred after the goods left the control of Glen Dimplex;
• The repair relates to the replacement of consumable parts such as fuses and bulbs or any other parts of the product which require routine replacement;
• You are unable to provide us with reasonable proof of purchase for the product;
• the breakdown occurs after the expiry of the express warranty period set out in section 1 or
• the product was not purchased in Australia / New Zealand as a brand-new product.

Consumer guarantees
Our goods come with guarantees that cannot be excluded under the Australian / New Zealand Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.

How to make a claim
You may make a claim under this warranty through our website, contacting our customer care line or via email. Contact details for Glen Dimplex Australia and New Zealand can be found at the end of this document

To make a valid claim under this warranty, you must:

• Lodge the claim with us as soon as possible and no later than 14 days after you first become aware of the breakdown;
• Provide us with the product serial number;
• Provide us with reasonable proof of purchase for the product. This can take the form of a store receipt, new home handover form or other payment receipt documentation; and
• If required by us, provide us (or any person nominated by us) with access to the premises at which the product is located at times nominated by us (so that we can inspect the product).

Warranty claims

If you make a valid claim under this warranty and none of the exclusions set out in section 2 apply, we will, at our election, either repair the product or replace the product with a product of identical specification (or where the product is superseded or no longer in stock, with a product of as close a specification as possible).

Goods presented for repair may be replaced by refurbished goods of the same type rather than being repaired. Refurbished parts may be used to repair the goods.
Products are designed and supplied for normal domestic use. We will not be liable to you under this warranty for business loss or damage of any kind whatsoever.

Glen Dimplex Australia Pty Ltd
www.glendimplex.com.au
Australia
Ph: 1300 556 816
[email protected]

Glen Dimplex New Zealand Ltd
www.glendimplex.co.nz
New Zealand
Ph: 09 274 8265
[email protected]

READ THE INSTRUCTION BOOKLET BEFORE INSTALLING AND USING THE APPLIANCE.

The manufacturer will not be responsible for any damage to property or to persons caused by incorrect installation or improper use of the appliance.
The manufacturer is not responsible for any inaccuracies, due to printing or transcription errors, contained in this manual. In addition, the appearance of the figures reported is also purely indicative.
The manufacturer reserves the right to make changes to its products when considered necessary and useful, without affecting the essential safety and operating characteristics.
Glen Dimplex constantly seeks ways to improve the specifications and designs of their products.

Whilst every effort is made to produce up to date literature, this document should not be regarded as an infallible guide. Actual product only should be used to derive cut out sizes.
All appliances must be installed by a qualified person/s with adherence to the relevant electrical, plumbing and building codes, with compliance being issued as required by state or national legislation.

Additionally, all upright cookers must have the anti-tilt device installed correctly in adherence to the relevant standards by a licenced installer. For maximum effectiveness and efficiency all rangehoods should be installed with the use of ductwork, by a licenced installer with adherence to the relevant state and national building codes and regulations.

All Glen Dimplex appliances are for Domestic use only, and must be installed by a licence installer into Domestic Applications only, without exception and to the required Authorities guidelines. Any installation outside of this will VOID warranty. Alfresco areas are not a Domestic application.

Distributed by:
Glen Dimplex Australia Pty Ltd                                    Glen Dimplex New Zealand Ltd
For full terms and conditions, or to register your product warranty, please visit our website:

www.glendimplex.com.au                                                    www.glendimplex.co.nz

For service advice, please contact the Customer Care Centre by phone or email below.

Australia
Ph: 1300 556 816
[email protected]

New Zealand
Ph: 09 274 8265
[email protected]

PROFESSIONAL SERIES

Instructions for Use and Installation

60cm ceramic cooktop
TGGCM64-5

70cm ceramic cooktop
TGGCM74

SAFETY WARNINGS

PLEASE READ THE FOLLOWING INSTRUCTIONS CAREFULLY BEFORE USING THE APPLIANCE.

Installation

Electrical Shock Hazard

• Disconnect the appliance from the mains electricity supply before carrying out any work or maintenance on it.
• Connection to a properly earthed wiring system is essential and mandatory.
• Means for disconnection must be incorporated in the fixed wiring in accordance with the wiring rules.
• Alterations to the domestic wiring system must only be made by a qualified electrician.
• Failure to follow this advice may result in electrical shock or death.

Cut Hazard

• Take care – panel edges are sharp.
• Failure to use caution could result in injury or cuts.

Important safety instructions

• Read these instructions carefully before installing or using this appliance.
• No combustible material or products should be placed on this appliance at any time.
• Please make this information available to the person responsible for installing the appliance as it could reduce your installation costs.
• In order to avoid a hazard, this appliance must be installed according to these instructions for installation.
• This appliance is to be properly installed and earthed only by a suitably qualified person.
• This appliance should be connected to a circuit which incorporates an isolating switch providing full disconnection from the power supply.
• WARNING: Use only hob guards designed by the manufacturer of the cooking appliance or indicated by the manufacturer of the appliance in the instructions for use as suitable or hob guards incorporated in the appliance. The use of inappropriate guards can cause accidents.
• Failure to install the appliance correctly could invalidate any warranty or liability claims.
• Regarding the details of installation, please refer to the section <Installation>.

Operation and maintenance

Electrical Shock Hazard

• Do not cook on a broken or cracked cooktop. If the cooktop surface is broken or cracked switch the appliance off immediately at the mains power supply (wall switch) and contact a qualified technician.
• Switch the cooktop off at the wall before cleaning or maintenance.
• Failure to follow this advice may result in electrical shock or death.

Health Hazard

• This appliance complies with electromagnetic safety standards.

4

Hot Surface Hazard

• WARNING: Accessible parts may become hot during use. Young children should be kept away
• Do not let your body, clothing or any item other than suitable cookware contact the ceramic glass until the surface is cool.
• Metallic objects such as knives, forks, spoons and lids should not be placed on the hob surface since they can get hot
• Children shall be kept away unless continuously supervised.
• Handles of saucepans may be hot to touch. Check saucepan handles do not overhang other cooking zones that are on. Keep handles out of reach of children.
• Failure to follow this advice could result in burns and scalds.

Cut Hazard

• The razor-sharp blade of a cooktop scraper is exposed when the safety cover is retracted. Use with extreme care and always store safely and out of reach of children.
• Failure to use caution could result in injury or cuts.

Important safety instructions

• Never leave the appliance unattended when in use. Boil overs cause smoking and greasy spillovers that may ignite.
• Never use your appliance as a work or storage surface.
• Never leave any objects or utensils on the appliance.
• Never use your appliance for warming or heating the room.
• After use, always turn off the cooking zones and the cooktop as described in this manual (i.e. by using the touch controls).
• Do not allow children to play with the appliance or sit, stand, or climb on it.
• Do not store items of interest to children in cabinets above the appliance. Children climbing on the cooktop could be seriously injured.
• Do not leave children alone or unattended in the area where the appliance is in use.
• Do not repair or replace any part of the appliance unless specifically recommended in the manual. All other servicing should be done by a qualified technician.
• Do not use a steam cleaner to clean your cooktop.
• Do not place or drop heavy objects on your cooktop.
• Do not stand on your cooktop.
• Do not use pans with jagged edges or drag pans across the glass surface as this can scratch the glass.
• Do not use scourers or any other harsh abrasive cleaning agents to clean your cooktop, as these can scratch the ceramic glass which may result in shattering of the glass.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• This appliance is intended to be used in a domestic household environment only! Commercial use of any kind is not covered under the manufacturer’s warranty!

WARNING: The appliance and its accessible parts become hot during use.

6

• Care should be taken to avoid touching heating elements.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• Cleaning and user maintenance shall not be made by children without supervision.

WARNING: Unattended cooking on a hob with fat or oil can be dangerous and may result in fire. try to extinguish a fire with water, but switch off the appliance and then cover flame e.g. with a lid or a fire blanket.
WARNING: Danger of fire: do not store items on the cooking surfaces.
WARNING: If the surface is cracked, switch off the appliance to avoid the possibility of electric shock, for hob surfaces of glass-ceramic or similar material which protect live parts.

• A steam cleaner is not to be used.
• The appliance is not intended to be operated by means of an external timer or separate remote-control system.

CAUTION: The cooking process has to be supervised. A short term cooking process has to be supervised continuously.

• Power cord cannot be accessible after installation.

7

• Congratulations on the purchase of your new hob. We recommend that you spend some time to read this Instruction / Installation Manual in order to fully understand how to install correctly and operate it.

Product Overview

Top View

TGGCM64-5

1. 200mm, max. 1800 W zone
2. 165mm, max. 1200 W zone
3. 200mm, max. 1800 W zone
4. 165mm max. 1200 W zone
5. Control Panel

TGGCM74

1. 200mm, max. 1800 W zone
2. 165mm, max. 1200 W zone
3. 200mm, max. 1800 W zone
4. 165mm max. 1200 W zone
5. Control Panel

8

The Control Panel

TGGCM64-5 / TGGCM74

1. ON/OFF key
2. Knob / Power level indicators
3. Residual heat indicator
4. Heating zone indicator

Before using your New Hob

• Read this guide, taking special note of the ‘Safety Warnings’ section.
• Remove any protective film that may still be on your ceramic hob.

9

Using the Touch Controls

• The controls respond to touch, so you don’t need to apply any pressure.
• Use the ball of your finger, not its tip.
• You will hear a beep each time a touch is registered.
• Make sure the controls are always clean, dry, and that there is no object (e.g. a utensil or a cloth) covering them. Even a thin film of water may make the controls difficult to operate.

Choosing the right Cookware

Do not use cookware with jagged edges or a curved base.

Make sure that the base of your pan is smooth, sits flat against the glass, and is the same size as the cooking zone. Always centre your pan on the cooking zone.

Always lift pans off the ceramic hob-do not slide, or they may scratch the glass.

10

Using your Hob

To start cooking

1. Touch the ON/OFF key, and the power indicator will display.

Note: Each cooking zone is independent of others.
2. Place a suitable pan on the cooking zone that you wish to use. Make sure the bottom of the pan and the surface of the cooking zone are clean and dry.

3. Select the heat setting by turning the “knob” control in a clockwise direction.
• If you don’t choose a heat setting within 1 minute, the Ceramic hob will automatically switch off. You will need to start again at step 1.
• You can modify the heat setting between 1 and 9 level at any time during cooking.

Do not leave the cooking unattended.

When you have finished cooking

1. Turn the cooking zone off by turning “knob” control to”OFF”. The Residual heat indicator will flash.

2. Turn the whole cooktop off by touching the ON/OFF key

The residual heat indicator will flash when the cooking zone is too hot to touch. It will disappear when the surface has cooled down to a safe temperature. It can also be used as an energy saving function if you want to heat further pans, use the hotplate that is still hot.

11

Residual Heat Warning

When the hob has been operating for some time, there will be some residual heat. The indicator “” appears to warn you to keep away from the particular zone.

Auto Shutdown

Safety feature of the hob is auto shut down. This occurs whenever you forget to switch off a cooking zone. The default shutdown times are shown in the table below:

12

Cooking Guidelines

Take care when frying as the oil and fat heat up very quickly. At extremely high temperatures oil and fat can ignite spontaneously and this may present a serious fire risk.

Cooking Tips

• When food comes to the boil, reduce the power setting.
• Using a lid will reduce cooking times and save energy by retaining the heat.
• Minimise the amount of liquid or fat to reduce cooking times.
• Start cooking on a high setting and reduce the setting when the food has heated through.

Simmering, cooking rice

• Simmering occurs below boiling point, at around 85°C, when bubbles are just rising
  occasionally to the surface of the cooking liquid. It is the key to delicious soups and tender stews because the flavours develop without overcooking the food. You should also cook egg-based and flour thickened sauces below boiling point.
• Some tasks, including cooking rice by the absorption method, may require a setting higher than the lowest setting to ensure the food is cooked properly in the time recommended.

Searing steak
To cook juicy flavoursome steaks:

1. Stand the meat at room temperature for about 20 minutes before cooking.
2. Heat up a heavy-based frying pan.
3. Brush both sides of the steak with oil. Drizzle a small amount of oil into the hot pan and then lower the meat onto the hot pan.
4. Turn the steak only once during cooking. The exact cooking time will depend on the thickness of the steak and how cooked you want it. Times may vary from about 2 ­ 8 minutes per side. Press the steak to gauge how cooked it is ­ the firmer it feels the more ‘well done’ it will be.
5. Leave the steak to rest on a warm plate for a few minutes to allow it to relax and become tender before serving.

13

For stir-frying

1. Choose a ceramic compatible flat-based wok or a large frying pan.
2. Have all the ingredients and equipment ready. Stir-frying should be quick. If cooking large quantities, cook the food in several smaller batches.
3. Preheat the pan briefly and add two tablespoons of oil.
4. Cook any meat first, put it aside and keep warm.
5. Stir-fry the vegetables. When they are hot but still crisp, turn the cooking zone to a lower setting, return the meat to the pan and add your sauce.
6. Stir the ingredients gently to make sure they are heated through.
7. Serve immediately.

Heat Settings

14

Care and Cleaning

15

Troubleshooting

Technical Specification

Weight and Dimensions are approximate. Because we continually strive to improve our products we may change specifications and designs without prior notice.

16

Installation

Preparation of the work surface

• Cut out the work surface according to the sizes shown in the drawing.
• For the purpose of installation and use, a minimum of 50mm space shall be preserved around the hole.
• Be sure the thickness of the work surface is at least 30mm. and suitable for the application.

Ensure the hob is well ventilated and the air inlet and outlet are not blocked. Ensure the hob is in good working order.

Install Rangehoods and Exhaust Fans in accordance to the manufacturer’s instructions. No closer than 600mm above the hob for Rangehoods and 750mm for Exhaust Fans.

17

Before you install the hob, make sure that

• The work surface is square and level, and no structural members interfere with space requirements.
• The work surface is made of a suitable material.
• If the hob is installed above an oven, the oven has a built-in cooling fan.
• Installation is completed by a suitably qualified person.
• The installation will comply with all clearance requirements and applicable local standards and regulations.
• A suitable isolating switch providing full disconnection from the mains power supply is incorporated in the permanent wiring and is mounted and positioned to comply with the local wiring rules and regulations.
• The isolating switch will be easily accessible to the customer with the hob installed.
• You consult local building authorities and by-laws if in doubt regarding installation.
• You use heat-resistant and easy-to-clean finishes (such as ceramic tiles) for the wall surfaces surrounding the hob.

18

When you have installed the hob, make sure that

• The power supply cable is not accessible through cupboard doors or drawers.
• There is adequate flow of air from outside the cabinetry to the base of the hob.
• If the hob is installed above a drawer or cupboard space, a thermal protection barrier is installed below the base of the hob.
• The isolating switch is easily accessible by the customer.

Fitting the foam seal

• Turn the unit over and carefully attach the foam seal to the underside edge of the glass.

Locating the fixing brackets

• Fix the hob on the work surface by screwing the four brackets on the bottom of hob after installation.
• Adjust the bracket position to suit for different work surface’s thickness.
• Ensure the hob sits flat and square to the work surface and doesn’t slide around.

TGGCM64-5                      TGGCM74

19

Cautions

• The hob must be installed by a suitably qualified person. Please never conduct the operation by yourself.
• The hob shall not be mounted to cooling equipment, dishwashers and rotary dryers.
• The hob shall be installed in a way that ensures correct ventilation and clearances.
• Any surrounding surfaces will meet requirements in regards to temperature resistance.
• A steam cleaner is not to be used.

Electrical connection

Connecting the hob to the mains power supply
If connecting the cable directly to the mains, install a suitable isolating switch with a minimum contact opening of 3mm between the appliance and the mains. The isolating switch should be sized according to the load on the appliance rating label and should comply with current regulations (the earth wire should not be interrupted by the circuit breaker)
Connection to the electricity supply must be made by an authorized person in accordance with the wiring rules AS/NZS3000. Ensure the supply cable cannot contact any hot surfaces.
Immediately after installation, carry out a thorough inspection and test of the appliance. If the appliance fails to operate correctly, after checking that you have followed the user instructions correctly, disconnect the appliance and contact the Technika Service department. Never attempt to repair the appliance.

20

Warning!

• If the cable is damaged or needs replacing, this must be done by the manufacturer or suitably qualified person.
• The installer must ensure that the correct electrical connection has been made and that it complies with safety regulations.
• The cable must not be bent or compressed.
• The cable must not be accessible after installation

Disposal

DISPOSAL: Do not dispose this product as unsorted municipal waste. Collection of such waste separately for special treatment is necessary.

This appliance is labeled in compliance with European directive 2002/96/EC for Waste Electrical and Electronic Equipment (WEEE). By ensuring that this appliance is disposed of correctly, you will help prevent any possible damage to the environment and to human health, which might otherwise be caused if it were disposed of in the wrong way. The symbol on the product indicates that it may not be treated as normal household waste. It should be taken to a collection point for the recycling of electrical and electronic goods. This appliance requires specialist waste disposal. For further information regarding the treatment, recover and recycling of this product please contact your local council, your household waste disposal service, or the shop where you purchased it. For more detailed information about treatment, recovery and recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

21

READ THE INSTRUCTION BOOKLET BEFORE INSTALLING AND USING THE APPLIANCE.

The manufacturer will not be responsible for any damage to property or to persons caused by incorrect installation or improper use of the appliance. The manufacturer is not responsible for any inaccuracies, due to printing or transcription errors, contained in this handout. In addition, the appearance of the figures reported is also purely indicative.

The manufacturer reserves the right to make changes to its products when considered necessary and useful, without affecting the essential safety and operating characteristics. Technika constantly seeks ways to improve the specifications and designs of their products. Whilst every effort is made to produce up to date literature, this document should not be regarded as an infallible guide. Actual product only should be used to derive cut out sizes. All Technika Appliances must be installed by a qualified person/s with adherence to the relevant electrical, plumbing and gas safety codes, with compliance being issued as required by state or national legislation.

Additionally all Technika Upright cookers must have chains installed correctly in adherence to the relevant gas safety and plumbing codes by the Licenced installer. For maximum effectiveness and efficiency all rangehoods should be installed with the use of ductwork, by a licenced installer with adherence to the relevant state and national building codes and regulations.
All Technika appliances are for Domestic use only, and must be installed by a licenced installer for Domestic Applications only, without exception and to the required Authorities guidelines. Any installation outside of this will VOID warranty.

Alfresco areas are not a Domestic application.

PROFESSIONAL SERIES

TECHNIKA PTY LTD | ACN 069 686 326 77
Fillo Drive, Somerton 3062 VIC
General : 1800 649 969 – Service : 1800 333 244

Technika After Sales Service – P.O. Box 543 SOMERTON VIC 3061

Version 1 Revision 20191102
