TWS Wireless Bluetooth Earbuds User Manual

TWS Wireless Bluetooth Earbuds

Functional Diagram

How to Use

TO CHARGE CHARGING CASE

1. Connect the lightning cable to lightning port on the charging case
2. Plug the USB connnector of the cable into a USB Power source
3. The indicator light will show RED while the charging case is charging,Depending on the power delivered to the charging case, the charging case will take approximately 2 hours or more to completely charge
4. The indicator light will go solid blue, then blink, then turn off when the case is fully charged.

TO CHARGE EARPHONES

1. Put the earphones in the charging case correctly, charging case will start to charging automatically
2. The indicator light on the earphones will turn RED while charging
3. The indicator light on the earphones will turn OFF when fully charged

POWER ON

Press and hold the multi-function key on BOTH L and R earphone for 3 seconds simultaneously, release when the BLUE light is on with a voice prompt:“POWER ON”

PAIRING

1. When power on, L and R earphones will connect each other automatically and sound with a voice prompt: “ CONNECTED” , and the indicator lights of R earphone will flash blue and red with a voice prompt: “PAIRING”, While blue indicator light of L earphone flash slowly (*).

2. Enable the bluetooth pairing mode on your phone device. Tap on “Air plus” to connect. Right earphone will response with a voice prompt: “CONNECTED”and blue light flash when connected successfully.

3. Earphones will response with a voice prompt:“DISCONNECTED” when bluetooth signal is cut off, and shutdown 5mins later automatically
4. When power on,the earphones will connect the last paired mobile automatically. If not, pls repeat step 2.

NOTE: IF you see 2 Airplus entries in available devices then the earphones are not paired correctly. Pls follow below steps to get it paired correctly *Both L and R earphones are well paired before it leaves the factory, Right earphone is the Main-headset by default, thus you may connect with your bluetooth devices directly. If they are not paired or reset to defaults, you need to pair 2 earphones manually as below steps:

• a. Press and hold the multi-function key for 6 seconds of both earphones simultaneously, release when the indicator lights turn in red and blue, and response with a voice prompt: “PAIRING”, then they will be paired and connected automatically and response with a voice prompt: “CONNECTED”
• b. When paired successfully, the indicator lights of R earphone will flash alternately in blue and red, While blue indicator light of L headsetflash slowly
• c. Go back to step 2 to connect with your devices.

SINGLE EAR FOR INDEPENDENT USE

1. Press and hold the multi-function key for 6 seconds on either earphone (base on your personal preference), release when the red and blue light flash alternately
2. Enable your phone’s Bluetooth pairing function and search for the “Air plus”to pair and connect.

POWER OFF

1. TWS mode (Due-ear)Press and hold the multi-function key on either earphone for3 seconds. Release when the red indicator light is on with a voice prompt:“POWER OFF”
2. Independent use mode (Single Ear, L or R)Press and hold the multi-function key on the used earphone for 3 seconds. Release when the red indicatorlight is on with a voice prompt:“POWER OFF”
3. Put the earphones in the charging case correctly, will auto shutdown * The battery status of earphones is visible on connected devices, when it’s running out of power, the earphones will remind you with a voice prompt:
   “LOW BATTERY, PLEASE CHARGE”, pls recharging in time

PHONE & MUSIC

• To Answer A Call
  Press the multi-function key of the right earphone one short
• To End A Call
  Press the multi-function key of the right earphone one short. Voice response
  tone“call ended”
• To Reject A Call
  Press and hold the multi-function key of the right earphone for 1s. Voice response tone“call rejected”
• To Redial A Call
  Press the multi-function key of the right earphone twice, Voice response tone “redialing”
• To Play and Pause Music
  Press the multi-function key on either earphone once
• To Play the next song
  Press and hold the multi-function key on either earphone for 2s

OUTDOOR USE

*Right headset is the Main-headset by default

Right earphone receiving mobile bluetooth signal suggest puting mobile in right pocket. This can avoid signal cut off by human body and increase antijamming capability of outdoor use.

Specification

Safety Precautions

Please read follow and keep these instructions:

1. Keep the device out of extreme heat and humid
2. Power time may different depending on personal habits
3. Heed all warnings on the product and in the operation instructions
4. Do not listen at high volume level for long period to protect hearing
5. Stop using this product immediately if it causes discomfort or pain

Inside the box

1. Bluetooth Headset X 2PCS
2. Charging Case X1PCS
3. USB lightning charging cable X1PCS
4. User Manual X1 PCS

FCC Warning Statement

Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on. the user is encouraged to try to correct the interference by one or more of the following measures

• Reorient or relocate the receiving antenna
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected
• Consult the dealer or an experienced radio/TV technician for help.

FAQS

How do i charge them? do i plug the case in while charging or what? lid opened or closed?

The case has a battery that will need to be occasionally charged. The earbuds will charge whenever they’re in the case, regardless of the lid position.

The right ear bud keeps saying “please charging”? I assume this means “please charge me”. Even after hours of charching it still says it.

You might have to do a factory reset that’s what I did. Put earbuds in case leave open hold button down in the back of the case for 10 seconds. Then pair again both ear buds should start working now.

Will they work with my lg tv?

If you’re LG TV has options to pair Bluetooth devices I would say they should work.

Why does my right earbud produce no sound?

You might have to do a factory reset that’s what I did. Put earbuds in case leave open hold button down in the back of the case for 10 seconds. Then pair again both ear buds should start working now.

Playtime 4 hrs but 18 with case. What’s that mean exactly? Can you wear/listen and charge at same time?

No, you have to plug them into the case and the case charges them. They charge pretty fast though. 20 min charge will get you at least another hour or two

How do you charge the case

It has a USB-C jack. You plug a charger into it like you do a phone.

What’s the range of these earbuds away from the device?

About 10 meters… I’ve left my phone in my kitchen at one end of my house and went all the way back to the other end of the house and never lost connection…. i have a 2000 sq/ft house…. I haven’t tried going any further than that outside though… I am pretty impressed with these little earbuds!

Can these be used without wifi on a plane?

Sure Bluetooth doesn’t need wifi!

each ear bud shows up as a different device, i can’t get them to pair together. they weren’t doing this previously how do i stop this?

Make sure they are both charged. Make sure your case has at least 50%. Do a factory reset

Do this earbud have microphone? Can i answer phone call?

Yes, you can use these to take calls. There is a mic.

How you advance next song ?

Press twice on the right earbud

Products List

         USB charging cable

Instructions

Buttons and interface

Specifiction

Bluetooth version: V5.0
Support protocol: A2DP/AVRCP/HFP/HSP
Frequency: 2402MHz-2480MHz
BT transmission: 10M
Talking time: 3 Hours
Playing time: 3 Hours
Earphone battery: 50mAh
Charging case battery: 1600mAh
Earphone charging time: 1 Hour
Case charging time: 1.5 Hours
Support system: All bluetooth device
Packing list: Earphone *l pair, Charging case*lpc, Ear-paci*3 pairs, Charging cable *l pc

Wearing instruction

1. There are three types of ear-pads with small, middle and large size(As below picture A), please choose the suitable size as you need.
   Mark “L” and “R” on the earbuds, please wear the “L” for left ear, “R” for right ear.

Attention: Maybe your left and right ear are suit for different size ear-pad, please wear into your ear and turn to suitable location(As picture B).

Operating Instructions

Power on: The earbuds will power on automatically when take out from the charging case. (If without the charging case or charging case have no power, long touch the earubds for 3 seconds to power on)

Bluetooth Pairing:
The two earbuds will power on and paired to stereo after taking out from charging case. The right earbud will flash red and blue light in turns, while left earbuds flash blue light slowly. Then turn on the mobile bluetooth to search and connect “TWS-X10Plus”

Power off(Three methods):

1. The earbuds will be power off automatically after put into the charging case.
2. The earbuds will be power off automatically after disconnect the bluetooth connection over 5 minutes.
3. Long touch either of the earbuds over 5 seconds.

Function operation

Music control: Double click the touch area for next track, single click for pause /play. click for pause /play.
Answer phone calls: Single click the touch area for answering, and click on the phone for hanging up.
Call-reject: Long touch either of the earphone for 2 seconds.
Redialing: Click eitherof the earphone by three times quickly.
Siri control: Click either of the earphone for 2 seconds to awake and close Siri (Only support IOS system).
Mobile charging: Connect the mobile and charging case USB output end with the charging cable
Single earbud operation: Take the left or right earbud, long
touch for 5 seconds to red and blue flash light in turns, turn on the mobile bluetooth to search and connect the “TWS-X10Plus”. Both of the two earbuds have call function.
Use the earbuds again: Take out the two earbuds from the charging case, they will be paired and connect the mobile bluetooth automatically. (The last connected bluetooth device)

Earbuds indicator lights instruction:

A: Flash blue light slowly, no connection
B: Flash blue light by one time each 5 seconds, connected
C: Flash Red light, low battery
D: Flash red and blue light in turns, in pairing

Earbuds Charging:

1. Put the earbuds”TWS-X10Plus” into the charging case.
2. The earbuds indicator light is red when in charging.
3. After full charged, the earbuds indicator light change to blue for several seconds and turn to dark at last.

Charging case capacity and charging instruction:

1. LED screen shows the percentage of the case battery. Such as 50 means 50% of battery, 100 means 100% full battery capacity. Please disconnect the charging device when the case LED screen shows 100.
2. Please charge for the case in DC5V/1A, it will hurt even damage the charging case if input is over 5V/1A. (Only approved Charger)

Factory reset(left and right earbuds pair again):

When charge for the earbuds in the charging case, click the two earbuds by three times until flash red light by one time.Then take out the two earbuds and touch them for 5 seconds to power off, touch them again for about 5 seconds to red and blue light flash in turns. The two earbuds is pairing each other now, the master earbuds(the right) will keep flash red and blue light, while the left flash blue light by several seconds. Turn on the mobile bluetooth to search and connect the “TWS-X10Plus”.

Attention:

1. Do not open and refit the earbuds in any reason, in case of damages and burning. The manufacturer do not supply warranty if that.
2. Do not touch corrosive liquid with the equipment, in case of seriously damages. The manufacturer do not supply warranty if that.
3. Do not put the earbuds in temperature below 0 degree or above 45 degrees.
4. Avoid approaching the eyes of children or animals with the indicator lights.
5. Do not use the earbuds in thunderstorm weather, which have risk of electric shock.

Warning!
This product contains built-in lithium battery, do not expose under strong sunlight and throw into fire in case of explosion. Deal with batteries in accordance with local regulations, do not treat as household waste.
The user can not remove or replace the battery, which is dangerous and may damage the product. Charging as the picture indicate , tilt the headset into the charging slot.

FAQ:
Q: Charging case can not charge?
A: Please check the interface is plugged tight or not, and try to change a new charging cable. change a new charging cable.
Q: Earbuds can not charge?
A: Please check if the charging case have power or not. And clean the charging contacts.
Q: Earbuds can not power on?
A: Check if the earbuds have power or not, and try again.
Q: Why the mobile search out two bluetooth names of “TWS-X10 Plus’?
A: Cancel the two-TWS-X10Plus; Power off the earbuds and power on to search again.
Q: The volume is too small on the phone?
A: Try to turn up the mobile volume.
Q: How to connect two mobiles with one single earbud?
A: Connect with one mobile first, turn off the first mobile bluetooth. Then connect the earbud with another mobile. Turn on the first mobile at last.
Q: How long of the interconnection distance between the left and right earphone?
A: Within 3 meters without any obstruction.

1. After receiving the product, please remove the charging protection film on the headset for the first time, and then put it into the charging case and pick it up, and it will power on it into the charging case and pick it up, and it will power on automatically. You just need to take out your phone and open the bluetooth to search the tws-x10Plus connection.
2. If you need two headphones to connect two mobile phones separately, please follow the instructions to enter the single earbud mode.
3. In the future, if the headset is not automatically connected to the phone, please ignore the device and search for “TWS-X10Plus” again.
4. When the left and right headphones are not paired with each other, it means that you are in the single ear mode. If you restore the binaural mode, please follow the instructions to factory reset.
5. The touch panel of the earphone is very sensitive. Please avoid accidental contact with the finger surface or other objects, causing the music to be paused.After you get used to it, you will feel that this function is very good.
6. When your Bluetooth list searches for two -TWS-X10Plus”. Indicate that you have previously connected a single headset. You can forget these devices and search again, then turn off Bluetooth and turn it back on, a “TWS-X10Plus” will appear.

For better music experience,suggest to use 1058.0 and Android 4.3 or above operation system.

ATTENTION!
To ensure the earbuds have more longer standby time, factory stick protection films on the earbuds charging contacts. For first use, please remove the protection films first, then put the two earbuds Into the charging case, take out the two earbuds again at last. The two earbuds will power on and pair automatically.

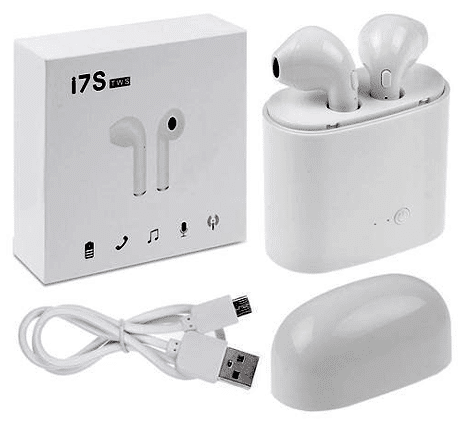

I7 TWS Bluetooth Earbuds User Manual

TWS
True Wireless Stereo Earphones
V4.2+EDR

Specifications:
True wireless stereo (TWS), real no wires design, individual left and right channel. HIFI sound, both the left and right earbud are Bluetooth enabled, could be used separately, or used as one pair.

• Bluetooth version: V42+EDR (both sides), ultra low consumption
• Bluetooth Mod: A2DP1.3/HFP1.6/H5P1.2/AVRCP1.6/0.11.3.
• Bluetooth Frequency: 2.4GHZ
• Bluetooth Range: 12 meters with no obstacles
• Battery capacity: Earbud: 65mah rechargeable Li-ion battery Charging dock:950mah (optional)
• Talk/Play time: Single earbud mode:5-6 hours One Pair earbuds mode:4-5 hours
• Standby time: Single earbud mode:100 hours One Pair earbuds mode:60 hours

About pairing:

1. Pairing with one earbud: long press the multi-function button until the led flashing in red and blue alternately, then turn on the Bluetooth on your device and select” HBQ-i7tws” on your list, there would be reminding voice saying” connected’ then you could enjoy music or making phones calls, it supports reporting incoming calls.
2. Pairing with both sides:

• long press the multi-function buttons of both sides at the same time until the led flashing in red and blue alternately;
• then double click EITHER side to enter pairing mode, there would be reminding voice” ready to pair”
• turn on the Bluetooth on your device and choose” HBQ-17TVIfS’ to connect when the led flash slowly in blue, they pair successfully. Battery status display on your cellphone

NOTE: THERE would be only one earbud working when making/answering phone calls, but both sides could control power off/play/pause function individually when connected, the other one would be synchronized. Memory function supports connecting devices automatically if being .

Bluetooth usage:

1. Making phone calls:
   Be sure the earphone connected with your mobile phone, and then you can make phone calls. When making calls, there is only one side earphone working, and there s incoming call, it would broadcast calling numbers. You answer the call by slightly press the power button one time and refuse to answer by quick press the power button 2 times. When the earphones are in music mode, you dial your latest number by quick press the power button 2 times(redial the latest number).
2. Listening to music:
   Be sure the earphone connected with your mobile phone, then you can listen to music on your music list. Shortly press the power button to stop the music and replay by press again.
3. power off.
   Long press the power button until led in red when not use, the Bluetooth device enter off mode. It would be power off automatically when the earphone away from your Bluetooth device over 5 minutes. No need to worry power exhausted.
4. Charging:
   There is reminding sound when battery is low, and the led would flash in red at the same time. When taking charge, the led would be in red, and turns in blue when fully charged. Note: the earphone would be forced to shut down when charging even if they are power ON before charging.
5. Switch language modes
   The earbuds enter pairing mode when led flash in red and blue alternately, long press the multi-function button to switch mode from Chinese to English (reminding voice” English mode” )

Warnings:

1. Please do not overuse this earphone or put it under heavy pressure, keep away from wet and heat.
2. Keep away from WIFI, router or other high frequency transmitting equipment to prevent interruption of signal receiving.
3. Please use this earphone under its working range (10meters), and the effect would be better if there is no obstacle between the connected devices.
4. Use this Bluetooth earphone to connect any device with Bluetooth function

Summary

1. Dust-proof mesh
2. Multi-function button
3. MIC
4. Charging port
5. Charging Box Light
6. Android Charging port

FCC Warning Statement

Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This equipment
has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

‐‐ Reorient or relocate the receiving antenna.
‐‐ Increase the separation between the equipment and receiver.
‐‐Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
‐‐ Consult the dealer or an experienced radio/TV technician for help.

This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions:

(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.

FAQS

Is i7s TWS is good?

If you are interested in the sound quality of these cheap wireless earbuds, then it matches the price. The sound is a bad, flat, and it lacks bass. is not as good as that of high-class or medium earbuds, But, it is still good compared to other cheap brands of TWS headphones.

How do you use i7 TWS earbuds?

Pairing with one earbud: long press the multi-function button until the led flashing in red and blue alternately, then turn on the Bluetooth on your device and select ”i7tws” on your list, there would be reminding voice saying ”connected”, then you could enjoy music or making phones calls, it supports reporting .

What is a TWS i7?

True Wireless Stereo Earphones. V4.2+EDR. Specifications: True wireless stereo (TWS), real no wires design, individual left and right channel. HIFI sound, both the left and right earbud are Bluetooth enabled, could be used separately, or used as one pair.

Are TWS earbuds good?

These can come close to some of the best-wired earphones, and some can even be considered audiophile grade in terms of audio quality. It is a commendable feat that the TWS’ has come a long way from being a niche gadget a few years ago.

Are i7s TWS AirPods fake?

When talk about the Apple AirPods, you must have known some fake AirPods. Those have a similar appearance and similar sound quality to the real AirPods, but only cost 1/10 of the real AirPods. Such as the i7 TWS earbuds, which is the most popular AirPods 2 alternative.

How long do i7s TWS last?

Built in high performance lithium battery 60mah, enjoy about 4 hours of high quality call time, standby time of up to 120 hours. With 1000 mAh Charging Power Bank Dock Interface, the battery can be quickly filled in 80 minutes for more than 7 times.

How do you turn on i7 TWS earbuds?

Pairing with one garland, long press the multifunction button until the led flashing in red and blue al. rnatey then turn on the Bluetooth on your device and select- HBQ-17tvis on your list, there would be reminding voice saying” connected’ , then you could enjoy music or making phones calls.

Is i7s waterproof?

i7s tws Headphones Bluetooth 5.0 Earphones Wireless Headsets Stereo Bass Earbuds In-ear Sport Waterproof Headphone free shipping.

Which type of TWS earbuds is best?

Although the fit feels a bit precarious because of the size of the earpieces, and control customisation options are limited, the Sony WF-1000XM4 is among our top picks because of its support for LDAC, which works stably and without any connection issues

Which is better TWS or headphones?

Earbuds are generally more compact, more affordable and more workout-friendly than their canned counterparts. On the flip side, headphones often deliver the best possible audio quality and noise cancellation of the two, not to mention much better battery life — so long as you’re willing to pay the extra premium.

What is TWS?

It’s called True Wireless Stereo (TWS), and it’s a unique Bluetooth feature that will let you enjoy true stereo sound quality without the use of cables or wires. TWS works as follows: You pair a primary Bluetooth speaker to your preferred Bluetooth-enabled audio source.

How does i7s TWS AirPods work?

Step 1: Take out one side of i7s TWS earphone from charging case. Step 2: Press and hold the multifunctional button until the LED light flash red and blue alternately. Step 3: Turn on the Bluetooth on your first mobile phone. Step 4: Select “TWS-i7s”in the Bluetooth list.

Can someone use stolen AirPods?

Unfortunately, there’s no way you can block your lost or stolen AirPods from getting used by another person. The AirPods do not connect to Wi-Fi, which means you cannot remotely control them or lock them

How do you put TWS earbuds in pairing mode?

Press and hold the multi-function key for 6 seconds of both earphones simultaneously, release when the indicator lights turn in red and blue, and response with a voice prompt: “PAIRING”, then they will be paired and connected automatically and response with a voice prompt: “CONNECTED”.,

How do you know when your wireless earbuds are charged?

You can charge earbuds by USB cable, connect to charge, and once the case is fully charged, it will indicate light, and then you have to put your earbuds in the case, and earbuds will start charging.

Are wireless earbuds safe?

For the moment, here’s what the United States Federal Communications Commission (FCC) says about wireless devices and your health: “Currently no scientific evidence establishes a causal link between wireless device use and cancer or other illnesses.

What are true wireless earbuds?

True wireless headphones refer to Bluetooth earbuds or IEMs that have neither cords or wires between them nor to an audio source (smartphones, MP3 players, tablet, etc.). Since they have no wires, the mic, controls and battery are built into the housing of the earbuds.

Which TWS is good for calls?

The best TWS for calling is the OnePlus Buds Z. These earpods offer 2 microphones for the best calling experience on TWS earbuds. These earbuds have Bluetooth v5. 0 and have a great sound quality too.

Can you use any wireless earbuds with iPhone?

You can use any headphones that terminate into a standard 3.5mm connector. The one downside is that you won’t be able to charge your iPhone with a Lightning cable while listening to music.

How many years do wireless earbuds last?

Wireless earbuds can last quite a long time when cared for property. Most can last somewhere between 2-3 years, while others can even last 5+ years. If an accident occurs, most manufacturers supply a great warranty.

Specification of Earbuds

1. Product Name: TWS V5.1
2. Wireless version: V5.1
3. Protocol: Supports HFP 1.7, HSP 1.2, AVRCP 1.6, SPP 1.2 and PBAP 1.0
4. Speaker Diameter: 8mm
5. Working distance: 10m-20m
6. Call Time: 5-6H (1 time full charged)
7. Play Music Time: 5-6H (1 time full charged)
8. Standby time:650H (With charger case)
9. Frequency:2402MHz-2480MHz
10. Battery type: 3.7V, >50mA Li Battery
11. Charging Time: 1-2H
12. Working Temperature: -10°-55°

Specification of charger case:

1. Input current: 5V-1A
2. Output current: 5V-1A
3. Battery type: 3.7V
4. Charging time:1-2H

How to operate the earbuds:

1. Make sure that the charging case has electricity. If the charging compartment is out of power, please fully charge the charging compartment;(Pick up the two earbuds and put them back on the cover. The charging compartment indicator lights up to indicate that there is power. If it does not light, it means no power.)
2. Take the two earbuds out of the charging case and wear them on the left and right ears respectively. The earphones will automatically turn on and automatically pair;(Voice prompt: power on, left channel, right channel, waiting for connection).
3. Turn on the phone Bluetooth and click on the connection pair name “TWS V5.1” to connect (voice prompt “Connected”).

How to pairing

Warming remain

For the first time to use the earbuds or for a long time to no use, please charge the charging case and earphones before, Please keep it in an unobstructed and effective environment within 10 meters. Otherwise, it may be stuck and disconnected.

Indicator description:

1. Charge the earbuds: Put the earbuds into the charging case and cover it to charge.
   earbuds indicator: Lights up red when charging, and red light when fully charged. The charging case flashes green and the light is off after charging.
2. Charge the charging case: Plug the SV/1A USB into the charging port to charge. During charging, the middle digit of the charging stand display indicates the charging case power. When the number is displayed as “100” , the battery is fully charged.
   Charging case indicator light: The charging flashes green light, and the light is off after charging.
3. Charge to the mobile phone; 3 Charge the mobile phone: Connect USB Cable to USB port of case to charge the mobile ChargingCase indicator light: Light will turn green when charging and turn off when fully charged.

Warming remain

For the first time to use the earbuds or for a long time to no use, please charge the charging case and earphones before, Please keep it in an unobstructed and effective environment within 10 meters. Otherwise, it may be stuck and disconnected.

Indicator description:

CI Charge the earbuds: Put the earbuds into the charging case and cover it to charge.
earbuds indicator: Lights up red when charging, and red light when fully charged. The charging case flashes green and the light is off after charging.

1. C) Charge the charging case: Plug the SV/1A USB into the charging port to charge. During charging, the middle digit of the charging stand display indicates the charging case power. When the number is displayed as “100”, the battery is fully

Charging case indicator light: The charging flashes green light, and the light is off after charging.

1. C) Charge to the mobile phone; 3 Charge the mobile phone: Connect USB Cable to USB port of case to charge the mobile ChargingCase indicator light: Light will turn green when charging and turn off when fully charged

In master-slave synchronous binaural mode, double-click on one of the headphones is the previous song, and double-click the other headset is the next song!

The functions of volume + / – are as follows: quickly triple-tap “a” for volume +, and triple-click “B” for volume-

Single Earbud Mode

Version 5.1 can achieve seamless connection, master-slave synchronization, no need to distinguish the primary and secondary. At present, single-ear use does not need to switch signals, only need to connect a good signal name for the first time, and then take out any earphone, can automatically complete the connection. There is no need to pair single ear connections separately. If a single ear signal is connected separately, which makes it impossible to use both ears, you only need to delete one ear signal, Team up again manually once again!

Headset signal name

“L” Headset signal name: TWS V5.1
“R” Headset signal name: TWS V5.1

If you can’t use both ears, you just need to delete the single ear signal and manually form a team again! (team building method: turn on two headphones at the same time, double-click any one of them, wait until one of the headphones lights out, and then it is finished.)

Special Note: The two earbuds are well-paired before packaged, but if they can not be paired well due to some wrong operations, pls. do as following steps to re-pair the earbuds. Power of the two earbuds, then press the button of the two earbuds at the same time and do not release for about 10s, blue lights sparkled —-> red and blue lights sparkled alternatively —> release —>two earbuds are in the situation of paired, and they are ready for phone searching.

Note: This operation also clears the team record between the phone and the earbuds, so you need to delete the Bluetooth pairing record before the phone and then search for the connection again.

Care and maintenance:

1. To avoid any misoperation caused by collision put the earbud in a charging case before putting in your pocket
2. Do not use an abrasive cleaner to clean the Bluetooth earbuds.
3. Do not expose the Bluetooth earbuds to excessive temperature.
4. Do not expose the earbud under the blazing sun for a long time
5. Do not let the Bluetooth earbuds be close to the fire source.
6. Do not drop, bump, scratch, twist, tap, crush, or put into the water.
7. Keep away from magnets, appliances, and speakers when using Bluetooth earbuds
8. Do not place the Bluetooth earbuds in extreme temperature (use ambient operating temperature range -10°C-55°C)
9. Do not expose the Bluetooth earbuds to moisture.
10. If you do not use the Bluetooth earbuds for a long time, please charge it fully and charge it once a week to extend the life of the Bluetooth earbuds.

Safety guidance:

1. please use the standard 5V charger (4.9-5.5V)
2. Do not place the charging case and the Bluetooth earbuds next to the flammable explosives.
3. Do not disassemble the charging case and Bluetooth earbuds, or insert other items into the product to avoid damage to the product or even cause harm to you.

Serious warning:

Do not use this product while charging. Please use the adapter specified by the manufacturer to charge the product. Do not disassemble the built-in lithium battery. Do not let the metal contact or short the electrode. Do not touch or squeeze the battery to avoid Place in a humid or hot (>60 ° C) environment.

Warranty Card

Warranty certificate, please fill in and keep it safely

Packing details:

FAQS

Why won’t my earbuds stay in my ears?

“If your ear canal is ‘too big,’ then there’s nothing for the earbuds to sit against, so they’ll fall out very easily,” Dr. Voigt. “And if the ear canal is ‘too small,’ the earbud won’t be able to go in deep enough to fit properly, so it can pop out.”

Does TWS damage your ears?

While these little sonic feeding tubes can ease our minds and moods with satisfying sounds, they can also damage our hearing

Why is my TWS blinking red?

If your headphones are flashing red or amber, it usually means the battery is running low. An orange light may mean the battery is at a medium level and you need to charge the headphones in a few hours. It may also mean that the headphones are currently charging.

Can you sleep with TWS earbuds?

Yes, there is no harm in wearing headphones while sleeping, just as long as your earbuds are comfortable enough to keep from disrupting you during the night. Listening to music or a relaxing podcast before you go to bed can lower your heart rate, and keep your mind from thinking about your daily stressors.

Do TWS earbuds fall out?

While they’re usually specifically designed to sit securely inside your ears, wireless earbuds can certainly fall out.

What are the disadvantages of TWS?

While TWS Earbuds are wireless, taking it down to talk to someone in public is quite a hassle as you will have to take out your casing and putting your earbuds in the case itself. However, the higher range of TWS earbuds now have hear through or environmental hearing to aid that problem.

Why is my TWS won’t pair?

Turn off Bluetooth setting on your device. Remove earbuds from case, they will turn on automatically. Double press both the left and the right earbuds simultaneously to sync them manually. NOTE: if it doesn’t work the first time, try it again.

Is TWS V5 1 waterproof?

[IPX7 Waterproof and Sweat-proof]: Don’t wofry about sweating during exercise Can also be worn when taking a bath,multi-process design of the head body Effectively prevents sweat from damaging components.

Is TWS a good brand?

If you want the answer in one line: yes, they are good. If you compare them to ordinary Bluetooth earphones, they have many advantages. First of all, they have a true wireless structure.

How do you know when TWS earbuds are fully charged?

The charging earbuds will flash red lights until fully charged. Once fully charged the red light will turn off.

Why is my TWS not charging?

Inspect the charging port of your headphones for any damage like bent connectors or bent metal. Also, make sure that the port itself isn’t loose when you touch it, as this could be a sign that the connectors have detached from the headset.0

What is TWS button?

It’s called True Wireless Stereo (TWS), and it’s a unique Bluetooth feature that will let you enjoy true stereo sound quality without the use of cables or wires. TWS works as follows: You pair a primary Bluetooth speaker to your preferred Bluetooth-enabled audio source.

Why do people use TWS?

Real Wireless Stereo (TWS) is so named because it allows you to experience true stereo sound quality without the usage of cords or wires.

What is difference between Bluetooth and wireless headphones?

The primary difference lies in how the headphones connect to a media player. While Bluetooth headphones use short-range radio waves to transmit audio signals, wireless headphones can use radio waves, infrared, internal memory, or KleerNet.

Why is TWS so expensive?

Since the expensive TWS earbuds have Active Noise Cancellation or other background-restricting mechanisms the final call quality is as good as a phone’s microphone. So if you need a good call quality from your next wireless earbuds then go for a higher number of mics on offer and noise cancellation.

What is the difference between TWS and AirPods?

 The Apple AirPods Pro Truly Wireless are better in-ears than the JBL Live Free NC+ TWS True Wireless. While both have a comfortable fit, the Apple are better-built, their ANC can block out more ambient noise, and they have higher total battery life.

]]> https://itsmanual.com/tws/yym008-speaker/ Sat, 24 Jun 2023 13:41:34 +0000 https://itsmanual.com/?p=119728 Read More...

USER MANUAL FOR # Z12409

OUICKSTART FOR PAIRING

POWER ON

• Take the AIRBUS out of the case, AIRBUS will turn on automatically
• Or touching both AIRBUDS sensor areas for 3 seconds, AIRBUS will power on and you will hear sound ‘power on
• Earbuds will pair with each other automatically when powered on

POWER OFF

• Put the AIRBUS in the charging case. AIRBUS will turn off automatically
• Or touching both AIRBUDS sensor areas for 5 seconds, AIRBUS will power off and you will hear ‘power off’
• The AIRBUS will power off automatically if powered on for 3-5 minutes but not connected to any devices

AIRBUS TWS

• Driver: Tommy
• Frequency: 20hz – 20khz
• Impedance: 320
• Sensitivity: 100DB +/-5DB
• Capacity: Airbus 45mAh/charging case 350mAh
• Playing time: 3Hours
• Charging time:1-1.5H
• BT version: 5.0
• Distance:33ft
• Chip: JL
• Charging voltage and currents:
  Case: DC 5V/500mA Airbus: DC 5V/40mA

PAIR THE AIRBUS WITH YOUR DEVICE.

1. Make sure the connection is within 10ft between the earbuds and your mobile device
2. After turning on both earbuds, wait for 3.8 seconds for pairing to each other. Once paired to each other, the indicator on the master side flashes in red and blue interactively, and the other earbud indicator flashes in slow blue only.
3. Activate your Bluetooth in your device, and select “AIRBUS TWS” to pair. Once successfully paired with your device, the indicators on each earbud will turn off.

‘Noted: If the earbuds fail to pair with each other, you need to pair them by the below steps:

1. Turn off the earbuds by long-pressing the sensor area for 3 seconds (All LED indicators will turn off)
2. Turn off your Bluetooth on your device, and power on both earbuds via long-press both earbuds sensor area for 3 seconds.
3. Quick touching 3 times left earbud, there is a sound ‘Bluetooth connected:
4. After the earbuds pair successful, the left earbud will flash red/blue, the right earbud will flash blue every 5 seconds.

REPAIR THE EARBUDS WITH YOUR DEVICE
When turning on the earbuds, they will automatically pair with the device that was paired previously.

ANSWER/REJECT THE CALL

• To pick up an incoming call, touch 1 time of the sensor area to answer, or pick up the call via phone.
• Long touching 2 seconds of the sensor area to reject an incoming call.
• To hang up a call, touch 1 time of sensor area to hang up the call when it’s in a phone call.
• Long touching 2 seconds of the sensor area to redial the last number in your calling history.

Music

• Touching 1-time sensor area to play / pause
• Long press RIGHT earbuds sensor area for 3 seconds to wake up siri
• Double click the LEFT earbuds sensor area to the previous track
• Double click the RIGHT earbuds sensor area to the next track
• Click the LEFT earbuds sensor 3 times to decrease the volume
• Click the RIGHT earbuds sensor 3 times to increase the volume.

Charging the Earbuds

• There is a prompt sound ‘Low battery’ if the earbuds battery low
• The led light up and hold red when earbuds are charging
• Led turn off when the earbuds are full charged

The Charging Case

• The led light up and holds red when the case is charging
• Led turn off when the case is fully charged
• Press the power button on the case to start/stop charging the earbuds
• The case’s LED light up and hold blue when it charging the earbuds
• The case’s LED flashes blue when the case battery is low, please use the micro cable charging the case FM2 Make sure the below points are read in advance in case of an unsuccessful pair with your device:

F&Q

Make sure the earbuds are in pairing mode. make sure the Bluetooth in your device is activated.

• Make sure both earbuds are charged with power.
• Can I change the battery in my earbuds and charging case?—The battery of the earbuds are with a non-removable battery.
• Make sure the charging case is pre-charged before you plug the earbuds into the charging case to charge your earbuds.

Instruction of safety use to charge the lithium battery.

• Charging case Input: DC 5V/500mA
• Please use the USB charger that is with safety compliance(not included)
• Charging environment: 10- 50 Celsius degrees
• Please do not expose the product under solar light or in a fire environment.
• Please turn off the product after using it.
• After the indicator Red color off, the Blue color lights up and after 10-15 minutes it turns off, it’s indicating that the power is fully charged.
  Here the indicator turns into blue color for only 10-15 minutes is to minimize the power consumption from the charging case after the earphones get fully charged, otherwise, if the indicator keeps the blue color on after the earbuds get charged, the battery of the charging case will lose out fast.

2020 AFH INDUSTRIES INC. ALL RIGHTS RESERVED.
AIRBUS IS A REGISTERED TRADEMARK OF AIRBUS LTD. MANUFACTURED AND SERVICED BY AFH INDUSTRIES INC. 110 WEST 34TH STREET. 7TH FLOOR. NEW YORK, NY 10001 FOR PATENTS: AIRBUDS.COM/PATENTS CONTENTS AND COLORS MAY VARY FROM ILLUSTRATED. THE  BLUETOOTH WORD MARK AND LOGOS ARE OWNED BY THE BLUETOOTH SIG, INC. FOR AGES 12+. THIS IS NOT A TOY. I MADE TO CHINA.
