QUICK START GUIDE

IMPORTANT SAFETY INSTRUCTIONS

• Read these instructions – All the safety and operating instructions should be read before this product is operated.
• Keep these instructions – The safety and operating instructions should be retained for future reference.
• Heed all warnings – All warnings on the appliance and in the operating instructions should be adhered to.
• Follow all instructions – All operating and use instructions should be followed.
• Do not use this apparatus near water – The appliance should not be used near water or moisture – for example, in a wet basement or near a swimming pool and the like.
• Clean only with a dry cloth.
• DO NOT：
  • Block any ventilation openings. Always install in accordance with the manufacturer’s instructions.
  • Install near any hear sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
  • Use a polarized plug for this television. A polarized plug has two blades with one wider than the other. A grounding-type plug has two blades and a third grounding prong. The wide blade (or third prong) is provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for a replacement of the obsolete outlet.
• Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
• Only use attachments/accessories specified by the manufacturer.
• Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart apparatus combination to avoid injury from tip-over.

• Unplug this apparatus during lightning storms or when unused for long periods of time.
• Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as the power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
• Keep unit in a well-ventilated environment.
• WARNING:
• To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. The apparatus should not be exposed to dripping or splashing. Objects filled with liquids, such as vases should not be placed on the apparatus.
• The batteries shall not be exposed to excessive heat such as sunshine, fire, or the like.
• The main plug is used as a disconnect device, the disconnect device shall remain readily operable.
• To reduce the risk of electric shock, do not remove the cover (or back) as there are no user-serviceable parts inside. Refer servicing to qualified personnel.

This symbol is intended to alert the user to the presence of non-insulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock.

This symbol is intended to alert the user to the presence of important operating and maintenance instructions in the literature accompanying the appliance.

This equipment is a Class II or double insulated electrical appliance. It has been designed in such sway that it does not require a safe connection to electrical earth.

This product contains electrical or electronic materials. The presence of these materials may, if not disposed of properly, have potential adverse effects on the environment and human health. The presence of this label on the product means it should be disposed of as unsorted waste and must be collected separately. As a consumer, you are responsible for ensuring that this product is disposed of properly.

The terms HDMI and HDMI High -Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc in the United States and other countries.

The FCC Wants You to Know

FCC STATEMENT

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesired operation. Changes or not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

1. Reorient or relocate the receiving antenna.
2. Increase the separation between the equipment and receiver.
3. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
4. Consult the dealer or an experienced radio/TV technician for help.

FCC Radiation Exposure Statement

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.

This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.

Responsible Party –
Company: Westinghouse Electronics
Address: 6255 Providence Way, Eastvale, CA 92880
Tel ：(800)-701-0680

This Quick Start Guide is provided so that you can properly set up your new TV.

Westinghouse WVEP615, WVEP617 Oven

Quick Start Guide
WVEP615, WVEP617 oven series

Dear Customer,
Thank you for purchasing a Westinghouse oven. You have chosen a product that comes from a history of durable and reliable products loved by many families.  We look to help you make the most of your time at home, so you can spend your time doing what you really love, with the ones you love.
Welcome to Westinghouse.

Ready

This is a Quick Start Guide. Please refer to user manual online for detailed information and installation
To access your detailed user manual online, simply scan the QR code on your smartphone.
For more detailed information and installation guide refer to user manuals at westinghouse.com.au/manuals

HTTPS://DELIVR.COM/2GUXK-QR

Before you start, please make sure:
Your oven has been correctly installed by a qualified person.
Your oven has power and is switched on.
You’ve removed all relevant packaging.

Most of the packaging materials can be recycled. Please dispose of them at your local recycling center or in your own recycling bin.

Set…
Get to know your oven control panel:

1. On when the timer is set
2. On when oven is warming up
3. 3 bars displayed when oven reaches set temperature
4. On when oven cooling down
5. Touch to toggle through cooking time & oven set temp
6. Touch to toggle through the timer modes
7. Touch to start timer mode. Hold to turn oven light on/off
8. End time icon
9. Cook time icon
10. Time of day icon

Set…

Installing the oven accessories

1. Install telescopic slides (where supplied) to the side racks. Refer to installation guide supplied with oven slides.
2. Insert side racks
   There is a left-hand and right-hand version (see image).
   1. Insert the rear peg into the rear access hole, ensuring that the peg is fully inserted.
   2. Then locate the front peg into the front access hole and push in firmly.

3. To fit a shelf or tray to side racks:

1. Locate the rear edge of the shelf in between guide rails of the side rack. Ensure the same rail positions on both sides of the oven are being engaged.
2. With the front edge raised, slide the shelf into the oven.
3. Once the detents have passed the front edge of the side rack, the shelf can be pushed completely in.

4. Fit shelf/tray (where supplied) to telescopic slides
   1. Push the shelf or tray along the top of the slide until it hits the back post.
   2. Drop the front of the shelf or tray onto the slide ensuring it sits behind the front post of the slide.
   3. When fully inserted the shelf/tray should not interfere with the closed oven door.

Set the time

You must set the time before you can operate your appliance.

1. When power is supplied to the oven, the clock icon will be displayed. Along with the clock symbol the “12” will be flashing.
   This indicates that the “hour” portion of the time is ready to be changed.
2. Toggle the temperature selector or , then touch when you have the right hour.
3. The minutes will flash and can be set in the same manner. 5 seconds after the last change, the clock display will stop flashing, confirming that the time has been set.
   NOTE: The clock has a 24-hour display.

Condition the oven (to burn off any residue)
New appliances can have oil or residue left from manufacturing. You will need to heat your oven for 30 minutes before using it for the first time.

1. Turn the function selector dial to FAN FORCED
2. Using the temperature selector, set the oven at 180°C for approximately 30 minutes. Please ensure that the room is well ventilated during this process.

Go!

You’re ready to use your new Westinghouse appliance. A few tips from us:

• Remember to pre-heat each time.
  For best cooking results pre-heat the oven. Pre-heating allows the oven to reach the required temperature quickly and efficiently as well as cook food at the correct temperature for the entire cook time. Recommended pre-heat time is 30 mins for baking and 3 minutes for grilling.
• Choose the right program for the best result:

FAN FORCED		This setting is best used when cooking on multiple shelves at once or reheating complete meals for your family.
FAN & GRILL		When cooking large cuts of meat, this setting gives you result that is similar to ‘rotisserie’ cooked meat. When using ‘Fan Grill’ it is not necessary to turn food over during the cooking cycle. Set temperature to 180°C and cook with the oven door closed.
GRILL		When it comes to cooking tender cuts of meat, steak, chops, sausages, fish, cheese toasties and other quick cooking foods the grill setting will get you the best results. By preheating your grill for 3 minutes this will help in sealing in the natural juices for a better flavour. Grill with the oven door closed.
EASY BAKE + STEAM		Steam helps you get a better rise, crispier crust, a fluffier center and tastier textures for all your bread, pastries, cakes, scones, and puddings at home. (WVEP617 models only)
AIRFRY		AirFry for that perfect, healthy crunch. When a food craving hits, make healthier and delicious food right in your oven. Deliver all the flavor and none of the guilt. AirFry allows you to make healthier tasty meals for the entire family – right in your oven. The only range with AirFry. (WVEP617 models only)

Refer to your full user manual for more details on oven functions.

Set your temperature
• Toggle the temperature selector (left – or + right ) as required to set the desired cooking temperature in °C.
Note: the temperature can be adjusted at any time throughout the cooking time.

Quick Start Guide
WVEP615, WVEP617 oven series

Easily register your product with your smartphone for quick access to all services and downloads

Step 1 Locate the label on the inside of your product door

Step 2 Photograph the camera icon, including the 4 dots (Ο)

FAQs

How do I turn my oven on?

Touch the on/off button. If the oven is already on, touch on/off again to turn it off.

How do I set the timer?

Touch “set” and then touch “timer”. The display will show “00:00”. Touch “+/-” to set the timer and then touch “set” to confirm. The display will show “00:00” and a countdown will start from this time.

How do I set the temperature?

Touch “temp” and then touch “set”. The display will show “0.0” degrees Celsius or “0.0” degrees Fahrenheit, depending on your setting. Touch “+/-” to set the temperature and then touch ‘;set’; to confirm. The display will show the temperature you have selected and a countdown will start from this time.

How do I turn my oven off?

Touch on/off and then touch on/off again to turn it off. If you have set a timer, you must cancel it first by touching cancel timer’; before turning your oven off.

What happens if I touch any button except for &”cancel timer” while my timer is counting down?

Your oven will not be affected in any way if you touch any button except for &”cancel timer” while your countdown is counting down, except that it may take longer for your oven to reach the temperature or cooking time you have selected if you change settings during cooking or baking (e.g., if you change temperature). Note that if you change settings during cooking or baking (e.g., if you change temperature)

Step 3 Text image to 0488 446 622 (AUS only) or upload at westinghouse.com.au/photoregister

HTTPS://DELIVR.COM/2GUXK-QR

Need more help?
To access your detailed user manual online, simply scan the QR code on your smartphone.

Contact us if you need more help
Electrolux Home Products Australia
telephone: 13 13 49
email: [email protected]
web: electrolux.com.au

Electrolux Home Products New Zealand
telephone: 0800 436 245
email: [email protected]
web: electrolux.co.nz

and WESTINGHOUSE is trademarks of Westinghouse Electric Corporation. Used under license by Electrolux Home Products Pty Ltd. All Rights Reserved.
© 2019 Electrolux Home Products Pty Ltd. ABN 51 004 762 341 WQSG_WVEP615_WVEP617_Nov19 ANC A19049301 RevA (Assy ANC A19049401 RevA)

USER MANUAL

FREESTANDING MICROWAVE
WMF2302SA, WMF2302WA

CONGRATULATIONS
Dear Customer,
Congratulations and thank you for choosing our microwave. We are sure you will find it a pleasure to use.  Before you use the microwave, we recommend that you read through the relevant sections of this manual, which provides a description of your appliance and its functions. To avoid the risks that are always present when you use an appliance, it is important that the appliance is installed correctly and that you read the safety instructions carefully to avoid misuse and hazards. We recommend that you keep this instruction booklet for future reference and pass it on to any future owners. After unpacking the appliance, please check it is not damaged. If in doubt, do not use the appliance but contact your local customer care center.

Conditions of use
This appliance is intended to be used in household and similar applications such as:
• Staff kitchen areas in shops, offices, and working environments
• Farmhouses
• By clients in hotels, motels, and other residential type environments
• Bed and breakfast type environments
• Catering and similar non-retail applications

Please ensure you read the instruction manual fully before you call for service, or a full-service fee could be applicable.
Record model and serial number here:
Model number:…………………………………………………………………………….
Serial number: ……………………………………………………………………………..
PNC: ……………………………………………………………………………………………….
IMPORTANT INFORMATION THAT MAY IMPACT YOUR MANUFACTURER’S WARRANTY
Adherence to the directions for use in this manual is extremely important for health and safety. Failure to strictly adhere to the requirements in this manual may result in personal injury, property damage and affect your ability to make a claim under the Westinghouse manufacturer’s warranty provided with your product.  Products must be used, installed, and operated in accordance with this manual.  You may not be able to claim on the Westinghouse manufacturer’s warranty in the event that your product fault is due to failure to adhere to this manual.

Please read the user manual carefully and store it in a handy place for later reference. The symbols you will see in this booklet have these meanings:
WARNING
This symbol indicates information concerning your personal safety.
CAUTION
This symbol indicates information on how to avoid damaging the appliance.
IMPORTANT
This symbol indicates tips and information about the use of the appliance.
ENVIRONMENT
This symbol indicates tips and information about the economical and ecological use of the appliance.

GENERAL WARNINGS

Please read the user manual carefully and store it in a handy place for later reference. Pass the user manual on to possible new owners of the appliance.  Read the following carefully to avoid damage or injury. NOTE: You must read these warnings carefully before installing or using the appliance. If you need assistance,  contact your Customer Care Department.  The manufacturer will not accept liability, should these instructions or any other safety instructions incorporated in this book be ignored. Children and vulnerable people safety.  Please read the user manual carefully and store it in a handy place for later reference. Pass the user manual on to possible new owners of the appliance. Read the following carefully to avoid damage or injury. NOTE: You must read these warnings carefully before installing or using the appliance. If you need assistance, contact your Customer Care Department. The manufacturer will not accept liability, should these instructions or any other safety instructions incorporated in this book be ignored. Children and vulnerable people safety.
WARNING
Risk of suffocation, injury, or permanent disability.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• WARNING: Accessible parts may become hot during use. Young children should be kept away.
• Keep all packaging away from children.
• Keep children and pets away from the appliance when it operates or when it cools down. Accessible parts are hot.
• If the appliance has a child safety device, we recommend that you activate it.

CAUTION
It is important to use your appliance safely. Check these safety points before using your appliance.
General safety

• During use the appliance becomes hot. Care should be taken to avoid touching heating elements inside the oven.
•  Do not use a steam cleaner to clean the appliance.
• Before maintenance isolates the power supply.
• If the door or door seals are damaged, the appliance must not be operated until it has been repaired by a competent person.
• The appliance is not intended to be operated by means of an external timer or separate remote control system.
•  Only a competent person can carry out any service or repair operation that involves the removal of a cover that gives protection against exposure to microwave energy.
• Do not heat liquids and other foods in sealed containers. They are liable to explode.
• Only use utensils that are suitable for use in microwaves.
• When heating food in plastic or paper containers, keep an eye on the appliance due to the possibility of ignition.
•  The appliance is intended for heating food and beverages. Drying of food or clothing and heating of warming pads, slippers, sponges, damp cloth, and similar may lead to the risk of injury, ignition, or fire.
• If smoke is emitted, switch off or unplug the appliance and keep the door closed in order to stifle any flames.
• Microwave heating of beverages can result in delayed eruptive boiling. Care must be taken when handling the container.
• The contents of feeding bottles and baby food jars should be stirred or shaken and the temperature checked before consumption, in order to avoid burns.
• Eggs in their shell and whole hard-boiled eggs should not be heated in the appliance since they may explode, even after microwave heating has ended.
• The appliance should be cleaned regularly and any food deposits removed.
• Failure to maintain the appliance in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.
• The temperature of accessible surfaces may be high when the appliance is operating.
• Pay attention to the minimum dimensions of the cabinet. Refer to the installation chapter.
• This appliance is not suitable for building in and must not be installed in a cupboard or behind a decorative door, the ventilation requirements in this manual must be followed.
• Do not use harsh abrasive cleaners or sharp metal scrapers to clean the glass door since they can scratch the surface, which may result in shattering of the lass.
• If the supply cord is damaged, it must be replaced by the manufacturer, an authorized Service, or similarly qualified persons in order to avoid a hazard.
• Caution: In order to avoid a hazard due to inadvertent resetting of the thermal cut-out, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.
• WARNING: Ensure that the appliance is switched off before replacing the lamp to avoid the possibility of electric shock.

IMPORTANT SAFETY INSTRUCTIONS

Installation

WARNING
Only a qualified person must install this appliance.

• Remove all the packaging.
• Do not install or use a damaged appliance.
• Obey the installation instructions supplied with the appliance.
• Always be careful when you move the appliance because it is heavy. Always wear safety gloves.

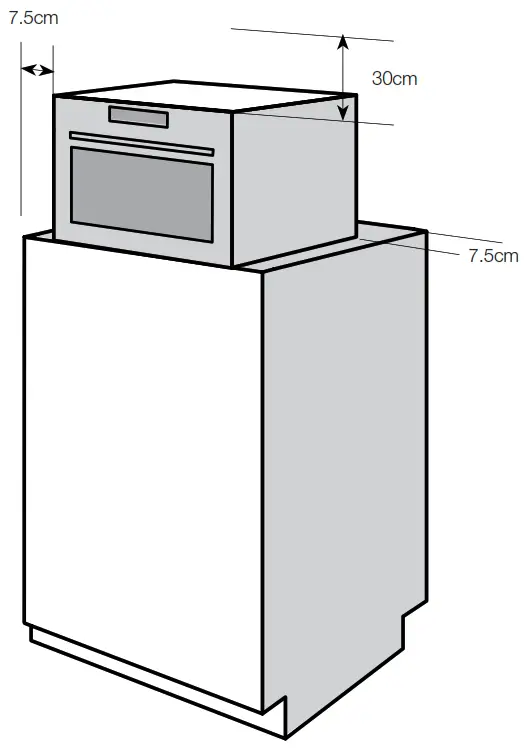

• Keep the minimum distance from the other appliances and units.
• The sides of the appliance must stay adjacent to appliances or to units of the same height.

Electrical connection

WARNING
Risk of fire and electrical shock.

• All electrical connections should be made by a qualified electrician.
• The appliance must be earthed.
• Make sure that the electrical information on the rating plate agrees with the power supply. If not, contact an electrician.
• Connect the mains plug to the mains socket only at the end of the installation. Make sure that there is access to the mains plug after the installation.
• Make sure not to cause damage to the mains plug and to the mains cable. Contact the Service Centre or an electrician to change a damaged mains cable.
• Do not pull the mains cable to disconnect the appliance. Always pull the mains plug.

Use

WARNING
Risk of injury, burns or electric shock, or explosion.

• Use this appliance in a household environment.
• Do not change the specification of this appliance.
• Make sure that the ventilation openings are not blocked.
• Do not let the appliance stay unattended during operation.
• Do not apply pressure on the open door.
• Do not use the appliance as a work surface and do not use the cavity for storage purposes.

Care and cleaning

WARNING
Risk of injury, fire, or damage to the appliance.

• Before maintenance, deactivate the appliance and disconnect the mains plug from the mains socket.
• Regularly clean the appliance to prevent the deterioration of the surface material.
• Do not allow food spills or cleaner residue to accumulate on door sealing surfaces.
• The remaining fat or food in the appliance can cause smoke/fire, particularly on the grill element.
• The remaining fat or food in the appliance can cause smoke/fire, particularly on the grill element.
• Clean the appliance with a moist soft cloth. Only use neutral detergents. Do not use abrasive products, abrasive cleaning pads, solvents or metal objects.
• If you use an oven spray, obey the safety instructions on the packaging.

Disposal

WARNING
Risk of injury or suffocation.

• Disconnect the appliance from the mains supply.
• Cut off the mains cable and discard it.

WARNING
If the door or door seals are damaged, the microwave must not be operated until it has been repaired by a competent person

• The microwave is for household use only and not for commercial use.
• Never remove the distance holder in the back or on the sides, as it ensures a minimum distance from the wall for air circulation.
• Please secure the turntable before you move the appliance to avoid damages.

It is dangerous to repair or maintain the appliance by no other than a specialist because under these circumstances the cover has to be removed which assures protection against microwave radiation. This applies to changing the power cord or the lighting as well. Send the appliance in these cases to our service center.

• The microwave is intended for defrosting, cooking, and steaming food only.
• Use gloves if you remove any heated food.

CAUTION
Steam will escape when opening lids or wrapping foil.

Specifications

Model: WMF2302SA / WMF2302WA
Rated Voltage: 230-240V~ 50Hz
Rated Input Power (Microwave): 1200-1250W
Rated Output Power (Microwave): 750-800W
Oven Capacity: 23L
Turntable Diameter: 270mm
External Dimensions: 485x375x293 mm
Net Weight: Approx. 13 kg

BEFORE FIRST USE

Make sure that all the packing materials are removed from the inside of the door.

WARNING
Check the microwave for any damage, such as misaligned or bent door, damaged door seals and sealing surface, broken or lose door hinges and latches, and dents inside the cavity or on the door. If there is any damage, do not operate the microwave and contact qualified service personnel.

• This microwave must be placed on a flat, stable surface to hold its weight and the heaviest food likely to be cooked in the microwave.
• Do not place the microwave where heat, moisture, or high humidity are generated or near combustible materials.
• Do not operate the microwave without a glass tray, roller support, and shaft in their proper positions.
• Make sure that the power supply cord is undamaged and does not run under the microwave or over any hot or sharp surface.
• The socket must be readily accessible so that it can be easily unplugged in an emergency.
• Do not use the microwave outdoors.

Radio Interference

Operation of the microwave can cause interference to your radio, TV or similar equipment. When there is interference, it may be reduced or  eliminated by taking the following measures:

• Clean door and sealing surface of the microwave.
• Reorient the receiving antenna of radio or television.
• Relocate the microwave with respect to the receiver.
• Move the microwave away from the receiver.
• Plug the microwave into a different outlet so that the microwave and receiver are on different branch circuits.
  Make sure that all the packing materials are removed from the inside of the door.

WARNING
Check the microwave for any damage, such as misaligned or bent door, damaged door seals and sealing surface, broken or lose door hinges and latches, and dents inside the cavity or on the door. If there is any damage, do not operate the microwave and contact qualified service personnel.

• This microwave must be placed on a flat, stable surface to hold its weight and the heaviest food likely to be cooked in the microwave.
• Do not place the microwave where heat, moisture, or high humidity are generated or near combustible materials.
• Do not operate the microwave without a glass tray, roller support, and shaft in their proper positions.
• Make sure that the power supply cord is undamaged and does not run under the microwave or over any hot or sharp surface.
• The socket must be readily accessible so that it can be easily unplugged in an emergency.
• Do not use the microwave outdoors.

Radio Interference

Operation of the microwave can cause interference to your radio, TV or similar equipment. When there is interference, it may be reduced or eliminated by taking the following measures:

• Clean door and sealing surface of the microwave.
• Reorient the receiving antenna of radio or television.
• Relocate the microwave with respect to the receiver.
• Move the microwave away from the receiver.
• Plug the microwave into a different outlet so that the microwave and receiver are on different branch circuits.

Grounding Instructions
This appliance must be grounded. This microwave is equipped with a cord having a grounding wire with a grounding plug. It must be plugged into a wall receptacle that is properly installed and grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. It is recommended that a  separate circuit serving only the microwave be provided. Using a high voltage is dangerous and may result in a fire or other accident causing microwave damage.
WARNING
Improper use of the grounding plug can result in a risk of electric shock.
NOTE:

• If you have any questions about the grounding or electrical instructions, consult a qualified electrician or service person.
• Neither the manufacturer nor the dealer can accept any liability for damage to the microwave or personal injury resulting from failure to observe the electrical connection procedures.
  The wires in this mains cable are colored in accordance with the following code:
  Green and Yellow = EARTH
  Blue = NEUTRAL
  Brown = LIVE

Microwave cooking principles

• Arrange food carefully. Place thickest areas towards outside of dish.
• Watch cooking time. Cook for the shortest amount of time indicated and add more as needed. Food severely overcooked can smoke or ignite.
• Cover foods while cooking. Covers prevent spattering and help foods to cook evenly.
• Turn foods over once during microwaving to speed cooking of such foods as chicken and hamburgers. Large items like roasts must be turned over at  least once.
• Rearrange foods such as meatballs halfway through cooking both from top to bottom and from the center of the dish to the outside.

Before you call for service
If the microwave fails to operate:

• Check to ensure that the microwave is plugged in securely. If it is not, remove the plug from the outlet, wait 10 seconds and plug it in again securely.
• Check for a blown circuit fuse or a tripped main circuit breaker. If these seem to be operating properly, test the outlet with another appliance.
• Check to ensure that the control panel is programmed correctly and the timer is set.
• Check to ensure that the door is securely closed engaging the door safety lock system. Otherwise, the microwave energy will not flow into the microwave.
  If none of the above rectifies the situation, then contact a qualified technician. Do not try to adjust or repair the microwave yourself.

Utensils guide

• Only use utensils that are suitable for use in microwave ovens.
• Microwaves can not penetrate metal, so metal utensils or dishes with metallic trim should not be used.
• Do not use recycled paper products when microwave cooking, as they may contain small metal fragments which may cause sparks and/or fires.
• Round/oval dishes rather than square/oblong ones are recommended, as food in corners tends to overcook.
• Narrow strips of aluminum foil may be used to prevent overcooking of exposed areas. But be careful don’t use too much and keep a distance of 1 inch (2.54cm) between foil and cavity.

WARNING
Refer to the Safety chapters
Initial cleaning
• Remove all parts from the appliance.
• Clean the appliance before first use.

WARNING
Refer to chapter “Care and cleaning”.
Setting the time
IMPORTANT
When you connect the appliance to the electrical supply or after a power cut, the display shows 0:00.
Setting the clock
When the microwave oven is plugged into an outlet,  “0:00” will display.

1. Press  Clock, “00:00” will appear in the display. The first figure will flash; “:” and “0” will be illuminated.
2. Press the number pads and enter the current
   clock time. For example, if the time is now 10:12, press “ 1, 0, 1, 2 “ in order.
3. Press Clock, to finish the clock setting, “:” will flash and the numbers will appear as a clock time in the display.
   NOTE:
   1. If the numbers entered are not within the range between 1:00 to 12:59, the setting will not be accepted until valid numbers are entered.
   2. In the process of the setting clock, if is pressed or if there is no operation within 1 minute, the display will automatically return to the previous clock setting.
   3. This microwave has an energy-saving feature that turns off the display if no buttons have been pressed within 1 minute, this is normal operation and not a product fault.

PRODUCT DESCRIPTION

1. Control panel
2. Turntable shaft
3. Turntable ring
4. Glass tray
5. Observation window
6. Oven door
7. Safety interlock system

Accessories
Turntable set
Glass cooking tray and roller guide.

IMPORTANT
Always use the turntable set to prepare food in the appliance

CONTROL PANEL

Model
WMF2302SA, WMF2302WA

1. Display window
2. Time/ Weight Defrost
3. Quick touch presets
4. STOP: Cancel Hold 3 seconds: Before cooking starts, press to clear all previous settings. During cooking, press once to stop the oven; press twice to stop oven and clear all settings. Hold  or 3 seconds to lock the appliance.
5. Timer
6. Clock
7. Power Level
8. Start + 30 SEC
9. Number Pad
10. Time Cook

DAILY USE

WARNING
Refer to the safety chapters.
CAUTION
Do not let the appliance operate when there is no food in it.
General information about using the appliance

• After you deactivate the appliance, let the food standfor some minutes.
• Remove the aluminium foil packaging, metal containers, etc before you prepare the food

Cooking

• If possible, cook food covered with material suitable for use in the microwave. Only cook food without a cover if you want to keep it crusty.
• Do not overcook the dishes by setting the power and time too high. The food can dry out, burn or catch firein some places.
• Do not use the appliance to cook eggs or snails in their shells, because they can explode. With fried eggs, pierce the yolks first.
• Prick food with “skin” or “peel”, such as potatoes, tomatoes, sausages, with a fork several times before cooking so that the food does not explode.
• For chilled or frozen food, set a longer cooking time.
• Dishes that contain sauce must be stirred from time to time.
• Vegetables that have a firm structure, such as carrots, peas or cauliflower, must be cooked in water.
• Turn larger pieces after half of the cooking time.
• If possible, cut vegetables into similar-sized pieces.
• Use flat, wide dishes.
• Do not use cookware made of porcelain, ceramic or earthenware with small holes, e.g. on handles or unglazed bottoms. Moisture going into the holes can cause the cookware to crack when it is heated.
• The glass cooking tray is a workspace for heating food or liquids. It is necessary for the operation of the microwave. Defrosting meat, poultry, fish
• Put the frozen, unwrapped food on a small upturned plate with a container below it so that the defrosting liquid collects in the container.
• Turn the food after half of the defrosting time. If possible, divide and then remove the pieces that started to defrost.

Defrosting butter or similar
• Do not fully defrost the food in the appliance but let it defrost at room temperature. This gives a more even result. Fully remove all metal or aluminum packaging before defrosting.
Defrosting fruit, vegetables
• Do not fully defrost fruit and vegetables, which are to be further prepared while raw, in the appliance. Let them defrost at room temperature.
• You can use a higher microwave power to cook fruit and vegetables without defrosting them first.
Ready meals
• You can prepare ready meals in the appliance only if their packaging is suitable for microwave use.
• You must follow the manufacturer’s instructions printed on the packaging (e.g. remove the metal cover and pierce the plastic film).

DAILY USE (CONTINUED)

Suitable cookware and materials

COOKWARE / MATERIAL	MICROWAVE
	DEFROSTING	DEFROSTING	DEFROSTING
Ovenproof glass and porcelain (with nometal components, e.g. Pyrex, eatproof glass)
Non-ovenproof glass and porcelain 1)		—	—
Glass and glass ceramic made of ovenproof / frost-proof material  (e.g. Arcoflam), grill shelf
Ceramic 2) , earthenware 2)
Heat-resistant plastic up to 200°C3)
Cardboard, paper		—	—
Plastic wrap		—	—
Roasting film with microwave safe closure3)
Roasting dishes made of metal, e.g. enamel, cast iron	–	–
Baking tins, black lacquer or silicon coated3)	–	–	–
Baking tray	–	–	–
Browning cookware, e.g. Crisp pan or Crunch plate	–
Ready meals in packaging 3)

1) With no silver, gold, platinum, or metal plating/decorations.
2) Without quartz or metal components, or glazes that contain metals.
3) You must follow the manufacturer’s instructions about the maximum temperatures.
    suitable
— not suitable

OPERATION

Power level
• 11 power levels are available. The default power level is 10 ( 100%). Prior to or during cooking, press the Power Level pad or a number pad to select a different power level.

Clock setting

1. Press Clock, “00:00” will display.
2. Press the number pads and enter the current clock time. For example, if the time is now 1 2: 1 0, press” 1, 2, 1, 0” in order.
3. Press Clock to finish clock setting.”:’’ will flash and the numbers will appear as a clock time in the display.
   Note: If the numbers entered are, not within the range between 1:00 to 12:59, the setting will not be accepted until valid numbers are entered. In the process of setting the clock, if the  Stop button is pressed or if there is no operation within 1 minute, the display will automatically return to the previous clock setting.

Kitchen timer

1. Press Timer, “00:00” will display.
2. Press the number pods to enter the time amount.  The maximum amount of time that can be entered in 99 minutes, 99 seconds. For example, press “1, 0, 0, 0” in order for 10 minutes on the Kitchen Timer.
3. Press Start to confirm the setting.
4. When the time amount elapses, the oven will beep 5 times, and the clock time will return to the display.
   Note: The kitchen Timer setting is different from the Clock setting, it is simply a timer. During the Timer function, no cooking function can be set into operation.

Microwave cook
1. Press TimeCook, “00:00” will display.
2. Press number pads to input the cooking time; the maximum cooking time is 99 minutes and 99 seconds.
3. Press Power Level; PL 10 will display. This is the default power level of 100%. Press pads O through 9 to select a different power level if desired. See the Power Level table above.
4. Press Start to start cooking.
Example: To cook the food with 50% microwave power for 15 minutes.
1. Press TimeCook, “00:00” will display.
2. Press “1, 5, 0, 0” in order for 15:00 to appear in the display.
3. Press  Power Leve then press “5” to select 50% microwave power.
4. Press Start to start cooking.
Note: In the process of setting, if the Stop button is pressed or if there is no operation within 1 minute, the oven will automatically return to display the clock. If PL 0 is selected, the oven will run for the time selected with no cooking power. During microwave cooking,  Power Leve can be pressed to change the power you need. After pressing Power Leve, the current power displays for 3 seconds; during this time press desired number pad to change the power. The oven will run with the selected power for the remaining time.

Speed cooking
1. Instant cooking at 100% power level and 1 to 6 minutes cooking time can be started by pressing number pads 1 to 6. Press Start to increase the cooking time by 30 seconds with each press. The maximum cooking time is 99 minutes, 99 seconds.
2. Instant cooking at 100% power level and 30 seconds cooking time con be started by pressing Start. Each repeated press will increase cooking time by 30 seconds. The maximum cooking time is 99 minutes and 99 seconds.
Note: Time can also be added in 30-second increments during Microwave Cooking and Time Defrost operation by pressing the Start pad.

Weight defrost function

1. Press Weight Defrost, “dEF1” will display.
2. Press number pads to input weight to be defrosted.  Input the weight range between 100 to 2000g.
3. If the weight input is not between 100 to 2000g, the input will be invalid. A beep will sound and the unit will not work until valid numbers are entered.
4. Press Start to start defrosting and the cooking time remaining will be displayed.

Time defrost function

1. Press Tome Defrost, “dEF2” will display.
2. Press number pads to input defrosting time. The time range is between 00:01 and 99:99.
3. The default microwave power is power level 3. If you want to change the power level, press  Power Level once, and PL 3 will display; then press the number pad for the desired power level.
4. Press Start to start defrosting. The remaining cooking time will be displayed.

Popcorn

1. Press Popcorn repeatedly until the number you wish appears in the display, “50”, “100”g will display in order. For example, press  Popcorn once, “50” appears.
2. Press Start to cook, the oven beeps once. The oven beeps 5 times when cooking is finished.

Potatoes

1. Press Potatoes repeatedly until the number you wish  ppears in the display, “1”, “2”, “3” will display in order.
   Press once: 1 potato (approx. 200g),
   Press twice: 2 potatoes ( approx. 400g)
   Press  three times: 3 potatoes ( approx. 600g)
2. Press Start to cook, the oven beeps once. The oven beeps 5 times when cooking is finished.

Frozen vegetable

1. Press Veggie, repeatedly until the number you wish appears in the display, “150”, “350”, “500” will display in order.
2. Press  to cook, oven beeps once. Oven beeps 5 times when cooking is finished.

Drinks

1. Press Drinks repeatedly until the number you wish appears in the display, “1”, “2”, “3” cup will display in order. One cup is about 4.0 oz.
2. Press  Start to cook, oven beeps once. Oven beeps 5 times when cooking is finished.

Dinner plate
1. Press Dinner platere peatedly until the number you wish appears in the display, “250”, “350”, “500”g. will display in order.
2. Press Start to cook, oven beeps once. Oven beeps 5 times when cooking is finished.

Pizza
1. Press Pizza repeatedly until the number you wish appears in the display, “100”, “200”, “400”g will display in order.
2. Press Start to cook, oven beeps once. The oven beeps 5 times when cooking is finished.

Memory Function
1. Press “0” to choose the memory 1-3 procedure.  The screen will display 1, 2, 3.
2. If a procedure has been set to memory, press Start to use it. If not, continue to set the procedure. Only procedures with one or two stages can be set.
3. After finishing the setting, press Start once to save the procedure and return to the waiting state. If Start is pressed again, cooking will start.
Example: Setting the following procedure as the second memory item, that is ‘Memory 2’. The procedure: to cook the food with 80% microwave power for 3 minutes and  20 seconds.
The steps are as follows:
1. In waiting states, press “0” twice, stop pressing when the screen displays “2”.
2. Press TimeCook once, then press “3, 2, 0” in order.
3. Press Power Level then press “8” to select 80% microwave power.
4. Press Start to save the setting. A buzzer sounds once, then it returns to waiting state. If you press twice after Step 3, the procedure will be saved as ‘Memory 2’ and operated.
5. If the electricity is not cut off, the procedure will always be saved. If the electricity is cut off, the procedure will be reset.
6. If you want to run the saved procedure in waiting states, press “0” twice, until the screen display is “2”, then  press Start  to run.

Multi-stage cooking function
At most, 2 stages can be set for cooking. In multi-stage cooking, if one stage is defrosting, then defrosting will occur first automatically.
Note: Auto cooking cannot work in the multi-stage cooking function. Example: if you want to cook with 80% microwave power for 5 minutes + 60% microwave power for 10 minutes,  the cooking steps are as follows:
1. Press TimeCook once, then press “5, 0, 0” to set the cooking time.
2. Press Power Level then press “8” to select 80%microwave power.
3. Press TimeCook once, then press “1, 0, 0, 0” to set the cooking time;
4. Press Power Level then press “6” to select 60% microwave power.
5. Press Start to start cooking.
Inquiring function
1. When the oven is cooking, press  Clock for the time of day to appear for three seconds in the display.
2. When the oven is in Microwave Cooking, press Power Level  pad for cooking power to appear for three seconds in the display.

Lock function
To lock the microwave so that it cannot be operated by children or other unintended users, press Stop pad for  3 seconds. You will hear a long beep and a lock icon will appear on the  display. To unlock, press Stop for 3 seconds. You will hear a long beep and the lock icon will disappear from the display. Cooking end reminder function  The oven will beep five times to  alert the user that cooking time has ended.
Other specifications
1. When setting the cooking function, the function abbreviation appears in the display.
2. When the microwave oven is cooking or paused (door opened) in the midst of cooking time, the remaining cooking time appears in the display.

USING THE ACCESSORIES

WARNING
Refer to the safety chapters.
CAUTION
Do not cook food without the turntable set. Use only the turntable set provided with the appliance.
IMPORTANT
Never cook food directly on the glass cooking tray.
Inserting the turntable set

1. Place the roller guide around the turntable shaft.
2. Before first use remove the tape from the centre ofthe turntable shaft.
3. Place the glass cooking tray on the roller guide.

HELPFUL HINTS AND TIPS

Power setting table

Defrosting
Always defrost roast with the fat side down. Do not defrost covered meat because this may cause cooking instead of defrosting. Always defrost whole poultry breast side down.
Cooking
Always remove chilled meat and poultry from the refrigerator at least 30 minutes before cooking. Let the meat, poultry, fish, and vegetables stay covered after cooking. Brush a little oil or melted butter over the fish. Add 3045ml of cold water for every 250g of vegetables. Cut the fresh vegetables into even size pieces before cooking.   Cook all vegetables with a  cover on the container.
Reheating
When you reheat packed ready meals always follow the instructions written on the packaging.

CARE AND CLEANING

WARNING
Refer to the safety chapters.
Notes on cleaning:

• To clean front panel fingerprint-resistant stainless steel simply wipe with a soft cloth using warm water and a mild detergent. DO NOT use stainless steel cleaners, abrasive cleaners or harsh solvents.
• Clean the appliance interior after each use. Then you can remove dirt more easily and it does not burn on.
• Clean stubborn dirt with a special cleaner.
• Clean all accessories regularly and let them dry. Use a soft cloth with warm water and a cleaning agent.
• To soften hard to remove remains, boil a glass of water at full microwave power for 2 to 3 minutes.
• To remove odors, mix a glass of water with 2 tsp of lemon juice and boil at full microwave power for 5 minutes.

TROUBLESHOOTING

WARNING
Refer to the safety chapters.

If you cannot find a solution to the problem yourself, contact your dealer or the customer service centre. The necessary data for the customer service centre is on the rating plate on the appliance.

We recommend that you write the details of your product here:
Model (M) …………………………………………………………………………………………..
Product number (PNC) ………………………………………………………………….
Serial number (S.N.) ………………………………………………………………………..

INSTALLATION

CAUTION
Do not block the air vents. If you do that, the appliance can overheat.
CAUTION
Do not connect the appliance to adapters or extension leads. This can cause overloading and risk of fire.
• Put the appliance far away from steam, hot air and water splashes.
• If the appliance is stored/ transported at sub-zero temperatures, do not activate it immediately after installation. Allow at least two hours for it to be brought up to room temperature before turning on the unit.
Installation
• Remove all packing material and any promotional material from the microwave oven.
• Examine the oven for any damage such as dents or a broken door. Do not install if the oven is damaged. Call the service center.
• Remove the protective film on the oven cabinet surface. Do not remove the light brown Mica cover that is attached to the right-hand side of the oven  cavity to protect the magnatron.
• Do not leave the packing material so that small children can play with it. This can be hazardous.
• Select a flat, level surface that provides enough open space for the intake and outlet vents and that is strong enough to bear the weight of the oven. A minimum  clearance of 7.5cm is required between the oven and any adjacent walls. Leave a minimum clearance 30cm above the oven.Blocking the intake or outlet vents can damage the oven.  If air vents are blocked during operation, the oven may overheat, and this may lead to malfunctioning. Hot air escapes from the vents, so be sure not to obstruct it or let curtains come between the oven and the rear wall. NOTE: It is recommended to have greater than 7.5cm clearance on at least one of  the sides to improve product performance and operation.
• The oven should be placed in a stable position to avoid the possibility of causing vibration or noise.
• Do not remove the legs from the bottom of the oven.
• This oven should only be installed freestanding; not built-in or in a cabinet.
• Keep the oven away from heat and water. Exposure to heat and water can lower the efficiency and lead to malfunctioning.
• Place the oven as far away from radios and TV as possible. Operation of the oven may cause interference to your radio or TV reception.
• When there is interference, it may be reduced or eliminated by taking the following measures:
– Clean door and sealing surface of the microwave oven.
– Reorient the receiving antenna of the radio and/or television.
– Move the microwave oven away from the  receiver.
– Plug the microwave oven into a different outlet so that microwave oven and receiver are on different branch circuits.

Electrical installation
WARNING
Only a qualified person must do the electrical installation.
IMPORTANT
The manufacturer is not responsible if you do not follow the safety precautions from the chapter “Safety Instructions”. This appliance is supplied with a main  cable and main plug.
WARNING
The microwave oven is fitted with a plug and must be only connected to a properly installed, earthed socket. In accordance with the appropriate regulations, the socket must only be installed and the connecting cable must only be replaced by a qualified electrician. If the plug is no longer accessible following installation an all-pole isolating switch must be present on the installation side with a contact gap of at least 3mm.

FOR SALES IN AUSTRALIA AND NEW ZEALAND
APPLIANCE: WESTINGHOUSE MICROWAVES

This document sets out the terms and conditions of the product warranties for Westinghouse Appliances. It is an important document. Please keep it with your proof of purchase documents in a safe place for future reference should there be a manufacturing defect in your Appliance. This warranty is in addition to other rights you may have under the Australian Consumer Law.
1. In this warranty:
(a) ‘ACL’ or ‘Australian Consumer Law’ means Schedule 2 to the Competition and Consumer Act 2010;
(b) ‘Appliance’ means any Electrolux product purchased by you and accompanied by this document;
(c) ‘ASC’ means Electrolux’s authorized serviced centers;
(d) ‘Westinghouse ’ is the brand controlled by Electrolux Home Products Pty Ltd of 163 O’Riordan Street, Mascot NSW 2020, ABN 51 004 762 341 in respect of Appliances purchased in Australia and Electrolux (NZ) Limited (collectively “Electrolux”) of 3-5 Niall Burgess Road, Mount Wellington, in respect of Appliances purchased in New Zealand;
(e) ‘Warranty Period’ means the period specified in clause 3 of this warranty;
(f) ‘you’ means the purchaser of the Appliance not having purchased the Appliance for re-sale, and ‘your’ has a corresponding meaning.
2. Application: This warranty only applies to new Appliances, purchased and used in Australia or New Zealand and is in addition to (and does not exclude, restrict, or modify in any way) other rights and remedies under a law to which the Appliances or services relate, including any nonexcludable statutory guarantees in Australia and New  Zealand.
3. Warranty Period: Subject to these terms and conditions, this warranty continues in Australia for a period of 12 months and in New Zealand
for a period of 12 months, following the date of original purchase of the Appliance.
4. Repair or replace warranty: During the Warranty Period, Electrolux or its ASC will not service the Appliance. If the Appliance is defective, you should return the Appliance to the place of purchase for a replacement. You agree that any replaced Appliances or parts become the property of Electrolux.
5. Travel and transportation costs: Subject to clause 7, Electrolux will bear the reasonable cost of transportation, travel, and delivery of the Appliance to and from Electrolux or its ASC. Travel and transportation will be arranged by Electrolux as part of any valid warranty claim.
6. Proof of purchase is required before you can make a claim under this warranty.
7. Exclusions: You may not make a claim under this warranty unless the defect claimed is due to faulty or defective parts or workmanship. This warranty does not cover:
(a) light globes, batteries, filters, or similar perishable parts;
(b) parts and Appliances not supplied by Electrolux;
(c) cosmetic damage which does not affect the operation of the Appliance;
(d) damage to the Appliance caused by
(i) negligence or accident;
(ii) misuse or abuse, including failure to properly maintain or service;
(iii) improper, negligent or faulty servicing or repair works done by anyone other than an Electrolux authorized repairer or ASC;
(iv) normal wear and tear;
(v) power surges, electrical storm damage, or incorrect power supply;
(vi) incomplete or improper installation;
(vii) incorrect, improper or inappropriate operation;
(viii) insect or vermin infestation;
(ix) failure to comply with any additional instructions supplied with the Appliance;

In addition, Electrolux is not liable under this warranty if:
(a) the Appliance has been, or Electrolux reasonably believes that the Appliance has been, used for purposes other than those for which the Appliance was intended, including where the Appliance has been used for any non-domestic purpose;
(b) the Appliance is modified without authority from Electrolux in writing;
(c) the Appliance’s serial number or warranty seal has been removed or defaced.
8. How to claim under this warranty: To enquire about claiming under this warranty, please follow these steps:
(a) carefully check the operating instructions, user manual, and the terms of this warranty;
(b) have the model and serial number of the Appliance available;
(c) have the proof of purchase (e.g. an invoice) available;
(d) telephone the numbers are shown below.
9. Australia: For Appliances and services provided by Electrolux in Australia: Electrolux goods come with guarantees that cannot be excluded under the  ustralian  Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the Appliance repaired or replaced if the Appliance fails to be of acceptable quality and the failure does not amount to a major failure.  ‘Acceptable quality’ and ‘major failure’ have the same meaning as referred to in the ACL.
10. New Zealand: For Appliances and services provided by Electrolux in New Zealand, the Appliances come with a guarantee by Electrolux pursuant to the  provisions of the Consumer Guarantees Act, the Sale of Goods Act, and the Fair Trading Act. Where the Appliance was purchased in New Zealand for commercial purposes the Consumer Guarantee Act does not apply.
11. Confidentiality: You accept that if you make a warranty claim, Electrolux and its agents including ASC may exchange information in relation to you to enable Electrolux to meet its obligations under this warranty.

For more information on all Westinghouse appliances, or for dimension and installation information, call into your retailer, phone or email our customer care team or visit our website:
AUSTRALIA
phone: 1300 363 640
fax: 1800 350 067
email: [email protected]
web: westinghouse.com.au
NEW ZEALAND
phone: 0800 436 245
fax: 0800 225 088
email: [email protected]
web: westinghouse.co.nz

TOP SERVICE
Top Service encompasses the after-sales service provided by The Electrolux Group to consumers including delivery, home service, and spare parts. and  WESTINGHOUSE is trademarks of Westinghouse Electric Corporation. Used under license by Electrolux Home Products Pty Ltd. All Rights Reserved.
© 2019 Electrolux Home Products Pty Ltd.
ABN 51 004 762 341
WMAN_FS_23L_MICRO_May19

WGen Generator Quick Start Guide

TOOLS YOU WILL NEED

BEFORE STARTING

1. Install Feet to Frame
   a. Tip the generator onto its side. The engine should be on the bottom.

   b. Install the mounting feet to the frame using M8 flange bolts and nuts.

2. Install Wheels
   a. Install the axle pin, wheel and washer through theaxle bracket on the frame.
   b. Install the hairpin cotter through the axle pin to lock it in place.
3. Add Engine Oil
   a. Remove oil fill plug/dipstick.
   b. Using the supplied 4-cycle engine oil and funnel, slowly add engine oil to the engine until full.


   c. Replace oil fill plug/dipstick.
4.  Add Unleaded Gasoline to Gas Tank
   a. Unscrew gas cap on top of tank and insert a clean funnel into the tank.
   b. Slowly add gasoline into the fuel tank. The gasoline level should NOT be higher than the filler neck.
   c. Secure gas cap.

ELECTRIC STARTING

1. Make sure nothing is plugged into power outlets.

2. Verify the battery is installed and both battery cables are attached to their corresponding polarity.

a. Positive (+) Battery Cable (Red)
b. Negative (-) Battery Cable (Black)
3. Make sure the circuit breakers are properly set to operating.

4. Move the fuel shutoff valve to the ON position.

5. Move the choke lever to the ON position.
6. Push and hold the engine control switch in the START position. Once engine starts, release.

7. As the engine starts and stabilizes, gradually move the choke lever back to the OFF position.
8. Plug-in electronic devices.

MANUAL STARTING

1. Make sure nothing is plugged into power outlets.

2. Make sure the circuit breakers are properly set to operating.

3. Move the fuel shut off valve to the ON position.

4. Move the choke lever to the ON position.
5. Push the engine control switch into the RUN position.

6. Firmly grasp and pull the recoil handle slowly until you feel increased resistance. At this point, apply a rapid pull while pulling up and slightly away from the generator.

7. As the engine starts and stabilizes, gradually move the choke lever back to the OFF position.
8. Plug-in electronic devices.

WGen MECHANICAL SPECIFICATIONS

Following the maintenance schedule is important to keep the generator in good operating condition. The following is a summary of maintenance items by periodic maintenance intervals.
Refer to the Maintenance section in the Owners Manual to find out how to properly perform maintenance.

TABLE 1: MAINTENANCE SCHEDULE – OWNER PERFORMED

*Service more frequently if operating in dry and dusty conditions.

TABLE 2: MAINTENANCE SCHEDULE – AUTHORIZED WESTINGHOUSE SERVICE DEALER PERFORMED

SPARK PLUG REPLACEMENT

BATTERY REPLACEMENT

ENGINE OIL

Only use 4-stroke/cycle engine oil. NEVER USE 2-STROKE/CYCLE OIL.
Synthetic oil is an acceptable substitute for conventional oil.

BEFORE STARTING

Add engine oil

a. Remove oil fill plug/dipstick.
b. Using the supplied 4-cycle engine oil and funnel, slowly add engine oil to the engine until full.
c. Replace oil fill plug/dipstick.

Add unleaded gasoline to gas tank

a. Unscrew gas cap on top of tank and insert a clean funnel into the tank.
b. Slowly add gasoline into the fuel tank. The gasoline level should NOT be higher than the filler neck.
c. Secure gas cap.

Hook up LPG tank

a. Connect included LPG hose to standard LPG tank and hand tighten.
b. Connect other end of LPG hose to regulator on generator and hand tighten.
c. Test connections with soapy water to make sure there are no leaks.

STARTING PROCEDURE

1. Make sure the generator is OUTSIDE in a well ventilated dry area and FAR AWAY from any doors, windows, or vents.
2.  Check oil and fuel levels
3. Make sure nothing is plugged into power outlets.
4. Make sure the circuit breakers are properly set to operating.


5. Choose fuel source:
   a. If starting with Gasoline: Turn fuel selector switch to the gasoline position. Move the fuel valve to the ON position.

   b. If starting with Propane: Turn fuel selector switch to the propane position. Open propane tank valve

6.  Switch the engine switch to RUN .
7. Move the choke lever to the ON position. If the engine is warm turn the lever to the OFF position.


8. Manual Start: Firmly grasp and pull the recoil handle slowly until you feel increased resistance. At this point, apply a rapid pull while pulling up and slightly away from the generator


9. After the engine starts gradually move the choke lever back to the OFF position.


10. Plug in electronic devices.

MAINTENANCE SCHEDULE

Following the maintenance schedule is important to keep the generator in good operating condition. The following is a summary of maintenance items by periodic maintenance intervals. Refer to the Maintenance section in the Owners Manual to find out how to properly perform maintenance.

ENGINE OIL

Only use 4-stroke/cycle engine oil. NEVER USE 2 STROKE/  CYCLE OIL. Synthetic oil is an acceptable substitute for conventional oil.

PREVENT CARBON MONOXIDE (CO) POISONING

• Use outdoors far from occupied buildings and the exhaust pointed away from personnel and buildings.
• Point exhaust away all homes and occupied spaces. S
• Install CO alarms in your home.


Westinghouse WR42FX2002 42 Inch Class Full HD Smart Roku TV

IMPORTANT SAFETY INSTRUCTIONS

• Read these instructions – All the safety and operating instructions should be read before this product is operated.
• Keep these instructions – The safety and operating instructions should be retained for future reference.
• Heed all warnings – All warnings on the appliance and in the operating instructions should be adhered to.
• Follow all instructions – All operating and use instructions should be followed.
• Do not use this apparatus near water – The appliance should not be used near water or moisture – for example, in a wet basement or near a swimming pool and the like.
• Clean only with a dry cloth.
• DO NOT：
  • Block any ventilation openings. Always install in accordance with the manufacturer’s instructions.
  • Install near any hear sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
  • Use a polarized plug for this television. A polarized plug has two blades with one wider that the other. A grounding-type plug has two blades and a third grounding prong. The wide blade (or third prong) are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for a replacement of the obsolete outlet
• Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
• Only use attachments/accessories specified by the manufacturer.
• Use only with the cart, stand, tripod, bracket or table specified by the manufacturer,orsold with the apparatus. When a cart is used, use caution when moving the cart apparatus combination to avoid injury from tip-over
• Unplug this apparatus during lightning storms or when unused for long periods of time.
• Refer all servicing to qualify service personnel. Servicing is required when the apparatus has been damaged in any way, such as the power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
• Keep unit in a well ventilated environment
• WARNING:
  • To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. The apparatus should not be exposed to dripping or splashing. Objects filled with liquids, such as vases should not be placed on apparatus.
  • The batteries shall not be exposed to excessive heat such as sunshine, fire or the like.
  • The main plug is used as disconnect device, the disconnect device shall remain readily operable.
  • To reduce the risk of electric shock, do not remove cover (or back) as there are no user-serviceable parts inside. Refer servicing to qualified personnel.

This symbol is intended to alert the user to the presence of non-insulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock.
This symbol is intended to alert the user to the presence of important operating and maintenance instructions in the literature accompanying the appliance. This equipment is a Class II or double insulated electrical appliance. It has been designed in such s way that it does not require a safety connection to electrical earth.
This product contains electrical or electronic materials. The presence of these materials may, if not disposed of properly, have potential adverse effects on the environment and human health. Presence of this label on the product means it should be disposed of as unsorted waste and must be collected separately. As a consumer, you are responsible for ensuring that this product is disposed of properly.

Responsible Party – US contact information
Company: Tongfang Global Inc
Address: 6255 Providence Way,
Eastvale,
CA 92880
Tel：(800)-701-0680
FCC Compliance Statement（Products subject to Part 15）
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1)This device may not cause harmful interference, and (2)This device must accept any interference received, including interference that may cause undesired operation.

FCC STATEMENT

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesired operation.Changes or not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

1. Reorient or relocate the receiving antenna.
2. Increase the separation between the equipment and receiver.
3. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
4. Consult the dealer or an experienced radio/TV technician for help.

FCC Radiation Exposure Statement

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.
This equipment should be installed and operated with minimum distance 20cm between the radiator & your body

PACKAGE CONTENT

What you need (not included)

• Phillips screw driver
• Wireless router (needed for streaming)
• Internet connection (needed for streaming)
• Computer, tablet, or smart phone (needed for setup)

For additional support, please refer to User Manual and
Westinghouse Customer Support at
http://go.roku.com/tvmanual
http://westinghouseelectronics.com/support/
Key things to know: A paid subscription or other payments may be required for some streaming channel content.
Channel availability subject to change and varies by country.

INSTALLING THE TV STAND

It is recommended two people handle TV stand installation.To prevent scratch or damage to the TV screen, place the TV on a soft, flat surface.

Attach the stands to the bottom of the TV by inserting the stand into slots on the TV. Secure the stands to the TV with the supplied screws.

To attach the left and right leg that forms the stand:

1. Place the legs into the bottom slots of the TV, insert and tighten the screws (found in the accessories bag) in the circled areas with the screwdriver (not provided).
2. After securing the stand, place the TV on a stable surface. The TV is ready for use now.
   Note: TV can also be wall mounted. Wall mount sold separately.

LOCATION OF CONNECTORS

CONNECTING DEVICES TO YOUR TV

Westinghouse remmends using the best-quality video connection for your Cable Box,Satellite Receiver,Blu-ray,DVD player,Game box or any other device starting with .

CAUTION Disconnect the power cord before connecting device.
HDMI is a trademark of HDMI Licensing LLC in the United States and other countries.

SETTING UP YOUR TV

Place batteries in remote

Power your TV remote by inserting the included batteries carefully matching(+) and (-) indicated inside the battery compartment.
Tip: Always replace dead batteries with two brand-new batteries from the same manufacturer. Never use damaged batteries. If your remote gets warm/hot during use, discontinue use and contact customer support immediately at http://westinghouseelectronics.com/support/

Plug in and turn on TV

Connect your power cord to the TV, then plug it into the wall outlet. Press the power button on your TV remote control.

Follow the on-screen instructions

Once your Roku TV powers on, follow the on-screen instructions. Your Roku TV will walk you through initial setup and help connect to your preferred wireless network. Your TV will automatically detect wireless networks in your area. Have your network name and password handy and follow the easy on-screen instructions. Once connected your TV will automatically update with the latest software. This can take a few minutes to update. If you aren’t ready to connect your TV to a wireless network, you can still use it as a regular TV.

NOTE: Roku does not charge for activation support – beware of scams. Channels are subject to change, vary by region, and may require payment.

Activate your smart TV

Activate your Roku TV using your computer, smartphone, or tablet to link to a Roku account. You need a Roku account to activate your Roku TV and access entertainment across thousands of streaming channels.
Roku accounts are free and while a valid credit card number is not required to create a Roku account, saving your credit card information makes renting and purchasing entertainment from the Roku Channel Store fast and convenient.

CONNECT AN ANTENNA (OPTIONAL)

Check to ensure that you have selected the right cables for the ports and that they are connected securely. Loose connections can affect the quality of the picture image and colour.

With the tuner built-in you can connect your TV to an antenna and enjoy over-the-air entertainment.

1. When the setup wizard is complete select the Live TV icon from the home screen.
2. Follow the on-screen instructions.
3. Whenever you want to watch Live TV, select the Live TV icon.

REMOTE CONTROL

The Roku TV remote should feel right at home in your hand. We designed it to be incredibly intuitive for watching TV and navigating on-screen menus.

Tip: The gives you easy access to picture settings, display options and more. Try it on every screen.
Tip: If you prefer to use your cable set-top box or satellite receiver remote as a Universal Remote, please refer to the manual that your cable or satellite service provided. It includes instructions on how to program their remote to your television. You can find codes that work with your Westinghouse Roku TV and most common cable and satellite provider’s universal remote controls at www.roku.com/universalremote.
Tip: Live TV Pause can pause content received on the antenna TV input for up to 90 minutes and requires a 16GB or larger USB drive and a valid Roku account. All data on the USB drive will be deleted prior to use.

Register your products online: www.westinghouseelectronics.com/support
Enjoy these benefits by registering your product online today!

• Up-to-date product information
• Exciting promotional offers
• Industry news
  Westinghouse Electronics has a comprehensive online privacy policy designed to protect our online visitor’s information.
  Please visit www.westinghouseelectronics.com/privacy/ for our complete Online Privacy Policy.

Need help? Contact us at: (800) 701-0680
or go to www.westinghouseelectronics.com/support

Roku, Roku TV and the Roku logo are the trademarks or registered trademarks of Roku, Inc. All other trademarks and logos herein are the property of their respective owners.

INTELLIGENT SOLAR LED
CANDLELIGHT WITH BLUETOOTH® SPEAKER

Instruction Manual
Model: SR83SP01H-08

 WESTINGHOUSE, are trademarks of Westinghouse Electric Corporation. Used
under license by Sky Rich Star Limited. All Rights Reserved.
For assistance with assembly or instruction, parts, and customer service, call:
The U.S.A. & Canada only: 1-844-551-0680
8 am – 5 pm Monday – Friday, Central Standard Time Or email: [email protected]
www.westinghousesolarlights.com

WARNING: Do not dispose of lithium batteries in municipal waste stream or by fire as batteries may explode. Do not open, short circuit, destroy batteries. Dispose of batteries in accordance with Local, State, and Federal regulations. Do not mix old and new batteries. Do not mix alkaline, standard (carbon-zinc), or rechargeable (nickel-cadmium, nickel-metal hydride, or lithium-ion) batteries.

PARTS AND SPECIFICATIONS

A) Solar Panel
B) Lens
C) LED Button
D) LED Charge/Bluetooth indicator®
E) Power Button
F) Charging Port
G) Bluetooth Speaker
H) Micro USB Cable®

CHARGING INSTRUCTIONS

CHARGING METHOD:

1. USB charging port (F) Connect the external 5V power supply to charge the product. It takes 2.5 hours to fully charge.
2. The solar photovoltaic panel can provide a 5V110mA charging current when placed in direct sunlight for charging. It takes 20 hours to fully charge.

OPERATING INSTRUCTIONS

1. Press the Power button (E) and hold for 2 seconds to turn the speaker ON and enter the  Bluetooth pairing mode. The blue indicator light flashes, and the smartphone/tablet searches for “Westinghouse SR83” to connect. When paired, the blue indicator light will
   remain on.
2. When you double-click the power button (E), the current connected smartphone/tablet will be disconnected and re-enter into the pairing mode. (Blinking (D)) 3) Short press the power button (E) to pause the music playing

NOTE: If you turn on the smartphone/tablet, and is not connected or have no signal, the speaker will automatically shut down after 15 minutes.
NOTE: LOW BATTERY TIPS.
When the light experiences a low battery charge, it will voice a warning “low battery, please charge”. Immediately charge with USB plug provided, or place light outside in direct sunlight. If the product is not charged in enough time, the product will shut off.
HOW TO OPERATE LED BUTTON (C):
Press the LED button to turn on/off the candlelight.
NOTE: Bluetooth speaker and LED light work independently of each other.

RUN TIME

NOTE: For volume control, use your smartphone/tablet.
MULTI-COLOR LED INDICATOR (E) INSTRUCTIONS:
1) RED LIGHT indicates solar LED light is charging. USB plug or solar charging, the red light will remain on until solar LED light is fully charged and turn off.
2) BLUE LIGHT indicates Bluetooth status. Turn on the Bluetooth speaker and enter into the Bluetooth pairing mode, the blue light flashes. After the smartphone/tablet is connected with the speaker, the blue light will stop flashing and remain on.
WARNING:
1. This product is not a toy and contains small parts. Close supervision is necessary when
this unit is used near children.
2. To reduce the risk of electrical shock, do not put the unit in water or other liquid. For cleaning, use a soft dry cloth. Do not place or store appliances where it can fall or be pulled into a tub or sink.
NOTE:
This equipment has been tested and found to comply with the limits for a Class B Digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this  equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following  measures:

• Reorient or relocate the receiving antenna.
• Increase the distance between the equipment and receiver.
• Connect the equipment to an outlet on a circuit different from that which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

This equipment complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1) This device may not cause harmful interference.
2) This device must accept any interference received, including interference that may cause undesired operation.
WARNING:
Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
RF EXPOSURE: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.
TRADEMARK ATTRIBUTION FOOTNOTE
Whenever the Bluetooth Trademarks are used in a particular piece, they must be attributed with an appropriate trademark footnote. The commended attribution footnote is as follows: the Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, inc.  And any use of such marks by INTERNATIONAL DEVELOPMENT COMPANY is under license. Other trademarks and trade names are those of their respective owners.
NOTE: The Bluetooth brand elements may not be used in a fashion or manner that could impair or otherwise damage the goodwill associated with the Bluetooth brand or the Fellow Adopters (International Development Company). The Bluetooth brand elements shall
therefore not be used in connection with products and services that do not enable any Bluetooth wireless functionality or in connection with unlawful, obscene, pornographic, excessively violent, hazardous, or otherwise poor-taste activities.
