Foreword

The CLAR 560 Focusing LED Light is the remarkable solution for a precision spot to flood LED lighting for all videography where excellence Is the priority. The lightweight system utilizes an integrated optical system that projects a superbly graduated soft 6 to 55-degree throw, 40,000 (spot) to 3,200 (flood) lux at 1 meter/3.28 feet. with a TCLI beyond 97Qa and CRI over 96Ra for pure color heaven. Of course, you can electronically control brightness levels stepless, with values displayed clearly on the LCD information panel, while enjoying the gentle precise tight to wide beam illumination. The build is tough. Solid aircraft-grade aluminum for a light time of use. So lightweight at 3 pounds that it begs to be present for all opportunities that call for serious lighting. Small, yet powerful and adept primed for professional delivery of creative and essential lighting without the mass and size usually associated with such a formidable feature-laden productive unit Mobile versatility on location and in the studio. The tiny form factor Is the key to masterfully placed lights for serious and precise placement. Quiet on the set! Not a sound is heard from the light fixture to disturb a sound recording session, even though aggressive fan-cooled ventilation assures stability. We don’t mean to boast but our diminutive COB LED soars into incandescence land – where only tungsten-halogen once ruled – without a semblance of heat and Just a whisper of imperceptible sound from its brainy efficient cooling system.

Features

• Optical excellence provides soft and even light at any angle setting, from spot to flood.
• HO 97+ TLCI and 96+ CRI ratings guarantee natural, pure color.
• The consistent color temperature within 300°K of Daylight.
• Great for videographers, portrait shooters, performance and event coverage, product shots, and anyplace LED precision is the goal.
• Lightweight and cool performance invite longtime lamp life
• Acts as an inky spot to a swath of flood coverage with the twist of a knob.
• Built-in wireless 2.46Hz remote control for up to 164ft with the optional controller.
• Multiple sources of power free the S60 LED for use almost anywhere.
• Silent treatment for audio purity during recording sessions.
• Quality construction through and through.
• Marvelous range of accessories to master the light.

• Do not disassemble or modify. Should the product break down, send the defective back to the authorized service center for inspection and maintenance.
• Keep dry. Do not handle with wet hands, immerse in water, or expose to rain. Do not place In high temperature or high humidity conditions.
• Keep out of reach of children.
• As this product adopts a make and breaks device, please keep it easy to be used.
• Disconnect from the power supply when it will not be used for an extended period.
• If this product overheats. it will cease operation and resume working after cooling down. This is due to the built-in overtemperature protection.

CLAR S60 Nomenclature

• S360 Lamp

• Controller

Included Items

Optional Accessory

The Clar S60 can be used In combination with the following accessories sold separately, for exceptional effects.

Power Supply

• AC Power Supply

1. Insert the two ends of the power source connect the cable into the controller’s power output port and the lights power input port until a “click” can be heard.
2. Insert the power cables output end into the controller’s input port. Then, rotate it clockwise to 15° until a “click” can be heard.

3. Connect the power cable to the power source. To remove the Connect Cable, press the PUSH Button and carefully pull the cable simultaneously. To remove the Power Cord, depress the PUSH Button on the end of the cord and rotate the cord 15 counterclockwise. Extract carefully.

• V-port Battery Power Supply (Optional)
Install the V-port battery onto the controller’s battery compartment. Power, power the light on to operate.

Note: Only use a standard V-port battery with 14.8V voltage. Do not supply power with a battery whose voltage is over 16.8V.

Operation

• Power switch:
  Short press the power switch, to turn on the 560. The Clar S60 LEO lamp illuminates. Press the button again to turn off the light

• Brightness adjustment:
  The Home Screen is the main interface. Turn the select dial to adjust brightness from 0% to 100%.

• Light effects setting:
  While in the Home Screen, short press the FX button once to enter the setting interface. Turn the select dial to choose light effects from OFF and 1 to 8.


  Display	FX1	FX2	FX3	FX4	FXS	FX6	FX7	FX8
  Scene	Flash 1	Flash 2	Flash 3	Storm 1	Storm 2	Storm 3	TV	Broken bulb

  Short press the FX button or SET button to exit from the FX light effects mode and back to the main interface after settings finished are complete.
  Note: If a light effect is selected from 1 to 8, the FX icon and light effect will be displayed on the main interface. Brightness levels are adjustable when the FX mode is active. The color temperature will not be displayed.

• Silent Mode:
  While on the Home Screen, short press the Fan button ge to turn the cooling fan on or off. The S60 enters Silent Mode. The brightness level is limited to 0% to 50%.
  Note: The cooling fan runs by default and the brightness range is 0% to 100%.

Control Mode Selection

1. 2.4G Wireless Control
The CLAR S60 LED light features built-in wireless 2.4GHz connectivity with the optional RC-A6 remote controller, for individual and light group values.
Multiple LED lights can be controlled. 32 channels and 99 IDs are available for keeping the signal interference-free.
Note: 1. Please set the LED light’s Channel, Group, and ID to the same as remote controls.
2. The wireless signals can only be received while the LED light is powered on.
CH Channel AdjustmenVGR Group Adjustment/ID Value Adjustment
In the main interface, short press the MENU button once and turn the select dial to adjust Channel, Group, and ID values.

In the CH channel setting interface, short press the SET button the channel icon flashes. Turn the select dial to choose a Channel from 1 to 32. Press the SET button to confirm. The icon stops flashing.

In the GR group setting interface, short press the SET button. The group icon flashes. Turn the select dial to choose the Group, from A to F and 0 to 9. Press the SET button to confirm. The icon stops flashing.

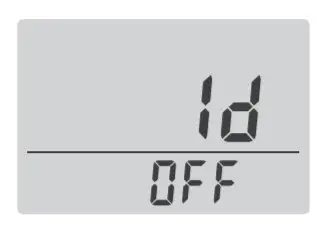

In the ID value setting interface, short press the SET button. The group icon flashes. Then, turn the select dial to choose a value from OFF and 1 to 99. Press the SET button to confirm. The icon stops flashing.
After setting all these parameters, short press the SET button to confirm and return to the main interface.

Note: The LED light will automatically return to the main interface if there’s no operation after 10 seconds.

Bluetooth Control

2.1 Bluetooth Mode Display & RESET
Function. Check the Bluetooth code: in the main interface, short press the MENU button. Press the select dial to switch the icons. The Bluetooth icon appears in the display panel.

Bluetooth reset function: in the Bluetooth Mode Code interface, long-press the SET button for 2 seconds, and the Bluetooth icon flashes to indicate the reset sequence. Resetting: the icon stops flashing after a successfully reset. Then, short press the MENU button to return to the main interface.
Note: The S60 retains the Bluetooth link info for the installed device after turning off the lamp. There is no need to relink. The 560 will recognize the last Bluetooth connection parameters. When changing devices, reset (forget) the old Bluetooth setting and connect the new device to use the APP.

2.2 Scan the QR code to download the “Godox light” smartphone APP for use with Apple or Android devices. For more smartphone APP operations, please open the “help” in APP to gain detailed guidance.

http://www.guteleben.com/html/dl_app/c_ble/GodoxLight/index.html

DMX Control Mode

In the main interface, short press the MENU button once and turn the select dial until the DMX icon is displayed. Short press the SET button and the icon flashes. Then, turn the select dial to set the DMX channel from 1 to 512. Then, short press the SET button to confirm the setting. The DMX icon returns to normal. Short press the MENU button to return to the main interface.

DMX Parameters:

Technical Data

*Product design and specifications are subject to change without notice.

Care Procedures

• Don’t attempt to modify the unit yourself. If it becomes damaged, please contact your vendor or take it to an authorized repair service. Do not disassemble this equipment. Touching the product’s internals could result in injury. In the event of a malfunction, the product should be repaired only by a qualified technician.
• Use prudence and attach to support with the stand adapter.
• After using the light for extended periods, allow it to cool before storing, to avoid damage to the electronic components.
• Don’t use the light to support any other equipment or lift your imaging device by the unit.
• Please use a soft dry cloth to clean the light. If necessary, carefully wash with a cloth dampened with neutral detergents, and then dry with a soft cloth.
