MINN KOTA I-Pilot User Guide

QUICK REFERENCE GUIDE

COMPATIBLE WITH ALL BLUETOOTH® ENABLED i-PILOT SYSTEMS

REMOTE

Menu Control Buttons

Home
Pressing this button will always bring up the Home Screen.
Ok
Press to accept selections. Press to power remote on. Press and hold for 3 seconds to power remote off.
Left Softkey & Right Softkey
Buttons change function based on the mode of operation and which screen is presently displayed. Softkey Labels at the bottom of the display screen indicate current function.
Menu Up & Menu Down
Used to navigate Softkey Labels and menus.

Manual Control Buttons

Speed Down

Steer Left

Speed Up

Steer Right

Prop On/Off

High Speed Bypass
Double press to engage.

Scan to view the complete i-Pilot Owner’s Manual online.

Navigation Buttons
GO TO
Opens the list of Spot-Locks and iTracks that are within navigable range.
Cruise Control
Press to enable Cruise Control.
Spot-Lock
Press to enable Spot-Lock.
AutoPilot
Press to enable AutoPilot or Advanced AutoPilot.

©2016 Johnson Outdoors Marine Electronics, Inc.

minnkotamotors.com

HEADER

10:50 A

Time Motor
Battery

GPS Signal Strength

Remote Battery

10:50 A

GPS Signal Strength
Shows the level of GPS signal strength. If no bars appear, no GPS signal is detected.
Motor Battery
Displays the battery level of the motor.
Time
Displays the current time.
Remote Battery
Displays the battery level of the remote.

ICONOGRAPHY

Spot-Lock
Displays when Spot-Lock is engaged.

Spot-Lock Jog
Displays when Spot-Lock is engaged and the motor is communicating with a Heading Sensor.

Legacy AutoPilot

Displays when AutoPilot
is engaged and the AutoPilot Mode is set to Legacy.

Advanced AutoPilot
Displays when AutoPilot is engaged and the AutoPilot Mode is set to Advanced.

Record
Displays when an iTrack is being recorded.

TARGET

iTrack
Displays when an iTrack is being navigated.

Prop Lockout
Displays when the Prop is locked during certain functions.

Trim
Displays when Trim is being adjusted.

Brightness
Displays when screen brightness is being adjusted.

Only available with Ulterra.

Only available with Ultrex.

Prop
Displays when the Prop is enabled. Rotates when the Prop is on. Blinks when a mode of navigation is used that requires the prop to be enabled.
Prop Speed
Displays the current Prop Speed. Can be adjusted in 1/2 speed increments between 0 and 10.
Ground Speed
Displays the current speed over ground.
Cruise Control
Displays the Target Speed when Cruise Control is engaged.
Lock
Displays when the Remote is locked.
Scroll Up & Down
Displays when the softkey labels at the bottom of the display screen have more options available.

i-PILOT®
QUICK REFERENCE GUIDE
COMPATIBLE WITH ALL BLUETOOTH® ENABLED i-PILOT SYSTEMS

SPOT-LOCK

1. Press the Spot-Lock button on the remote.
2. The information for the temporary Spot-Lock location will show up on the display screen. Use the Menu Up and Menu Down buttons to find the Save softkey label at the bottom of the display screen. To save the Spot-Lock, press the Left Softkey to open the Save menu.
3. The Save menu brings up a list of Spot-Locks. Use the Menu Up and Menu Down buttons to select one of the Spot-Lock memory locations. Press the Left Softkey to Save the Spot-Lock into the selected memory location.

DISENGAGING SPOT-LOCK

1. When Spot-Lock is engaged, press the Spot-Lock button to disengage Spot-Lock, or use the Menu Up and Menu Down buttons to find the Cancel softkey label at the bottom of the display screen. Use the Right Softkey to select Cancel.

RE-ENGAGE A SAVED SPOT-LOCK

1.  Manually navigate the boat to within a quarter mile of a saved Spot-Lock location. Due to safety reasons, i-Pilot will not re-engage a saved Spot-Lock location greater than a quarter mile away.
2. Press the GOTO button on the remote.
3. The Spot-Lock menu will appear on the display screen. Use the Menu Up and Menu Down buttons to scroll to a saved Spot-Lock location in the menu.
4. Press the Ok button to select a saved Spot-Lock location.

SPOT-LOCK JOG (Heading Sensor required.)

1. To engage Spot-Lock Jog, first engage Spot-Lock. Use the Speed Down (jog backward), Speed Up
   (jog forward), Steer Left (jog left), and Steer Right (jog right) buttons to jog the Spot-Lock location 5 feet in the selected direction from the current Spot-Lock location.

CRUISE CONTROL

ENGAGING CRUISE CONTROL

1. Press the Cruise Control button on the remote.
2. The Target Speed will appear on the display screen. Press the Speed Down or Speed Up buttons
   to adjust the Target Speed.

DISENGAGING CRUISE CONTROL

1. When Cruise Control is engaged,
   press the Cruise Control button on the remote to disengage Cruise Control.

HIGH SPEED BYPASS ENGAGING HIGH SPEED BYPASS

1. Double press the High Speed Bypass button.
2. The Prop Speed will automatically go to speed 10.

DISENGAGING HIGH SPEED BYPASS

1. When High Speed Bypass is engaged, press the High Speed Bypass button on the remote to disengage High Speed Bypass, or press the Speed Down button.

AUTOPILOT

1. Press the AutoPilot button on
   the remote.
2. The AutoPilot or Advanced AutoPilot
   icon will display on the screen.
3. To adjust the desired heading,
   manually steer the motor to the new heading. i-Pilot will automatically lock onto the new heading.

DISENGAGING AUTOPILOT OR ADVANCED AUTOPILOT

1. When either AutoPilot mode is engaged, press the AutoPilot button on the remote to disengage AutoPilot.
   iTRACK

RECORDING AN iTRACK

1. Use the Menu Up or Menu Down
   buttons to find the Record softkey label at the bottom of the display screen.
2. Press the Left Softkey to select the Record menu.
3. The Record menu brings up a listing of iTracks. Use the Menu Up and Menu Down buttons to scroll to one of the iTrack memory locations.
4. Press the Ok button to select an iTrack memory location. Once a location is selected, the current location of the boat becomes the To Start location of the iTrack being recorded.
5. Navigate the boat along the desired path or course. AutoPilot and/or Cruise Control can be used while recording an iTrack.
6. To stop recording an iTrack, use the Menu Up or Menu Down buttons to find the Stop softkey label at the bottom of the display screen.
7. Use the Left Softkey to select Stop.
8. The recording will end automatically if the two-mile distance limit is reached for the iTrack or if the Spot-Lock or GO TO button is pressed.

NAVIGATING AN iTRACK

1. Manually navigate the boat to within a quarter mile of the saved iTrack. Due to safety reasons, i-Pilot will not re-engage a saved iTrack greater than a quarter mile away.
2. Press the GO TO button on the remote. The remote default is to first bring up saved Spot-Locks. Press the Right Softkey to bring up saved iTracks.
3. Use the Menu Up or Menu Down buttons to select an iTrack to navigate.
4. Using the Left Softkey or Right Softkey select the softkey label to either go To Start or To End. The boat will navigate to the closest point on the iTrack and then navigate To Start or To End depending on the selection made until it reaches that point.

REVERSE AN iTRACK

1. The direction that the iTrack is
   being navigated can be reversed while the GO TO action is taking place. Use the Menu Up or Menu Down buttons to find the Reverse softkey label at the bottom of the display screen. Use the Left Softkey to select Reverse.

minnkotamotors.com

FAQS

What’s in the box?

Minn Kota 1866560 i-Pilot Micro Remote for i-Pilot and i-Pilot Link – Bluetooth Systems

Will this work with the Minn Kota Terrova?

Yes it will

Can this be paired on more than one boat?

Yes Pairing is done at the head unit end not the remote. Wouldn’t recommend using when both boats are in range of rack other though.

Does anyone know if this will do the “jog” feature when you’re in “anchor” mode?

Believe you can. Just like you do with the remote that come with the Ultex, by hitting one of the directional arrows while you are in spot lock……

Does this work with the ulterra model ?

Yes

Does this work with the ultrex?

Yes it should. As long it’s bluetooth enabled.

Will this remote float?

Don’t know for sure but it’s pretty light and guessing it will. Keep mine on a lanyard around my neck. Same for Power pole controller. Store it all in a have size tackle tray along with spare batteries.

Is this compatiblw with the ultrxx trolling motor?

This remote is compatible with any iPilot and iPilot Link unit that is Bluetooth enabled – https://minnkotamotors.johnsonoutdoors.com/accessories/trolling-motor/micro-remote-bluetooth – So it should be compatible with the Ulterra. Refer to manufacturers website to verify. Works great with my Riptide Terrova that is GPS and Bluetooth.

Well this work with my V2?

Yes it does

Will this remote work with this trolling motor-minn kota 1358790 powerdrive 45_bt bowmount trolling motor with bluetooth?

My trolling motor is a prowerdrive 70 with Bluetooth,it works on mine

Does this remote need a charging cable and does it come with one if so?

No, no charging required. Operates off a battery, lasted me 2 years before replacing. Batteries are readily available.

What about stow and deploy? Does this remote work with that feature?

No. must use the remote that came with the Ulterra to deploy and stow

Does the remote work with a Turbo Pro 824?

This remote is for a blue tooth equipped trolling motor with i-Pilot fitted, due to the age of the 824 I very much doubt it has blue tooth or the i-Pilot fitted or be upgraded to take it.

Since this unit is so simple, no LED, what is the pairing method from the remote to the motor?

While holding down the pair button on the top of the motor hold the two buttons at the same time at the top of the remote the rabbit and the N with the arrow. It will beep three times when it is paired.

VIDEO

www.minnkotamotors.com

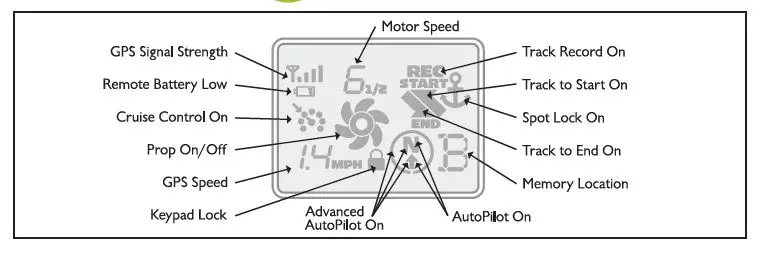

MINN KOTA i-Pilot Remote- Legacy Remote

REMOTE CONTROL QUICK REFERENCE GUIDE

Maual Control

Cruise control/ AutoPilot

Tracks

Feature

ENGAGING SPOT LOCK

1. Press the Spot Lock button on the remote.
2. The Memory Location icon will flash on the remote LCD for three seconds, allowing you to choose a memory location by pressing the Speed Up or Speed Down buttons. Pressing the Spot Lock button again or waiting for three seconds accepts the memory location.

DISENGAGING SPOT LOCK

To disengage Spot Lock press any of these buttons:

1. Prop On/Off, Steer Right, Steer Left,
2. Speed Up, Speed Down or Spot Lock.

RE-ENGAGE A SAVED SPOT LOCK LOCATION

1. Manually navigate the boat to within a quarter mile of the saved Spot Lock location. Due to safety reasons,i- Pilot will not re-engage a saved Spot Lock location greater than a quarter mile away.
2. Press the Spot Lock Recall button on the remote.
3. The Memory Location icon will flash on the remote LCD for three seconds allowing you to choose a memory location by pressing the Speed Up or Speed Down buttons. Pressing the Spot Lock Recall button again or waiting for three seconds accepts the memory location.

SPOT LOCK ESCAPE

1. If the Spot Lock button is accidentally hit, press the Record Pause/Escape button or any manual navigation button within three seconds to cancel the command.

ENGAGING CRUISE CONTROL

1. Press the Cruise Control button on the remote.
2. The current GPS speed will flash, displaying your current speed as the target GPS speed on the remote LCD for three seconds.
3. Press the Speed Up or Speed Down buttons to increase or decrease the target speed or press the Cruise Control button again to engage Cruise Control immediately.

DISENGAGE CRUISE CONTROL

1. Pressing the Cruise Control button will disengage Cruise Control.

ADJUSTING TARGET SPEED WITH CRUISE CONTROL ENGAGED

1. With Cruise Control engaged press the Speed Up or Speed Down buttons to adjust the target speed by 0.1 MPH increments.

ENGAGING ADVANCED AUTOPILOT AND AUTOPILOT

1. To engage Advanced AutoPilot, press the AutoPilot button once. To engage AutoPilot, press and hold the AutoPilot button for two seconds.
2. The Advanced AutoPilot or AutoPilot icon will be displayed on the remote LCD.
3.  To adjust desired heading, manually steer motor to new heading. i-Pilot will lock onto new heading.

RECORDING A TRACK

1. Press the Record button on the remote.
2. The Memory Location icon will flash on the remote LCD for three seconds, allowing you to choose a memory location by pressing the Speed Up or Speed Down buttons. Pressing the Record button again or waiting for three seconds accepts the memory location.
3. The REC icon will be displayed on the remote LCD. Remember this will be the start point on the track.
4. Navigate the boat along the desired path or course. AutoPilot and/or Cruise Control can be used while recording a track.
5. Press the Record button on the remote again to stop the recording. The recording will end automatically if the two-mile distance limit is reached for the track or if one of the following buttons are pressed: Spot Lock, Spot Lock Recall, Track to End or Track to Start.

PAUSE AND RESUME A RECORDING

1. While recording a track press the Record Pause/Escape button.
2. The record icon will flash on the remote LCD.
3. i-Pilot has now paused the recording of the track.
4. If the boat moves farther than a quarter mile from where the Record Pause/Escape button was pressed, the recorded track will be ended and saved to the memory location previously selected.
5. When ready to resume recording, navigate the boat just ahead of where the Record Pause/Escape button was pushed. Failure to do this may cause erratic play back of a track.
6. Push the Record Pause/Escape button.
7. The record icon will stop flashing on the remote LCD.
8. i-Pilot is now recording again and adding to the track that was paused.

REPLAYING A TRACK(TRACK TO START / TRACK TO END)

1. Manually navigate the boat to within a quarter-mile of the saved track. Due to safety reasons, i-Pilot will not re-engage a saved track greater than a quarter-mile away.
2. Press the Track to Start or Track to End button on the remote.
3. The Memory Location icon will flash on the remote LCD for three seconds, allowing you to choose a memory location by pressing the Speed Up or Speed Down button. Pressing the button pressed in step 2 again or waiting for three seconds accepts the memory location.
4. Adjust motor speed to desired setting to engage and navigate track automatically.

RECORD, TRACK TO END AND TRACK TO START ESCAPE

1. If the Record, Track to Start or Track to End button is accidentally hit, press Record Pause/Escape button within three seconds on the remote to cancel the command.

MINN KOTA Trolling Motor Plus and Receptacle

Parts

TOOLS AND RESOURCES REQUIRED

• Wire Stripper
• Pencil or marking tool
• Wire Cutter
• Ruler
• 3/32″ Allen Wrench
• Heat Gun
• Marking Tool
• Drill
• 1-¾” Hole Saw
• 1/8″ Drill Bit
• Phillips Screw Driver

MOUNTING CONSIDERATIONS

Before installing your Trolling Motor Plug and Receptacle, please give consideration to the following:

1. The mounting surface needs to have a flat surface no less than 3-¼” wide x 2-½ inches high. Use the Face Plate (Item #2) to check for clearance at the desired mounting location
   WARNING: Make sure the power source is disconnected or, if controlled by a switch, turned OFF before beginning installation of the Plug Receptacle. Failure to remove power from the Boat Wires could cause electric shock.
   NOTICE: If uncomfortable making this installation, we recommend to have the Motor Plug and Receptacle installed by a qualified marine installer.
   WARNING: Do not tin any wires with this installation. Tinned wires could cause the connection to loosen over time, creating an improper connection. Improper connections could cause a short or extreme fire danger. Follow the installation instructions provided to avoid product failure and injury.
2. Make sure the area under the mounting location is clear to drill holes and that installation hardware will not damage existing components or wiring below the mounting surface.
3. Make sure that the trolling motor Power Leads and the Boat Wires are not connected to a power source before beginning installation.
4. Test that the Boat Wires can reach the intended mounting location to be attached to the Plug Receptacle. Also check that the Trolling Motor Lead Wires can reach the Plug Assembly wires and that there is enough slack that the plug can be both plugged in and unplugged at the intended location. All wires should not only reach, but also have extra slack to allow for ease of installation or repairs and relieve tension on the final installation. If the wires are not adequate in length, select another location.
5. Determine if the mounting location will work when the Plug Assembly is plugged into the Plug Receptacle. Check for clearance that will be required for the cords exiting and entering on both sides of the installation. Allow for space for the cords to exist and accommodate plugging and unplugging the plug as needed.

INSTALLATION

Trolling Motor Plug and Receptacle Installation

a. Review the Mounting Considerations and determine an acceptable Mounting Location
WARNING: Make sure the power source is disconnected or, if controlled by a switch, turned OFF before beginning installation of the Plug Receptacle. Failure to remove power from the Boat Wires could cause electric shock.

b. Once an acceptable Mounting Location is selected, remove any power leading to the Boat Wires. Use a Drill with a 1-¾” Hole Saw to drill a hole through the selected location.
c. With the hole drilled, locate the Boat Wires that the plug will be connected to. The wires may need to be trimmed and stripped. Use a Wire Cutter to cut the wires to remove any terminals or covers that may be in place.

NOTICE: For ease of installation, it is recommended to stagger the ends of the wires by 1-¼”. Make the Negative (-) Boat Wire the shorter wire of the two. Staggering the length of the wires will help with the installation of the hardware used to connect the wires later in the installation.

NOTICE: The ends of the Boat Wires may have any sort of electrical connector that should be removed.

d. With a Wire Stripper remove the protective covering on the wires. It is recommended to remove approximately ½” to ¾” of the protective covering to expose the wires. Use a Ruler to measure this distance if necessary. If the Positive (+) and Negative (-) Boat Wires are fused together, split them so they are separated by a minimum of 2-½” from the end of the shortest wire.

e. Take the Boat Wires and fish them through the 1-¾” hole that was cut in the Mounting Location. The wires should pass from the back so that the newly trimmed ends exit the front of the hole.

f. The Boat Wires that were stripped will be covered with a 6 AWG Ferrule (Item #14) to contain the wire strands. Take the two Ferrules and place one at the end of each wire, encasing all of the wire strandsNOTICE: The 6 AWG Ferrule are the largest in the provided hardware. The four 8 AWG Ferrules may only be needed if the Plug Receptacle or Plug Assembly wires need to be trimmed or recapped.

NOTICE: Boat Wire sizes vary, so it may be necessary to use a different sized Ferrule.

g. With the wires out the front of the Mounting Location, take one of the 2” Shrink Tubes (Items #6) and place one on the end of the longer Positive (+) Boat Wire.

h. Take one Splicer (Item #12) and place it on the end of the Positive (+) Boat Wire. The Splicer is secured to the Boat Wire over the Ferrule. Secure the Splicer by tightening the Set Screw with an 3/32″ Allen Wrench to 20 in-lbs.i. The Splicer and Shrink Tube should be added to the Plug Receptacle so it can be attached to the Boat Wires. Take the Plug Receptacle (Item #B) and place one Shrink Tube (Item #6), followed by one Splicer (Item #12) on the end of the black Negative (-) Wire of the Plug Receptacle. Secure the Splicer by tightening the Set Screw with a 3/32″ Allen Wrench to 20 in-lbs

NOTICE: The positive (+) and negative (-) wires on the Plug Receptacle should have Ferrules already applied.

j. Take the Plug Receptacle and identify the red Positive (+) Wire on the Plug Receptacle and align it with the Positive (+) Boat Wire. Insert it into the Splicer at the end of the Positive (+) Boat Wire. Take the black Negative (-) Wire from the Plug Receptacle and align it with the Negative (-) Boat Wire. Insert it in the Splicer at the end of the black Negative (-) Wire of the Plug Receptacle. Secure the Set Screw of both Splicers with the Allen Wrench to 20 in-lbs.k. Once the Splicers are secure on both wires, take the Shrink Tubes and slide them over the Splicers. The Shrink Tube should be centered over the Splicer and completely cover the wire connections.

l. When satisfied with the position, secure the Shrink Tubes in place with a Heat Gun. Ensure that there is no opening around the Shrink Tubes when heated. Push the wires and the Plug Receptacle into the drilled hole until the Plug Receptacle sits against the mounting surface.

NOTICE: The Shrink Tubes are meant to water proof the connection between the Plug Receptacle and the Boat Wires. Make sure there are no gaps around the wires that would allow water to reach the connection.

m. The Face Plate (Item #2) is designed to be keyed with the Plug Receptacle. Turn the Face Plate over and notice the notches along the Inner Circle. These notches are keyed with the outer edge of the Plug Receptacle when it sits flush on the mounting surface. This allows the Face Plate or Plug Receptacle to be rotated in 45 degree increments.

NOTICE: Tethering the Dust Cap to the Face Plate during installation is optional. The Dust Cap can be stowed away when the plug is in use and should be replaced for storage or transport.

n. On the back side of the Face Plate, there is also a hook to attached the Dust Cover (Item #C). Determine if the Dust Cover will hang to the right or the left and turn the hook on the Face Plate to the appropriate direction.

o. Flip the Face Plate so the keys on the Inner Circle are towards the mounting surface and place it over the Plug Receptacle. It should be seated on the mounting surface.

p. Take the Plug Assembly (Item #A) and plug it into the Plug Receptacle. The Plug Assembly and Plug Receptacle are also keyed with each other. Orientate the Plug Assembly and Plug Receptacle so they can be fully pushed together. The Threaded Collar on the Plug Assembly does not have to be tightened

NOTICE: Use the Dust Cap when plug is not in use to insure optimal water tight protection to electrical contacts.

q. Turn the entire assembly to the right or left until the Cord from the Plug Assembly is in an acceptable location. Check for clearance of other items on the mounting surface and if the cord will interfere with the operation of anything in the area.NOTICE: Make sure the location also allows for the Plug to be connected and disconnected. Then the Locking Collar can be secured once the Plug is in use.r. Once in an acceptable location, take a pen or marking tool and mark the mounting surface in each of the screw holes on the Face Plate. Make note of the orientation of the Plug for correct placement in the next steps of installation. With the locations marked, remove the Plug Assembly from the Plug Receptacle and set it aside.s. Lift the Plug Receptacle Face Plate and wires forward out of the drilled hole and leave it hang out of the way. Take a Drill with an 1/8″ Drill Bit and drill pilot holes into the Mounting Surface on the Marked Locations.t. With pilot holes drilled, push the wires, Face Plate and Plug Receptacle back in place on the Mounting Surface.u. Double check the location of the Hook on the back side of the Face Plate. The Loop in the cable of the Dust Cover should be placed in the Hook of the Face Plate. Once secure, push the Face Plate all the way back against the mounting surface. Ensure the Plug Receptacle is positioned as previously noted.v. Realign the drilled pilot holes with the screw holes on the Face Plate. Secure the Face Plate with four #8-18 x 1-¼ Screws (Item #8) using a Phillips Screw Driver.w. Locate the Power Leads for the trolling motor. Turn the power on the motor “off” and remove the motor Power Leads from any power source.x. The wires may need to be trimmed and stripped. Make sure that the wires are long enough to reach the installation location. Use a Wire Cutter to cut the wires to remove any terminals or covers that may be in place. Cut the wires so that the ends of the wires are staggered and the Negative (-) Power Lead is approximately 1-¼” longer than the Positive (+) Power Lead.y. With a Wire Stripper remove the protective covering on the wires. It is recommended to remove approximately ½” to ¾” of the protective covering to expose the wires. Use a Ruler to measure this distance if necessary. If the Positive (+) Power Lead and Negative (-) Power Lead of the Trolling Motor Wires are fused together, split them so they are separated by a minimum of 2-½” from the end of the shortest wire.WARNING: Make sure that the trolling motor wires are not connected to a power source. Failure to remove power could cause electric shock.z. Both the Positive (+) Power Lead and Negative (-) Power Lead of the Trolling Motor Wires should be covered with a Ferrule. Take two 10 AWG or 8 AWG Ferrules (Item #18) or (Item #16) and place one on the end of each of the motor wires. With the Ferrules placed, take the Splice Cover (Item #4) and thread both the Positive (+) and Negative (-) Power Lead of the Trolling Motor Wires through it.NOTICE: The 10 AWG Ferrules are the smallest in the provided hardware. The eight 8 AWG Ferrules may only be needed if the Plug Receptacle, Plug Assembly or Trolling Motor wires need to be trimmed or recapped. Wire sizes vary, so it may be necessary to use a different sized Ferrule.aa. Take one of the 2” Shrink Tubes (Items #6) and place one on the end of the longer Negative (-) Power Lead of the Trolling Motor Wire. Take one Splicer (Item #12) and place it on the end of the same wire. Secure the Splicer by tightening the Set Screw with an 3/32″ Allen Wrench to 20 in-lbsab. The Splicer and Shrink Tube should be added to the Plug Receptacle so it can be attached to the Boat Wires. Take the Plug Receptacle (Item #B) and place one Shrink Tube (Item #6), followed by one Splicer (Item #12) on the end of the black Negative (-) Wire of the Plug Receptacle. Secure the Splicer by tightening the Set Screw with a 3/32″ Allen Wrench to 20 in-lbs.ac. Take the Plug Assembly and identify the red Positive (+) Power Lead on the Plug Assembly and align it with the Positive (+) Power Lead on the Trolling Motor Wires. Insert it into the Splicer at the end of the Positive (+) Lead Wire from the Plug Assembly. Take the black Negative (-) Power Lead from the Plug Assembly and align it with the Negative (-) Power Lead from the Trolling Motor Wire. Insert it in the Splicer at the end of the black Negative (-) Power Lead of from the Trolling Motor Wires. Secure the Set Screw of both Splicers with the Allen Wrench.ad. Once the Splicers are secure on both wires, take the Shrink Tubes and slide them over the Splicers. The Shrink Tubes should be centered over the Splicer and completely cover the wire connections.NOTICE: The Shrink Tubes are meant to water proof the connection between the Plug Receptacle and the Boat Wires. Make sure there are no gaps around the wires that would allow water to reach the connection.ae. When satisfied with the position, secure the Shrink Tubes in place with a Heat Gun. Then slide the Splice Cover over the Shrink Tubes to complete the installation.NOTICE: When disconnecting the plug assembly from the receptacle, be sure to install and tighten the Dust Cap. This will prevent water or debris intrusion.NOTICE: When connecting the plug assembly from the receptacle, be sure to tighten the Threaded Collar to ensure a proper water tight seal is achieved to protect electrical contacts. Failure to tighten the Threaded Collar could result in water intrusion.For warranty information, please visit minnkotamotors.comMinn Kota Consumer & Technical ServiceJohnson Outdoors Marine Electronics, Inc.PO Box 8129Mankato, MN 56001121 Power DriveMankato, MN 56001 Phone (800) 227-6433Fax (800) 527-4464

MANUAL CONTROL

• Steer Left
• Steer Right
• Prop On/Off
• Speed Down
• Speed Up
• Trim Up
• Trim Down
• High-Speed  Bypass Toggles the motor speed between its current setting and speed 10.
• Backlight
  Turns the remote LCD backlighting on for six seconds.
• Keypad Lock/Unlock To lock or unlock the keypad, press and hold the backlight button for 3 seconds.
• Stow/Deploy Motor

TRACKS

• Track to End
  Navigates to the nearest location on a previously recorded track and follows it to its end.
• Track to Start
  Navigates to the nearest location on a previously recorded track and follows it to its start.
• Track Record
  Starts and ends the recording of a track to a selected memory location.
• Record Pause/Escape  Pauses the recording of a track and then resumes the recording when pressed again.

SPOT-LOCK

• Spot-Lock
  Turns Spot-Lock on and records it to a memory location.
• Spot-Lock Recall Recalls a Spot-Lock from memory and turns spot lock on.

CRUISE CONTROL/AUTOPILOT

• Advanced AutoPilot and AutoPilot
  Turns Advanced AutoPilot on
  and off when pressed once. Turns AutoPilot on when held for two seconds.
• Cruise Control
  Turns cruise control on and off using the current GPS speed as the target speed.

1. Motor Speed
2. GPS Signal strength
3. Remote Battery
4. Low Stow/Deploy
5. Prop On/Off
6. GPS Speed
7. Motor Battery Status
8. Keypad Lock
9. Track Record On
10. Track to Start On
11. Spot-Lock On
12. Track to End On
13. Memory Location
14. Cruise Control On
15. AutoPilot/Advanced AutoPilot On

DEPLOYING THE MOTOR

1. Double press the stow/deploy button on the remote.
2. The stow/deploy icon will flash on the remote LCD until motor is fully deployed.

TRIMMING THE MOTOR

With the motor deployed, press the trim up/down button on the remote to trim motor in the desired direction.

STOWING THE MOTOR

1. Press the stow/deploy button on the remote.
2. The stow/deploy icon will flash on the remote LCD until motor is fully stowed.

ENGAGING SPOT-LOCK

1. Press the Spot-Lock button on the remote.
2. The Memory Location icon will flash on the remote LCD for three seconds, allowing you to choose a memory location by pressing the Speed Up or Speed Down buttons. Pressing the Spot-Lock button again or waiting for three seconds accepts the memory location.

DISENGAGING SPOT-LOCK

To disengage Spot-Lock press any of these buttons: Prop On/ Off, Steer Right, Steer Left, Speed Up, Speed Down or Spot-Lock.

RE-ENGAGE A SAVED SPOT-LOCK LOCATION

1. Manually navigate the boat to within a quarter mile of the saved Spot-Lock location. Due to safety reasons, i-Pilot will not re-engage a saved Spot-Lock location greater than a quarter mile away.
2. Press the Spot-Lock Recall button on the remote.
3. The Memory Location icon will flash on the remote LCD for three seconds allowing you to choose a memory location by pressing the Speed Up or Speed Down buttons. Pressing the Spot-Lock Recall button again or waiting for three seconds accepts the memory location.

SPOT-LOCK ESCAPE

If the Spot-Lock button is accidentally hit, press the Record Pause/Escape button or any manual navigation button within three seconds to cancel the command.

ENGAGING CRUISE CONTROL

1. Press the Cruise Control button on the remote.
2. The current GPS speed will flash, displaying your current speed as the target GPS speed on the remote LCD for three seconds.
3. Press the Speed Up or Speed Down buttons to increase or decrease the target speed or press the Cruise Control button again to engage Cruise Control immediately.

DISENGAGE CRUISE CONTROL

Pressing the Cruise Control button will disengage Cruise Control.

ADJUSTING TARGET SPEED WITH CRUISE CONTROL ENGAGED

With Cruise Control engaged press the Speed Up or Speed Down buttons to adjust the target speed by 0.1 MPH increments.

ENGAGING ADVANCED AUTOPILOT AND AUTOPILOT

1. To engage Advanced AutoPilot, press the AutoPilot button once. To engage AutoPilot, press and hold the AutoPilot button for two seconds.
2. The Advanced AutoPilot or AutoPilot icon will be displayed on the remote LCD.
3. To adjust desired heading, manually steer motor to new heading.
4. Pilot will lock onto new heading.

RECORDING A TRACK

1. Press the Record button on the remote.
2. The Memory Location icon will flash on the remote LCD for three seconds, allowing you to choose a memory location by pressing the Speed Up or Speed Down buttons. Pressing the Record button again or waiting for three seconds accepts the memory location.
3. The REC icon will be displayed on the remote LCD. Remember this will be the start point on the track.
4. Navigate the boat along the desired path or course. AutoPilot and/or Cruise Control can be used while recording a track.
5. Press the Record button on the remote again to stop the recording. The recording will end automatically if the two-mile distance limit is reached for the track or if one of the following buttons are pressed: Spot-Lock, Spot-Lock Recall, Track to End or Track to Start.

PAUSE AND RESUME A RECORDING

1. While recording a track press the Record Pause/Escape button.
2. The record icon will flash on the remote LCD.
3.  i-Pilot has now paused the recording of the track.
4. If the boat moves farther than a quarter mile from where the Record Pause/Escape button was pressed, the recorded track will be ended and saved to the memory location previously selected.
5. When ready to resume recording, navigate the boat just ahead of where the Record Pause/Escape button was pushed. Failure to do this may cause erratic play back of a track.
6. Push the Record Pause/Escape button.
7.  The record icon will stop flashing on the remote LCD.
8.  i-Pilot is now recording again and adding to the track that was paused.

REPLAYING A TRACK (TRACK TO START / TRACK TO END)

1. Manually navigate the boat to within a quarter mile of the saved track. Due to safety reasons, i-Pilot will not re-engage a saved track greater than a quarter mile away.
2. Press the Track to Start or Track to End button on the remote.
3. The Memory Location icon will flash on the remote LCD for three seconds, allowing you to choose a memory location by pressing the Speed Up or Speed Down button. Pressing the button pressed in step 2 again or waiting for three seconds accepts the memory location.
4. Adjust motor speed to desired setting to engage and navigate track automatically.

RECORD, TRACK TO END AND TRACK TO START/ESCAPE

If the Record, Track to Start or Track to End button is accidentally hit, press Record Pause/Escape button within three seconds on the remote to cancel the command.

TERROVA
BOW-MOUNT TROLLING MOTOR
Installation Instructions

INTRODUCTION

THANK YOU

Thank you for choosing Minn Kota. We believe that you should spend more time fishing and less time positioning your boat. That’s why we build the smartest, toughest, most intuitive trolling motors on the water. Every aspect of a Minn Kota trolling motor is thought out and rethought until it’s good enough to bear our name. Countless hours of research and testing provide you the Minn Kota advantage that can truly take you “Anywhere. Anytime.” We don’t believe in shortcuts. We are Minn Kota. And we are never done helping you catch more fish.

REGISTRATION
Remember to keep your receipt and immediately register your trolling motor. A registration card is included with your motor or you can complete registration on our website at minnkotamotors.com.
SERIAL NUMBER
Your Minn Kota 11-character serial number is very important. It helps to determine the specific model and year of manufacture. When contacting consumer Service or registering your product, you will need to know your product’s serial number. We recommend that you write the serial number down so that you have it available for future reference.
NOTICE: The serial number on your Terrova is located inside the mount below the motor rests.

MOTOR INFORMATION (For Consumer Reference Only)
Model: _____________________________________________
Serial Number: ______________________________________
Purchase Date: _______________________________________
Store Where Purchased: _________________________________
NOTICE: Do not return your Minn Kota motor to your retailer. Your retailer is not authorized to repair or replace this unit. You may obtain service by: calling Minn Kota at (800) 227-6433; returning your motor to the Minn Kota Factory Service Center; sending or taking your motor to any Minn Kota authorized service center. A list of authorized service centers is available on our website, at minnkotamotors.com. Please include proof of purchase, serial number, and purchase date for warranty service with any of the above options.

SAFETY CONSIDERATIONS

Please thoroughly read the user manual. Follow all instructions and heed all safety and cautionary notices. Use of this motor is only permitted for persons that have read and understood these user instructions. Minors may use this motor only under adult supervision.
WARNING
You are responsible for the safe and prudent operation of your vessel. We have designed your Minn Kota product to be an accurate and reliable tool that will enhance boat operation and improve your ability to catch fish. This product does not relieve you from the responsibility for the safe operation of your boat.  You must avoid hazards to navigation and always maintain a permanent watch so you can respond to situations as they develop. You must always be prepared to regain manual control of your boat. Learn to operate your Minn Kota product in an area free from hazards and obstacles.
WARNING
Never run the motor out of the water, as this may result in injuries from the rotating propeller. The motor should be disconnected from the power source when it is not in use or is off the water. When connecting the power-supply cables of the motor to the battery, ensure that they are not kinked or subject to chafe and route them in such a way that persons cannot trip over them. Before using the motor make sure that the insulation of the power cables is not damaged. Disregarding these safety precautions may result in electric shorts of battery(s) and/or motor. Always disconnect the motor from the battery(s) before cleaning or checking the propeller. Avoid submerging the complete motor as water may enter the lower unit through the control head and shaft. If the motor is used while water is present in the ower unit considerable damage to the motor can occur. This damage will not be covered by warranty.
WARNING
Take care that neither you nor other persons approach the turning propeller too closely, neither with body parts nor with objects. The motor is powerful and may endanger or injure you or others. While the motor is running watch out for a person swimming and for floating objects. Persons who lack the ability to run the motor or whose reactions are impaired by alcohol, drugs, medication, or other substances are not permitted to use this motor. This motor is not suitable for use in strong currents. The constant noise pressure level of the motor during use is less than 70dB(A). The overall vibration level does not exceed 2,5 m/sec2.
WARNING
When stowing or deploying the motor, keep fingers clear of all hinge and pivot points and all moving parts. In the event of an unexpected operation, remove power leads from the battery.
WARNING
It is recommended to only use Johnson Outdoors approved accessories with your Minn Kota motor. Using non-approved accessories including to mount or control your motor may cause damage, unexpected motor operation, and injury. Be sure to use the product and approved accessories, including remotes, safely and in the manner directed to avoid accidental or unexpected motor operation. Keep all factory-installed parts in place including motor and accessory covers, enclosures, and guards.

KNOW YOUR BOAT

INSTALLATION

INSTALLING THE TERROVA
Your new Terrova comes with everything you’ll need to directly install it to the boat. This motor can be directly mounted to the boat or coupled with a  Minn Kota quick release bracket for ease of mounting and removal. For installation with a quick-release bracket, refer to the installation instructions provided with the bracket. For compatible quick-release mounting brackets and to locate your nearest dealer, visit minnkotamotors.com. To install the motor directly to the boat, please follow the instructions provided in this manual. Please review the parts list, mounting considerations, and tools needed for installation prior to getting started. For additional product support, please visit minnkotamotors.com.

INSTALLATION PARTS LIST

MOUNTING CONSIDERATIONS
It is recommended that the motor be mounted as close to the centerline of the boat as possible. Make sure the area under the mounting location is clear to drill holes and install nuts and washers. Make sure the motor rest is positioned far enough beyond the edge of the boat. The motor must not encounter any obstructions as it is lowered into the water or raised into the boat when stowed and deployed. Consider a quick release or adapter bracket with the installation of your motor. To view a list of accessories, please visit minnkotamotors.com.

View accessories available for your trolling motor at minnkotamotors.com.
TOOLS AND RESOURCES REQUIRED

• #3 Phillips Screw Driver
• Drill
• 9/32” Drill Bit
• 7/16” Box End Wrench
• A second person to help with the installation

INSTALLING THE TERROVA
1
a. Place the mount on an elevated, level surface such as a workbench or the tailgate of a pickup. The motor, as removed from the box, should be in the stowed position.
b. Remove the four side plate screws using a #3 Phillips screwdriver. Two of these screws will be located on each side of the mount.
NOTICE: This motor weighs approximately 65lbs. We recommend having a second person help with the installation.

2
a. Remove the Right Sideplate.
b. Swing the Left Sideplate out and away from the
Base Extrusion.

3
c. Make sure that the Power Cables from the battery are disconnected, or that the breaker if equipped, is “off.”
WARNING
Make sure the motor is mounted on a level surface and is not connected to a power source.

4
d. Place the mount as close to the centerline or keel of the boat as possible. The motor can be installed on either the Port or Starboard side of the boat based on personal preference. Check placement with the motor in the stowed and deployed positions. Review the mounting considerations at the beginning of the installation.

5
ITEM(S) NEEDED

#4 x 6

e. When the motor is in the deployed position, make sure that the Shaft is 1-1/2″ out past the Gunwale of the boat. The lower unit, when stowed and deployed must not encounter any obstructions.
f. Check to be sure that the mount is level. Use the Rubber Washers (Item #4) were provided to create a level surface if necessary.

6
g. It is recommended to mark at least 4 of the 6 holes in the Base Extrusion and to have a minimum of two bolts on each side that are located the farthest apart. Ideal installation would allow for 6 bolts to be used, with a minimum of 4.
h. Drill through the deck of the boat using a 9/32″ Drill Bit on the marked locations.

7

a. Put a 1/4-20 x 2″ (Item #1) screw in each of the drilled locations. The screw should pass through the Base Extrusion and the boat deck. If the rubber washers (Item #4) are used, they should sit between the Base Extrusion and boat deck. Make sure to secure the motor with screws on each side of the
Base Extrusion.
b. Place a Flat Washer (Item #2) and then a Nylock Nut (Item #3) at the end of each screw as shown and secure. Make sure all hardware is secure.

NOTICE: To prevent seizing of the stainless steel hardware, do not use high-speed installation tools. Wetting the screws or applying an anti-seize may help
prevent seizing.

8
c. Replace the Right Sideplate.
d. Swing the Left Sideplate back into its correct position on the Base Extrusion.

9
e. Replace the four side plate screws using a #3 or #2 Phillips screwdriver. Two of these screws will be located on each side of the mount.

10

f. Take the Foot Pedal (Item #EE) and turn it over.
Put a Foot Pedal Pad (Item #18) in each of the pad locations.

NOTICE: The pads are recommended when using the Foot Pedal on non-carpeted surfaces.

IDENTIFYING TROLLING MOTOR FEATURES BY THEIR ASSOCIATED CABLES
Your trolling motor may be pre-installed with Built-In MEGA Down Imaging OR Universal Sonar and may include an i-Pilot Link. All of these features require cables to be connected to an output device. These connections are present on the trolling motor and have cables that exit below the Control Head.  To better identify cables present, refer to the diagrams below that detail what the Built-In MEGA Down Imaging, Universal Sonar, and i-Pilot Link cable connectors look like.

NOTICE: The i-Pilot system does not have an external wired connection.

If one connection below the Control Head is present, the motor may be equipped with:

1.  i-Pilot and Universal Sonar,
2. i-Pilot and Built-in MEGA Down Imaging,
3.  ONLY Universal Sonar, or
4. ONLY Built-in MEGA Down Imaging.

If two connections below the Control Head are present, the motor may be equipped with either:

1. i-Pilot Link and Universal Sonar or
2.  i-Pilot Link and Built-in MEGA Down Imaging

ROUTING CONNECTION CABLES
Please follow these instructions for routing any and all of the cables present for any of the pre-installed features that may come with your trolling motor.  This routing should be followed whether there are one or two connection cables present. If you are unsure of the cables present, please review the  “Identifying Trolling Motor Features By Their Associated Cables” section of these Installation Instructions.

1

a. Place the motor in the deployed position.
b. Locate the Built-in MEGA Down Imaging, i-Pilot Link and/or Universal Sonar cable(s), at the base of the Control Head.
CAUTION
Not following the recommended wire routing for the Built-in MEGA Down Imaging, i-Pilot Link, and/or Universal Sonar cable(s), if equipped, may cause damage to the product and void your product warranty. Route cables away from pinch points or other areas that may cause them to bend in sharp angles. Routing the cables in any way other than directed may cause damage to the cables by being pinched or severed.
NOTICE: Universal Sonar connector is shown for illustration purposes.

2

c. The cable(s) should be fed all the way through the Coil Cord. It/they should exit the Coil Cord at the bottom of the Coil Cord, where it connects to the
Mount.

NOTICE: After the cable(s) exit(s) the Coil Cord, it/they should be routed through an established routing system on the boat, in an area with minimal interference. Power cables or other elements that may produce interference for the sonar signals. Inspect the selected route carefully to ensure that there are  no sharp edges, obstacles, or obstructions that may damage the cables.

FEATURE OVERVIEW AND CONNECTING THE CABLES
The cable(s) from the Control Head for each feature installed on the trolling motor is connected to an output device separately. Once the features that may be installed are identified, follow the instructions below to ensure the cables are connected correctly.

Built-In MEGA Down Imaging Built-In MEGA Down

Imaging delivers nearly 3X the output of standard Side Imaging ® and takes fishfinding into the megahertz frequency for the very first time. The  Minn Kota flagship families of trolling motors, including Ultrex, Ulterra, Terrova, and Fortrex, now include Built-In MEGA Down Imaging sonar, the clearest imaging available only from Humminbird. With Humminbird MEGA imaging sonar built right into the trolling motor, you now have a crystal clear view of what’s directly beneath the boat, without having to manage all of the cables that come with external transducers. The Built-In MEGA DI transducer is only available on new models equipped from the factory and cannot be added to an existing trolling motor.
The Built-in MEGA DI transducer will provide both MEGA Down Imaging and 2D CHIRP Digital Sonar to select Humminbird models. All Built-In  MEGA DI trolling motors will come “Apex and Solix Ready” out of the box. An adapter cable accessory (MKR-MDI-1 1852085 or MKR-MDI-2 1852086)  is available for purchase that will allow the connection of any compatible Humminbird Helix fish finder. The MKRMDI-1 is used on Helix 8, 9, 10,  12 and 15 models. The MKR-MDI-2 is used for Humminbird Helix 7 models only. See the Built-In MEGA Down Imaging Compatibility chart online.

NOTICE: You can only view Down Imaging with a MEGA DI or MEGA SI HELIX G2N, G3N or G4N Series model and a required adapter, or with any SOLIX or APEX Series model. The built-in transducer cannot supply MEGA Imaging to Humminbird models that do not already have the capability.  If you have a G2/G2N, G3/G3N HELIX that is not a MEGA SI or MEGA DI model, you will still get 2D Dual Spectrum CHIRP Sonar from the transducer. SOLIX G1 and HELIX G2 and G2N units need to be running the latest software update to view sonar from motors with Built-In MEGA  imaging. You can get the latest version of the software for your fish finder on humminbird.com. Built-In MEGA Imaging is not supported by HELIX G1  models or other brands of fish finders.

1

a. Place the motor in the deployed position.
b. The Built-In MEGA Down Imaging connector from the Control Head is a 14 pin connector. Built-In MEGA Down Imaging may be installed on its own, or in conjunction with an i-Pilot or i-Pilot Link system. It will never be installed with Universal Sonar. Locate and identify the correct connection for  Built-in MEGA Down Imaging cable(s), at the base of the Control Head.
NOTICE: Built-in MEGA Down Imaging is always paired with either i-Pilot or i-Pilot Link on Terrova, Ulterra and Ultrex motors. It may be pre-installed on a Fortrex motor without other features that require external connections.

NOTICE: Critical cable routing for 60″ and 72″ motors with i-Pilot Link and Built-in MEGA Down Imaging. Accessory Cables must exit the Coil Cord leaving three or more open coils between where the cables exit and the motor base; as assembled by the factory. Routing the cables in any other manner will not allow the motor to stow properly.

2
c. When installing with a Solix or Apex, the BuiltIn MEGA Down Imaging cable can be plugged directly into the Solix fish finder. Plug the Built-in MEGA Down Imaging cable into the corresponding connection the Solix fish finder.
d. When installing with a Helix, first attach the AdapteCable and then plug the Adapter Cable into the Helix fish finder. The Adapter Cable will only have one connection that is keyed on the back of the  Helix fish finder. Plug the Adapter Cable into the only matching keyed connection.
NOTICE: Check for compatibility or any required adapter cables online at minnkotamotors.com. The cable from the trolling motor can be extended with a 10’ Extension Cable #720081-1 or the 30’ Extension Cable #720081-2 found at humminbird.com.
NOTICE: If any cables need to be routed, please follow the guidelines in the Routing Connection Cables section of these installation instructions.

NOTICE: The connectors are keyed to prevent reversed installation.

Universal Sonar
Your trolling motor may be pre-installed with a Universal Sonar transducer system. Universal Sonar is a 2D sonar transducer with a temperature sensor that is integrated into the lower unit of the trolling motor. It has an operating frequency of 83/200 kHz. Connecting this transducer to a compatible fishfinder gives you a 2D sonar view of what is happening directly below your trolling motor. The integrated design protects the transducer from underwater hazards and prevents tangles and damage to the transducer cables.
All Universal Sonar motors are equipped with an internal bonding wire, incorrect rigging will cause sonar interference and can damage your trolling motor,  electronics, and other boat accessories. To minimize trolling motor interference, ensure that the fish finder and trolling motor are powered by separate batteries. Please refer to the Battery & Wiring Installation and Motor Wiring Diagram sections of this manual for correct rigging instructions.
The Universal Sonar Cables are shielded to minimize interference. To protect this shielding the cables should not be pulled tight against sharp angles or hard objects. If using cable ties, do not over-tighten. Any excess cable should be bundled in a loose loop of no less than 4” in diameter. In certain situations,  air bubbles may adhere to the surface of the Universal Sonar transducer, and affect the performance. If this happens simply wipe the surface of the transducer with your finger.

NOTICE: Universal Sonar does not support imaging screens that require higher frequencies such as 455 kHz or 800 kHz (Down Imaging, Side Imaging,  etc.). Down Imaging (DI) specific units are not compatible with Universal Sonar. See the compatibility chart for a list of compatible fish finders at minnkotamotors.com.
The connector for Universal Sonar exits the trolling motor below the Control Head and consists of a 4-pin plug. An adapter cable (MKR-US2) that is sold separately is required for all installations. For a current list of compatible fish finders and the correct adapter cable, or more information on Universal Sonar, please visit minnkotamotors.com.

1

a. Place the motor in the deployed position.
b. Locate the Universal Sonar, if equipped, at the base of the Mount.
c. Locate the Universal Sonar four-pin connector at the end of the Universal Sonar Extension Cable. The connector is black with a stainless steel threaded locking collar.
NOTICE: Your fish finder should be turned off until this procedure is complete.

NOTICE: If the cable length does not reach the desired fish finder installation location, a 14.5’ extension cable is available (MKR-US2-11) (sold separately).

2
NOTICE: The Universal Sonar Cable may not be long enough to reach the fish finder. If the cable length does not reach the desired fish finder installation location, a 14.5’ extension cable is available to purchase. Minn Kota recommends using the MKR-US2-11.
d. Take the Universal Sonar Extension Cable, if needed, and attach it to the Universal Sonar Cable exiting the Control Head. Firmly push the plug together and twist the locking collar until it is snug.
e. Install the Universal Sonar Cable that exits the Control Head or the Universal Sonar Extension Cable (if used) to the appropriate Universal Sonar Adapter  Cable. Install the Adapter Cable to your fishfinder. Refer to your fishfinder manual for complete installation instructions.
NOTICE: If any cables need to be routed, please follow the guidelines in the Routing Connection Cables section of these installation instructions.

i-Pilot Link
i-Pilot Link allows your Minn Kota trolling motor and Humminbird to communicate with each other to change the way you fish. i-Pilot Link delivers a large array of GPS capabilities including controlling speed, steering, Spot-Lock, and the ability to record and retrace paths on the water, all at your fingertips. To learn more about the GPS capabilities available with your i-Pilot Link navigation system, please refer to the Owner’s Manual by visiting  minnkotamotors.com.

NOTICE: The i-Pilot Link system needs an external wired connection. The i-Pilot system does not need an external wired connection.

The i-Pilot Link remote and controller make up the i-Pilot Link navigation system. The i-Pilot Link remote comes paired to the controller from the factory.  The i-Pilot Link controller contains a very sensitive compass and is where all GPS satellite and i-Pilot Link remote signals are received. The i-Pilot Link controller is contained in the trolling motor Control Head and is connected to a fish finder from a connection cable that exits the Control Head.
The Ethernet cable for the i-Pilot Link system has an 8-pin connector. The i-Pilot Link system can be connected directly to the Humminbird or to the  Humminbird Ethernet Switch (optional). If you purchase an Ethernet Switch, install it using the instructions included in the Ethernet Installation Guide.  The Ethernet Extension Cable is optional for your installation. To purchase Ethernet switches, Ethernet cables, and extension cables, visit the website  humminbird.com or call Humminbird Customer Service at 1-800-633-1468. Depending on the shape of the Ethernet port on your Humminbird fishfinder, an additional ethernet adapter cable (Ethernet Adapter Cable AS EC QDE #720074-1 for Helix fish finders) may be required for the installation. Refer to your fish finder operations manual or see the i-Pilot Link Compatibility Chart on our website with a list of all compatible Humminbird Units and SC Cards.

1

a. Place the motor in the deployed position.
b. The i-Pilot Link connector from the Control Head is an 8-pin connector. Locate and identify the correct connection for the i-Pilot Link, at the base of the Control Head.
NOTICE: i-Pilot Link will be paired with either Built-in MEGA Down Imaging or Universal Sonar on Ultrex, Ulterra or Terrova. i-Pilot Link is not a feature offered on Fortrex motors.
NOTICE: Paired with a Universal Sonar connector for illustration purposes. A Built-in MEGA Down An imaging connector may be present instead.

2

c. If necessary, to reach the installed fish finder, take the i-Pilot Link Ethernet Cable (Item #12) and attach it to the i-Pilot Link cable exiting the Control  Head.
NOTICE: If any cables need to be routed, please follow the guidelines in the Routing Connection Cables section of these installation instructions.
d. Install the i-Pilot Link Ethernet Cable directly into the Humminbird fishfinder or refer to your fish finder installation manual for complete installation instructions. If an Adapter Cable is needed (Ethernet Adapter Cable AS EC QDE for Helix fish finders), install it on the end of the i-Pilot Link Ethernet  Cable and refer to your fish finder installation manual for complete installation instructions.

NOTICE: The connectors are keyed to prevent reversed installation.

INSTALLING THE PROP

1

CAUTION
Disconnect the motor from the battery before beginning any prop work.
a. Take the Drive Pin (Item #14) and slide it through the Hole in the Armature Shaft. Position the Drive Pin horizontal by grasping the Armature Shaft and
rotating it with the Drive Pin in place.
b. Align the Propeller (Item #17) so it is also horizontal and parallel with the Drive Pin. Slide the Propeller onto the Armature Shaft and Drive Pin until it is
seated against the lower unit.
c. Install the Prop Washer (Item #15) and the Prop Nut (Item #16) onto the end of the Armature Shaft.
d. Holding the end of the Armature Shaft with a Flat Blade Screwdriver, tighten the Prop Nut with a 9/16″ Open End Wrench.
e. Tighten the Prop Nut 1/4 turn past snug to 25-35 in-lbs.

CAUTION
Do not over tighten as this can damage the prop.

BATTERY & WIRING INSTALLATION

BOAT RIGGING & PRODUCT INSTALLATION
For safety and compliance reasons, we recommend that you follow American Boat and Yacht Council (ABYC) standards when rigging your boat. Altering boat wiring should be completed by a qualifi ed marine technician. The following specifi cations are for general guidelines only:

CAUTION
These guidelines apply to general rigging to support your Minn Kota motor. Powering multiple motors or additional electrical devices from the same power circuit may impact the recommended conductor gauge and circuit breaker size. If you are using wire longer than that provided with your unit, follow the conductor gauge and circuit breaker sizing table below. If your wire extension length is more than 25 feet, we recommend that you contact a qualifi ed marine technician.
CAUTION
An over-current protection device (circuit breaker or fuse) must be used. Coast Guard requirements dictate that each ungrounded current-carrying conductor must be protected by a manually reset, trip-free circuit breaker or fuse. The type (voltage and current rating) of the fuse or circuit breaker must be sized accordingly to the trolling motor used. The table below gives recommended guidelines for circuit breaker sizing.
CONDUCTOR GAUGE AND CIRCUIT BREAKER SIZING TABLE
This conductor and circuit breaker sizing table is only valid for the following assumptions:

1. No more than 2 conductors are bundled together inside of a sheath or conduit outside of engine spaces.
2. Each conductor has 105° C temp-rated insulation.
3. No more than 5% voltage drop allowed at full motor power based on published product power requirements.

NOTICE: Wire Extension Length refers to the distance from the batteries to the trolling motor leads. Consult the website for available thrust options.  Maximum Amp Draw values only occur intermittently during select conditions and should not be used as continuous amp load ratings.

Reference
United States Code of Federal Regulations: 33 CFR 183 – Boats and Associated Equipment ABYC E-11: AC and DC Electrical Systems on Boats

SELECTING THE CORRECT BATTERIES
The motor will operate with any lead acid, deep cycle marine 12-volt battery/batteries. For best results, use a deep cycle, marine battery with at least a 105  amp-hour rating. Maintain battery at full charge. Proper care will ensure having battery power when you need it, and will significantly improve the battery life. Failure to recharge lead-acid batteries (within 12-24 hours) is the leading cause of premature battery failure. Use a multi-stage charger to avoid overcharging. We offer a wide selection of chargers to fit your charging needs. If you are using a crank battery to start a gasoline outboard, we recommend that you use a separate deep cycle marine battery/ batteries for your Minn Kota trolling motor. For more information on battery selection and rigging,  please visit minnkotamotors.com. Minn Kota trolling motors can run on Lithium Ion batteries. However, they are specifically designed to run on traditional lead acid batteries (flooded, AMG, or GEL). Lithium Ion batteries maintain higher voltages for longer periods of time than lead acid. Therefore, running a  Minn Kota trolling motor at speeds higher than 85% for a prolonged period could cause permanent damage to the motor.

WARNING
Never connect the (+) and the (–) terminals of the same battery together. Take care that no metal object can fall onto the battery and short the terminals.  This would immediately lead to short and extreme fire danger.
CAUTION
Refer to “Conductor Gauge and Circuit Breaker Sizing Table” in the previous section to find the appropriate circuit breaker or fuse for your motor. For motors requiring a 60-amp breaker, the Minn Kota MKR-19 60-amp circuit breaker is recommended.
CAUTION
Please read the following information before connecting your motor to your batteries in order to avoid damaging your motor and/or voiding your warranty.
ADDITIONAL CONSIDERATIONS
Using Alternator Chargers
Your Minn Kota trolling motor may be designed with an internal bonding wire to reduce sonar interference. Most alternator charging systems do not account for this bonding wire and connect the negative posts of the trolling motor batteries to the negative posts of the crank/starting battery. These external connections can damage connected electronics and the electrical system of your trolling motor, voiding your warranty. Review your charger’s manual carefully or consult the manufacturer prior to use to ensure your charger is compatible. Minn Kota recommends using Minn Kota brand chargers to recharge the batteries connected to your Minn Kota trolling motor, as they have been engineered to work with motors that include a bonding wire.

Additional Accessories Connected to Trolling Motor Batteries
Significant damage to your Minn Kota motor, your boat electronics, and your boat can occur if incorrect connections are made between your trolling motor batteries and other battery systems. Minn Kota recommends using an exclusive battery system for your trolling motor. Where possible, accessories should be connected to a separate battery system. Radios and sonar units should not be connected to any trolling motor battery systems as interference from the trolling motor is unavoidable. If connecting any additional accessories to any trolling motor battery system, or making connections between the trolling motor batteries and other battery systems on the boat, be sure to carefully observe the information below.
The negative (-) connection must be connected to the negative terminal of the same battery that the trolling motor negative lead connects to. In the diagrams below this battery is labeled “Low Side” Battery. Connecting to any other trolling motor battery will input positive voltage into the “ground” of that accessory, which can cause excessive corrosion. Any damage caused by incorrect connections between the battery, systems will not be covered under warranty.
Automatic Jump Start Systems and Selector Switches
Automatic jump start systems and selector switches tie the negatives of the connected batteries together. Connecting these systems to the “High Side”  Battery or “Middle” Battery in the diagrams below and will cause significant damage to your trolling motor and electronics. The only trolling motor battery that is safe to connect to one of these systems is the “Low Side” Battery.
NOTICE: The internal bonding wire is equipped with a 3 amp fuse. Improper connections described above carrying in excess of 3 amps will blow this fuse and no further damage will be exhibited. If this occurs, RF interference from the trolling motor affecting sonar units and other electronics will be more significant. If the fuse is blown the wiring error should be found and addressed prior to replacing the fuse. The replacement fuse should be 3 amps or less. An intact fuse does not imply correct rigging; significant damage can be done by incorrect wiring without approaching 3 amps of current.
CONNECTING THE BATTERIES
12-Volt Systems
1. Make sure that the motor is switched off (speed selector on “OFF” or “0”).
2. Connect positive ( + ) red lead to positive ( + ) battery terminal.
3. Connect negative ( – ) black lead to negative ( – ) battery terminal.
WARNING
For safety reasons do not switch the motor on until the propeller is in the water. If installing a lead wire plug, observe proper polarity and follow instructions in your boat owner’s manual.

CONNECTING THE BATTERIES IN SERIES
(IF REQUIRED FOR YOUR MOTOR)
24-Volt Systems

Two 12-volt batteries are required. The batteries must be wired in series, only as directed in the wiring diagram, to provide 24 volts.

1. Make sure that the motor is switched off (speed selector on “0”).
2. Connect a connector cable to the positive ( + ) terminal of battery 1 and to the negative ( – ) terminal of battery 2.
3. Connect positive ( + ) red motor lead to positive ( + ) terminal on battery 2.
4.  Connect negative ( – ) black motor lead to negative ( – ) the terminal of battery 1.

WARNING
For safety reasons do not switch the motor on until the propeller is in the water. If installing a lead wire plug, observe proper polarity and follow instructions in your boat owner’s manual.
WARNING

• For safety reasons, disconnect the motor from the battery or batteries when the motor is not in use or while the battery/batteries are being charged.
• For safety reasons, disconnect the motor from the battery or batteries when the motor is not in use or while the battery/batteries are being charged.
• Keep lead wire wing nut connections tight and solid to battery terminals.
• Locate the battery in a ventilated compartment.
• Improper wiring of 24/36 volt systems could cause battery explosion.

36-Volt Systems
Three 12-volt batteries are required. The batteries must be wired in series, only as directed in the wiring diagram, to provide 36 volts.

1. Make sure that the motor is switched off (speed selector on “0”).
2. Connect a connector cable to the positive ( + ) terminal of battery 1 and to the negative ( – ) terminal of battery 2 and another connector cable from the positive ( + ) terminal of battery 2 to the negative ( – ) terminal of battery 3.
3. Connect positive ( + ) red motor lead to positive ( + ) terminal on battery 3.
4. Connect negative ( – ) black motor lead to negative ( – ) terminal of battery 1.


WARNING
For safety reasons, do not switch the motor on until the propeller is in the water. If installing a lead wire plug, observe proper polarity and follow instructions in your boat owner’s manual.
WARNING

• For safety reasons, disconnect the motor from the battery or batteries when the motor is not in use or while the battery/batteries are being charged.
• Improper wiring of 24/36 volt systems could cause battery explosion.
• Keep lead wire wing nut connections tight and solid to battery terminals.
• Locate the battery in a ventilated compartment.

This completes the installation of your Terrova. A Complete Owner’s Manual can be downloaded at minnkotamotors.com.

RECOMMENDED ACCESSORIES

ON-BOARD & PORTABLE BATTERY CHARGERS
Stop buying new batteries and start taking care of the ones you’ve got. Many chargers can actually damage your battery over time – creating shorter run times and shorter overall life. Digitally controlled Minn Kota chargers are designed to provide the fastest charge that protects and extends battery life.

TALON SHALLOW WATER ANCHOR
Introducing the all-new, sleek redesigned Talon. Talon is the only shallow water anchor with up to 15’ of anchoring depth, multiple anchoring modes, and control from the bow, transom, console, remote or mobile device.

BUILT-IN WORK LIGHT
Let’s you tie lines and work from the transom any time of day — or night. Includes both white and blue LED lights with three brightness settings.

BLUETOOTH ®CONNECTIVITY
Let’s you control Talon from your mobile device and easily update it. Also opens up communication to other control options.

UP TO 15’ DEEP
Control more water and catch more fish with the first 15’shallow water anchor.

MORE CONTROL OPTIONS

• Control Panel
• Wireless Remote
• Mobile App
• Wireless Foot Switch
• Humminbird ® Connectivity
• i-Pilot ® & i-Pilot Link ™bRemote

MINN KOTA ACCESSORIES

We offer a wide variety of trolling motor accessories, including:

• 60-Amp Circuit Breaker
• Mounting Brackets
• Stabilizer Kits
• Extension Handles
• Battery Connectors
• Battery Boxes
• Quick Connect Plugs

minnkotamotors.com
Part #2327132

Minn Kota Consumer & Technical Service
Johnson Outdoors Marine Electronics, Inc.
PO Box 8129
Mankato, MN 56001

121 Power Drive
Mankato, MN 56001
Phone (800) 227-6433
Fax (800) 527-4464

©2021 Johnson Outdoors Marine Electronics, Inc.
All rights reserved.
Rev H
08/21

FEATURES

Specifications subject to change without notice.
*This diagram is for reference only and may differ from your actual motor.

MOUNT INSTALLATION

TOOLS AND RESOURCES REQUIRED:

• Phillips Screw Driver
• Drill • 9/32” Drill Bit
• 7/16” Box End Wrench
• A second person to help with the installation

1. Before you proceed, determine the desired mounting location for the motor. It is recommended that the motor be mounted as close to the center line of the boat as possible as seen below.
   CAUTION: Make sure the motor is mounted on a level surface and is not connected to a power source.


2. Verify the area under the chosen mounting location is clear and safe to drill through.
3. Place the motor on top of the desired mounting location while it is in the stowed position (for stow and deploy instructions, see “Stowing and Deploying the Motor” on p. 11).
4. Verify the motor rest is positioned far enough beyond the edge of the boat so that the motor clears all obstructions while deploying and stowing the motor.

5. Deploy the motor and remove the motor assembly from the mount by loosening the Steering Tension Knob and opening the door.
   WARNING:
   When raising or lowering motor, keep fingers clear of all hinge and pivot points and all moving parts.


6. Position the mount again in the stowed position.
7. Temporarily remove the Phillips screws that fasten the motor rest to the mounting bracket and remove the motor rest to expose the motor mounting hole pattern.

8. Determine the mounting hole pattern you wish to use from the illustration to the right. Using the mounting holes in the mount as your template, mark the top deck of the boat with a pencil or an erasable marker.
9. Remove the mount from the deck of the boat and drill the holes that you marked in the previous step using a 9/32” drill bit and drill. Be careful not to damage any wiring or critical features that may exist under the surface you are drilling through.
10. Place the mount on the deck of the boat again and verify the hold down strap is positioned 15 ¾” from the front of the bow mount as shown in the diagram.

11. Fasten the mount to the deck of the boat using the supplied ¼” – 20 X 2” bolts, washers and nuts. Tighten the stainless mount hardware securely but slowly to the deck of the boat using a 7/16” box end wrench. Tightening the stainless hardware too fast may result in galling and or seizing of the bolts and nuts.
12. Reinstall the motor rest using the six original ¼” Phillips screws.
13. Reinstall the motor assembly into the mount and securely tighten the steering tension knob.

BATTERY WIRING & INSTALLATION

BOAT RIGGING & PRODUCT INSTALLATION

For safety and compliance reasons, we recommend that you follow American Boat and Yacht Council (ABYC) standards when rigging your boat. Altering boat wiring should be completed by a qualified marine technician. The following specifications are for general guidelines only:

CAUTION: These guidelines apply to general rigging to support your Minn Kota motor. Powering multiple motors or additional electrical devices from the same power circuit may impact the recommended conductor gauge and circuit breaker size. If you are using wire longer than that provided with your unit, follow the conductor gauge and circuit breaker sizing table below. If your wire extension length is more than 25 feet, we recommend that you contact a qualified marine technician.

An over-current protection device (circuit breaker or fuse) must be used. Coast Guard requirements dictate that each ungrounded current-carrying conductor must be protected by a manually reset, trip-free circuit breaker or fuse. The type (voltage and current rating) of the fuse or circuit breaker must be sized accordingly to the trolling motor used. The table below gives recommended guidelines for circuit breaker sizing.

Reference:

United States Code of Federal Regulations: 33 CFR 183 – Boats and Associated Equipment ABYC E-11: AC and DC Electrical Systems on Boats

CONDUCTOR GAUGE AND CIRCUIT BREAKER SIZING TABLE

This conductor and circuit breaker sizing table is only valid for the following assumptions:

1. No more than 3 conductors are bundled together inside of a sheath or conduit outside of engine spaces.
2. Each conductor has 105° C temp rated insulation.
3. No more than 5% voltage drop allowed at full motor power based on published product power requirements.

*Wire Extension Length refers to the distance from the batteries to the trolling motor leads.

SELECTING THE CORRECT BATTERIES

The motor will operate with any lead acid, deep cycle marine 12 volt battery/batteries. For best results, use a deep cycle, marine battery with at least a 105 ampere hour rating. Maintain battery at full charge. Proper care will ensure having battery power when you need it, and will signifi cantly improve the battery life. Failure to recharge lead-acid batteries (within 12-24 hours) is the leading cause of premature battery failure. Use a multi-stage charger to avoid overcharging. We off er a wide selection of chargers to fi t your charging needs. If you are using a crank battery to start a gasoline outboard, we recommend that you use a separate deep cycle marine battery/batteries for your Minn Kota trolling motor.

Advice Regarding Batteries:

• Never connect the (+) and the (–) terminals of the battery together. Take care that no metal object can fall onto the battery and short the terminals. This would immediately lead to a short and extreme fi re danger.
• It is highly recommended that a circuit breaker or fuse be used with this trolling motor. Refer to “Conductor Gauge and Circuit Breaker Sizing Table” in the previous section to find the appropriate circuit breaker or fuse for your motor. For motors requiring a 60-amp breaker, the Minn Kota MKR-19 60-amp circuit breaker is recommended.

CONNECTING THE BATTERIES

12 VOLT SYSTEMS:

1. Make sure that the motor is switched off (speed selector on “OFF” or “0”).
2. Connect positive ( + ) red lead to positive ( + ) battery terminal.
3. Connect negative ( – ) black lead to negative ( – ) battery terminal.
4. For safety reasons do not switch the motor on until the propeller is in the water.

CAUTION:
For safety reasons, disconnect the motor from the battery/batteries when the motor is not in use or while the battery/batteries are being charged.

CONNECTING THE BATTERIES IN SERIES
(IF REQUIRED FOR YOUR MOTOR)

24 VOLT SYSTEMS:

1. Make sure that the motor is switched off (speed selector on “0”).
2. Two 12 volt batteries are required.
3. The batteries must be wired in series, only as directed in wiring diagram, to provide 24 volts.
   a. Connect a connector cable to the positive ( + ) terminal of battery 1 and to the negative ( – ) terminal of battery 2.
   b. Connect positive ( + ) red lead to positive ( + ) terminal on battery 2.
   c. Connect negative ( – ) black lead to negative ( – ) terminal of battery 1.
4. For safety reasons do not switch the motor on until the propeller is in the water. If installing a leadwire plug, observe proper polarity and follow instructions in your boat owner’s manual. See wiring diagram on following pages.

CAUTION

• For safety reasons, disconnect the motor from the battery or batteries when the motor is not in use or while the battery/batteries are being charged.
• Improper wiring of 24/36 volt systems could cause battery explosion!
• Keep leadwire wing nut connection tight and solid to battery terminals.
• Locate battery in a ventilated compartment.

MOTOR WIRING DIAGRAM

NOTE: This is a universal, multi-voltage diagram. Double-check your motor’s voltage for proper connections. Over-Current Protection Devices not shown in this illustration.

USING AND ADJUSTING THE MOTOR

STOWING AND DEPLOYING THE MOTOR

WARNING:
When raising or lowering the motor, keep fingers clear of all hinge and pivot points and all moving parts.

MOUNT FEATURES

• The motor mount is designed to fold back and lock the motor fl at on the deck when not in use and to provide secure stowage for transport.
• The pull grip and rope releases the lock bar, which automatically engages when the unit is lowered or raised into position. The pull grip and rope should be used to both lower and raise the unit.
• The motor rest positions the lower unit as it comes in contact with the nose of the mount and guides it onto the motor rest.
• The tube lock captures the motor shaft and keeps the lower unit centered on the motor rest.
• The hold-down strap must be used to place pressure on the motor shaft to hold the lower unit tightly against the motor rest when stowed.
• The pull grip and rope can be stored by placing the pull grip on top of the tube lock or into the rope stow slot on the control box of the motor.

TO DEPLOY THE MOTOR

Simply pull back and lift the motor off of the mount with the pull grip and rope. Lower the motor into the water using the pull grip and rope. The motor will lock into the deployed position automatically.

TO STOW THE MOTOR

Pull back and lift the motor out of the water with the pull grip and rope. Lower the lower unit onto the motor rest using the pull grip and rope. The motor will lock into the stowed position automatically. Wrap the hold-down strap over top of the motor shaft to secure the motor.

ADJUSTING THE DEPTH OF THE MOTOR

The propeller tip must be submerged at least 12” to avoid churning or agitation of surface water.

1. With the motor deployed, firmly grasp the outer shaft or control head and hold it steady.
2. Loosen the depth adjustment knob until the shaft slides freely.
3. Raise or lower the motor to the desired depth.
4. Turn the motor control head to the desired position.
5. Tighten depth adjustment knob to secure the motor in place.

ADJUSTING THE STEERING CABLE

The steering cable tension is pre-set at the factory but will, through normal use, need occasional adjustment.

Adjust the tension of the cables by turning the cable tension adjustment screw (Phillips pan-head screw) located near the bottom of the foot pedal, just under the steering cable cover.

Turn the screw clockwise to increase tension and counter-clockwise to decrease tension.

NOTE:
If the cable becomes too loose, it may disengage the wrap drum in the control box or the pulley in the foot pedal.

CONTROLLING SPEED & STEERING WITH THE FOOT PEDAL

Most controls on the foot pedal are easy to operate by either foot or hand:

TO ADJUST MOTOR SPEED

Turn the speed knob clockwise to increase speed and counter-clockwise to decrease speed.

TO OPERATE THE MOTOR IN CONTINUOUS MODE

Press the Mom/Off /Con switch on the side of the pedal to the Con position.

TO OPERATE THE MOTOR IN MOMENTARY MODE

Press the Mom/Off /Con switch on the side of the pedal to the Mom position. A toe touch to the Momentary button on the foot pedal will now turn the motor on. Removing downward force on the Momentary button will turn the motor off .

TO TURN LEFT OR RIGHT

Push the toe end of the foot pedal down to turn right and push the heel end of the foot pedal down to turn left. The indicator on the motor head shows the direction of the motor. The motor will not maintain its own heading. You must keep your foot on the pedal to control steering during operation.

TO REVERSE THE MOTOR

The motor always travels in the direction of the indicator. You can reverse the direction of the motor by turning the motor 180° from straight ahead.

CAUTION:

• Switch the mom/off /con switch to “off ” when not in use. If the motor control is left on and the propeller rotation is blocked, severe motor damage can result.
• Be sure to turn the motor off after each use.
• For safety reasons, disconnect the motor from the battery/batteries when the motor is not in use or while the battery/batteries are being charged.

SERVICE & MAINTENANCE

PROPELLER REPLACEMENT

TOOLS AND RESOURCES REQUIRED:

• 7/16” Box End Wrench
• Screwdriver (optional)

CAUTION:
Disconnect the motor from the battery before beginning any prop work or maintenance.

NOTE:
The propeller on your motor may diff er from the one pictured.

1. Disconnect the motor from all sources of power prior to changing the propeller.
2. Hold the propeller and loosen the prop nut with pliers or a wrench.
3. Remove the prop nut and washer. If the drive pin is sheared or broken, you will need to hold the shaft stationary with a blade screwdriver pressed into the slot on the end of the shaft.
4. Turn the old prop to horizontal (as illustrated) and pull it straight off . If drive pin falls out, push it back in.
5. Align the new propeller with the drive pin.
6. Install the prop washer and prop nut.
7. Tighten the prop nut 1/4 turn past snug [25-35 inch lbs.] Do not over tighten as this can damage the prop.

GENERAL MAINTENANCE

1. After use, the entire motor should be rinsed with freshwater, then wiped down with a cloth dampened with an aqueous based silicone spray. This series of motors is not equipped for saltwater exposure.
2. The propeller must be inspected and cleaned from weeds and fishing line after every use. Fishing line and weeds can get behind the prop, damage the seals and allow water to enter the motor.
3. Verify the prop nut is secure each time the motor is used.
4. To prevent accidental damage during transportation or storage, disconnect the battery whenever the motor is off of the water. For prolonged storage, lightly coat all metal parts with an aqueous based silicone spray.
5. For maximum battery life recharge the battery(s) as soon as possible after use. For maximum motor performance restore battery to full charge prior to use.
6. Keep battery terminals clean with fi ne sandpaper or emery cloth.
7. The propeller is designed to provide weed free operation with very high efficiency. To maintain this top performance, the leading edge of the blades must be kept smooth. If they are rough or nicked from use, restore to smooth by sanding with fi ne sandpaper.

TROUBLESHOOTING & REPAIR

1. Motor fails to run or lacks power:
   • Check battery connections for proper polarity.
   • Make sure terminals are clean and corrosion free. Use fi ne sandpaper or emery cloth to clean terminals.
   • Check battery water level. Add water if needed.
2. Motor loses power after a short running time:
   • Check battery charge. If low, restore to full charge.
3. Motor is difficult to steer:
   • Check steering cables for proper tension. Adjust as necessary.
4. You experience prop vibration during normal operation:
   • Remove and rotate the prop 180°. See removal instructions in the Propeller Replacement Section.
5. Experiencing interference with your fishfinder:

PARTS DIAGRAM

COMPLIANCE STATEMENTS

ENVIRONMENTAL COMPLIANCE STATEMENT:

It is the intention of JOME to be a responsible corporate citizen, operating in compliance with known and applicable environmental regulations, and a good neighbor in the communities where we make or sell our products.

WEEE DIRECTIVE:

EU Directive 2002/96/EC “Waste of Electrical and Electronic Equipment Directive (WEEE)” impacts most distributors, sellers, and manufacturers of consumer electronics in the European Union. The WEEE Directive requires the producer of consumer electronics to take responsibility for the management of waste from their products to achieve environmentally responsible disposal during the product life cycle.

WEEE compliance may not be required in your location for electrical & electronic equipment (EEE), nor may it be required for EEE designed and intended as fixed or temporary installation in transportation vehicles such as automobiles, aircraft, and boats. In some European Union member states, these vehicles are considered outside of the scope of the Directive, and EEE for those applications can be considered excluded from the WEEE Directive requirement.

This symbol (WEEE wheelie bin) on product indicates the product must not be disposed of with other household refuse. It must be disposed of and collected for recycling and recovery of waste EEE. Johnson Outdoors Inc. will mark all EEE products in accordance with the WEEE Directive. It is our goal to comply in the collection, treatment, recovery, and environmentally sound disposal of those products; however, these requirement do vary within European Union member states. For more information about where you should dispose of your waste equipment for recycling and recovery and/or your European Union member state requirements, please contact your dealer or distributor from which your product was purchased.

DISPOSAL:

Minn Kota motors are not subject to the disposal regulations EAG-VO (electric devices directive) that implements the WEEE directive. Nevertheless never dispose of your Minn Kota motor in a garbage bin but at the proper place of collection of your local town council.

Never dispose of battery in a garbage bin. Comply with the disposal directions of the manufacturer or his representative and dispose of them at the proper place of collection of your local town council.

WARNING:
This product contains chemical(s) known to the state of California to cause cancer and/or reproductive toxicity.

RECOMMENDED ACCESSORIES

ON-BOARD & PORTABLE BATTERY CHARGERS

Stop buying new batteries and start taking care of the ones you’ve got. Many chargers can actually damage your battery over time – creating shorter run times and shorter overall life. Digitally controlled Minn Kota chargers are designed to provide the fastest charge that protect and extend battery life.

TALON SHALLOW WATER ANCHOR

Talon deploys faster, holds stronger and runs quieter than any other shallow water anchor. Available in depths up to 12’ and bold color options, it boasts an arsenal of features and innovations that no other anchor can touch:

• Vertical, multi-stage deployment
• User-Selectable Anchoring Modes
• 2x Anchoring Force
• Fast Deploy
• Auto Up/Down
• Triple Debris shields*
• Built-In Wave Absorption
• Noise Dissipation
• Versatile Adjustments

*available on 10’ and 12’ models only

MINN KOTA ACCESSORIES

We offer a wide variety of trolling motor accessories, including:

• 60-Amp Circuit Breaker
• Mounting Brackets
• Stabilizer Kits
• Extension Handles
• Battery Connectors
• Battery Boxes
• Quick Connect Plugs

Find out more about performance boat parts and hardware we have.

SAFETY CONSIDERATIONS

WARNING

You are responsible for the safe and prudent operation of your vessel. We have designed your Foot Pedal to be an accurate and reliable tool that will enhance boat operation and improve your ability to catch fish. This product does not relieve you from the responsibility for safe operation of your boat. You must avoid hazards to navigation and always maintain a permanent watch so you can respond to situations as they develop. You must always be prepared to regain manual control of your boat. Learn to operate your Foot Pedal in an area free from hazards and obstacles.

CAUTION

For safety reasons, disconnect the motor from the battery/batteries when the motor is not in use or while the battery/batteries are being charged. If the motor control is left on,and the Foot Pedal is accidentally engaged, and the propeller rotation is blocked, severe motor damage can result.

WARNING

Practice proper ergonomics when operating the foot pedal to prevent injury.

COMPATIBILITY

Compatible with Terrova and Riptide Terrova Motors Model Year 2017 and After

Refer to the motor images to ensure compatibility.

• Terrova model year 2016 and earlier that have round, black foot pedal plug

• Terrova model year 2017 and after that have round, black foot pedal plug


INSTALLATION

INSTALLING THE TERROVA & RIPTIDE TERROVA FOOT PEDAL

Your new Terrova Foot Pedal accessory comes with everything you’ll need to directly install it on your trolling motor. These instructions are intended to show how to install your new Terrova Foot Pedal on a Terrova trolling motor. Please review the parts list and mounting considerations for installation prior to getting started. For additional product support, please visit minnkotamotors.com.

INSTALLATION PARTS LIST

Not shown on Parts Diagram.

MOUNTING CONSIDERATIONS

Before installing your Terrova Foot Pedal, make sure that it is compatible with your motor. To review compatibility, please refer to the “Compatibility” section in this manual. When placing the Terrova Foot Pedal on your boat, select a location that will not obstruct boat operation and that is appropriate for trolling motor operation. Place the Terrova Foot Pedal in a foot pedal well on your boat if it has one, or any location where it will be free from water and debris.

Installing the Terrova and Riptide Terrova Foot Pedal

ITEM(S) NEEDED

• #2 x 5

• #A x 1


1. Take the Foot Pedal (Item #A) and turn it over.
   Put a Foot Pedal Pad (Item #2) in each of the pad locations.
   NOTICE: Adding the Foot Pedal pads is optional.
   The pads are recommended when using the Foot Pedal on non-carpeted surfaces.

2. Locate the Foot Pedal Cord that exits the mount of the Terrova, next to the Power Cord.

3. Unscrew the caps at the end of the Foot Pedal cords exiting the motor and the Foot Pedal.

4. Plug the cords together and make sure the connection is secure. Be sure to tighten the connector retaining nut.
   NOTICE: The connectors are keyed to prevent reversed installation.


USING THE FOOT PEDAL

CONTROLLING SPEED & STEERING WITH THE FOOT PEDAL

The foot pedal is used to operate the motor, and controls on the foot pedal are easy to operate by either foot or hand. A light touch is all that is necessary. When equipped with the appropriate receiver, the motor can also be controlled by an i-Pilot or i-Pilot Link remote, as well as any compatible Minn Kota remote. Please refer to the i-Pilot, i-Pilot Link or compatible remote manual on how the remote controls the motor. To learn more about accessories that are compatible with the Terrova please visit minnkotamotors.com.

Motor Speed

The Speed Control knob is located on the right side of the Foot Pedal above the Spot-Lock button. Turn the Speed Knob forward to increase speed and backwards to decrease speed. The Speed Control knob can be set in a range from 0 to 10. Speed can also be adjusted using the remote.

Spot-Lock

The Spot-Lock button is located on the bottom, right side of the Foot Pedal and is labeled with an anchor symbol. When the Spot-Lock button is pressed, the location of the motor is recorded to a temporary memory location. The blue light next to the Spot-Lock label on the Indicator Panel is illuminated when Spot-Lock is engaged. To engage Spot-Lock press the Spot-Lock button, to disengage, press the Spot-Lock button again.

When engaging Spot-Lock, a tone will be emitted. When disengaging Spot-Lock with the Spot-Lock button, no tone will be emitted.
Steering the motor with the Foot Pedal or adjusting the speed using the Speed Knob will cancel Spot-Lock and a High-Low, High-Low,
High-Low tone will be emitted. Spot-Lock can also be controlled with the remote. For more specific directions on how to use Spot-Lock, please refer to either your motor manual, or the i-Pilot or i-Pilot Link Manual.

NOTICE: The AutoPilot and Spot-Lock buttons on theTerrova Foot Pedal will only work if your Terrova motor comes with these features already installed on your motor.
If your motor does not already have these features both buttons will be non-functioning

USING THE FOOT PEDAL

WARNING

You are responsible for the safe and prudent operation of your vessel. We have designed the Terrova Foot Pedal to be an accurate and reliable tool that will enhance boat operation and improve your ability to catch fish. This product does not relieve you from the responsibility for safe operation of your boat. You must avoid hazards to navigation and always maintain a permanent watch so you can respond to situations as they develop. You must always be prepared to regain manual control of your boat. Learn to operate your Terrova in an area free from hazards and obstacles.

Practice proper ergonomics when operating the foot pedal to prevent injury.

Steer Right/Steer Left

The Steer Right and Steer Left buttons are located at the bottom of the Foot Pedal. They function to steer right and left. Holding the Steer Right or Steer Left buttons down will continue to steer the motor to the left or right. Small steering changes of less than one degree can be made by quickly tapping the Steer Right and Steer Left buttons. The position and direction of the Steering Head directly corresponds to the position of the motor. The direction of the motor can also be controlled with the remote.

CAUTION

The steering system is designed to turn your motor 360 degrees. Be careful to avoid over-wrapping the Coil Cord around the trolling motor Shaft. Over wrapping the coil cord will cause damage and prevent operation.

NOTICE: The motor will not auto correct to drive straight when it encounters an obstruction.

Prop ON/OFF

The Prop ON/OFF button is located in the bottom, middle of the Foot Pedal. It functions to turn the Prop on and off. The Prop will turn on when pressure is applied and turn off when pressure to the button is removed. The Prop ON/OFF button functions very similar to the Momentary button.

Constant

The Constant button is located on the left side of the Foot Pedal, towards the bottom, right below the AutoPilot button. It functions to toggle the motor between Constant Motor Operation and Momentary Motor Operation. The green light on the Indicator Panel will be illuminated when the motor is in Constant Motor Operation. In Constant Mode, the propeller will continually run, regardless of whether or not force is being applied to the Momentary button or Prop ON/OFF button. While in Constant Motor Operation, the propeller will run continuously at the speed set by the Speed Control knob, or by the i-Pilot or i-Pilot Link remote.

AutoPilot

The AutoPilot  button is located in the middle, on the left side of the Foot Pedal. Pressing the AutoPilot button toggles the feature on and off for motor that are installed with this feature. The red light on the Indicator Panel is illuminated when this feature is engaged. When AutoPilot is initiated from the Foot Pedal, the default AutoPilot mode is determined by the remote. AutoPilot can also be engaged and disengaged using the remote. For more specific directions on how to use AutoPilot, please refer to either your motor manual, or the i-Pilot or i-Pilot Link Manual. The AutoPilot Indicator on the Mount will also be illuminated when AutoPilot is engaged.

Momentary

In Momentary Motor Operation, the propeller will only run while downward force is applied to the Momentary button. The Momentary button is on the Toe End of the Heel/Toe Steering pedal. Applying downward pressure to the Momentary button will turn the propeller on. The motor will then run at the speed set by the Speed Knob or remote. Removing downward force to the Momentary button will turn the propeller off. No indicator light is associated with the Momentary button. The Momentary button functions very similar to the Prop ON/OFF button.

Heel/Toe Steering

Push the Toe End of the Foot Pedal down to turn right and push the Heel End of the Foot Pedal down to turn left. The position and direction of the Control Head directly corresponds to the position of the motor. You must use your foot on the pedal to control the steering direction during manual operation. The direction of the motor can also be controlled with the remote.

Steering in Reverse

The propeller always turns in the forward direction. You can reverse the direction of thrust by turning the motor 180°.

AUTOPILOT

AUTOPILOT CONTROLS

Your Terrova may be purchased with factory installed AutoPilot.
The Minn Kota AutoPilot™ uses a magnetic compass and microprocessor chip to keep the trolling motor pointed in the direction you want to go. Each time the wind or water current moves the boat off course, the AutoPilot senses the change and steers itself back to the original heading. The AutoPilot direction is set every time a steering change is made. To change direction, steer until the Control Head points to the desired course. The AutoPilot will pull the bow of the boat around and correct automatically until the boat is moving in the direction you chose. If your motor is installed with AutoPilot, it may be controlled with the Foot Pedal, or if equipped with CoPilot receiver, the CoPilot remote, or i-Pilot or i-Pilot Link remote depending on your motor. Be sure to verify how AutoPilot is controlled on your motor if applicable. If your motor is installed with either i-Pilot or i-Pilot Link, please refer to the applicable owner’s manual online for additional information on AutoPilot.

NOTICE: The AutoPilot button on the Terrova Foot Pedal will only work if your Terrova motor comes with AutoPilot already installed on your motor. If your motor does not already have this feature this button will be non-functioning.

AutoPilot

AutoPilot uses an internal compass to provide heading lock. When AutoPilot is on, it keeps the motor pointed in the same compass direction. If a manual steering correction is made, AutoPilot locks onto the new compass heading to which the boat was steered. This method of heading tracking does not take into account external forces such as a side wind or currents, which can allow side drift.

CAUTION

This unit uses a magnetic compass to detect direction of travel. The compass can be adversely affected by magnets or large, ferrous metal objects near (within 12” of) the trolling motor control head.

Obstructions on the propeller may cause excessive vibration of the motor head. This vibration can cause the compass to wander and erratic steering to occur. Clear the obstruction to return the motor to normal operation.

This unit has an automatic steering shutdown for safety. In conditions where an obstruction prevents the trolling motor from turning, or in extremely windy conditions, the automatic steering may stop. Any steering input will reset the system to normal.

When AutoPilot is “on” and the trolling motor is pulled out of the water to the stow position, the steering motor will continue to run until the motor is stowed properly. Once the motor is stowed properly, AutoPilot will turn “off” and the AutoPilot Indicator will no longer be illuminated.

CONTROLLING AUTOPILOT

Toggle AutoPilot On/Off

When the AutoPilot is on and the trolling motor is pulled out of the water to the stow position, the steering motor will continue to run.
Turn off AutoPilot to stop the motor. If AutoPilot is left on, the steering motor will shut off automatically after 10 seconds. The motor should not be stored in this condition for long periods as power is still being applied to all electronics. Always turn AutoPilot off and disconnect your motor from the battery when storing your boat.

1. While the motor is running, AutoPilot can be turned on by pressing the AutoPilot button located on the Foot Pedal, CoPilot remote, or using either the i-Pilot or i-Pilot Link remote.
2. While AutoPilot is on, drive the boat as desired.
3. To turn AutoPilot off, press the AutoPilot button again.


NOTICE: After steering to a new direction, there is a short delay before the direction is locked in to allow the compass to stabilize. When broad speed changes are made, the AutoPilot heading may change slightly. This is normal.

SPOT-LOCK

HOW SPOT-LOCK WORKS

Spot-Lock uses a single point of reference that is recorded when the Spot-Lock button is pressed. The reference point is a set of GPS coordinates that are captured at the location of the motor at the moment the button is pressed. This point is recorded and can be saved into one of the Spot-Lock memory locations. Spot-Lock works by recognizing th GPS coordinates and will automatically navigate the boat to keep it at the Spot-Lock location. If i-Pilot Link sees the motor is not positioned at the Spot-Lock location, it will control motor speed and direction in an attempt to keep the motor on the Spot-Lock. For more specific directions on how to use Spot Lock, please refer to either the i-Pilot or i-Pilot Link Manual.

NOTICE: The Spot-Lock button on the Terrova Foot Pedal will only work if your Terrova motor comes with Spot-Lock already installed on your motor. If your motor does not already have this feature this button will be non-functioning.

NOTICE: Spot-Lock is based on the location of the motor, not on the location or direction of the boat. Outside forces such as wind and current will cause the boat to move. Spot-Lock will navigate to maintain the motor on the Spot-Lock location regardless of the position of the boat.

WARNING

Watch for a turning propeller when working with Spot- Lock. The propeller will automatically turn on when Spot-Lock is engaged, even if the engagement is accidental. A turning propeller can cause injury. The propeller will turn “on” for Spot-Lock and regardless of the Prop Auto On setting used on the i-Pilot or i-Pilot Link navigational system.

CONTROLLING SPOT-LOCK

Toggle Spot-Lock On/Off

While the motor is running, Spot-Lock can be turned on by pressing the Spot-Lock button located on the Foot Pedal, a Micro Remote remote, or using either the i-Pilot or i-Pilot Link remote.

NOTICE: If the Spot-Lock button is accidentally pressed, press the Spot-Lock button again to cancel Spot-Lock.

NOTICE: Pressing any button on the foot pedal, or manually steering the motor with the foot pedal will disengage Spot-Lock. Manually steering or adjusting the Prop Speed with the Remote will also cancel Spot-Lock.

COMPLIANCE STATEMENTS

ENVIRONMENTAL COMPLIANCE STATEMENT

It is the intention of JOME to be a responsible corporate citizen, operating in compliance with known and applicable environmental regulations, and a good neighbor in the communities where we make or sell our products.

WEEE DIRECTIVE

EU Directive 2002/96/EC “Waste of Electrical and Electronic Equipment Directive (WEEE)” impacts most distributors, sellers, and manufacturers of consumer electronics in the European Union. The WEEE Directive requires the producer of consumer electronics to take responsibility for the management of waste from their products to achieve environmentally responsible disposal during the product life cycle.

WEEE compliance may not be required in your location for electrical & electronic equipment (EEE), nor may it be required for EEE designed and intended as fi xed or temporary installation in transportation vehicles such as automobiles, aircraft, and boats. In some European Union member states, these vehicles are considered outside of the scope of the Directive, and EEE for those applications can be considered excluded from the WEEE Directive requirement.

This symbol (WEEE wheelie bin) on product indicates the product must not be disposed of with other household refuse. It must be disposed of and collected for recycling and recovery of waste EEE. Johnson Outdoors Inc. will mark all EEE products in accordance with the WEEE Directive. It is our goal to comply in the collection, treatment, recovery, and environmentally sound disposal of those products; however, these requirements do vary within European Union member states. For more information about where you should dispose of your waste equipment for recycling and recovery and/or your European Union member state requirements, please contact your dealer or distributor from which your product was purchased.

DISPOSAL

Minn Kota motors are not subject to the disposal regulations EAG-VO (electric devices directive) that implements the WEEE directive.
Nevertheless never dispose of your Minn Kota motor in a garbage bin but at the proper place of collection of your local town council.

Never dispose of battery in a garbage bin. Comply with the disposal directions of the manufacturer or his representative and dispose of them at the proper place of collection of your local town council.

FCC COMPLIANCE

This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference.
2. This device must accept any interference that may be received, including interference that may cause undesired operation.

Changes or modifi cations not expressly approved by Johnson Outdoors Marine Electronics, Inc. could void the user’s authority to operate this equipment.

NOTICE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

INDUSTRY CANADA COMPLIANCE

This product meets the applicable Industry Canada technical specifi cations. Operation is subject to the following two conditions:

1. this device may not cause interference, and
2. this device must accept any interference, including interference that may cause undesired operation of the device.

Changes or modifi cations not expressly approved by Johnson Outdoors Marine Electronics, Inc. could void the user’s authority to operate this equipment.

ENVIRONMENTAL RATINGS

• Ambient operating temperature range: -10C to 50C
• Ambient operating humidity range: 5% to 95%
• Maximum operating altitude: 10,000 feet

SERVICE & MAINTENANCE

GENERAL MAINTENANCE

Keep the Foot Pedal well dry and clean. Debris that gets in the Foot Pedal can cause interference of pedal operation.
It is recommended to use compressed air to clean the foot pedal after each use.

TROUBLESHOOTING

NOTICE: For malfunctions, visit an Authorized Service Center. You can search for an Authorized Service Center in your area by visiting our Authorized Service page, found on-line at minnkotamotors.com, or by calling our customer service number at 800-227-6433.

FOR FURTHER TROUBLESHOOTING AND REPAIR

We offer several options to help you troubleshoot and/or repair your product. Please read through the options listed below.

Buy Parts Online

You can buy parts on-line directly from our website at minnkotamotors.com. Orders confirmed by 12 noon central time will ship same day if in stock. Orders after 12 noon central time will ship the next business day if in stock.

Frequently Asked Questions

We have FAQs available on our website to help answer all of your Minn Kota questions. Visit minnkotamotors.com and click on “Frequently Asked Questions” to find an answer to your question.

Call Us (for U.S. and Canada)

Our consumer service representatives are available Monday – Friday between 7:00 a.m. – 4:30 p.m. CST at 800-227-6433. If you are calling to order parts, please have the 11-character serial number from your product, specific part numbers, and credit card information available. This will help expedite your call and allow us to provide you with the best consumer service possible. You can reference the parts list located in your manual to identify the specific part numbers.

Email Us

You can email our consumer service department with questions regarding your Minn Kota products.
To email your question, visit minnkotamotors.com and click on “Support”.

Authorized Service Centers

Minn Kota has over 800 authorized service centers in the United States and Canada where you can purchase parts or get your products repaired. Please visit our Authorized Service Center page on our website to locate a service center in your area.

PARTS DIAGRAM & PARTS LIST

TERROVA & RIPTIDE TERROVA FOOT PEDAL

Foot Pedal Parts Diagram

Foot Pedal Parts List

RECOMMENDED ACCESSORIES

ON-BOARD & PORTABLE BATTERY CHARGERS

Stop buying new batteries and start taking care of the ones you’ve got. Many chargers can actually damage your battery over time – creating shorter run times and shorter overall life. Digitally controlled Minn Kota chargers are designed to provide the fastest charge that protect and extend battery life.

TALON SHALLOW WATER ANCHOR

Introducing the all-new, sleek redesigned Talon. Talon is the only shallow water anchor with up to 15’ of anchoring depth, multiple anchoring modes, and control from the bow, transom, console, remote or mobile device.

• BUILT-IN  WORK LIGHT
  Lets you tie lines and work from the transom any time of day — or night. Includes both white and blue LED lights with three brightness settings.

• BLUETOOTH® CONNECTIVITY
  Lets you control Talon from your mobile device and easily update it. Also opens up communication to other control options.

• UP TO 15’ DEEP
  Control more water and catch more fish with the first 15’ shallow water anchor.

• MORE CONTROL OPTIONS
  • Control Panel
  • Wireless Remote
  • Mobile App
  • Wireless Foot Switch
  • Humminbird Connectivity
  • i-Pilot® & i-Pilot LinkTM Remot


MINN KOTA ACCESSORIES

We offer a wide variety of trolling motor accessories, including:

• 60-Amp Circuit Breaker
• Mounting Brackets
• Stabilizer Kits
• Extension Handles
• Battery Connectors
• Battery Boxes
• Quick Connect Plugs

MINN KOTA PowerDrive V2 Bow-Mount Trolling Motor

CE MASTER USER MANUAL (FOR CE/C-TICK CERTIFIED MODELS) Conforms to 89/336/EEC (EMC) under standards EN 55022A, EN 50082-2 since 1996 LN V9677264

THANK YOU
Thank you for choosing Minn Kota. We believe that you should spend more time fi shing and less time positioning your boat. That’s why we build the smartest, toughest, most intuitive trolling motors on the water. Every aspect of a Minn Kota trolling motor is thought out and rethought until it’s good enough to bear our name. Countless hours of research and testing provide you the Minn Kota advantage that can truly take you “Anywhere. Anytime.” We don’t believe in shortcuts. We are Minn Kota. And we are never done helping you catch more fi sh. REMEMBER TO KEEP YOUR RECEIPT AND IMMEDIATELY REGISTER YOUR TROLLING MOTOR. A registration card is enclosed or you can complete registration on our website at minnkotamotors.com.

NOTE: Do not return your Minn Kota motor to your retailer. Your retailer is not authorized to repair or replace this unit. You may obtain service by: calling Minn Kota at (800) 227-6433; returning your motor to the Minn Kota Factory Service Center; sending or taking your motor to any Minn Kota authorized service center. A list of authorized service centers is available on our website, at minnkotamotors.com. Please include proof of purchase, serial number and purchase date for warranty service with any of the above options.
Please thoroughly read this user manual. Follow all instructions and heed all safety and cautionary notices below. Use of this motor is only permitted for persons that have read and understood these user instructions. Minors may use this motor only under adult supervision.

ATTENTION: Never run the motor out of the water, as this may result in injuries from the rotating propeller. The motor should be disconnected from the power source when it is not in use or is off the water. When connecting the power-supply cables of the motor to the battery, ensure that they are not kinked or subject to chafe and route them in such a way that persons cannot trip over them. Before using the motor make sure that the insulation of the power cables is not damaged. Disregarding these safety precautions may result in electric shorts of battery(s) and/or motor. Always disconnect motor from battery(s) before cleaning or checking the propeller. Avoid submerging the complete motor as water may enter the lower unit through control head and shaft. If the motor is used while water is present in the lower unit considerable damage to the motor can occur. This damage will not be covered by warranty.

CAUTION: Take care that neither you nor other persons approach the turning propeller too closely, neither with body parts nor with objects. The motor is powerful and may endanger or injure you or others. While the motor is running watch out for persons swimming and for fl oating objects. Persons whose ability to run the motor or whose reactions are impaired by alcohol, drugs, medication, or other substances are not permitted to use this motor. This motor is not suitable for use in strong currents. The constant noise pressure level of the motor during use is less than 70dB(A). The overall vibration level does not exceed 2,5m/sec2.

TWO-YEAR LIMITED WARRANTY

WARRANTY ON MINN KOTA FRESHWATER TROLLING MOTORS
Johnson Outdoors Marine Electronics, Inc. (“JOME”) extends the following limited warranty to the original retail purchaser only. Warranty coverage is not transferable.

MINN KOTA LIMITED TWO-YEAR WARRANTY ON THE ENTIRE PRODUCT
JOME warrants to the original retail purchaser only that the purchaser’s new Minn Kota freshwater trolling motor will be materially free from defects in materials and workmanship appearing within two (2) years after the date of purchase. JOME will (at its option) either repair or replace, free of charge, any parts found by JOME to be defective during the term of this warranty. Such repair, or replacement shall be the sole and exclusive liability of JOME and the sole and exclusive remedy of the purchaser for breach of this warranty.

MINN KOTA LIMITED LIFETIME WARRANTY ON COMPOSITE SHAFT
JOME warrants to the original retail purchaser only that the composite shaft of the purchaser’s Minn Kota trolling motor will be materially free from defects in materials and workmanship appearing within the original purchaser’s lifetime. JOME will provide a new composite shaft, free of charge, to replace any composite shaft found by JOME to be defective during the term of this warranty. Providing a new composite shaft shall be the sole and exclusive liability of JOME and the sole and exclusive remedy of the purchaser for breach of this warranty; and purchaser shall be responsible for installing, or for the cost of labor to install, any new composite shaft provided by JOME.

EXCLUSIONS & LIMITATIONS
This limited warranty does not apply to products that have been used in saltwater or brackish water, commercially or for rental purposes. This limited warranty does not cover normal wear and tear, blemishes that do not aff ect the operation of the product, or damage caused by accidents, abuse, alteration, modifi cation, shipping damages, acts of God, negligence of the user or misuse, improper or insuffi cient care or maintenance. DAMAGE CAUSED BY THE USE OF OTHER

REPLACEMENT PARTS NOT MEETING THE DESIGN SPECIFICATIONS OF THE ORIGINAL PARTS WILL NOT BE COVERED BY THIS LIMITED WARRANTY.
The cost of normal maintenance or replacement parts which are not in breach of the limited warranty are the responsibility of the purchaser. Prior to using products, the purchaser shall determine the suitability of the products for the intended use and assumes all related risk and liability. Any assistance JOME provides to or procures for the purchaser outside the terms, limitations or exclusions of this limited warranty will not constitute a waiver of the terms, limitations or exclusions, nor will such assistance extend or revive the warranty. JOME will not reimburse the purchaser for any expenses incurred by the purchaser in repairing, correcting or replacing any defective products or parts, except those incurred with JOME’s prior written permission. JOME’S AGGREGATE LIABILITY WITH RESPECT TO COVERED PRODUCTS IS LIMITED TO AN AMOUNT EQUAL TO THE PURCHASER’S ORIGINAL PURCHASE PRICE PAID FOR SUCH PRODUCT.

MINN KOTA SERVICE INFORMATION
To obtain warranty service in the U.S., the product believed to be defective, and proof of original purchase (including the date of purchase), must be presented to a Minn Kota Authorized Service Center or to Minn Kota’s factory service center in Mankato, MN. Any charges incurred for service calls, transportation or shipping/freight to/from the Minn Kota Authorized Service Center or factory, labor to haul out, remove, re-install or re-rig products removed for warranty service, or any other similar items are the sole and exclusive responsibility of the purchaser. Products purchased outside of the U.S. must be returned prepaid with proof of purchase (including the date of purchase and serial number) to any Authorized Minn Kota Service Center in the country of purchase. Warranty service can be arranged by contacting a Minn Kota Authorized Service Center or by contacting the factory at 1-800-227-6433 or email [email protected]. Products repaired or replaced will be warranted for the remainder of the original warranty period [or for 90 days from the date of repair or replacement, whichever is longer]. For any product that is returned for warranty service that JOME fi nds to be not covered by or not in breach of this limited warranty, there will be a billing for services rendered at the prevailing posted labor rate and for a minimum of at least one hour.

NOTE: Do not return your Minn Kota product to your retailer. Your retailer is not authorized to repair or replace products.

THERE ARE NO EXPRESS WARRANTIES OTHER THAN THESE LIMITED WARRANTIES. IN NO EVENT SHALL ANY IMPLIED WARRANTIES INCLUDING ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR PARTICULAR PURPOSE, EXTEND BEYOND THE DURATION OF THE RELEVANT EXPRESS LIMITED WARRANTY. IN NO EVENT SHALL JOME BE LIABLE FOR PUNITIVE, INDIRECT, INCIDENTAL, CONSEQUENTIAL OR SPECIAL DAMAGES. Without limiting the foregoing, JOME assumes no responsibility for loss of use of product, loss of time, inconvenience or other damage. Some states do not allow limitations on how long an implied warranty lasts or the exclusion or limitation of incidental or consequential damages, so the above limitations and/or exclusions may not apply to you. This warranty gives you specifi c legal rights and you may also have other legal rights which vary from state to state.

FEATURES

MOUNT INSTALLATION

TOOLS AND RESOURCES REQUIRED:

• #3 Phillips Screw Driver
• Drill
• 9/32” Drill Bit
• 7/16” Box End Wrench
• A second person to help with the installation

1. Remove the four sideplate screws. Remove the right sideplate and swing the left sideplate out and away from the base extrusion.
2. Place the motor on the bow of the boat in the deployed position.
   1. We recommend that the motor be mounted as close to the centerline of the boat as possible.
   2. Make sure that the area under the mounting location is clear and unobstructed for drilling and accessible for you to attach nuts and washers.
   3. Make sure the mount is positioned so that the shaft is out beyond the rub rail of the boat by 1-½”. The lower unit, as it is lowered into the water or raised into the boat, must not encounter any obstructions.
      CAUTION: Make sure the motor is mounted on a level surface and is not connected to
      a power source. Use the rubber washers to create a level surface if necessary.
3. Once in position, mark four of the twelve holes (two on each side) provided in the bow mount base for drilling. If possible, use the four holes that are farthest apart. Drill through the marked holes using the 9/32” drill bit.
4. Mount the plate to the bow using the provided bolts, nuts, and washers.
5. Replace the sideplates and sideplate screws.

BATTERY WIRING & INSTALLATION

BOAT RIGGING & PRODUCT INSTALLATION
For safety and compliance reasons, we recommend that you follow American Boat and Yacht Council (ABYC) standards when rigging your boat. Altering boat wiring should be completed by a qualifi ed marine technician. The following specifi cations are for general guidelines only:

CAUTION: These guidelines apply to general rigging to support your Minn Kota motor. Powering multiple motors or additional electrical devices from the same power circuit may impact the recommended conductor gauge and circuit breaker size. If you are using wire longer than that provided with your unit, follow the conductor gauge and circuit breaker sizing table below. If your wire extension length is more than 25 feet, we recommend that you contact a qualifi ed marine technician.
An over-current protection device (circuit breaker or fuse) must be used. Coast Guard requirements dictate that each ungrounded current-carrying conductor must be protected by a manually reset, trip-free circuit breaker or fuse. The type (voltage and current rating) of the fuse or circuit breaker must be sized accordingly to the trolling motor used. The table below gives recommended guidelines for circuit breaker sizing.

Reference:
United States Code of Federal Regulations: 33 CFR 183 – Boats and Associated Equipment ABYC E-11: AC and DC Electrical Systems on Boats

CONDUCTOR GAUGE AND CIRCUIT BREAKER SIZING TABLE

This conductor and circuit breaker sizing table is only valid for the following assumptions: 1

1. No more than 3 conductors are bundled together inside of a sheath or conduit outside of engine spaces.
2. Each conductor has 105° C temp rated insulation.
3. No more than 5% voltage drop allowed at full motor power based on published product power requirements.

PUSH-TO-TEST BATTERY METER
This motor is equipped with a “push-to-test” battery meter. The LED provides an accurate display of the remaining charge in the battery. It is only accurate when the motor is off . The meter reads as:

• One light indicates recharge.
• Two lights indicate low charge.
• Three lights indicate good charge.
• Four lights indicate full charge.

SELECTING THE CORRECT BATTERIES
The motor will operate with any lead acid, deep cycle marine 12 volt battery/batteries. For best results, use a deep cycle, marine battery with at least a 105 ampere hour rating. Maintain battery at full charge. Proper care will ensure having battery power when you need it, and will signifi cantly improve the battery life. Failure to recharge lead-acid batteries (within 12-24 hours) is the leading cause of premature battery failure. Use a multi-stage charger to avoid overcharging. We off er a wide selection of chargers to fi t your charging needs. If you are using a crank battery to start a gasoline outboard, we recommend that you use a separate deep cycle marine battery/batteries for your Minn Kota trolling motor.

Advice Regarding Batteries:

• Never connect the (+) and the (–) terminals of the same battery together. Take care that no metal object can fall onto the battery and short the terminals. This would immediately lead to a short and extreme fi re danger.
• It is highly recommended that a circuit breaker or fuse be used with this trolling motor. Refer to “Conductor Gauge and Circuit Breaker Sizing Table” in the previous section to fi nd the appropriate circuit breaker or fuse for your motor. For motors requiring a 60-amp breaker, the Minn Kota MKR-19 60-amp circuit breaker is recommended

CONNECTING THE BATTERIES

12 VOLT SYSTEMS:

1. Make sure that the motor is switched off (speed selector on “OFF” or “0”).
2. Connect positive ( + ) red lead to positive ( + ) battery terminal.
3. Connect negative ( – ) black lead to negative ( – ) battery terminal.
4. For safety reasons do not switch the motor on until the propeller is in the water.

CAUTION:
For safety reasons, disconnect the motor from the battery/batteries when the motor is not in use or while the battery/batteries are being charged.

CONNECTING THE BATTERIES IN SERIES (IF REQUIRED FOR YOUR MOTOR)

24 VOLT SYSTEMS:

1. Make sure that the motor is switched off (speed selector on “0”).
2. Two 12 volt batteries are required.
3. The batteries must be wired in series, only as directed in wiring diagram, to provide 24 volts.
   1. Connect a connector cable to the positive ( + ) terminal of battery 1 and to the negative ( – ) terminal of battery 2.
   2. Connect positive ( + ) red motor lead to positive ( + ) terminal on battery 2.
   3. Connect negative ( – ) black motor lead to negative ( – ) terminal of battery 1.
4. For safety reasons do not switch the motor on until the propeller is in the water. If installing a leadwire plug, observe proper polarity and follow instructions in your boat owner’s manual. See wiring diagram on following pages.

CAUTION

• For safety reasons, disconnect the motor from the battery or batteries when the motor is not in use or while the battery/batteries are being charged.
• Improper wiring of 24/36 volt systems could cause battery explosion!
• Keep leadwire wing nut connections tight and solid to battery terminals.
• Locate battery in a ventilated compartment.

MOTOR WIRING DIAGRAM

NOTE: This is a universal, multi-voltage diagram. Double check your motor’s voltage for proper connections. Over-Current Protection Devices not shown in this illustration.

USING & ADJUSTING THE MOTOR

STOWING AND DEPLOYING THE MOTOR
When raising or lowering the motor, keep fi ngers clear of all hinge and pivot points and all moving parts.

1. Loosen the depth collar screw.
2. Push Deploy-Assist Lever down.
3. Push motor out.
4. Tighten the depth collar screw.

TO DEPLOY THE MOTOR
Loosen the Dept Collar screw, then push fi rmly down on the Deploy-Assist Lever to release the collar and slide the motor forward, out from the ramp. Lower the motor to the desired depth. Make sure it clicks into a secure, vertical position.

TO STOW THE MOTOR
Push down on the Tilt Lock Lever and raise the motor by pulling up on the composite shaft or control head. Pull the motor toward the stern until it rests securely on the ramp and the Deploy-Assist Lever captures the latch collar. Slide the depth collar down and secure it against the top of the steering housing to secure the motor in place and prevent accidental deployment.

TRANSPORTATION
In conditions where the stowed motor is subject to high levels of shock or vibration, take care to provide a secure stow. Move the depth collar snug against the steering motor and tighten.

TO ADJUST THE LATCH COLLAR
The latch collar is adjustable. If needed, loosen the Phillips head screw and rotate the collar up or down to re-align the latch and collar. The ideal adjustment is a slightly loose fi t that completely captures the collar.

AUTOPILOT™ CONTROLS

(ON AUTOPILOT EQUIPPED MOTORS ONLY)
The Minn Kota AutoPilot™ uses a magnetic compass and a microprocessor chip to keep the trolling motor pointed in the direction you want to go. Each time the wind or water current moves the boat off course, the AutoPilot senses the change and steers itself back to the original heading. The AutoPilot direction is set every time a steering change is made. To change direction, steer until the control head points to the desired course. The AutoPilot will pull the bow of the boat around and correct automatically until the boat is moving in the direction you chose.

1. This unit has an automatic steering shutdown for safety. In conditions where an obstruction prevents the trolling motor from turning, or in extremely windy conditions, the automatic steering may stop. Any steering input will reset the system to normal.
2. When the AutoPilot is on and the trolling motor is pulled out of the water to the stow position, the steering motor will continue to run. Turn off the AutoPilot switch to stop the motor. If the switch is left on, the steering motor will shut off automatically after 10 seconds. The motor should not be sored in this condition for long periods as power is still being applied to all eletronics. Always turn the Autopilot switch off and disconnect your motor from the battery when storing your boat.
3. This unit uses a magnetic compass to detect direction of travel. The compass can be adversely aff ected by magnets or large, ferrous metal objects near (within 12” of) the trolling motor control head.
4. After steering to a new direction, there is a short delay before the direction is locked in to allow the compass to stabilize.
5. Obstructions on the propeller may cause excessive vibration of the motor head. This vibration can cause the compass to wander and erratic steering to occur. Clear the obstruction to return the motor to normal operation.
6. When broad speed changes are made, the motor heading may change slightly. This is normal.

NOTE: Always turn the AutoPilot switch off and disconnect your motor from the battery when storing your boat.

ADJUSTING THE DEPTH OF THE MOTOR
When setting the depth be sure the top of the motor is submerged at least 12” to avoid churning or agitation of surface water. The propeller must be completely submerged.

1. With the motor deployed, fi rmly grasp the composite shaft above the mount.
2. loosen the adjustable depth collar until the shaft slides freely.
3. Raise or lower the motor to the desired depth.
4. Turn the motor control head to the desired position.
5. Tighten adjustable depth collar to secure the motor in place.

USING & ADJUSTING THE MOTOR

INSTALLING AN EXTERNAL TRANSDUCER
An external sonar transducer can be installed onto the motor as shown.

Note: An external transducer is not included with your trolling motor. Your trolling motor may be pre-installed with a Universal Sonar 2 transducer system. In this case, the transducer is integrated into the motor unit.
For compatibility and more information on Universal Sonar 2, please visit minnkotamotors.com/us2.

ACCESSORY RECOMMENDATIONS:
Minn Kota Transducer Mounting Kit (MKR-15)

USING THE FOOT PEDAL

All the controls in the foot pedal are easy to operate by either foot or hand. A light touch is all that is necessary.

MOMENTARY
A toe touch on the momentary button turns the propeller on. Let up and the propeller stops.

MOMENTARY/CONSTANT (MOM/CON) SWITCH
When the switch is in CON position the motor will run continuously without keeping your foot on the pedal. Slide the switch to momentary (MOM) to again operate the motor with toe touch.

RIGHT/LEFT
Place your foot in the center of the steering pedal, rocking to the right steers right. Rocking to the left steers left. The heel of your foot can also be placed on the deck of the boat. Using your heel to pivot on, depress and hold the
center momentary to turn the motor on or depress and hold the left or right side of the pedal to steer left or right.

NOTE: The steering system is designed to turn your motor 360°. Be careful to avoid over-wrapping the coil cord around the composite shaft.

FORWARD/REVERSE
The propeller always turns in the forward direction. You can reverse the direction of thrust by turning the motor 180˚.

SPEED CONTROL
The speed selector is the calibrated sliding bar located on the right side of the foot pedal. The speed selector provides variable speed control with the built in pulse modulation system. Use your hand or foot to slide the bar forward to increase speed. Draw the bar back to decrease speed. The slider also contains a roller to aid in fine speed adjustment. Slide your foot over the roller with light down pressure to adjust speed. The motor may not start turning until the speed slider reaches speeds 1 or 2. This depends on manufacturing tolerances and if the CoPilot accessory is installed.

NON-CARPETED BOAT USE
Enclosed with your motor are four (4) rubber bumpers. If the foot pedal is to be used primarily on non-carpeted surfaces, insert the rubber bumpers into the keyhole slots on the underside of the pedal. Slide the bumpers into the slot until they are locked into position.

SERVICE & MAINTENANCE

PROPELLER REPLACEMENT

TOOLS AND RESOURCES REQUIRED:

• Box End Wrench
  • 1/2” for motors with 70 lbs thrust or lower.
  • 9/16” for motors with 80 lbs thrust or higher.
• Screwdriver (optional)

CAUTION:
Disconnect the motor from the battery before beginning any prop work or maintenance.

NOTE: The propeller on your motor may diff er from the one pictured.

1. Disconnect the motor from all sources of power prior to changing the propeller.
2. Hold the propeller and loosen the prop nut with pliers or a wrench.
3. Remove the prop nut and washer. If the drive pin is sheared or broken, you will need to hold the shaft stationary with a blade screwdriver pressed into the slot on the end of the shaft.
4. Turn the old prop to horizontal (as illustrated) and pull it straight off . If drive pin falls out, push it back in.
5. Align the new propeller with the drive pin.
6. Install the prop washer and prop nut.
7. Tighten the prop nut 1/4 turn past snug [25-35 inch lbs.] Do not over tighten as this can damage the prop.

GENERAL MAINTENANCE

1. After use, the entire motor should be rinsed with freshwater. This series of motors is not equipped for saltwater exposure.
2. The composite shaft requires periodic cleaning and lubrication for proper retraction and deployment. A coating of an aqueous based silicone spray will improve operation.
3. The propeller must be inspected and cleaned from weeds and fi shing line after every use.
   Fishing line and weeds can get behind the prop, damage the seals and allow water to enter the motor.
4. Verify the prop nut is secure each time the motor is used.
5. To prevent accidental damage during transportation or storage, disconnect the battery whenever the motor is off of the water. For prolonged storage, lightly coat all metal parts with an aqueous based silicone spray.
6. For maximum battery life recharge the battery(s) as soon as possible after use. For maximum motor performance restore battery to full charge prior to use.
7. Keep battery terminals clean with fi ne sandpaper or emery cloth.
8. The propeller is designed to provide weed free operation with very high effi ciency. To maintain this top performance, the leading edge of the blades must be kept smooth. If they are rough or nicked from use, restore to smooth by sanding with fi ne sandpaper.

TROUBLESHOOTING & REPAIR

1. Motor fails to run or lacks power:
   1. Check battery connections for proper polarity.
   2. Make sure terminals are clean and corrosion free. Use fi ne sandpaper or emery cloth to clean terminals.
   3. Check battery water level. Add water if needed.
2. Motor loses power after a short running time:
   1. Check battery charge. If low, restore to full charge.
3. You experience prop vibration during normal operation:
   1. Remove and rotate the prop 180°. See removal instructions in the Propeller Replacement Section.
4. Experiencing interference with your fi shfi nder:
   1. You may, in some applications, experience interference in your depth fi nder display. We recommend that you use a separate deep cycle marine battery for your trolling motor and that you power the depth fi nder from the starting/cranking battery. If problems still persist, call our service department at 1-800-227-6433.

NOTE: For any other malfunctions, visit an Authorized Service Center. You can search for an Authorized Service Center in your area by visiting our Authorized Service page, found online at minnkotamotors.com, or by calling our customer service number at 800-227-6433.

FOR FURTHER TROUBLESHOOTING AND REPAIR

We off er several options to help you troubleshoot and/or repair your product. Please read through the options listed below.
FREQUENTLY ASKED QUESTIONS
We have FAQs available on our website to help answer all of your Minn Kota questions. Visit minnkotamotors.com and click on “Frequently Asked Questions” to fi nd an answer to your question.

CALL US (FOR U.S. AND CANADA)
Our consumer service representatives are available Monday – Friday between 7:00 a.m. – 4:30 p.m. CST at 800-227-6433. If you are calling to order parts, please have the 11-character serial number from your product, specifi c part numbers, and credit card information available. This will help expedite your call and allow us to provide you with the best consumer service possible. You can reference the parts list located in your manual to identify the specifi c part numbers.

EMAIL US
You can email our consumer service department with questions regarding your Minn Kota products. To email your question, visit minnkotamotors.com and click on “Support”.

AUTHORIZED SERVICE CENTERS
Minn Kota has over 300 authorized service centers in the United States and Canada where you can purchase parts or get your products repaired. Please visit our Authorized Service Center page on our website to locate a service center in your area.

PARTS DIAGRAM

POWERDRIVE 45
45 LBS THRUST – 12 VOLT – 48” SHAFT This page provides Minn Kota® WEEE compliance disassembly instructions. For more information about where you should dispose of your waste equipment for recycling and recovery and/or your European Union member state requirements, please contact your dealer or distributor from which your product was purchased. Tools required, but not limited to: fl at head screw driver, Phillips screw driver, socket set, pliers, wire cutters.

PARTS LIST

POWERDRIVE 45 45 LBS THRUST – 12 VOLT – 48” SHAFT

COMPLIANCE STATEMENTS

ENVIRONMENTAL COMPLIANCE STATEMENT:
It is the intention of JOME to be a responsible corporate citizen, operating in compliance with known and applicable environmental regulations, and a good neighbor in the communities where we make or sell our products.

WEEE DIRECTIVE:
EU Directive 2002/96/EC “Waste of Electrical and Electronic Equipment Directive (WEEE)” impacts most distributors, sellers, and manufacturers of consumer electronics in the European Union. The WEEE Directive requires the producer of consumer electronics to take responsibility for the management of waste from their products to achieve environmentally responsible disposal during the product life cycle. WEEE compliance may not be required in your location for electrical & electronic equipment (EEE), nor may it be required for EEE designed and intended as fi xed or temporary installation in transportation vehicles such as automobiles, aircraft, and boats. In some European Union member states, these vehicles are considered outside of the scope of the Directive, and EEE for those applications can be considered excluded from the WEEE Directive requirement. This symbol (WEEE wheelie bin) on product indicates the product must not be disposed of with other household refuse. It must be disposed of and collected for recycling and recovery of waste EEE. Johnson Outdoors Inc. will mark all EEE products in accordance with the WEEE Directive. It is our goal to comply in the collection, treatment, recovery, and environmentally sound disposal of those products; however, these requirement do vary within European Union member states. For more information about where you should dispose of your waste equipment for recycling and recovery and/or your European Union member state requirements, please contact your dealer or distributor from which your product was purchased.

DISPOSAL:
Minn Kota motors are not subject to the disposal regulations EAG-VO (electric devices directive) that implements the WEEE directive. Nevertheless never dispose of your Minn Kota motor in a garbage bin but at the proper place of collection of your local town council. Never dispose of battery in a garbage bin. Comply with the disposal directions of the manufacturer or his representative and dispose of them at the proper place of collection of your local town council.

WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
