Linksys BEFCMU10v3 cable modem manual


Linksys BEFCMU10v3 cable modem manual Image

Linksys BEFCMU10v3 cable modem

Modem Information

Cable Modem

DOCSIS 2.0 with speeds of up to 25 Mbps on a wired connection

Not compatible with future speed increases

Cox recommends a DOCSIS 3.1 modem or gateway

What does this mean?

Highest Service Level

Starter

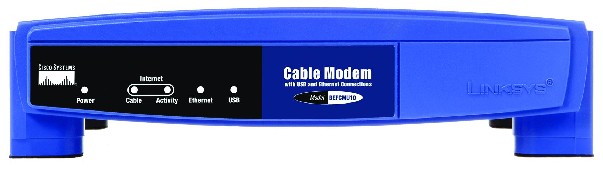

Front View

Click to enlarge.

After the cable modem successfully registers on the network, the Power, Cable, and USB or Ethernet indicators illuminate continuously to indicate that the cable modem is online and fully operational.

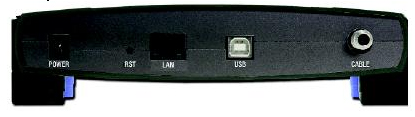

Back View

Click to enlarge.

The Linksys BEFCMU10v3 has the following ports available on the back of the modem.
  • POWER – Connects the cable modem to the power adapter
  • RST – Used to reset the modem
  • LAN – Connects to the Ethernet port on your computer
  • USB – Connects to the USB port on your computer
  • CABLE – Connects to the cable wall outlet

The RST button is for maintenance purposes only.

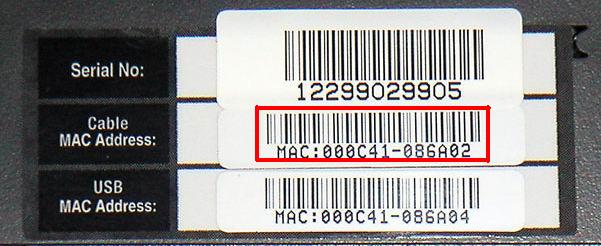

MAC Address

Click to enlarge.

MAC addresses are written as 12 digits containing both letters and numbers (0-9, A-F). A MAC address is unique. The first six characters of the MAC address are unique to the manufacturer of the device.

Troubleshooting

The modem lights indicate the current status of your cable modem. To troubleshoot any connection problems, use the table below.

Modem Light Status Problem
Power Solid Green None.
Off No power. Verify power supply connections and electrical outlet. Also make sure the outlet is not connected to a switch.
Cable Slow
Flashing green
Searching for cable connection. Verify all cable connections and try resetting the modem.
Fast Flash Modem Searching for cable connection. If this is a new modem or a replacement modem, you must contact Cox with your MAC address Click Here. If there are several MAC addresses on the modem, please use the “HFC” or “RF” MAC address.
Off No connection cable connection. Verify all cable connections and try resetting the modem.
Activity Flashing Green Traffic is passing through the cable modem port.
Ethernet Solid Green None. Ethernet connection to computer found.
Off No Ethernet found. Verify Ethernet cable connections, the TCP/IP settings and the NIC. You might need to reinstall the NIC drivers.
USB Solid Green None. USB connection to computer found.
Off No USB found. Verify USB cable connections, the TCP/IP settings and the USB cable. You might need to reinstall the USB drivers.
