DEFIANT DFI-0654-WH Motion Security Light User Guide

Safety Information

PRECAUTIONS

• This light fixture should be installed outdoors to a wall or eave.
• The light fixture should be mounted approximately 8 (2.4 m) above the ground.
• Do not cut the solar panel Discontinue use if the wire becomes frayed or broken.
• Do not immerse components in liquid.
• Do not use any other charging device other than the single solar charging panel provided with this Doing so may result in injury or damage to the light and voids any warranty.
• Position the cord so that it is securely fastened and will not result in a hazard (such as tripping).
• The maximum extension cord length to use with this product is 60

NOTE: A 30 ft. extension cord is available for this product at HOMEDEPOT.COM.
WARNING: To prevent possible SERIOUS INJURY or DEATH, never allow small children near batteries. If a battery is swallowed, immediately notify a doctor.
WARNING: DO NOT DISPOSE OF BATTERIES IN FIRE. BATTERIES MAY EXPLODE OR LEAK.

NOTICE: When replacing batteries, recycle used batteries or dispose of them in accordance with local regulations.

Warranty

1-YEAR LIMITED WARRANTY

WHAT IS COVERED

This product is guaranteed to be free of factory defective parts and workmanship for a period of 1 year from date of purchase. Purchase receipt is required for all warranty claims.

WHAT IS NOT COVERED

This guarantee does not include repair service, adjustment and calibration due to misuse, abuse or negligence. Unauthorized service or modification of the product or of any furnished component will void this warranty in its entirety. This warranty does not include reimbursement for inconvenience, installation, setup time, loss of use, unauthorized service, or return shipping charges. This warranty is not extended to other equipment and components that a customer uses in conjunction with this product.
No service parts available for this product. Contact the Customer Service Team at 1-866-308-3976 or visit www.HomeDepot.com.

Pre-Installation

SOLAR PANEL

The solar panel converts the sun’s energy into electricity, thus charging the battery stored in the solar light fixture. The solar panel requires direct sunlight falling onto the face of the solar panel for as long as possible over the course of the day.
When choosing the location for the solar panel, make sure it is aimed toward the South and is tilted to a suitable angle to allow as much direct sunlight to fall upon it as possible. Make sure there is a minimum amount of obstructions between the solar panel and the sun. Also, make sure your solar panel location is not too far away from the solar light fixture for the wires to reach and connect.

NOTE: At high noon, adjust the solar panel so that it faces the sun. During any time of year, this adjustment will provide optimal positioning for collecting solar energy.
You can also angle the panel up by 45°, which should provide for adequate exposure.

SPECIFICATIONS

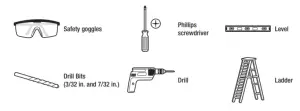

TOOLS REQUIRED

NOTE: Hardware not shown to actual size.

PACKAGE CONTENTS

Installation

1 Determining the mounting location

NOTE: The light fixture should be mounted approximately 8 ft. (2.4 m) above the ground.
NOTE: Ensure the fixture and the solar panel are located close enough together for the cord to reach. You can also add on an extension cord. Ensure the solar panel faces South.

• Determine the mounting location – wall or eave mount.
• Position the lamp head (A) in the general direction of the desired light coverage.

2 Setting the sensor for wall or eave mounting

NOTE: Adjust the sensor angle to a coverage desired.

• For wall mounting, tilt the sensor (C) down 10 degrees to cover up to a 50 range in front.
• For eave mounting, turn the sensor (C) either clockwise or counterclockwise to the desired

3 Installing the mounting plate

NOTE: Make sure there is enough vertical space above the mounting plate to allow the light fixture to be mounted.

Place the mounting plate (AA) against the mounting surface and ensure the mounting plate (AA) is level. Mark the hole locations on the mounting surface, through which the mounting screws (CC) will be threaded.

• If mounting to a wooden surface, drill two 3/32 holes into the mounting surface. Install the two mounting screws (CC) through the mounting plate (AA) and into the mounting surface.
• If mounting to wall board or brick, drill two 7/32 holes into the mounting surface. Insert the wall anchors (DD) and attach the mounting plate (AA) using the two mounting screws (CC).

4 Mounting the light fixture

• Slide the rear of the light fixture (B) onto the mounting plate (AA) until it snaps into
• Secure the fixture in place on the mounting plate using the mounting bolts (EE).

5 Mounting the solar panel

RECOMMENDED: Caulk around the base and on top of the screw heads after installation

Place the solar base (F) against the mounting surface and mark the mounting holes.

•  If mounting to a wooden surface, drill four 3/32 in. holes into the mounting surface. Install the four mounting screws (CC) through the solar panel base (F) and into the mounting surface.
•  If mounting to wall board or brick, drill four 7/32 in. holes into the mounting surface. Insert the wall anchors (DD) and attach the solar panel base (F) using the four mounting screws (CC).
• Once the solar panel base (F) has been installed, position the solor panel (E) above it, adjusting the direction and angle of the panel to its desired position to receive optimal sunlight.
• Place the panel (E) into the base (F) and use the base screw (BB) to secure the panel (E) in place on the base (F).

6 Adjusting the solar panel

IMPORTANT: The solar panel (E) must receive as much direct sunlight over the course of the day as possible. Keep in mind that shadows may block the sunlight from reaching the solar panel (E) during the day.

• Rotate the solar panel (E) to the desired angle.

7 Connecting the solar panel to the light fixture

• Carefully connect the solar panel (E) cable to the light fixture (B). Screw the caps on the plugs firmly.
• Wrap any excess solar panel cable around the base (F) located on the rear of the solar panel (E). Leave enough loose cable to form a drip loop.

IMPORTANT: Push the switch to the OFF position and allow the battery to charge with 2 to 3 days of full sunshine before testing.

Operation

1 Adjusting the lamp heads

• If needed, gently grasp the lamp heads (A) and tilt them up or down or side-to-side to adjust the light coverage area

2 Using the OFF Control

•  Press the power button (D) to turn the light (B) off and to conserve the battery life.

NOTE: Pushing the button in turns the light (B) ON (AUTO mode). Pushing again so that the power button is out and extended turns the light OFF.

3 Testing the light

NOTE: It is recommended that the light be tested before being placed in regular operation. Remember to set the switch from TEST to MOTION after testing the light.

NOTE: Testing the unit indoors or lower than 7 ft. from the ground may not enable the light to work optimally when mounted into its final outdoor position.

NOTE: With the Power button (D) in the OFF position, allow the unit to charge in direct sunlight for at least 6 hours before testing, or placing into normal operation.

Before placing the light in normal operation (Motion mode), it is best to test the light LEDs and motion sensor. Here is the process or doing so:

• Activate the light by pressing the Power button (D) to the ON
• Switch the Motion/Test switch to ‘Test’. The light will turn ON, and stay on continuously for 1 Use this time to adjust the LED light heads to where you would like them to shine when motion is detected.
• After the first minute, the light will turn OFF, but will activate for 5 seconds every time motion is Use this time to adjust the motion sensor (C) to where you want the light to detect motion and activate. While the switch is in ‘Test’ mode, the light will continue to activate in 5 second intervals. When finished with these adjustments, switch back to ‘Motion’, and the light will go into normal operation. Depending on your LUX setting and time of day, the light may turn OFF until it’s dark enough to activate.

4 Reading the indicator light

• The indicator light is located below the motion sensor (C), and shows the basic status of the
• If the indicator light flickers RED, the sensor is detecting This is an indication that the motion sensor is working, even if the LED light heads are not activating.
• If the indicator light is GREEN, the batteries are charging. This is an indication that the batteries are not depleted, and the transfer of solar energy to the rechargeable batteries is working.

5 Adjusting the light timer

NOTE: The TIME dial controls the amount of time the light (B) will stay on full brightness after motion has been detected. The timer is adjustable from 30 to 90 seconds.

• To increase the time, turn the TIME dial towards the 90 second position.
• To decrease the time, turn the TIME dial towards the 30 second position.

6 Adjusting the LUX

NOTE: Adjust the setting of the environmental light brightness to trigger the auto dusk-to-dawn photocell.

• To turn on the light in a very dark area, turn the LUX dial towards the “L” position.
• To turn on the light during daylight, turn the LUX dial towards the “H” position.

7 Adjusting the sensitivity

NOTE: The SENS dial adjusts the sensitivity of the motion sensor.

•  To increase sensitivity, and increase the sensor range up to 50 ft., turn the SENS dial towards the “H” position.
•  To decrease sensitivity, and reduce the sensor range, turn the SENS dial towards the “L” position.

Maintenance

When the pre-installed, rechargeable Nickel-metal Hydride batteries have reached the end of their useful life, they can be easily replaced. Disconnect the light from the solar panel, and unmount from its position, placing the light on a sturdy surface. Unscrew and remove the back panel to access the batteries. Remove the batteries from the cradle, and disconnect the plug that attaches it to the light circuit board. Connect the new batteries at the plug, and place the batteries back in position. Replace the rear cover, screwing it securely into position. Remount the light, connect the solar panel, and follow the installation instructions. Please properly dispose of the depleted Nickel-metal Hydride batteries.

Care and Cleaning

• To prolong the original appearance, clean the light fixture with clear water and a soft, damp cloth only.
• Periodically clean the solar panel with a soft cloth and warm water. Do not hose spray. Keep the panel clear of snow and leaves. Make sure trees and other objects do not block sunlight from the panel.
•  Do not use paints, solvents, or other chemicals on this light fixture. They could cause a premature deterioration of the finish. This is not a defect in the finish and will not be covered by the warranty.
• Do not spray the light fixture with a hose or power washer.
• If not to be used for several weeks, turn the unit OFF. Store it with the panel connected and where the panel can gather sunlight.

Troubleshooting

Questions, problems, missing parts? Before returning to the store, call Defiant Customer Service
8 a.m. – 7 p.m., EST, Monday-Friday, 9 a.m. – 6 p.m., EST, Saturday 1-866-308-3976

HOMEDEPOT.COM
Retain this manual for future use.

Quick Start Guide
MOTION SOLAR SECURITY LIGHT
Item # 1005414989
Model # DFI-7004-WH-G

The solar panel requires full, direct sunlight to charge the battery. Clouds, rain, snow, and other weather conditions may not allow the solar panel to completely recharge the battery. Other obstructions such as buildings or trees may block the sun as well.
When installing the solar panel, make sure it is aimed toward the sun with a minimum amount of obstructions. If possible, mount the panel facing toward the southern sky.
Refer to the included full instruction manual “Use and Care Guide” for installation, safety, and additional information.

Operation

1. Adjusting the lamp heads
   The lamp heads may be adjusted left or right and up and down.
2. Connecting the solar panel to the light fixture
   • Adjust solar panel toward the sun for maximum sun exposure.
   • Plug solar panel connector into light fixture connector.
3. Determining the motion sensor detection zone
   NOTE: When the motion sensor switch is set to the “TEST” position, the light will operate during the day or night. The light will stay on for 5 seconds after all motion is stopped.
   • Slide the switch to the “TEST” position.
   • Slide the “SENS” switch to the “L” (low) position.
   • Perform a “walk test”: walk in an arc across the front of the motion sensor.
   • Watch the light. The light will come on and the red LED will flash indicating motion has been detected.
   • Stop, wait for the light to turn off, and then begin walking again.
   • Continue this process until the detection zone has been established.
   • If needed, gently grasp the motion sensor and move it from side to side or up and down to adjust the detection zone.


4. Adjusting the sensitivity
   • “L” – Low range
   • “M” – Medium range
   • “H” – High range
5. Adjusting the light timer
   • OFF – turns light off.
   • TEST – light operates day or night for 5 seconds after all motion has stopped. Used for setup.
   • AUTO – motion activated. Light can be set to stay on between 5 seconds and 1 minute after all motion has stopped.

INITIAL BATTERY CHARGE
IMPORTANT: Ensure the solar panel cord is firmly attached to the light fixture cord with no space between the two connectors.
IMPORTANT: The solar panel requires full, direct sunlight to charge the battery. Clouds, rain, snow, and other weather conditions may not allow the solar panel to completely recharge the battery. Other obstructions such as buildings or trees may block the sun as well.
When installing the solar panel, make sure it is aimed as described below with a minimum amount of obstructions. If possible, mount the panel facing toward the southern sky.

• PRIOR TO USE, the battery will require 2 to 5 days of full sun to completely charge with the control switch in the OFF position. Plug the solar panel cable into the connector extending from the bottom of the battery case. If possible, aim the solar panel toward the south and tilt it approximately 50° from horizontal. If the solar panel cannot be aimed toward the south, then tilt the panel approximately 30° if possible.
• Actual operating time will vary depending upon how frequently the light is turned on by the motion sensor.
• Solar lighting is not designed to equal standard 120V lighting. The amount of light output is reduced to allow the sun time to fully recharge the battery between lighting cycles.
•  The solar collection is only effective in direct sunlight. Every hour the light is on requires a minimum of 16 hours of sunlight charging. Solar panels collect less than 10% of the sun’s energy.

To ensure the maximum RUN TIME solar performance:

• Slide the control switch to the “AUTO” position.
•  Slide the “SENS” switch to the “M” (medium) position.
• Set the time dial HALFWAY between 5S and 1MIN.

Troubleshooting

Please contact 1-866-308-3976 for further assistance.
HOMEDEPOT.com

DEFIANT DAYLIGHT ADJUSTING INDOOR DIGITAL TIMER User Manual

Quick Start Guide

NOTE: See the installation section for wiring instructions.

STEP: 1 SETTING THE CURRENT DAY AND TIME

WARNING
Shut off power at the fuse box or circuit breaker before performing any wiring or installation

•  Press the SETUP button and CAL will begin to flash. Press ENTER to set the Date.
•  Use +/- buttons to select the current year and press ENTER. Continue to use the +/- buttons to set the month, day, hour, and minute.
  NOTE: Ensure that you set AM/PM when setting the hours. Date format displayed is – MM DD YY.
•  Continue to press the ENTER button to skip DST, Zone, Sunup, and Sunset settings.
  NOTE: Refer to Detailed Instructions for extra features for DST (Daylight Savings Time), Time Zone, SUNUP and SUNSET.

STEP: 2 ON/OFF PROGRAMMING

•  Press the SETUP button twice and “P1 ON” will display. See Figure 1.
•  Program ON: Use +/- buttons to select the program number and on and push ENTER button to set. Select Day: Use +/- buttons to select the days and press Enter to confirm.
  NOTE: Press ENTER again to enter time setting from the screen with PRG and days flashing.Select Time: Use the +/- buttons to scroll to the TIME option and press ENTER. The hour will begin to flash. Continue to use the +/- and ENTER buttons to set the hour and minute ON times.
•  Program OFF: Repeat b steps to set off day and time.
• NOTE: Push the SETUP button to save and skip programming mode after saving.

PRODUCT DESCRIPTION

Pre-Installation

HARDWARE INCLUDED

SAFETY INFORMATION

This device complies with part 15 of the FCC and Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: this device may not cause harmful interference, and this device must accept any interference received, including interference that may cause undesired operation.

FCC NOTE

The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment.NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

•  Reorient or relocate the receiving antenna.
•  Increase the separation between the equipment and receiver.
•  Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• consult the dealer or an experienced radio/TV technician for help

CHANGING THE FACEPLATE
This device includes a light-almond faceplate. To switch faceplates, follow the steps below.

•  Gently remove the white faceplate using a flathead screwdriver. Starting at the top left corner, gently pry the faceplate loose, working around the edge until it pops off.
•  Find the light-almond faceplate in the package. Place the new faceplate into position and carefully push until it snaps into place.

PREPARING FOR MULTI-SWITCH INSTALLATIONS
When combining controls in a wall box, remove all the inner side sections prior to making the electrical connections.

•  Use pliers to bend the side section up and down until it breaks off.
•  Repeat the process for each side section to be removed.

Detailed Installation Instructions

This timer has 3 different installation options. Please refer to the following descriptions for the installation instructions that apply to you.

•  Single pole installation is for when you only have one switch that controls your light.
•  3-Way installation is for when you have two switches that control the same light. You will need to know if you are installing your timer on the Line or Load side of your 3-Way switch and follow those installation instructions appropriately.
•  For a 3-Way installation, the Line side has the common (hot) terminal tied to 120VAC.
•  The switch on the Load side has the common (hot) terminal tied to the lamp/load the switch turns OFF and ON.
• WARNING: Shut off power at the fuse box or circuit breaker before performing any wiring or installation

SINGLE POLE INSTALLATION

NOTE: For 3-way timer control and operation for fixtures with mechanical ballast, install the timer in the “load side” wiring box. Disconnect the power at the circuit breaker or fuse box, and remove the existing switch.

• Connect the wires of the timer to the wall box as shown, using the wire nuts provided. See Figure 2.
•  Connect the hot/live wire from the line to the black wire from the timer.
•  Connect the hot/live wire from the load to the blue wire from the timer.
•  Connect the ground wire to the green wire from the timer.
•  Connect the neutral wire to the white wire from the timer. Often the neutral (white) wire can be found in the back of the wire box connected with a wire nut. There may be several neutral wires bound together. Add the neutral to all neutral wires bound together making sure the wire nut is tight.
•  Attach a wire nut to the red (traveler) wire from the back of the timer. This wire is not needed in the single pole installation.
•  Ensure that all wire nuts are secure. Tuck the wires into the wall box, leaving room for the timer.
•  Use the screws (CC) to mount the timer to the wall box, being careful not to crush any wires.
•  Reinstall your wall plate.
•  Turn the main power ON at the circuit breaker.
•  If the timer display does not turn on, disconnect the power at the circuit breaker or fuse box. Swap the black and blue wires on the timer.

Detailed Installation Instructions (continued)

SWITCH ON LINE SIDE

•  Disconnect the power from the circuit by turning off the circuit breaker or removing the fuse from the fuse box.
•  Remove and label the common wire (should be hot/line), and remove one of the other wires.
•  Using the supplied wire nuts, connect the wire removed from the common, the supplied jumper, and the other removed wire (1) together.
•  Connect the jumper back to the common connection from the switch.
•  If the two wires (wire (1) and wire (5)) on the switch are colored or marked so you can tell them apart, record their markings for use later.
•  Tuck the wires into the box, leaving room for the switch.
•  Install the switch into the box.
•  Remove the load side 3-way switch and the three wires, labeling the common wire.
•  Connect the removed common wire to the blue wire from the timer.
• Connect wire (1) to the black (line) wire from the timer.
•  Connect wire (5) to the red (traveler) wire from the timer.
•  Connect the white wire (1) from the timer to the white wire from the switch box (neutral).
• The neutral wires may be bundled in the back of the switch box with a wire nut, and there may be several neutral wires bound together. Add the neutral to all neutral wires bound together, making sure the wire nut is tight.
•  Connect the green wire (3) from the timer to the ground in the switch box.
•  Tuck the wires into the switch box, leaving room for the timer.
•  Use the supplied screws to install the timer, being careful not to crush or pinch the wires.
•  Restore power at the circuit breaker or fuse box.
•  If the timer display does not turn on, swap wire (1) and wire (5). This can be done at the timer or toggle switch after disconnecting the power at the fuse box or circuit breaker. If the timer display does not turn on, disconnect power at the circuit breaker or fuse box. Swap wire (1) and wire (5), which can be done at the timer or toggle switch.
•  Verify that the load turns ON and OFF when you manually turn the timer ON and OFF. Perform this test with the remote switch in both positions. You should hear the timer relay click ON/OFF. If you hear the relay click but the load does not turn ON/OFF properly, check your wiring.

EXISTING 3-WAY INSTALLATION (LINE SIDE; SEE FIGURES 3 & 5)

TIMER ON LINE SIDE

•  Disconnect the power from the circuit by turning off the circuit breaker or removing the fuse from the fuse box.
• Remove the line side 3-way switch and wires, and label the wire removed from the common terminal. Connect the common wire (1) to the black wire from the timer using the supplied wire nuts.
• Connect the white wire from the timer to the neutral wire (white). The neutral wires may be bundled together in the back of the box, and there may be several neutral wires bound together. Add the neutral to all neutral wires bound together, ensuring the wire nut is tight.
• Connect the two remaining wires to the red wire (5) and blue wire (4) from the timer. The wires are colored or marked, so you can tell them apart and note their markings for use later.
•  Connect the green wire (3) to the ground wire (green or bare wire in box).
•  Carefully tuck the wires into the switch box, leaving room for the timer.
•  Use the supplied screws to install the timer, being careful not to crush or pinch the wires.
•  Remove the load side 3-way switch and wires, and label the common wire (4).
•  Connect the jumper wire from the switch to both the load wire and wire (4). You should have three wires connected with one wire nut.
•  Connect the jumper back to the common input of the 3-way switch. The other wire (5) should stay connected to one of the other connections of the 3-way switch.
•  Carefully tuck the wires into the switch box leaving room for the timer. Use the screws provided to install the timer in the box, being careful not to crush any wires.
•  Restore power at the circuit breaker or fuse box.
•  Verify that the load turns ON and OFF when you manually turn the timer ON and OFF. Perform this test with the remote switch in both positions.
•  If the load does not operate proprerly, disconnect the power at the circuit breaker or fuse box. Then swap wire (4) and wire (5). This can be done at the time or the toggle switch.

Detailed Operating Instructions

•  Remove the protective film from the screen.
•  Using the tip of a pencil, gently press and hold the reset button (D) until you see the word “RESET” scroll across the screen. Release the button and “12:00 AM” will begin to flash.
•  Press the SETUP button (B) and “CAL” will begin to flash. Press the enter button (G) to begin setting the calendar, and the year will begin to flash (Figure 5B).
•  Press the “+” or “-” button (C) to set the current year. Press the enter button (G), and the month will begin to flash.
•  Repeat the sequence in step d. to set the current month, day, hour, and minute, pressing the enter button (G) to continue to the next step.
•  Press the “+” or “-” button (C) to turn Daylight Savings time ON/OFF. Press the enter (G) button to confirm
•  Press the setup button (B) twice to begin programming ON/OFF days, and “P1 ON” will display.
•  Press the enter button (G) once, and “SET” will display. Press the enter button (G) again to begin setting the ON time, and “PRG” will be displayed with the days of the week flashing.
•  Press the “+” or “-” button (C) to select the day(s) you want this program to turn the timer ON:
  •  S, S (Saturday and Sunday)
  •  M, T, W, Th, F (weekdays only)
  •  S, M, T, W, Th, F, S (individual days)
  •  T, Th (Tuesday and Thursday)
  •  M, W, F (Monday, Wednesday, and Friday)
  •  S, M, T, W, Th, F, S (default: all days of the week)
• Press the enter button (G) to confirm the setting.

SETTING THE TIME ZONE
View the map below and determine which zone best fits your location. The options are NOR: North, CENT: Central, SOUT: South, HAWA: Hawaii, and ALAS: Alaska.

•  “ZONE” will be flashing on your screen. Press the enter button (G) to begin setting your time zone, and “NOR” will begin to flash. Use the “+” or “-” button (C) to select the zone identified. Press the enter button (G) to confirm, and “DAWN” will be displayed with an approximate dawn time for your area.
•  Press the “+” or “-” button (C) to set your current dawn hour. Press the enter button (G) to confirm.
•  Press the “+” or “-” button (C) to set your current dawn minute. Press the enter button (G) to confirm, and “DUSK” will be displayed.
•  Use the same process to set the dusk hour and minute, and “SAVE” will be displayed.
•  Press the enter button (G) to save the current date and time information.
•  Press the enter button (D) to confirm the desired setting. If you have selected TIME, the hour will begin to flash.
•  Press the “+” or “-” button (C) to set the hour you want the timer to turn ON. Press the enter button (G) when the hour and AM/PM are correct, and the minute will begin to flash.
•  Press the “+” or “-” button (C) to select the minute you want the timer to turn ON. Press the enter button (G), and “P1 OFF” and “PRG” will be displayed. Follow the previous steps to set the OFF days and times.
•  Once finished, “Save” will begin flashing. Press the enter button (G) to save this program, and “P2 ON” will be displayed, with P2 flashing. If you need additional programs, press the enter button (G) and repeat the steps above to set the next program ON/OFF times. When you are finished, press the auto button (E) to complete the programming.

USING THE RANDOM FEATURE
The random feature will turn the lights ON and OFF using the programmed times “+” or “-” 30 minutes, giving the house a more lived-in appearance while the occupant is away.

•  Push the RND button (F) to activate the random feature. The screen will change from AUTO to RDM.
•  Push the auto button (E) to deactivate the random feature and return the timer to its current programming.

DELETING PREVIOUSLY ENTERED PROGRAMS

Press the setup button (B) twice, then press the “+” or “-” button (C) to scroll to the program you wish to delete. Press the enter button (G) and “SET” will display.

•  Press the “+” or “-” button (C) until the screen reads “DEL,” then press the enter button (G).
•  The program is now deleted, and you may press the “+” or “-” button (C) to select another program for deletion following the steps above. Press the auto button (E) when you have completed deleting all desired programs.

USE AND CARE GUIDE

Package Contents

FCC Statement

WARNING: Changes or modifications to this unit not expressly approved by the party
responsible for compliance could void the user’s authority to operate the equipment
NOTE: This equipment has been tested and found to comply with the limits fora Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, There is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiverIS Connected.
• Consult the dealer or an experienced radio/TV technician for help
• The device must not be co-located or operating in conjunction with any other antenna or transmitter.
• This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and(2) this device must accept any interference received, including interference that may cause undesired operation.

Pre-Installation

PLANNING INSTALLATION LOCATION

• Place the alarm In an area where you want to discourage potentlal security threats.

Pairing the Transmitters to the Alarm

Preparing the alaim and transmitters

• Insert three AA batteries (not included into each Blann (A).

Remove plastic battery Insulation tab from the key lub (8), door/Window sensor (C), and vibration sensor (D). Key fob requires 1 CR2032 battery Oncluded).

90-DAY LIMITED WARRENTY
The manufacturer warrants this product to be free from manufacturing defects for a period of ninety days from the original date of consumer purchase. This warranty is imited to the repair or replacement of this product only and does not extend to consequential or incidental damage to otther products that may be used with this unit. This warranty does not cOver products which have been abused, altered or damaged. This warranty is in lieu of all other warranties express or implied. TO THE EXTENT PERMITTED BY LAW, THE MANUFACTURER DISCLAIMS ALL OTHER IMPLIED OR EXPRESS WARRANTIES, INCLUDING THE WARRANTY OF MERCHANTABILITY AND/OR FITNESS FORA PARTICULAR PURPOSE. LIMITATIONS OF LIABILITY: This limited warranty is your sole remedy and the manufacturer shall not be liable for any damages, whether direct, indirect, incidental, special, consequential, exemplary or otherwise, including lost revenue and lost profits, arising out of any theory of recover, including statutory, contract or tort. In no event will the manufacturer’s entire liability exceed the purchase price of this product. Some states and provinces do not allow the exclusion or limitations on how long an implied warranty lasts or permit the exclusion or limitations of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This limited warranty gives you specific  legal rights, and you may also have other rights which vary from state to state and province to province.  If unit should prove defective within the warranty period, return prepaid with dated proof of purchase to the place of purchase. Contact the Customer Service Team at 1-866-308-3976 or visit www.HOMEDEPOT.COM.

Specifications

RECEIVER SPECIFICATIONS

TRANSMITTER SPECIFICATIONS

Pairing the Transmitters to the Alarm (continued)

Pairing the transmitters

• Using a screwdriver, press and hold the Code button for 3 seconds on one of the alarms (A). A single beep sounds.
• Press any button on the key fob (8).
• Slide the switch on the vlbraHon Blann (D) to RF and then tap the vibration alarm to send a wireless signal to the alarm (A).
• separate the magnetic contact from the door/window sensors (C). The red indicator llghtb.irnson.
• The alann (A) beeps once to indicate the signal is received.

Pairing the Transmitters to the Alarm (continued)

Completing the pairing

• Using a scrawdrivar, press and hold the Code button on the alann (A) again. The Blann sounds two beeps.

Release the screwdriver. Palrtng Is now complete. Repeat these steps for the second alarm (A). You can add up to 32 transmitters to each alarm (A).

Installing the alanna

• Install the brackets (E} to the desired mounting location using the wall anchor screws(F).

Place an alarm (A) into ” ‘ bracket (E) and adjust the angle of the alarm (A) by loosening the scew in the bracket lighten the screw once the declion angle is set

Installing the door/window magnetic sensors

• Maka sure the arrows of both the magnetic sb’ip and sensor are facing each others shown below.
• Install the door/window magnetic sensors (C) to a door or window using a 3M sticker.

Installing the vibration sensors

• Place the 3M sticker on the back of the sensor.
• Install the vibration sensors (D) on a window using a 3M slicker.

Unpairing the Alarm

To clear codes and unpalr the Blann (transmitter) from the receivers, ensure the batteries are removed and press and hold the Code button on the Blann {A). 111en Insert the batteries. 111e alarm beeps twice to conflnn that the unpalrlng Is successful.

Troubleshooting

The alarm (receiver) false alarms.
Check if any animals are in the vicinity of the alarm. During warm weather, moving shadows may also activate the alarm. Make sure that the alarm is not positioned near a radiator or heat source. Check if any appliances within the property are emitting a strong electromagnetic field near the door/window magnetic contact. Strong electromagnetic fields may cause the door/window magnetic contact to false alarm.
The alarm (receiver) cannot receive the signal sent from the transmitter (remote key fob or door/window magnetic contact).
Check if the pairing between the transmitter and the receiver has been successful. If the pairing was successful, check the battery voltage for both the receiver and the transmitter. Low voltage will cause the product to fail.
The alarm detects movement, however, no alarm sounds.
Check if the low battery indicator is flashing (please replace batteries immediately). If the unit is armed and set in the HOME mode and the alarm detects an intrusion, the alarm will not sound. The PIR Sensor in the alarm is disabled in HOME mode. Check if the receiver is installed correctly.

Operation

Setting the Vibration Sensor

• The vibration sensor (D) has the following switch settings: off-The vibration sensor is off.
• RF-When triggered, the vibration sensor will not sound but instead sends a wireless signal to the alarm (receiver) (A).
• RF+Alarm-The vibration sensor beeps three times when turned on. When triggered, it sends a wireless signal to the alarm (receiver) and after 2 seconds the sensor sounds for 8 seconds.
• Install the vibration sensor on the upper corner to middle of the glass door or window, out of the reach of children and pets.

Using the System in AWAY Mode

• Slide the switch (1) on the key fob (B) up for AWAY mode and press ON (2).
• The alarm (receiver) beeps once. After 30 seconds, the unit enters ARM mode. The alarm sounds and flashes a light if:
  • The door/window installed with the magnetic sensor (C) is opened.
  • The window installed with the vibration sensor (D) is knocked.
  • Someone enters the property and the alarm (A) detects the intrusion.
• To disarm the alarms press OFF (3) on the key fob (B). When the alarm (A) receives the DISARM command, it will beep twice. If it is in the ALARM status, the sound immediately turns off.

Using the System in HOME Mode

• In HOME mode, you are using the door/window magnetic sensors (C) or the vibration sensors (D). The PIR sensor in the alarm (A) is disabled in this mode. Therefore, your windows and doors are protected by magnetic sensors or vibration alarms whilst you are in the property. If a door or window is opened or knocked, the alarm will sound. To disarm the alarm press “OFF” on the remote key fob (B).
• Slide the switch (1) down on the key fob (B) to HOME mode and press ON (2). The
• alarm (receiver) beeps once. After 30 seconds, the unit enters into ARM mode. To disarm the alarm press OFF (3) on the key fob.

NOTE:The description above is only for the system with one alarm (A). If you want two alarms in the system and want them to be interlinked, they both must be paired to each other and be paired to the transmitters respectively. After, you must arm two alarms (A) with the key fob (B). Once armed, two alarms will sound if any transmitter is triggered. In the AWAY mode, no matter which alarm detects human movements, two alarms will sound.

Quick Start Guide
MOTION SOLAR SECURITY LIGHT
Item # 1005414982
Model # DFI-7005-WH-G

The solar panel requires full, direct sunlight to charge the battery. Clouds, rain, snow, and other weather conditions may not allow
the solar panel to completely recharge the battery. Other obstructions such as buildings or trees may block the sun as well.
When installing the solar panel, make sure it is aimed toward the sun with a minimum amount of obstructions. If possible, mount the panel facing toward the southern sky.
Refer to the included full instruction manual “Use and Care Guide” for installation, safety, and additional information.

Operation

1. Setting the sensor for wall or eave mounting

• For wall mounting, turn the ring around the sensor clockwise until the “W” and the single indicator are aligned with the mark on the front of the sensor.
• For eave mounting, turn the ring around the sensor counterclockwise until the “E” and the double indicator are aligned with the mark on the front of the sensor.

2. Activating the rechargeable battery
The light fixture has an ON/OFF switch located on the back of the light to disconnect the battery during shipping.

• Press the “I” indicator on the switch to activate the rechargeable battery.

3. Adjusting the light timer

• OFF – turns light off.
• TEST – light operates day or night for 5 seconds after all motion has stopped. Used for setup.
• 5S – 60S – motion activated. Light can be set to stay on between 5 seconds and 60 seconds after all motion has stopped.

4. Adjusting the lamp heads
The lamp heads may be adjusted left or right and up and down.

5. Connecting the solar panel to the light fixture

• Adjust solar panel toward the sun for maximum sun exposure.
• Plug solar panel connector into light fixture connector.

INITIAL BATTERY CHARGE

IMPORTANT: Ensure the solar panel cord is firmly attached to the light fixture cord with no space between the two connectors.
IMPORTANT: The solar panel requires full, direct sunlight to charge the battery. Clouds, rain, snow, and other weather conditions may not allow the solar panel to completely recharge the battery. Other obstructions such as buildings or trees may block the sun as well.
When installing the solar panel, make sure it is aimed as described below with a minimum amount of obstructions. If possible, mount the panel facing toward the southern sky.

• PRIOR TO USE, the battery will require 2 to 5 days of full sun to completely charge with the control switch in the OFF position. Plug the solar panel cable into the connector extending from the bottom of the battery case. If possible, aim the solar panel toward the south and tilt it approximately 50° from horizontal. If the solar panel cannot be aimed toward the south, then tilt the panel approximately 30° if possible.
• Actual operating time will vary depending upon how frequently the light is turned on by the motion sensor.
• Solar lighting is not designed to equal standard 120V lighting. The amount of light output is reduced to allow the sun time to fully recharge the battery between lighting cycles.
• The solar collection is only effective in direct sunlight. Every hour the light is on requires a minimum of 16 hours of sunlight charging. Solar panels collect less than 10% of the sun’s energy.

To ensure the maximum RUN TIME solar performance:

• Set the time dial HALFWAY between 5S and 60S.

Troubleshooting

210537-02A
HOMEDEPOT.com
Please contact 1-866-308-3976 for further assistance.
