Plantronics RIG 800 Series Headphones, RIG 800HD, RIG 800HS, RIG 800HX, RIG 800LX
Setup and basics
Your adapter comes pre-paired to your headset. After you adjust and charge
Fit your headset and configure your adapter, power on your headset and it’s
ready to go.
Your headset components easily snap into the headset frame to configure the best fit and sound.
The headband adjusts to three sizes (small, medium, large) by moving the earcups. To remove an
earcup, press the earcup to detach it from the headband.
Setup PS4
1 Connect your adapter to your system.
2 Power on your PS4 and Check for updates
3 Go to Settings > Sound and Screen > Audio Output Settings > Select Digital Out (Optical)
4 Go to Settings > Devices > Audio Devices > Output Devices Select Plantronics RIG800XX
PS4 (slim version)
1 Connect your adapter to your system.
2 Power on your PS4 and Check for updates
3 Go to Settings > Devices > Audio Devices > Output Devices Select Plantronics RIG800XX
4 Go to Settings > Devices > Audio Devices > Output to headphones > All audio
Setup Xbox One
1 Connect your adapter to your system.
2 Power on your Xbox One and Check for updates
3 Go to Display and Sound > Kinect and Devices > Device Options > Assign
Setup PC
1 Connect your adapter to your system.
IMPORTANT Optical cable connection is only for RIG 800HD and RIG 800HS.
NOTE Optical cable is not provided in RIG 800HD.
2 RIG 800HX and RIG 800LX only: Ensure the switch on the back of the adapter is set to “PC.”

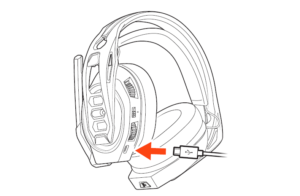

Charge
It takes up to 4.5 hours to fully charge your headphones. The headset LED is red while charging
and turns off when complete.
Adjust volume
1 To increase or decrease the game and chat volume, adjust the top headset dial.
2 To increase or decrease the master volume, adjust the bottom headset dial.
IMPORTANT For the PS4 (slim version), set the top headset dial in the middle; game and chat
remain balanced. Use the bottom headset dial to increase or decrease the master volume.
Mute Lift the boom to a full stop to mute the microphone.
CAUTION Do not force the boom past its upper or lower limits.
Set EQ Cycle through the EQ modes by tapping the EQ button.
Tap the EQ button and hear EQ mode
one tone Pure EQ is our signature sound
two tones Seismic EQ boosts bass
three tones Intensify EQ focuses on detail sounds
four tones Vocal EQ emphasizes vocal frequencies
NEED MORE HELP?
plantronics.com/support
